OMAX مجهر مركب متباين الطور مقلوب 40X-400X مع كاميرا رقمية USB3.0 عالية السرعة 14 ميجابكسل

SAR 20,640

ماركة
OMAX
وزن
22.7 kg
1 +

مميزات خاصة

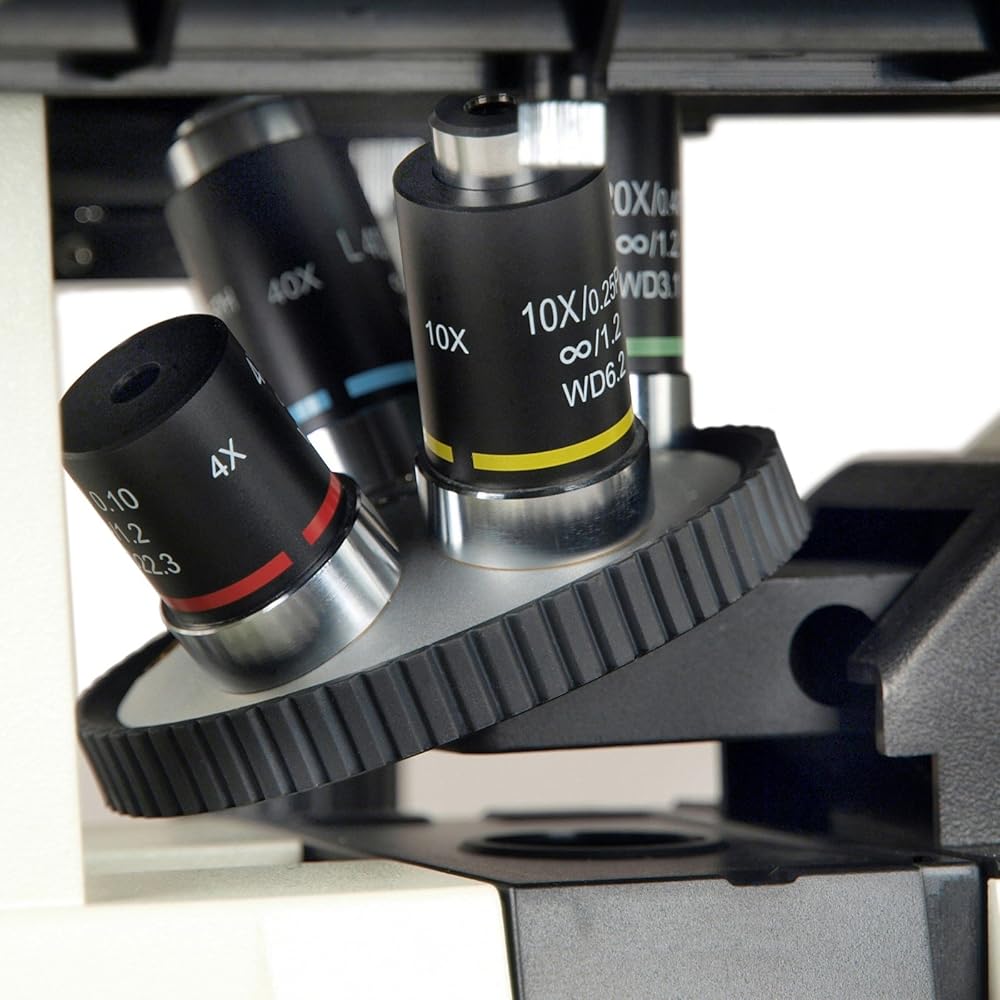

  • Total Magnification: 40X, 100X, 200X, 400X: Eyepiece - A pair of 10X eyepieces with 20mm wide field of view: Objective - Infinity plan achromatic 4X/0.10, ∞/1.2mm, WD 22.3mm - Infinity plan phase contrast 10X/0.25, ∞/1.2mm, WD 6.2mm - Infinity plan phase contrast 20X/0.40, ∞/1.2mm, WD 3.1mm - Infinity plan phase contrast 40X/0.55, ∞/1.2mm, WD 2.2mm: Viewing Head - Siedentopf binocular, 45degrees; inclined viewing head
  • Total Magnification: 40X, 100X, 200X, 400X: Eyepiece - A pair of 10X eyepieces with 20mm wide field of view: Objective - Infinity plan achromatic 4X/0.10, ∞/1.2mm, WD 22.3mm - Infinity plan phase contrast 10X/0.25, ∞/1.2mm, WD 6.2mm - Infinity plan phase contrast 20X/0.40, ∞/1.2mm, WD 3.1mm - Infinity plan phase contrast 40X/0.55, ∞/1.2mm, WD 2.2mm: Viewing Head - Siedentopf binocular, 45degrees; inclined viewing head
  • Total Magnification: 40X, 100X, 200X, 400X: Eyepiece - A pair of 10X eyepieces with 20mm wide field of view: Objective - Infinity plan achromatic 4X/0.10, ∞/1.2mm, WD 22.3mm - Infinity plan phase contrast 10X/0.25, ∞/1.2mm, WD 6.2mm - Infinity plan phase contrast 20X/0.40, ∞/1.2mm, WD 3.1mm - Infinity plan phase contrast 40X/0.55, ∞/1.2mm, WD 2.2mm: Viewing Head - Siedentopf binocular, 45degrees; inclined viewing head

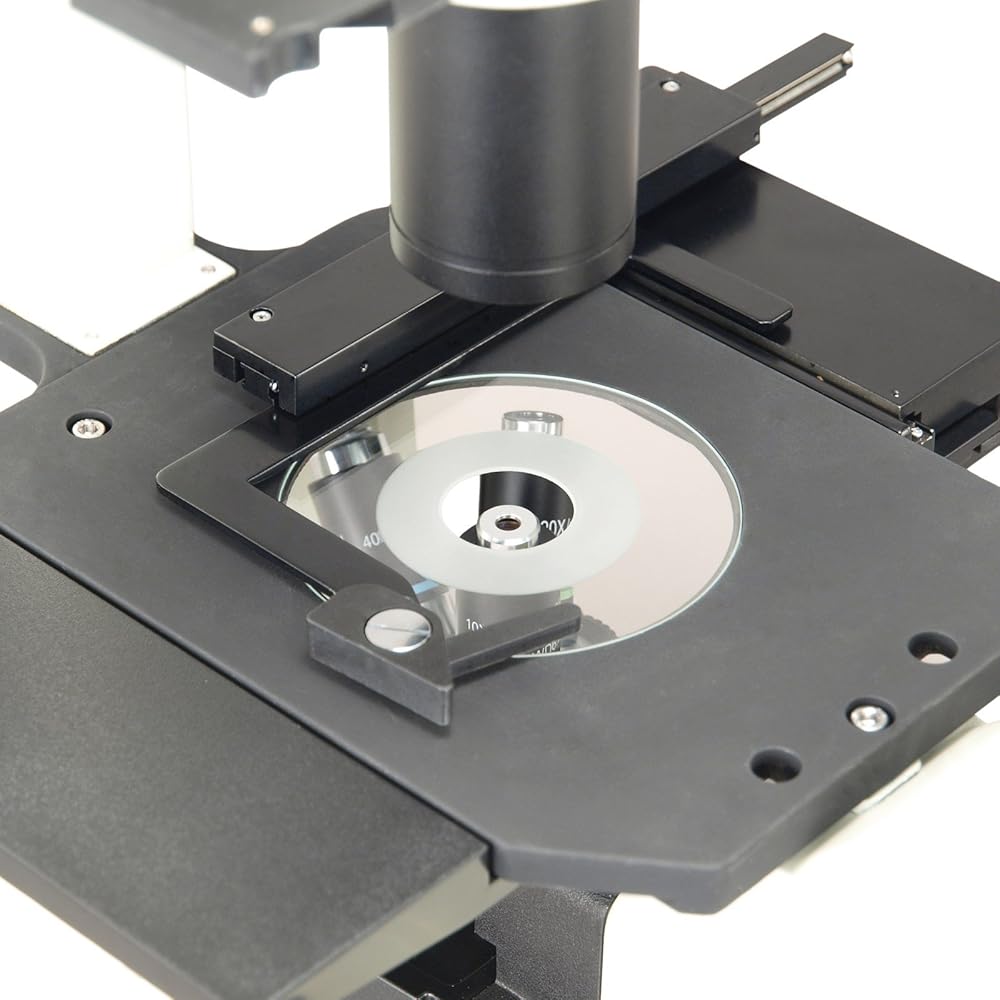

  • Interpupillary distance adjustable: 50mm ~ 70mm ( 2inch ~ 2-3/4inch ); Inner diameter of ocular tube: 30mm: Nosepiece - Revolving, quintuple: Stage - Plain stage, dimension 230mm x 170mm - Mechanical stage attachment: X-Y stroke 120mm x 80mm - Stage extension plate: working surface 189mm x 70mm - Stage insert plate: glass, phi108mm - Slide holder plate: metal, 128mm x 86mm, slot for slide 76mm x 26mm, opening for petri dish phi54mm
  • Illumination - Transmitted illumination - 6V/30W halogen bulb - Light intensity is adjustable - Aperture iris diaphragm - Condenser: working distance 72mm, NA 0.3, removable for large working room: Photo port - Upper port: light split 20/80 (eyepiece / photo) - Lower port: light split 0/100 (eyepiece / photo) - Camera adapter with C-mount - Camera adapter with standard 23.2mm port; Focusing - Coaxial fine and coarse knobs on both side - Tension adjustable
  • Color filter - Diameter phi45mm - LBD light balancing filter - IF550 interference filter (green) - SIF800 Inrared-eliminating filter (yellow); Phase contrast accessory - Phase contrast slider plate, center adjustable - Centering telescope: Power - AC110V; Terasaki holder plate: metal, 138mm x 86mm, slot for Terasaki plate 81mm x 56mm, opening for petri dish phi65mm; etri dish holder plate: metal, 81mm x 56mm, opening for petri dish phi35mm

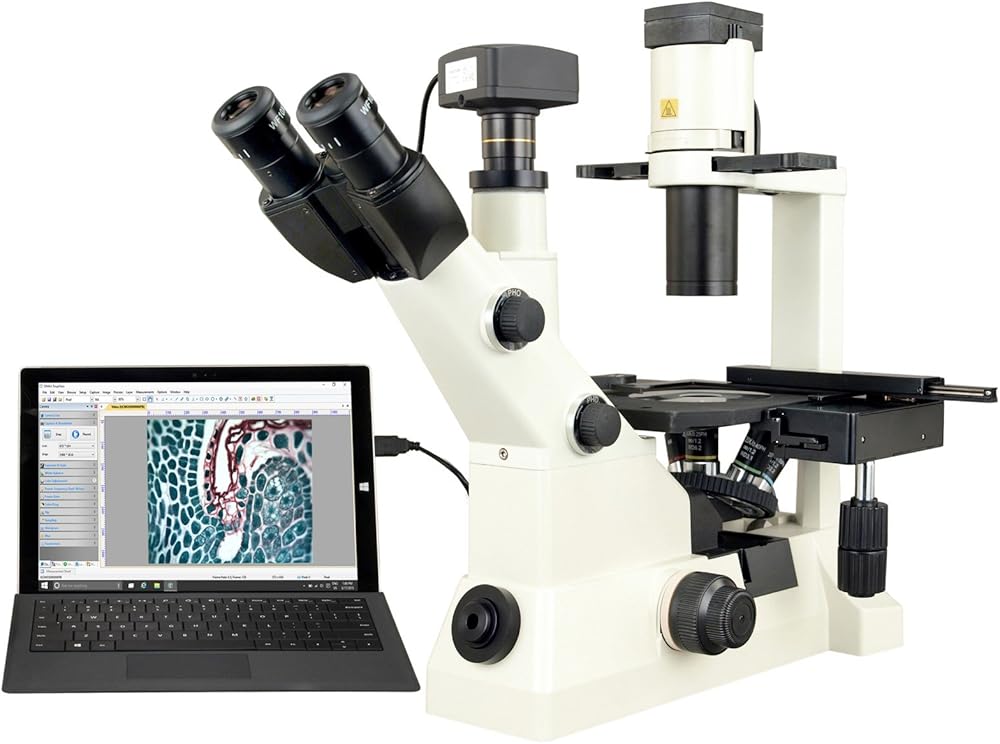

  • Digital Camera - High speed USB3.0, compatible with USB2.0 - Resolution 4096x3286 pixels ( 14 MP ) - 0.5X reduction lens to get larger field of view - Driver and software included in a CD - 0.01 mm stage micrometer included - USB cable included - Software included; 5-year warranty against manufacturing defects

وصف

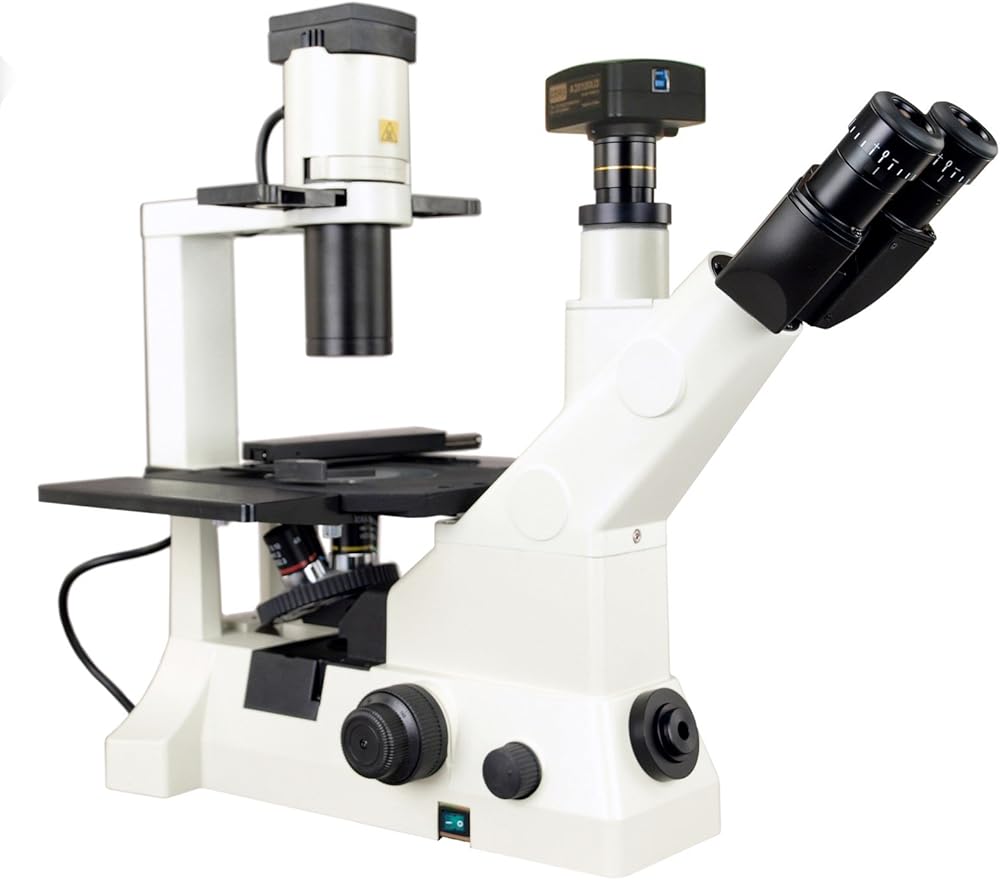

This microscope system is a professional grade trinocular biological inverted microscope with super widefield eyepieces, long working distance PLAN objectives, and a high speed 10MP USB 2.0 microscope camera. It is designed for the applications involving biological specimens in large vessels. This microscope will allow you to observe specimen in culture flasks, Petri dishes or other similarly sized containers, and it comes with long working distance PLAN objectives, high quality phase contrast objectives, super widefield eyepieces, 45 degree inclined trinocular head. The microscope offers 40X, 100X, 200X and 400X magnification settings and phase contrast microscopy features. With a long working distance condenser and high-contrast phase contrast objectives, it provides high quality clear microscopy images of the cells of your specimen. It is an ideal microscope for observing living cells in micro research laboratories, universities, or medical offices.
