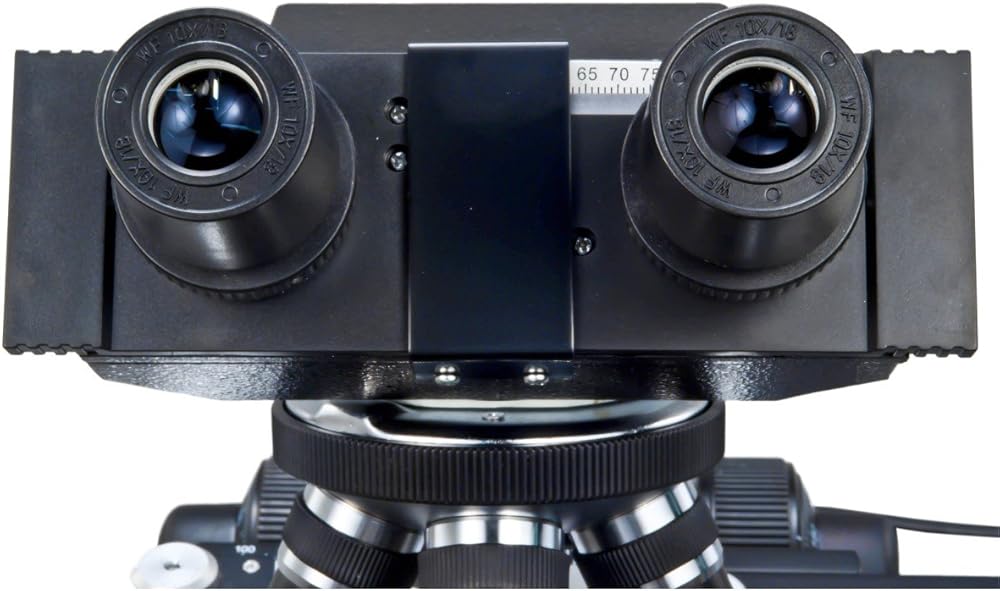

Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple; Stage: mechanical stain-resistant double layer, size: 5-1/2inch x 5-1/2inch (140mm x 140mm), translation range: 3inch x 2inch (75mm x 50mm); Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control

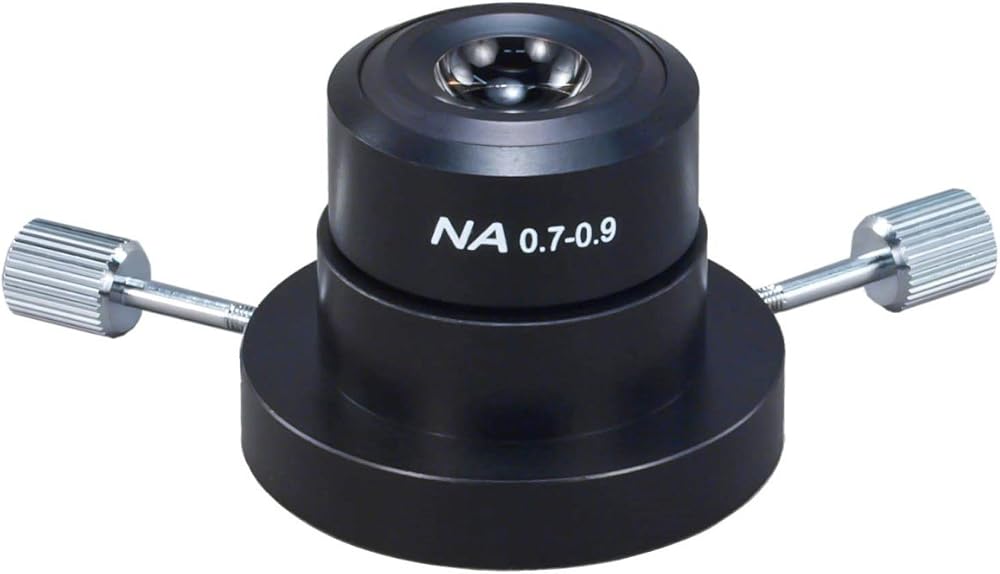

Focusing knob can be locked for observation and transportation; Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Dry darkfield condenser: NA0.7-0.9; Black palm rest on the base
Illumination: transmitted (lower), replaceable 3W LED light, variable intensity; Metal mechanical components; Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)
5-year warranty against manufacturing defects
وصف

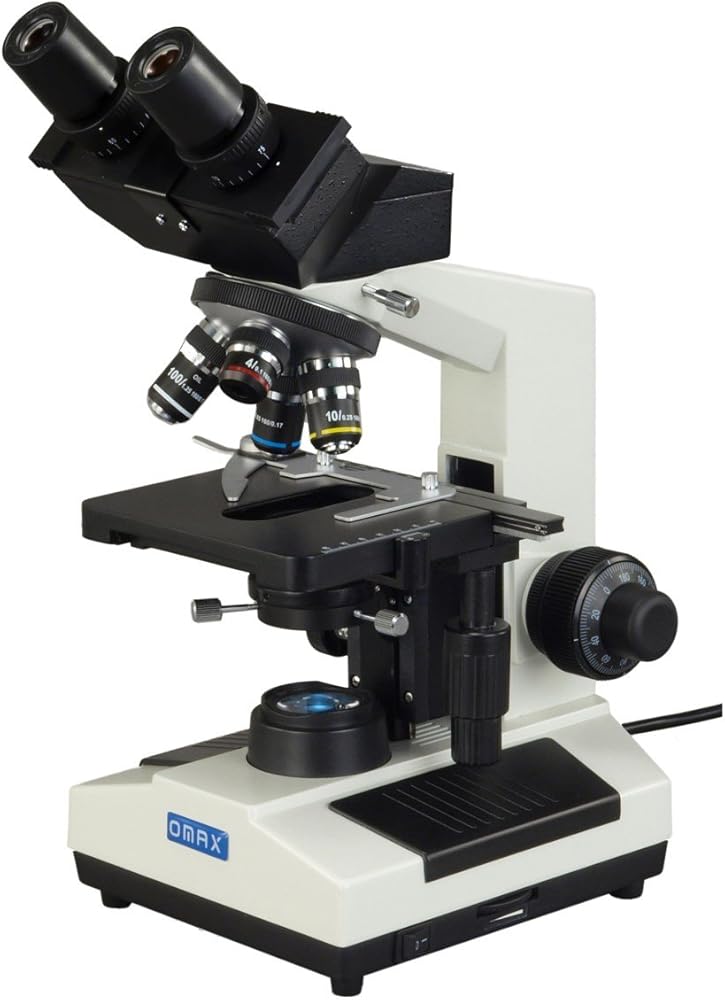

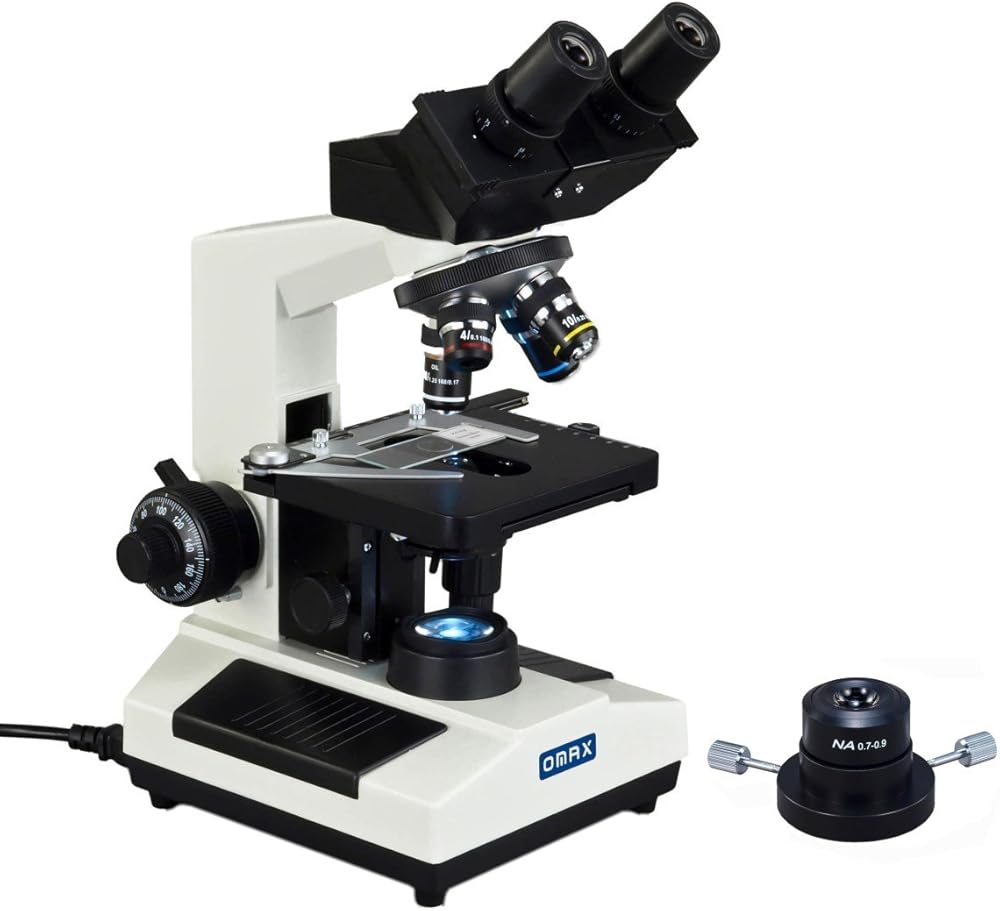

The binocular compound LED microscope provides both brightfield and darkfield microscope system. It offers eight level magnifications from 40X to 2000X. The dry darkfield condenser is capable of providing darkfield with the dry objectives. The laboratory microscope comes with binocular head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanicalstage, LED illumination system, dry darkfield NA0.7-0.9 condenser & brightfield Abbe NA1.25 condensers. The LED illuminator is user serviceable. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. The binocular microscope is good for teaching, demonstration, clinical examination and research purpose.
