General information
Type CPU / Microprocessor
Market segment Desktop
Model number ? FX-4200
CPU part number FD4200FRW4KGU is an OEM/tray microprocessor
Frequency ? 3300 MHz
Maximum turbo frequency 3600 MHz (more than 2 cores) [1]
3900 MHz (2 cores or less) [1]
Boosted P states [2] #1: 3900 MHz, 1.4125V
#2: 3600 MHz, 1.4125V

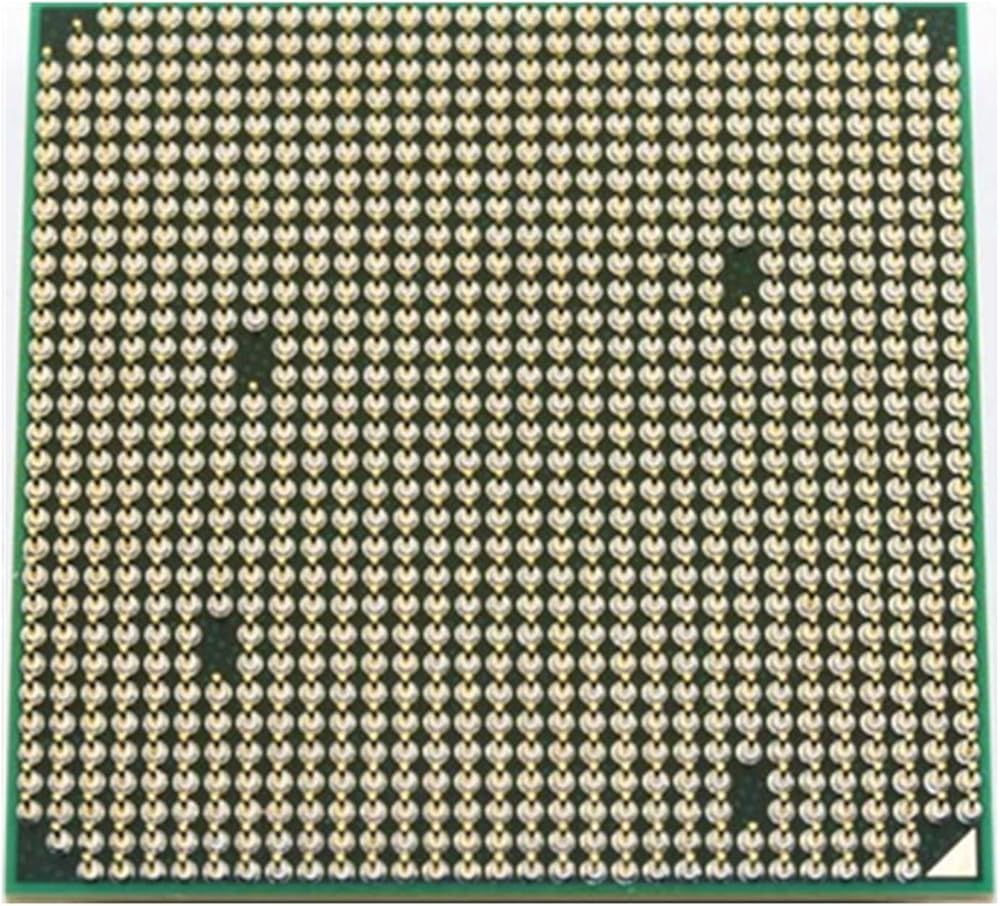

Package 940-pin organic micro Pin Grid Array (UOC940)
Pb-free
Socket Socket AM3+
Architecture / Microarchitecture
Microarchitecture Bulldozer
Platform Scorpius
Processor c ? Zambezi
c stepping ? OR-B2
CPUID 600F12
Manufacturing process 0.032 micron Hi-K Metal Gate process with silicon-on-insulator (SOI) technology
Die 316mm2
Data width 64 bit
The number of CPU cores 4
The number of threads 4
Floating Point Unit Integrated (shared between each pair of cores)
Level 1 cache size ? 2 x 64 KB 2-way set associative shared instruction caches
4 x 16 KB 4-way set associative data caches
Level 2 cache size ? 2 x 2 MB 16-way set associative shared exclusive caches
Level 3 cache size 8 MB 64-way set associative shared cache
Cache latency 3 (L1 cache)
Multiprocessing Uniprocessor
Extensions and Technologies MMX instructions
Extensions to MMX
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
SSE4a ?
AES / Advanced Encryption Standard instructions
AVX / Advanced Vector Extensions
FMA4 / 4-operand Fused Multiply-Add instructions
XOP / eXtended Operations instructions
AMD64 / 64-bit technology ?
AMD-V / Virtualization technology
EVP / Enhanced a Protection ?
Turbo c 2.0 technology
Low power features c C1, C1E, C6 and CC6 states
Package S3, S4 and S5 states
PowerNow!
Low power P states [2] #1: 3000 MHz, 1.25V
#2: 2500 MHz, 1.1125V
#3: 1900 MHz, 0.9875V
#4: 1400 MHz, 0.9125V
Integrated peripherals / components
Integrated graphics None
Memory controller The number of controllers: 1
Memory channels: 2
Channel width (bits): 72
Supported memory: DDR3
DIMMs per channel: 2
Other peripherals HyperTransport 3.1 technology
Electrical / Thermal parameters
Thermal Design Power ? 125 Watt
