* 8.29M megapixel high quality SONY CMOS sensor
* Up to 4K@30fps , presenting ultra clear and vivid image
* 10X optical zoom lens and 67.5° wide angle lens
* Simultaneous HDMI, USB3.0, IP Streaming video out, easily for professional video production
* PoE(Power over Ethernet) supported
* Auto focus, smart frame capture everyone
* Supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
* Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
* High speed and silent pan/tilt, capture all the actions
* Multiple control protocol and network protocol
* Support real-time AI tracking and zone tracking
* Ideal for online education, live streaming, video conference, Tele-medicine, etc.

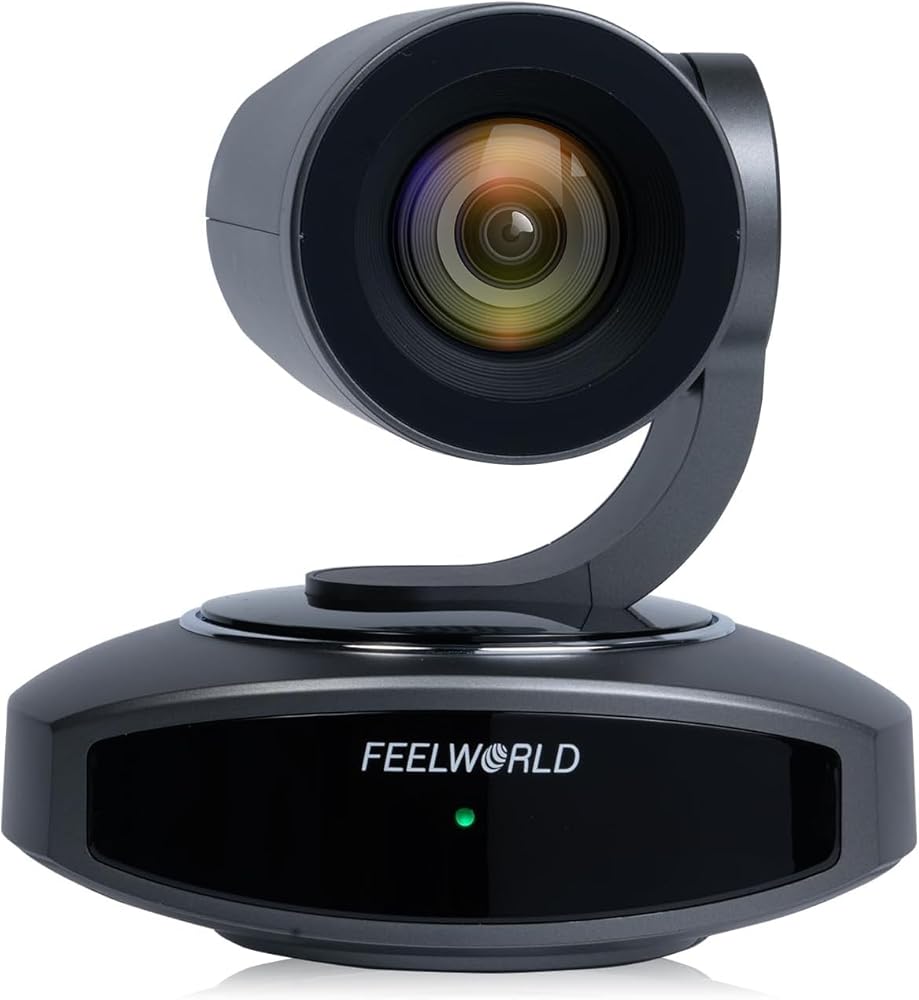

Model: 4K10X
Sensor: 1/2.8 inch high quality CMOS sensor
Effective Pixels: 8.29 megapixel, 16：9
View Angle: H：7.6°（N）～67.5°（W）
Iris: F1.76 ～ F3.0±5%
Digital Zoom: 16X
Optical Zoom: 10X
Minimum Illumination: 0.5Lux(F1.8, AGC ON)
DNR: 2D & 3D
White Balance: Auto/Manual/One-push/Specified Color Temperature
Focus: Auto/Manual/One-push
Exposure Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Iris Mode: F1.8 ～ F11, CLOSE
Shutter Speed: 1/25～1/20000
BLC: On/Off
Dynamic Range: Off, 1 ～ 8
Video Adjustment Brightness, Contrast, Saturation, W&B Mode, Horizontal flip, vertical flip, Digital Zoom, Minimum Illumination
SNR: >50dB

Input/output Interface
Interface HDMI, LAN(POE), USB3.0, USB2.0, RS232-IN, DC12V Power Supply
Video Output: HDMI, USB3.0, LAN(support PoE)
Video Compression Format: LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12
Audio Compression Format: AAC
LAN Interface: 100M Ethernet port, support POE power supply, support audio and video output
Control Interface: RS232-IN
Serial Port Communication Protocols: VISCA/Pelco-D/Pelco-P；Baud Rate 115200/38400/9600/4800/2400
USB Communication Protocols: UVC（Video Communication Protocol）, UAC（Audio Communication Protocol）
Network Protocol: RTSP、RTMP、ONVIF、GB/T28181、VISCA OVER IP、IP VISCA、RTMPS、SRT，support remote upgrade, remote restart, remote reset
Power Supply: HEC3800 Power Socket(DC12V)
PTZ Parameters
Pan Rotation: -125°～+125°
Tilt Rotation: -30°～+30°
Pan Control Speed: 0.1 ～65°/sec
Tilt Control Speed: 0.1～35°/sec
Preset Speed: Pan: 65°/sec, Tilt: 35°/sec
Preset Number: 255 presets(10 via remote control)

Video Signal
HDMI: 4KP30/25,1080P60/59.94/50/30/29.97/25,720P60/59.94/50
LAN Main Stream: 1920×1080/1280×720/640×480@30/25/20/15/10/5 fps;
LAN Sub-Stream: 1280×720/640×360/640×480/320×240/320×180@30/25/20/15/10/5fps
USB Main Stream: YUY2/NV12:1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps;
USB Main Stream: MJPG/H264:3840×2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps
USB Sub-stream: YUY2/NV12:1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@25/20/15/10/5fps
USB Sub-stream: MJPG/H264: 3840×2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps
Other Parameters
Input Voltage: 12V
Input Current: Power Consumption: ≤13.3W
Stored Temperature: -10℃～+70℃
Storage Humidity: 20%～95%
Working Temperature: -10℃～+50℃
Working Humidity: 20%～80%
Dimension (W*H*D): 152X155X126mm
Unit Weight: 0.9kg
