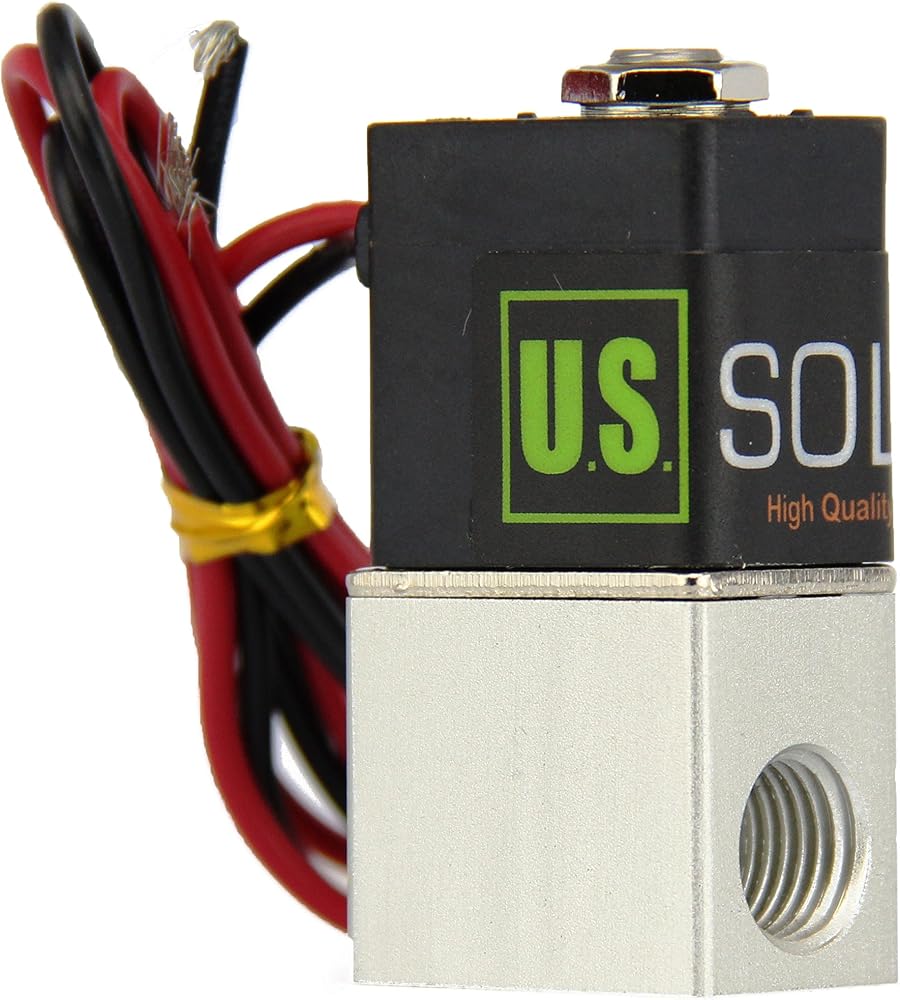

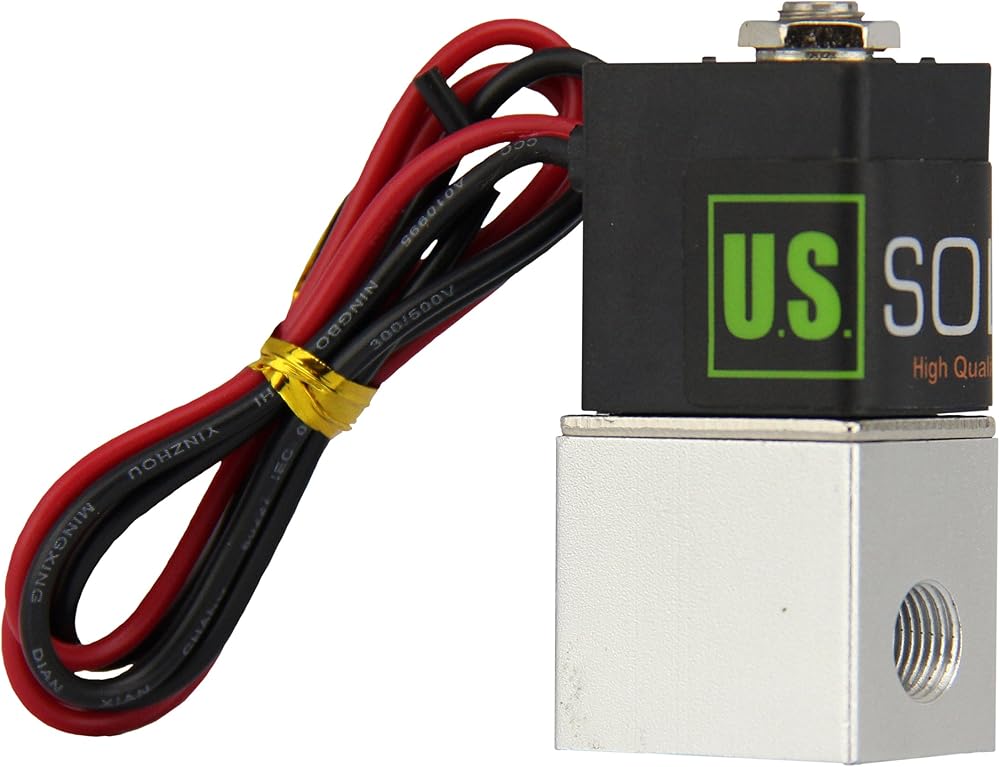

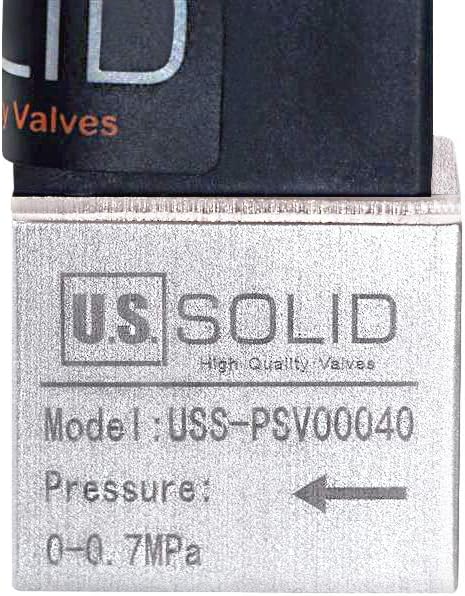

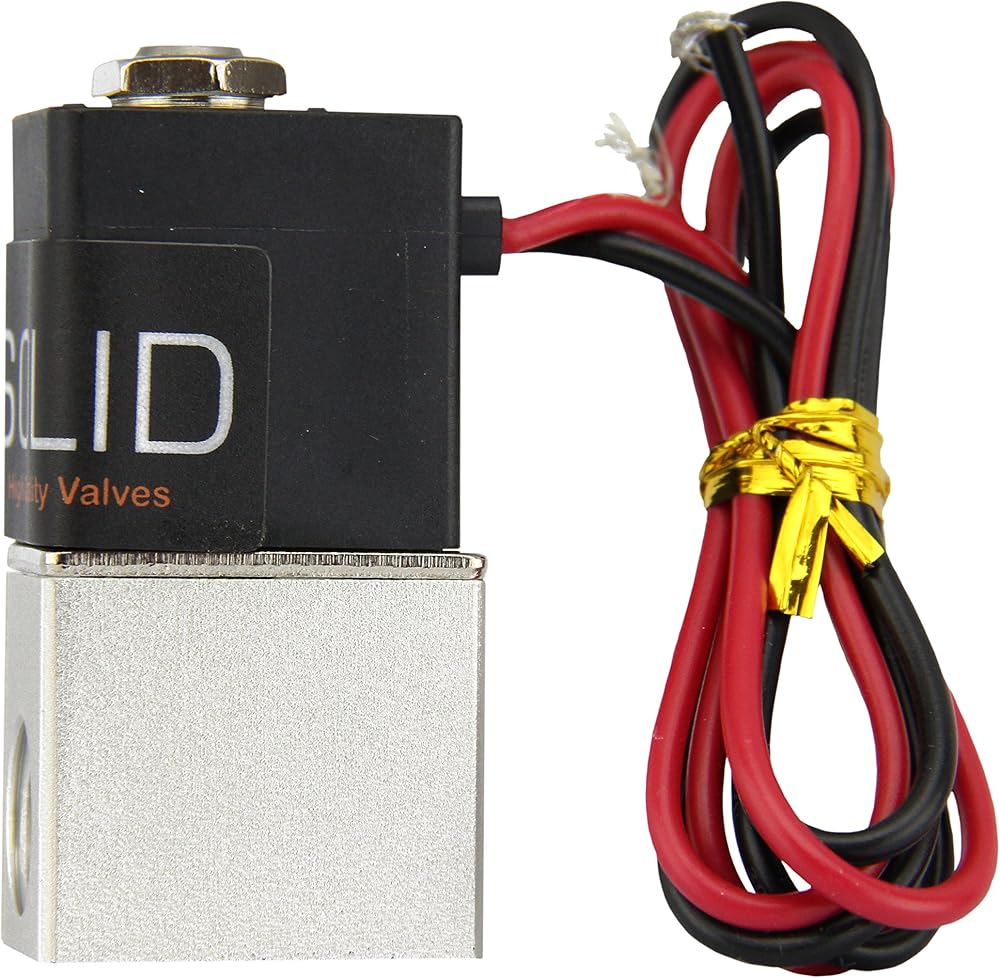

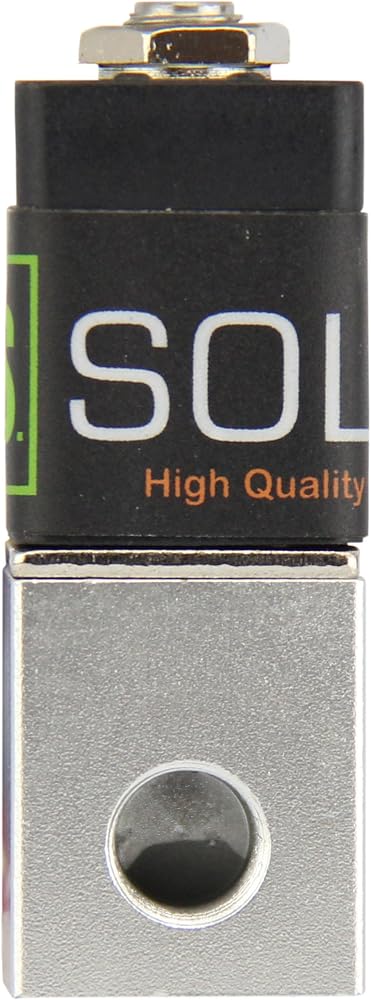

The 1/8 2 way 2 port 12 V DC NPT Normally Closed Aluminum Alloy Pneumatic Solenoid Valve converts electrical signals to pneumatic functions as part of a larger system that allows users to interlock, isolate, and connect individual units of a larger operation. This 2/2 valve has 2 port connections and 2 flow passages allowing for unidirectional flow in less than 50 ms response time with a ¼ Aluminum alloy aperture that can be opened and closed to air, fluid, or gas. The current model opens once energized. This working principle allows for an easy on/off function. Also includes two holes at the bottom of the valve for easy mounting. U.S. Solid provides the highest quality products for your home, manufacturing, and automation needs.
Brand U.S. Solid
SKU: JFPSV00041
Aperture: 1/8"
Body Material Aluminum Alloy
Operation Mode: Normally Closed
Working Pressure: 0 ~ 0.8 Mpa
Electric Current: Direct
Voltage: 12V DC
Thread Type: NPT
Flow Value: 0.23cv fluid 22 SCFM at 100 PSI
