HDD Cooling Fans
Product Description
Key Features & Selling Points

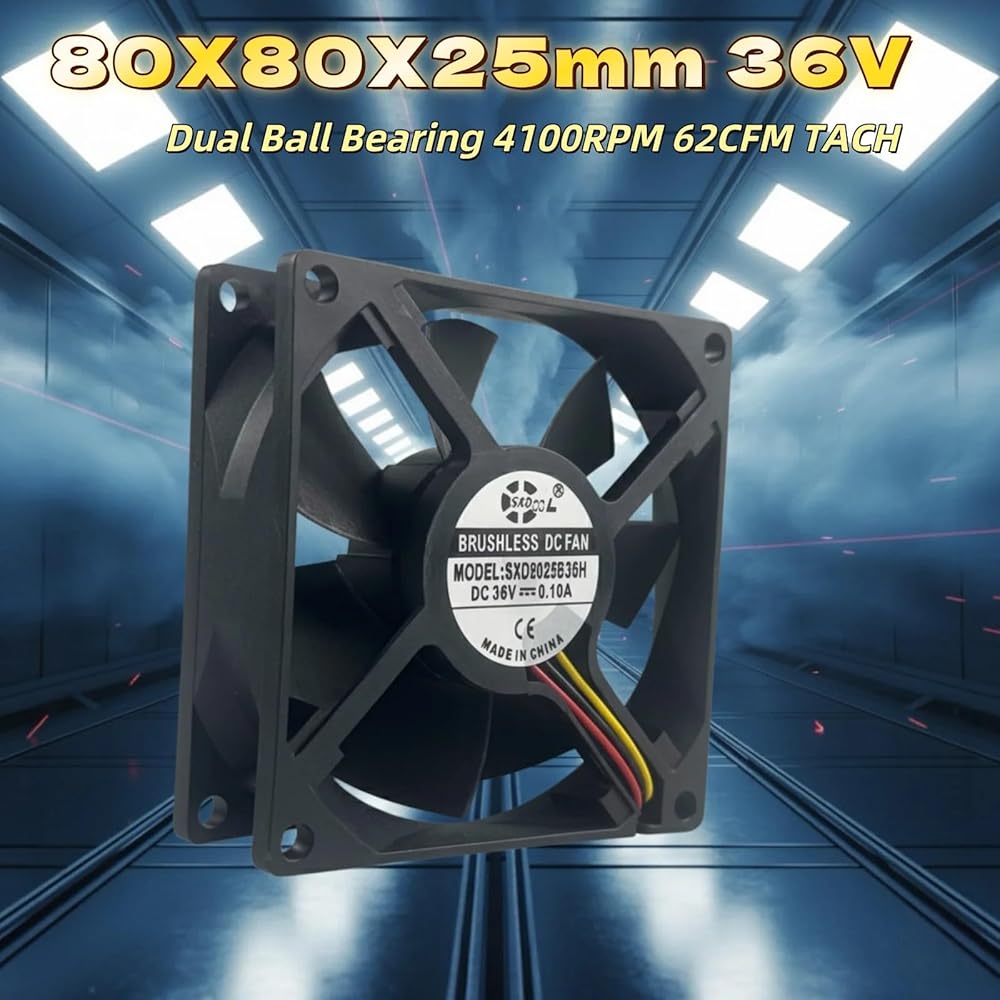

Superior Airflow & Performance With a high airflow of 62 CFM and a powerful speed of 4100 RPM, this DC brushless fan provides exceptional heat dissipation for your equipment.
* Long-Life Dual Ball Bearing: The dual ball bearing design ensures a longer lifespan of up to 50,000 hours at 40°C, making it a reliable and solution for continuous operation.
* Integrated Speed Monitoring: Featuring a 3-wire, 3-pin connection with a yellow wire for tachometer feedback, this fan allows for real-time speed monitoring, ensuring optimal performance and easy maintenance.
* Low Noise Operation: Despite its powerful performance, it maintains a manageable noise level of 49 dBA, suitable for a wide range of environments.
* Versatile and Robust: Designed with a wide operating temperature range and robust build, this fan is perfect for demanding industrial cooling fan applications.
Product Specifications

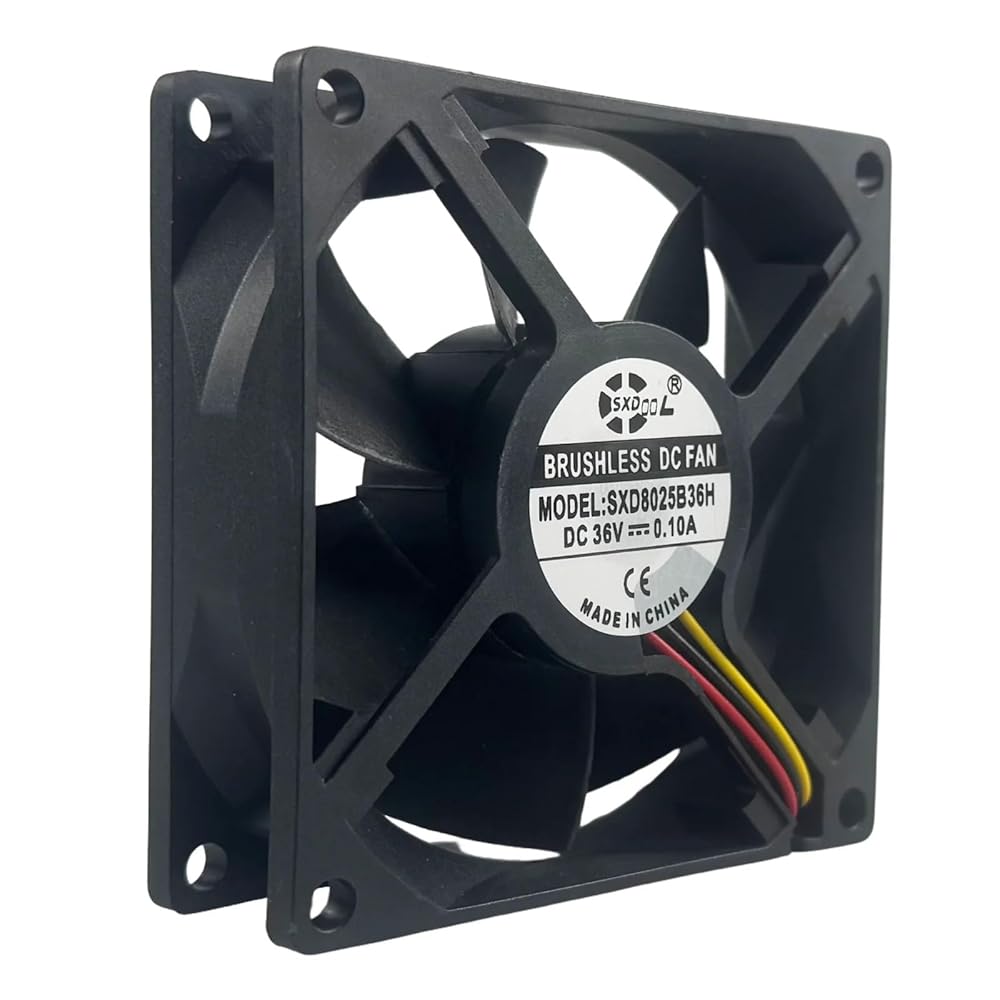

* Model: SXD8025B36H
* Dimensions: 80x80x25mm
* Rated Voltage: DC 36V
* Rated Current: 0.10A
* Power Consumption: 3.6W
* Speed: 4100 ± 10% RPM
* Bearing Type: Dual Ball Bearing
* Airflow: 62 CFM
* Noise Level: 49 dBA
* Life Expectancy: 50,000 hrs (at 40°C, 5%~95% RH)
* Net Weight: 62g
* Operating Temp/Humidity: -10°C to +60°C / 5% to 95% RH
* Installation Diameter: Hole Diameter: 4mm, Back Circle: 35mm

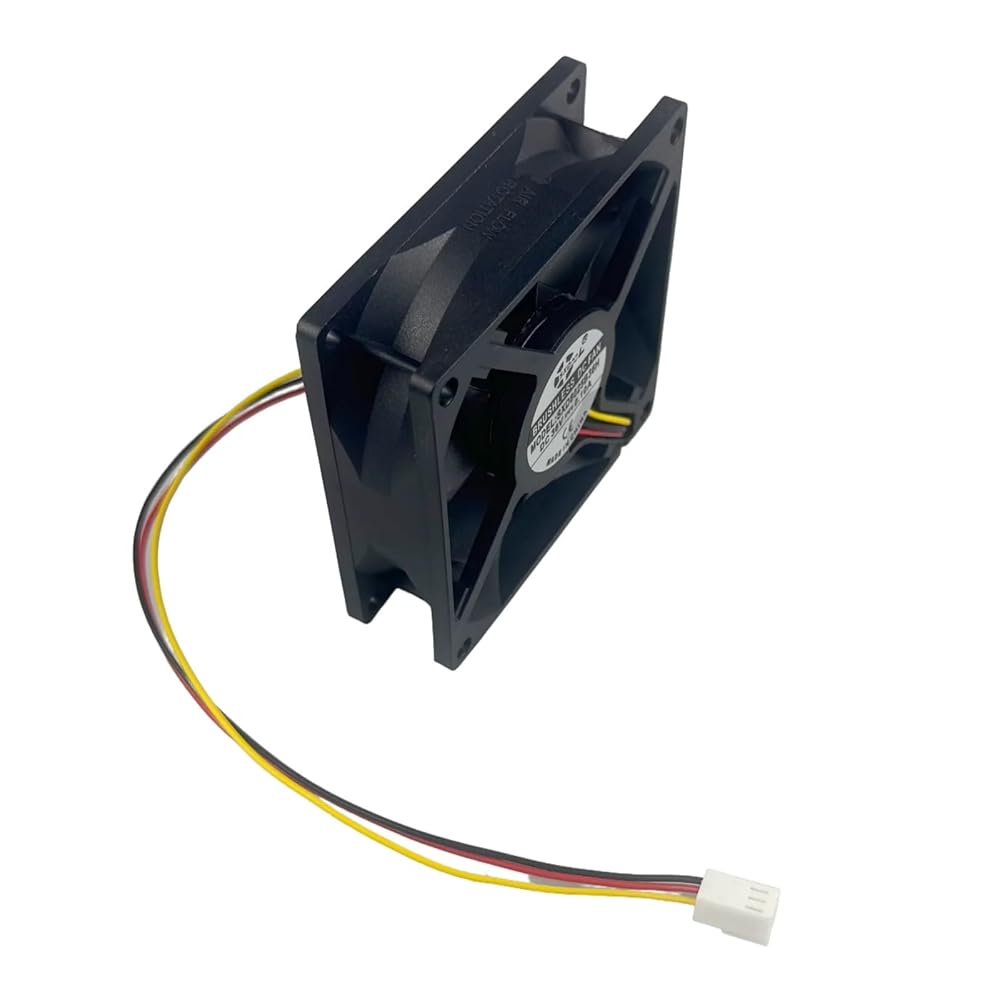

* Wiring: Red Wire: Positive (+), Black Wire: Negative (-), Yellow Wire: Speed Signal
Applications
This high-performance industrial fan is an excellent solution for various airflow management needs, including:

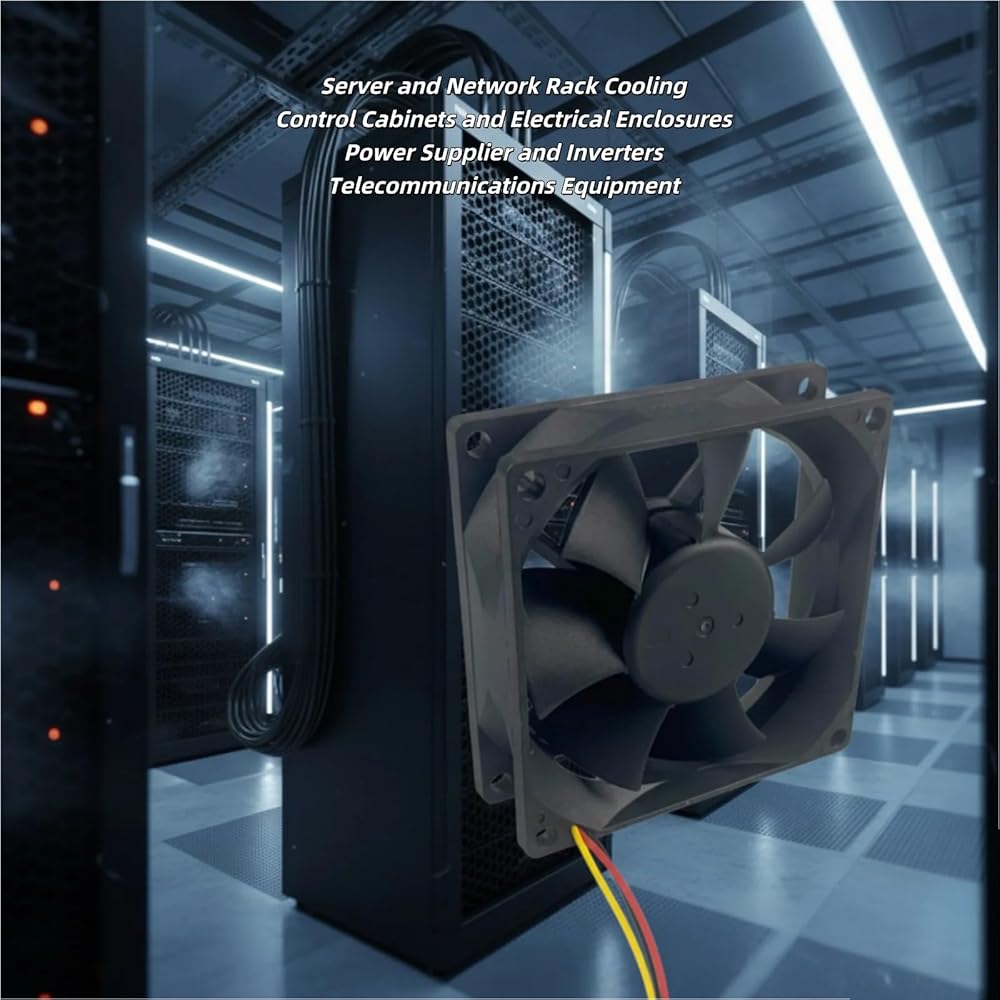

* Server and network rack cooling
* Control cabinets and electrical enclosures
* Medical and laboratory equipment
* Automation machinery and CNC systems
* Power supplies and inverters
* Telecommunications equipment

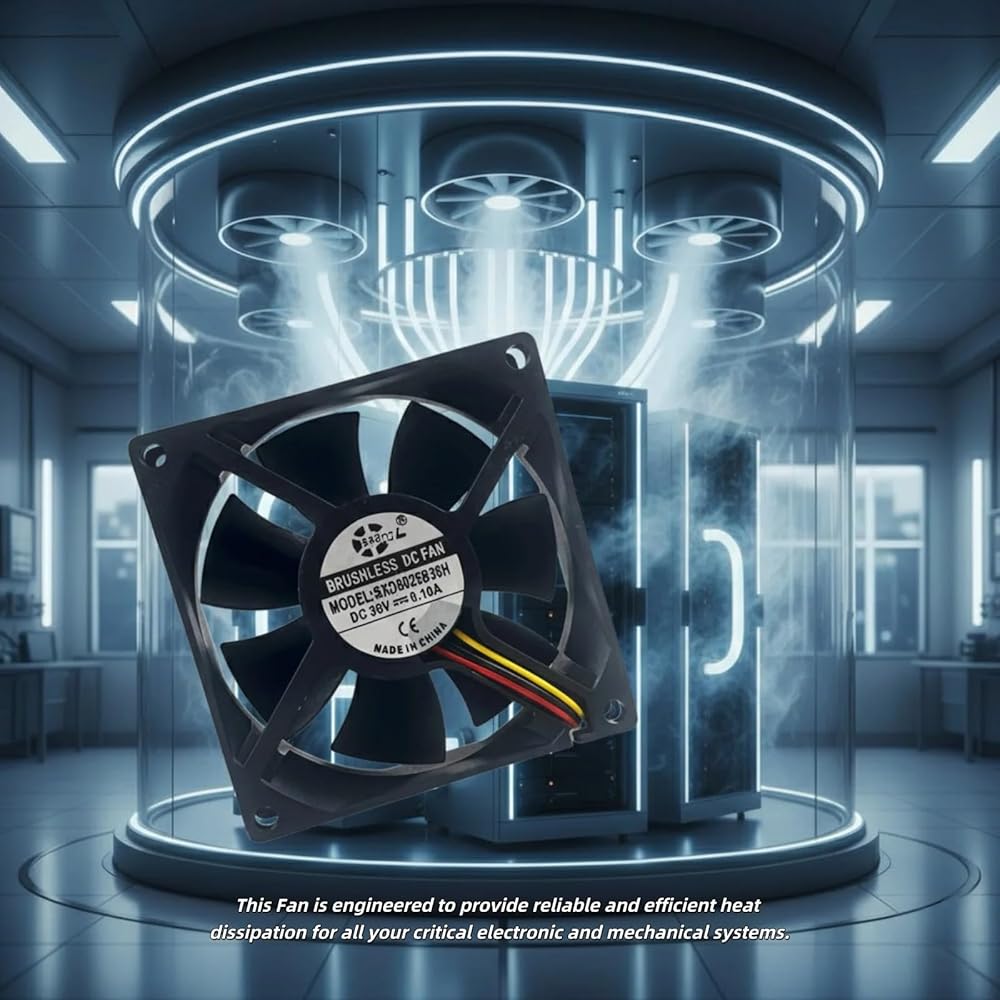

This fan is engineered to provide reliable and efficient heat dissipation for all your critical electronic and mechanical systems.
