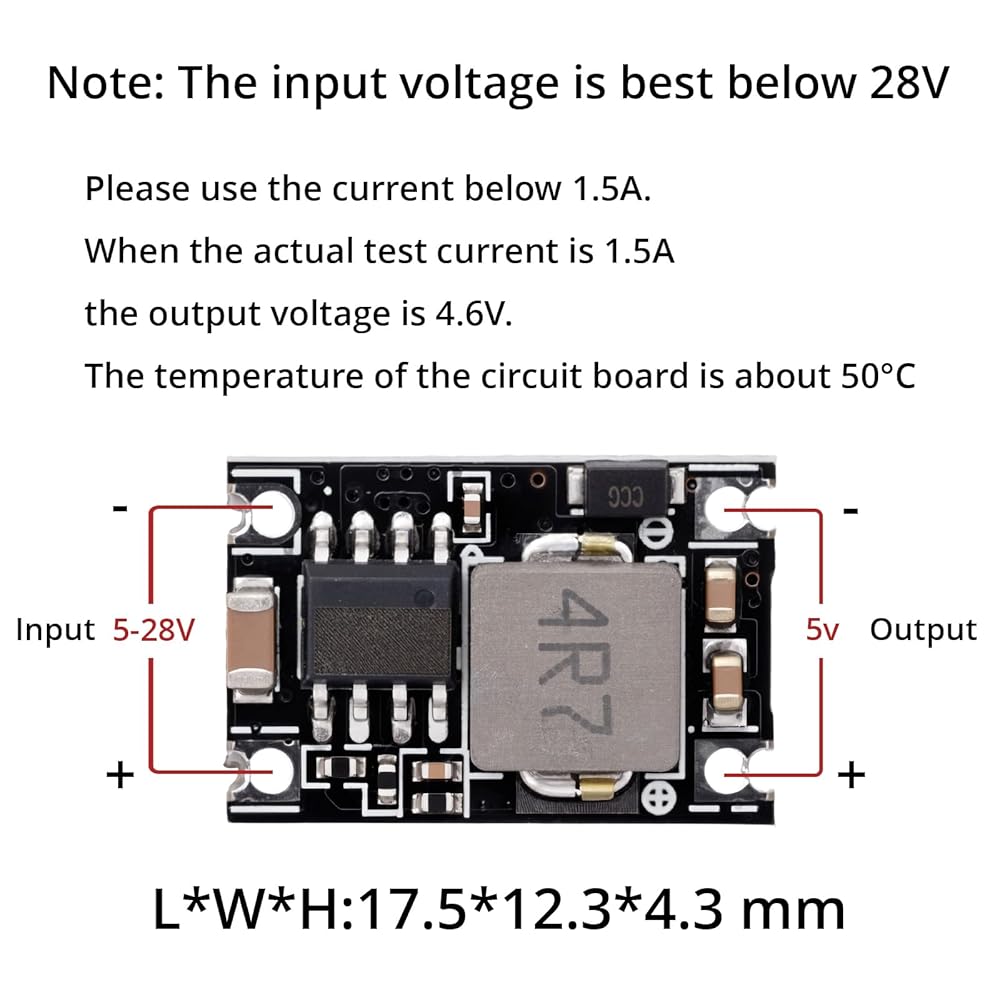

Dimensions The module has a very small size with dimensions of 17.5 * 12.3 * 4.3 mm (length * width * height).
Input and Output It has an input voltage range of 5V - 28V and a fixed output voltage of 5V. The maximum output current can reach 1.8A. When the output current is 1.5A, the output voltage is 4.6V.
Output Ripple The output ripple is less than 30 mV.
Switching Frequency The switching frequency is up to 1.5 MHz (maximum), usually around 1 MHz.
Protection in Inductive load When using this module in an inductive load, pay attention to the protection of the rear - stage current. For example, when using a steering wheel or motor, large ripples may be generated, which could affect the chips in the back - end circuit. You can add zener diodes and capacitors for protection.
