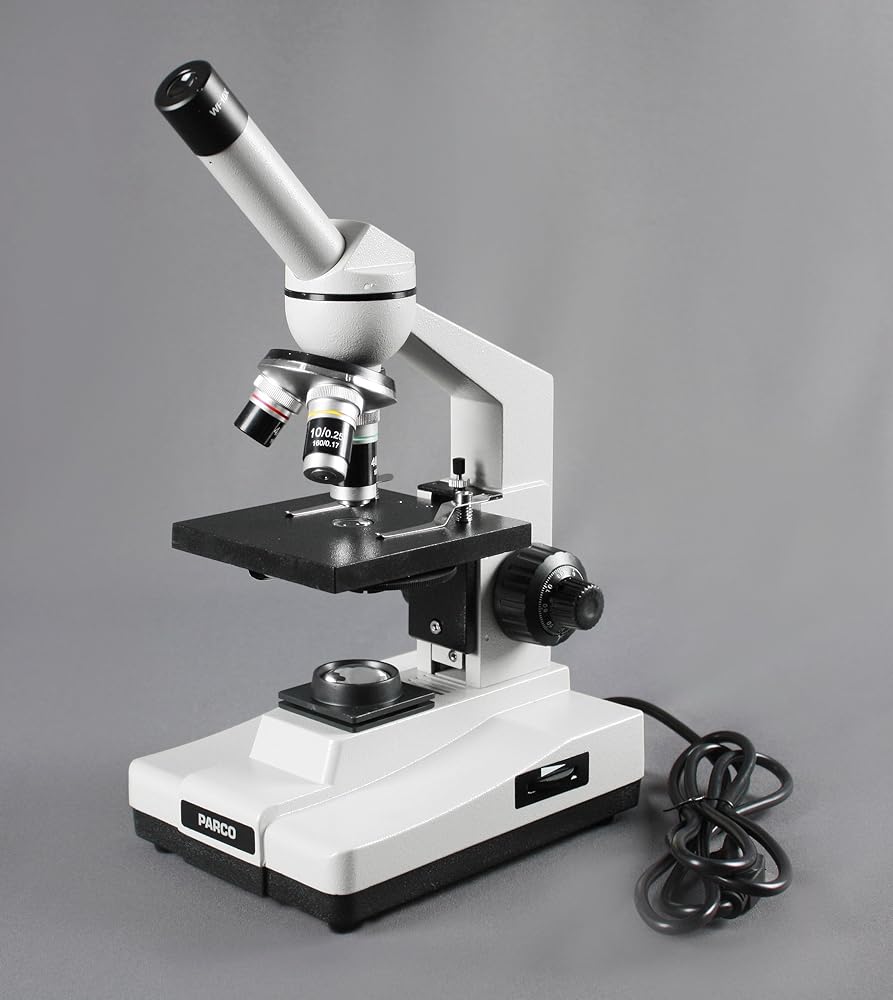

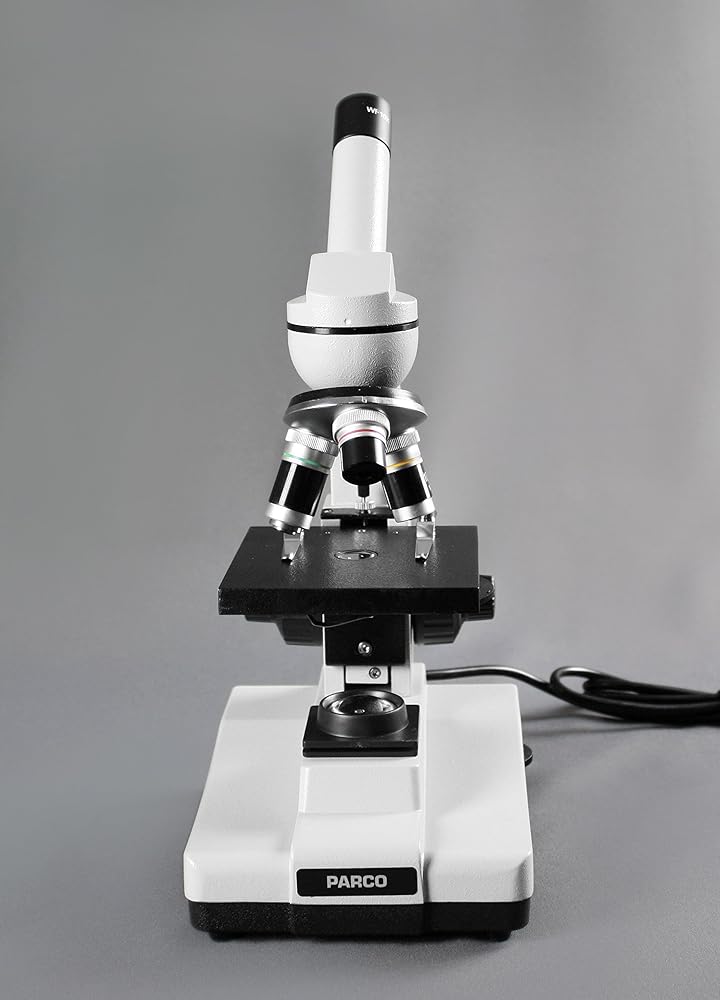

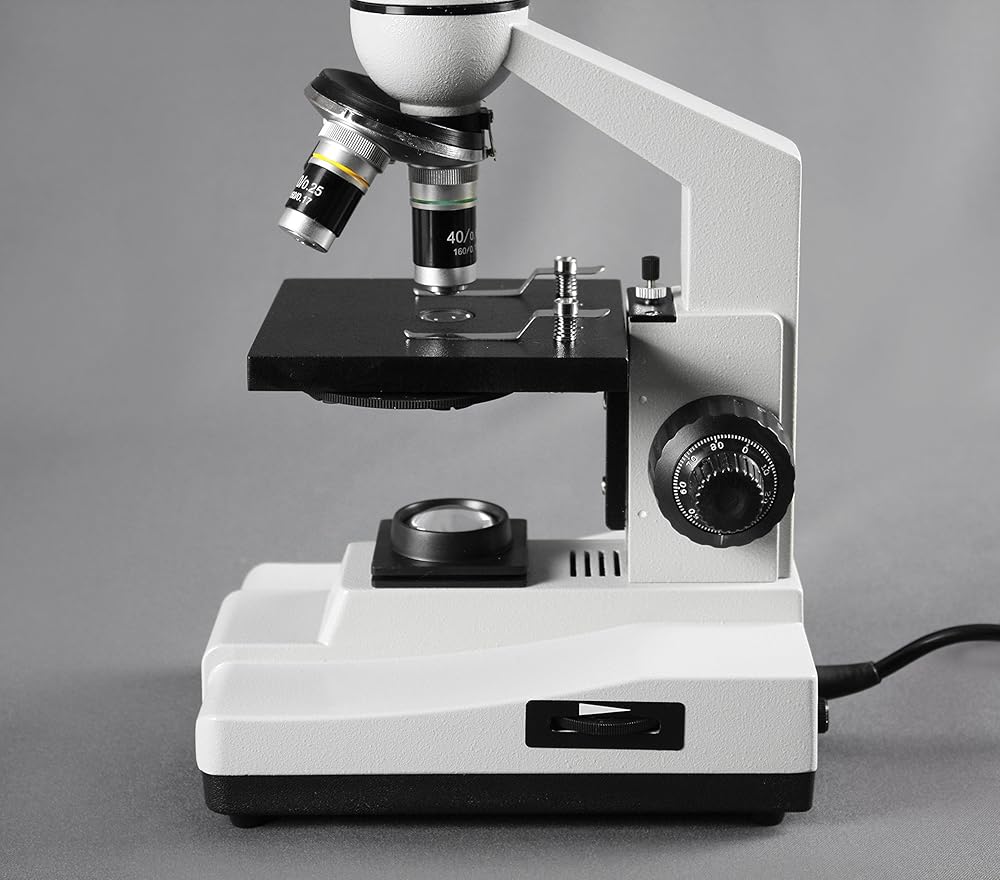

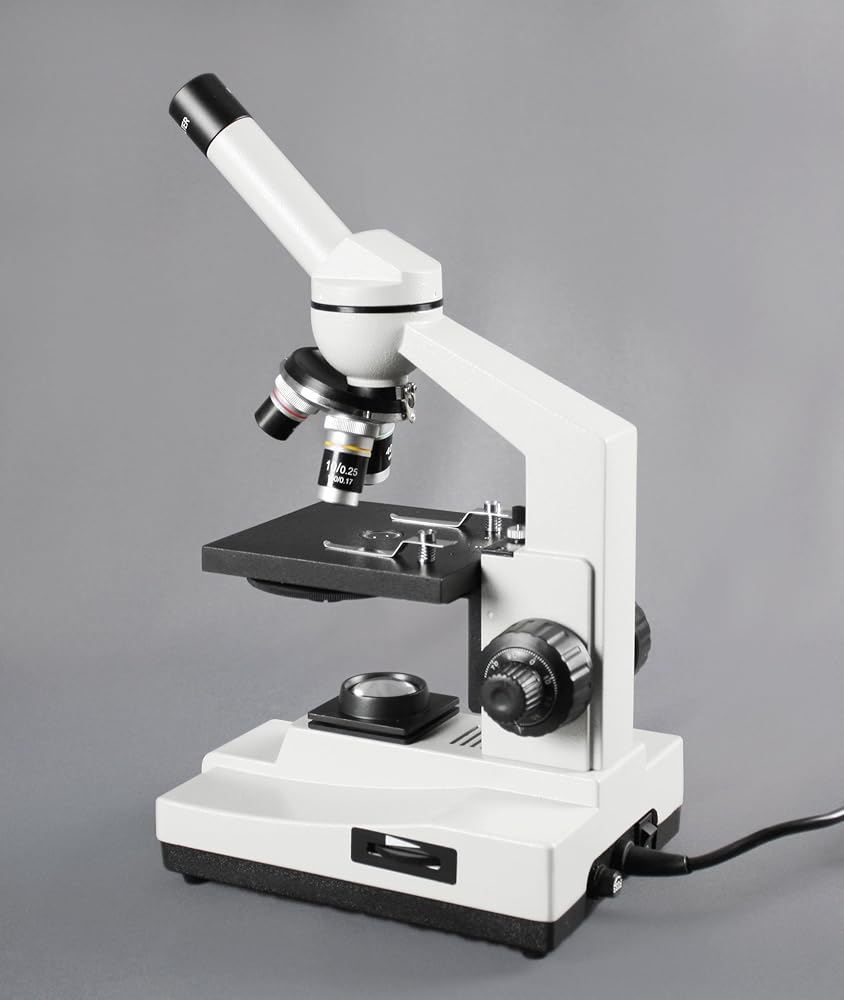

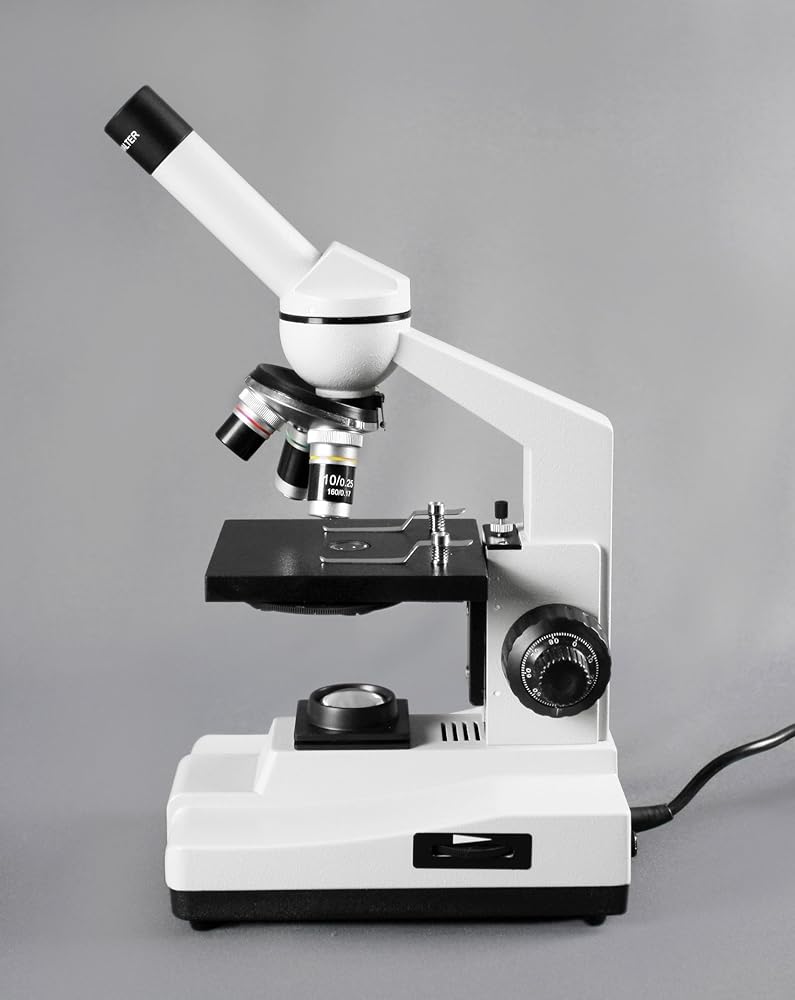

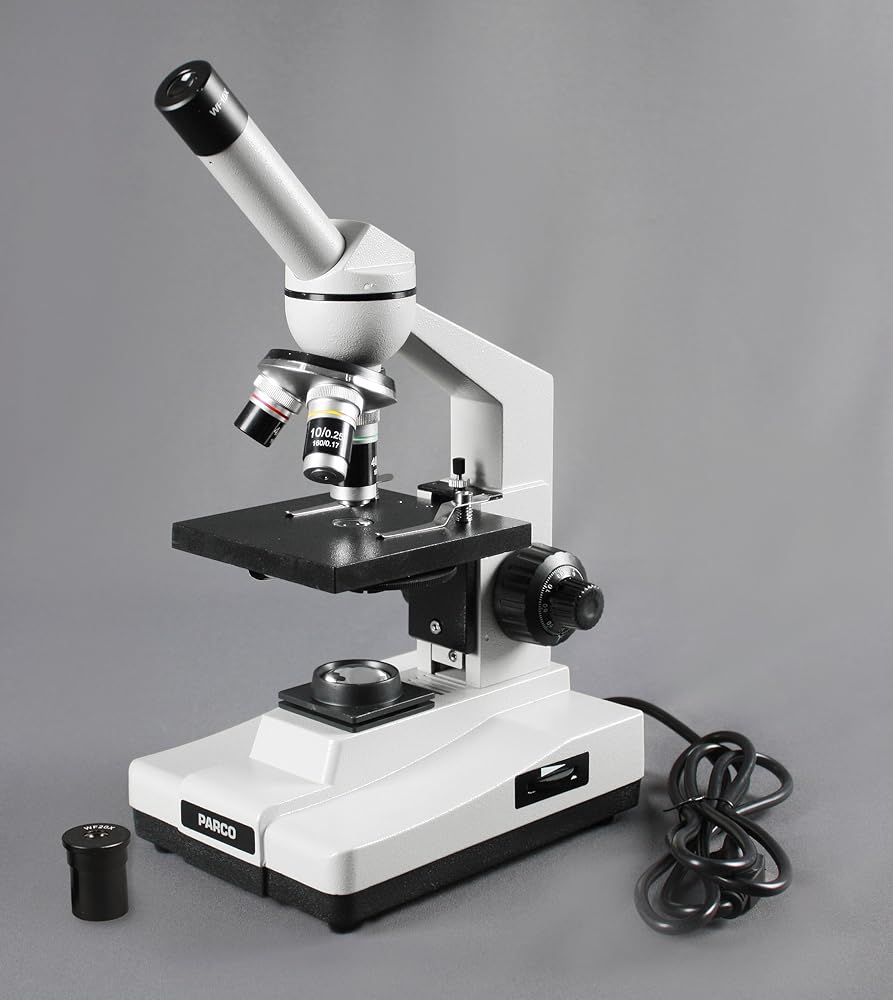

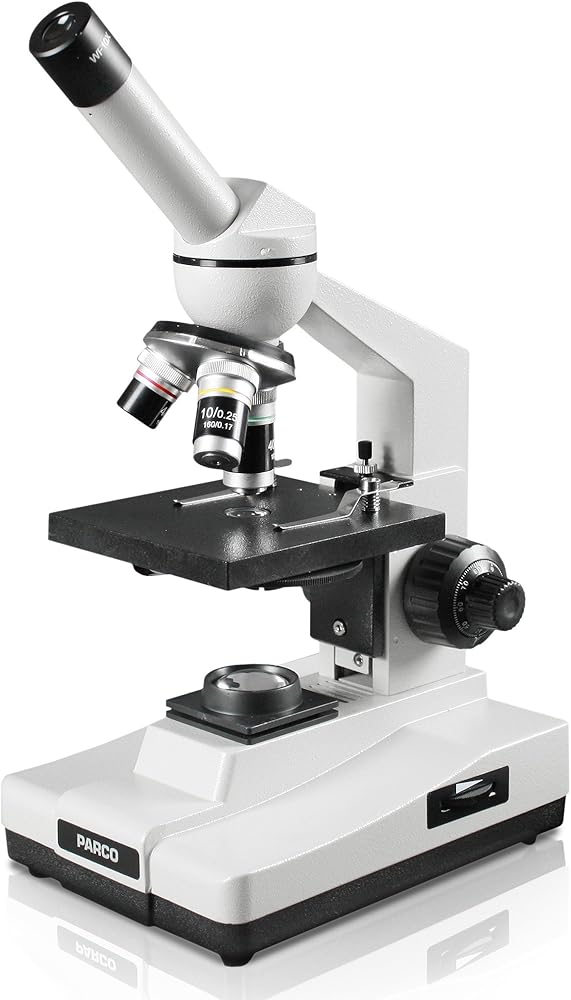

This Parco Scientific 3000F monocular compound microscope has a 45° inclined head that rotates 360°, and comes with a 10x widefield eyepiece with a pointer.
The 40xR objective is retractable and spring-loaded to prevent damage to slides and objectives when focusing. It is also sealed to protect against further damage that can be caused from contact with liquid or oils. DIN achromatic objectives are parfocaled and parcentered to provide sharp, color-corrected images.
Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker than the bright background. This allows the darker specimen to be contrasted by the surrounding bright viewing field.
Specifications
Head: Monocular, 45° inclined, rotates 360°
Eyepiece: WF 10x with pointer
Magnification: 40x, 100x, 400x
Objective Lens: 4x, 10x, 40xR DIN achromatic
Stage: Large 110mm x 120mm (4 ⅜” x 4 ¾”) with a pair of stage clips
Focusing: Coaxial coarse and fine focusing
Condenser: 0.65 NA lens
Diaphragm: 5 hole disc diaphragm
Light Source: LED illumination with intensity control
Power: 110V Corded
Overall Dimensions: 5” x 6” x 8” / Weight: 5 lbs
Packing List
Monocular compound microscope with LED illumination
One 10x widefield eyepiece with pointer
4x, 10x, 40xR objectives
Large stage with 2 Stage clips
One dust cover
User manual
