مميزات خاصة

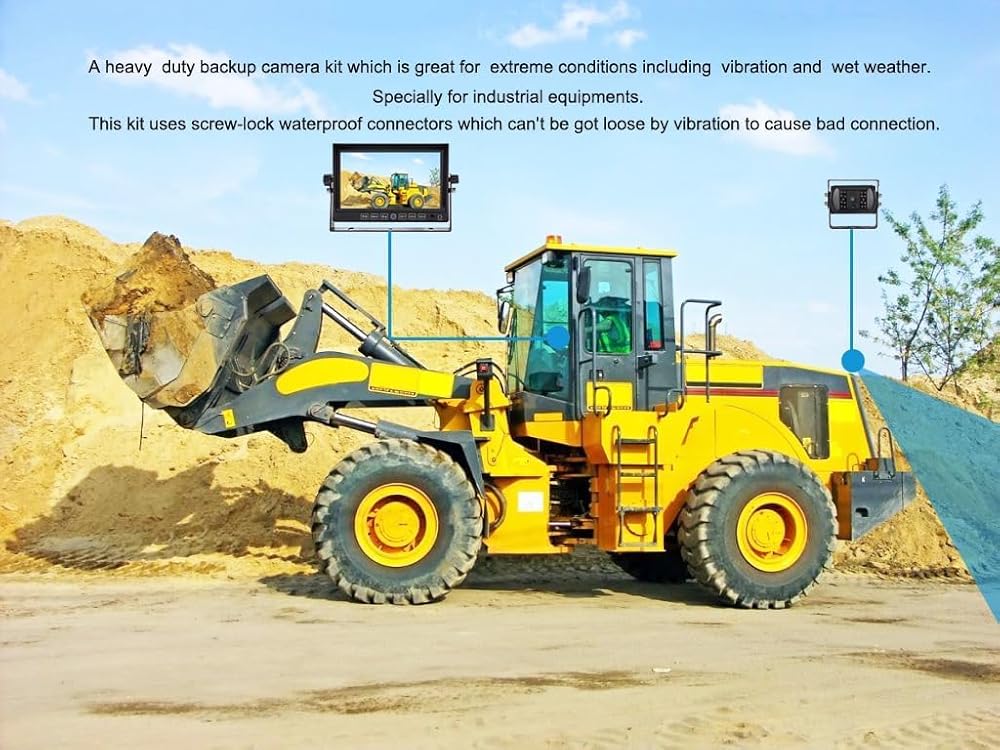

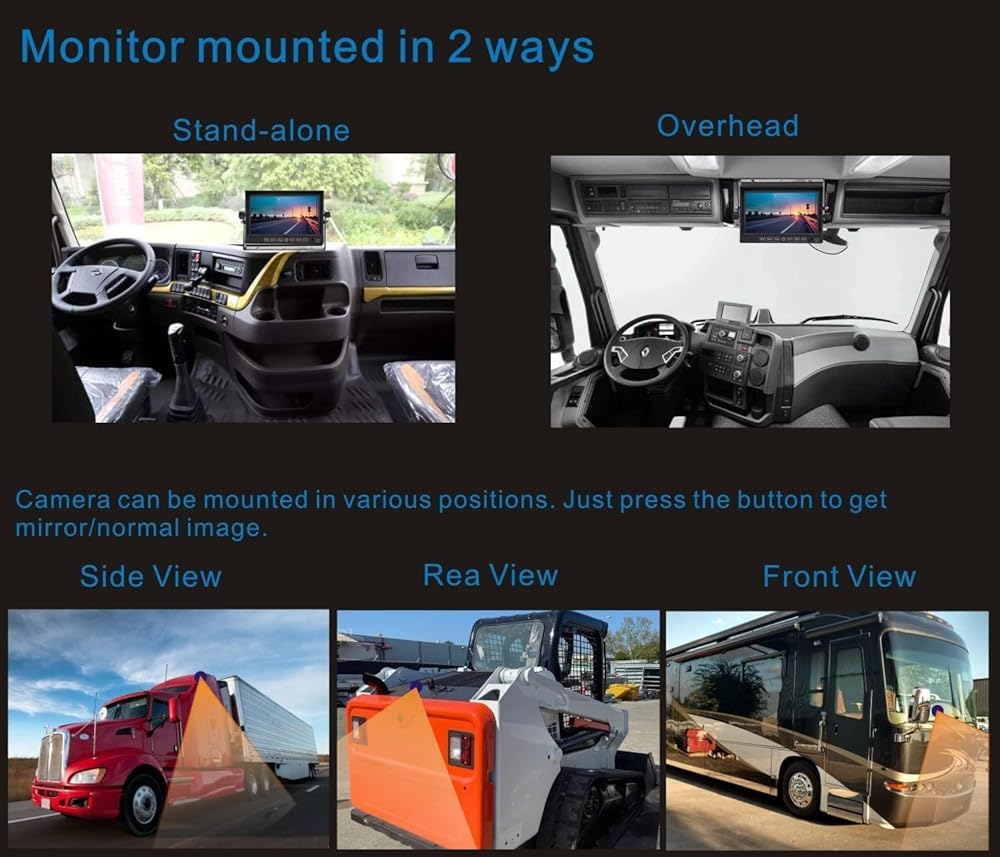

This is a perfect solution for trucks, vans, mini buses, forklifts, skid loaders, excavators, farm equipment, motorhomes, rv, campers, etc.The 7" monitor can be mounted on the dash or on the ceiling. The camera can be used as rear view/front view/side view. Both the camera and the monitor can be left on continuously while you work from dusk till dawn. In this kit we use the 4-pin screw-lock waterproof connector to avoid bad connection caused by vehicle vibration.

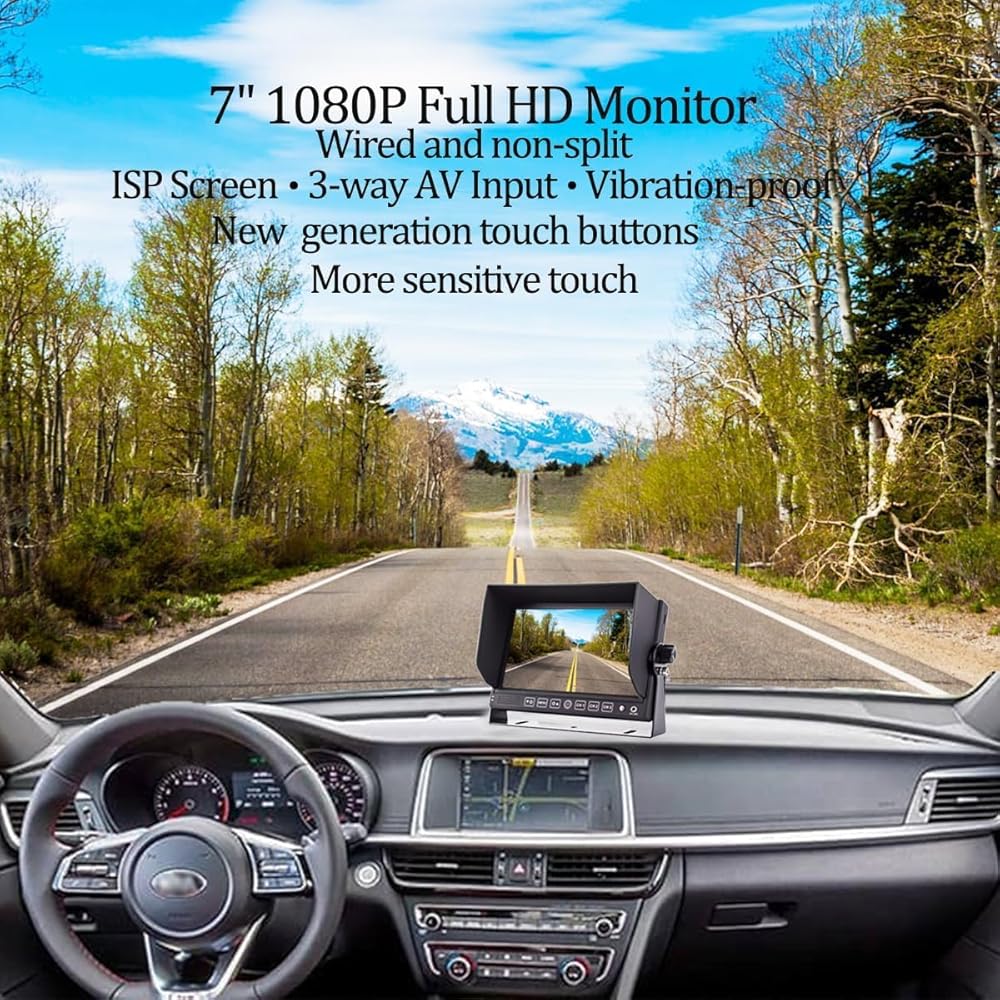

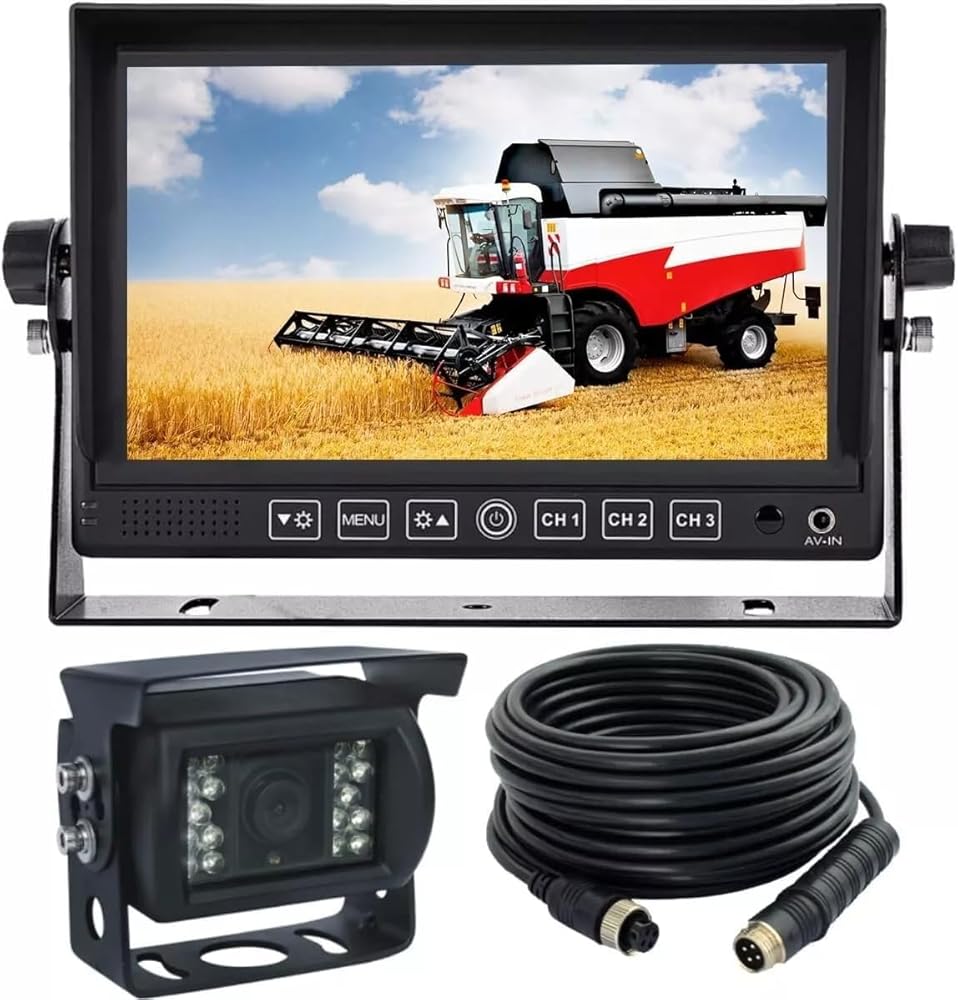

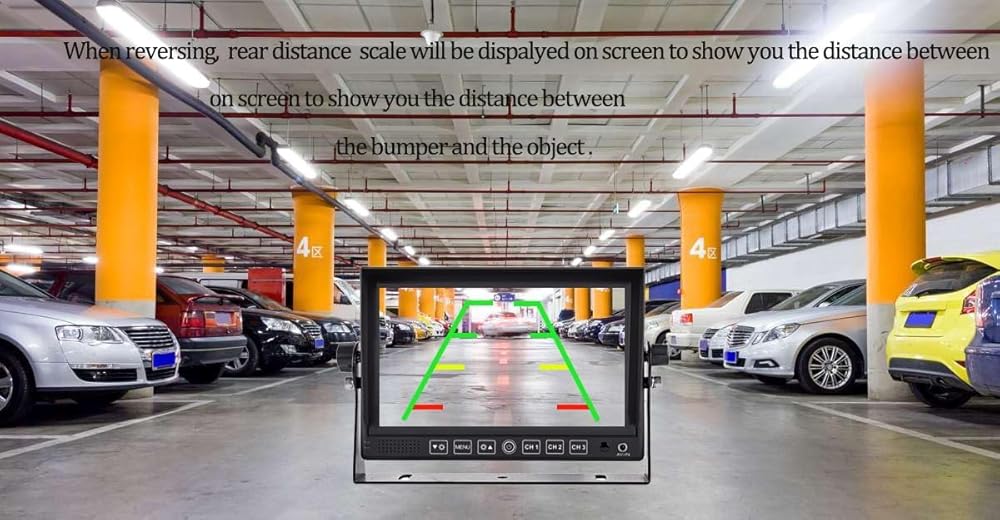

【Monitor Features】①.7" 1080P AHD color monitor with upgraded touch buttons can take max 3 video inputs. You can toggle between the cameras with a tap of a button. ②.Monitor has a loudspeaker and the camera has a microphone inside. You can hear what is happening behind your vehicle but not only see the image. ③.With parking lines displayed on screen when reversing to help park safely. ④. This monitor not only displays image for backing, but also can display all the time.

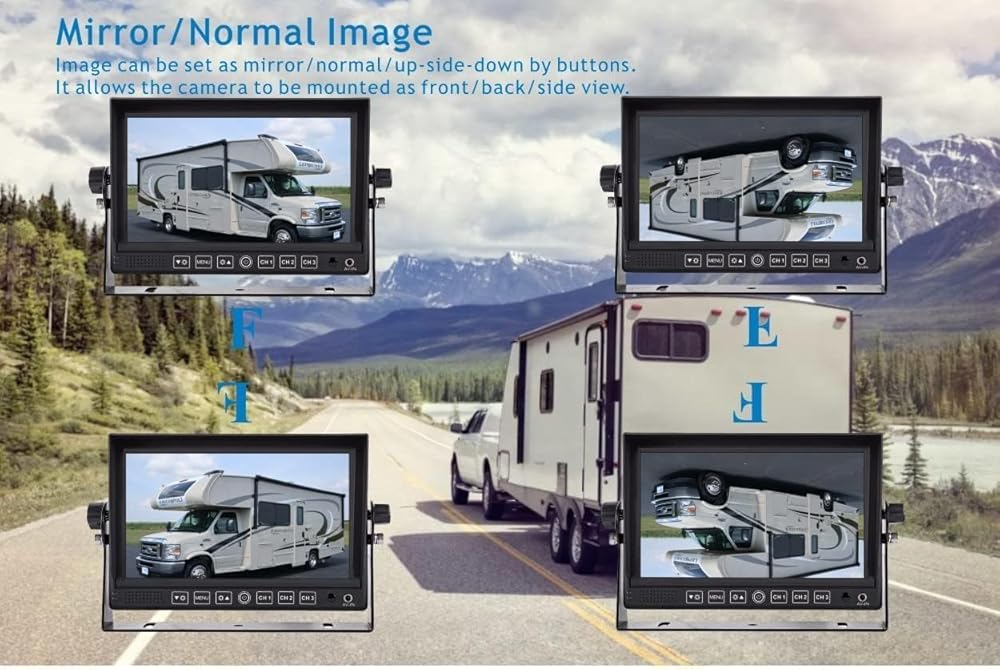

【Monitor Features】①.The image can be set as normal or mirror image by buttons, so the camera can be used as not only rear view but also front view. As the image can be set as various modes: mirror image, normal image, up-side-down image etc. so the camera can be mounted in any position of your vehicle, just press the buttons to set a right image.

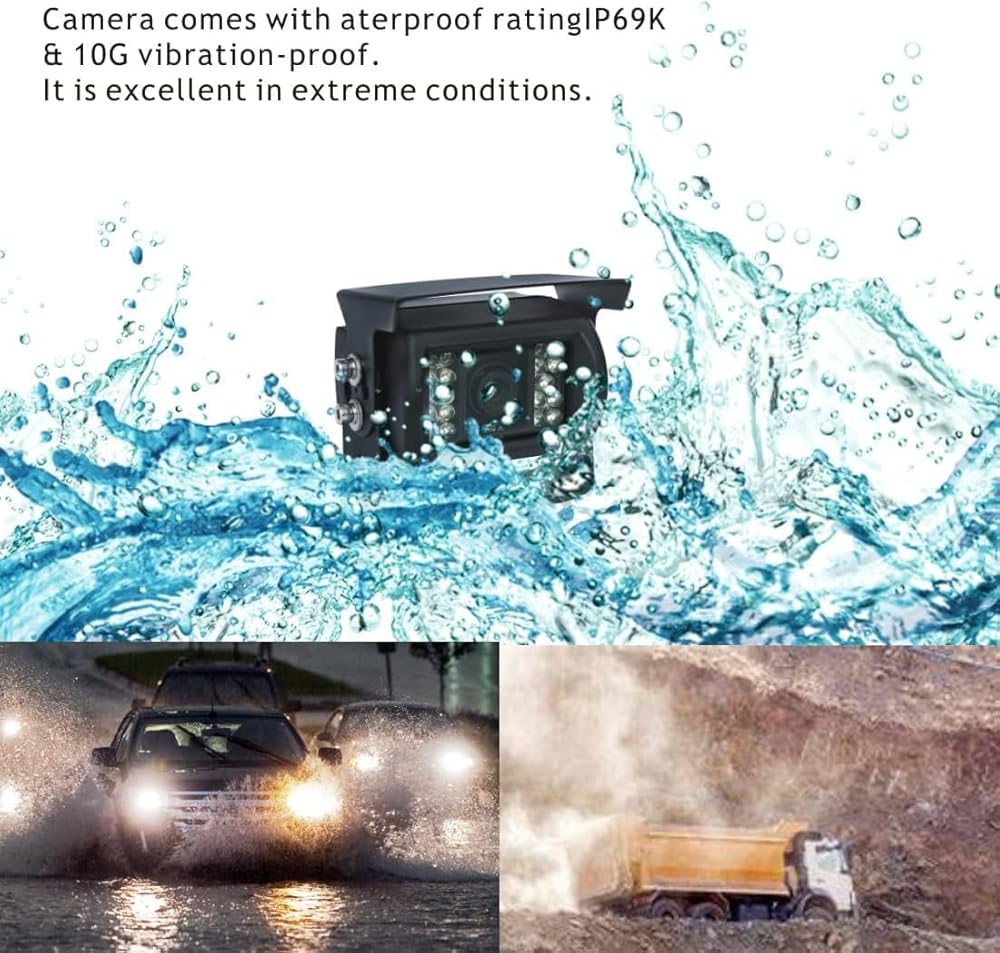

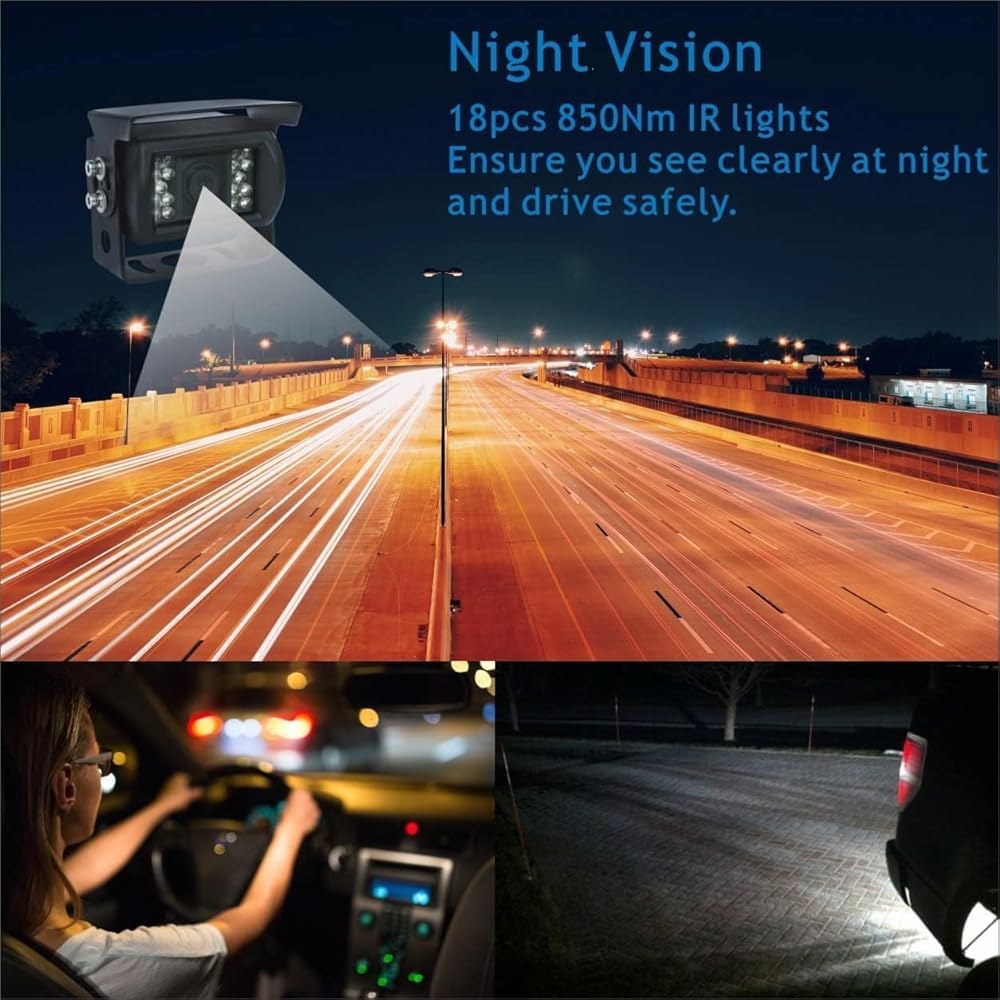

【Camera Features】①.The camera has the highest waterproof and micro-dust proof level IP69K. It not only can resist water, but also prevent the micro-dust from entering the glass. ②.Built-in with 18 IR lights, you can see clearly and drive safe at night or when the ambient light is low.③. Camera comes with just a four-pin connector in which the video, audio and power are integrated. No need to connect extra connectors.
【Stable Performance】①. With a shock-proof rating of 4G, the kit can work with the vehicle of high vibration. ②. The monitor PCB is designed for lightning protection and reverse polarity protection. ③. This kit can endure ESD of 3000V, and resist the transient high voltage of 4000V occurring when the in-car electronic devices like radio, air-conditioner is turned on or off.,

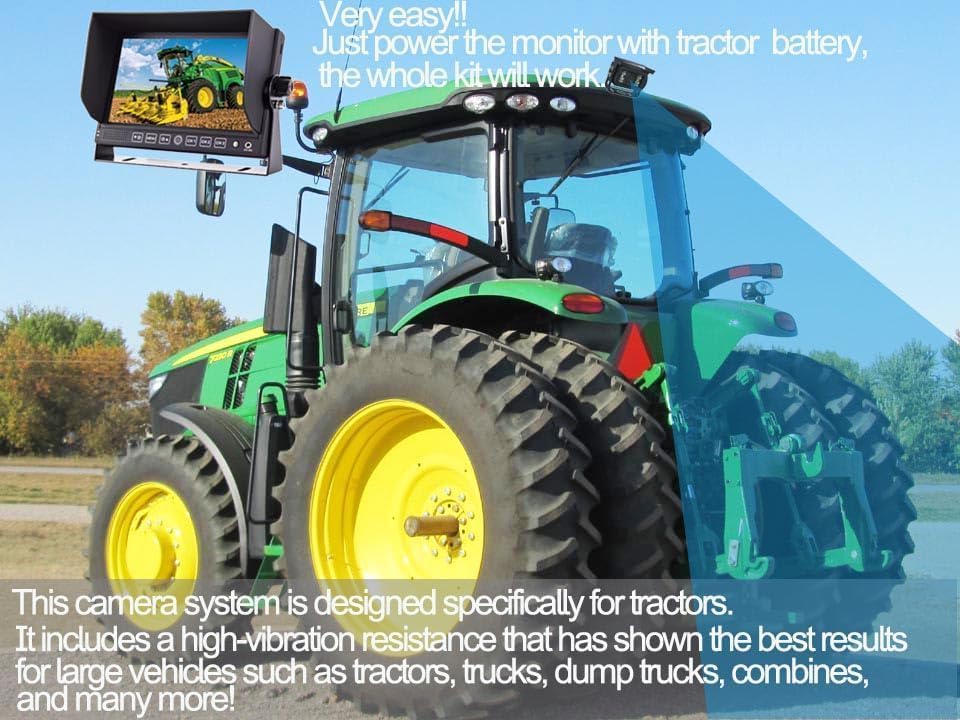

【Easy to install】Installation is very easy. All the connectors are four pin screw-lock connectors. It is easy to find out how to connect them. Once all connections are completed, just power the monitor with DC12-24v from taillight power or battery. Then press the power button, it will work.

وصف

TOUCH BUTTON MONITOR SPECIFICATIONS:
Screen size: 7 inch single view(No split) Brand new digital LCD panel
Resolution: 1080P
16:9 wide screen display
TV System: NTSC/PAL
Multiple menu languages:English, Dutch, French, Spanish, Russian, German, Italian.
Support max 3 cameras video input With parking lines to park safe,
and built-in loudspeaker to hear what is happening Monitor displays
cameras one by one in single view, Normal/mirror image of each camera
can be set separately by menu. Separate trigger control wire for each
camera Monitor will be automatically switched to the image of the camera
which is triggered, and back to the last mode when the trigger stops. The trigger
delay time can be adjusted (0-4s) on each camera. In standby mode, monitor will
turn on automatically when triggered and will switch to the image of the triggered
camera. Working voltage: DC12-24V Built-in short-circuit protector(When installing
and connecting the kit, people connects the female 4-pin connectors to the male one
from the camera and monitor, they sometimes connect the video pin of the camera
to the power pin of the monitor. It may cause a short-cut, the built-in protector may
keep the monitor away from being burnt.
