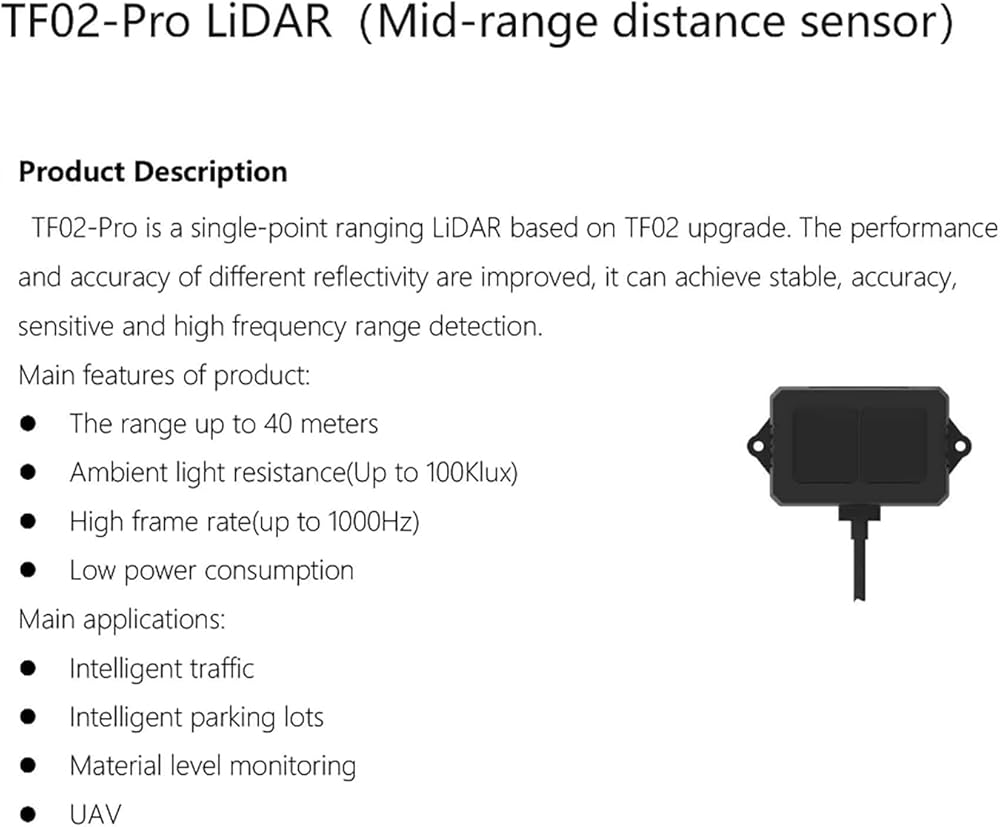

​Product Description​

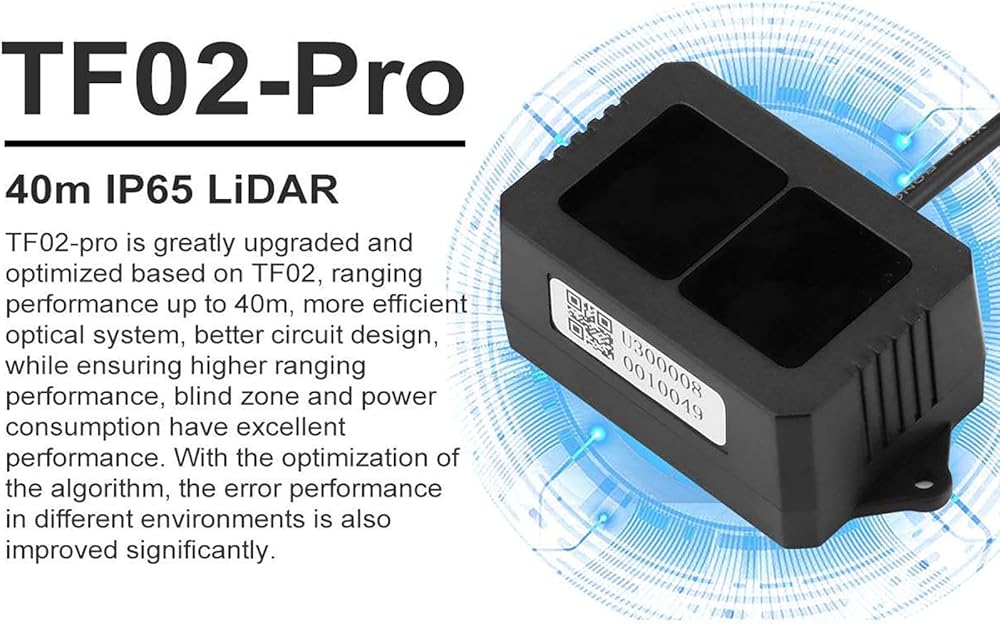

The TF02-Pro is an upgraded single-point LiDAR sensor designed for stable, accurate, and high-frequency ranging in demanding environments. Its anti-interference capability ensures reliable performance under strong ambient light (up to 100Klux), making it ideal for industrial and commercial applications.

​Applications:​

🚦 ​Smart Traffic Systems: Vehicle detection, toll collection, and parking management.
🏭 ​Material Level Monitoring: Bulk solid/liquid measurement in silos or containers.
🚁 ​UAV Navigation: Obstacle avoidance and altitude control.
🅿️ ​Smart Parking: Space occupancy detection and guidance.

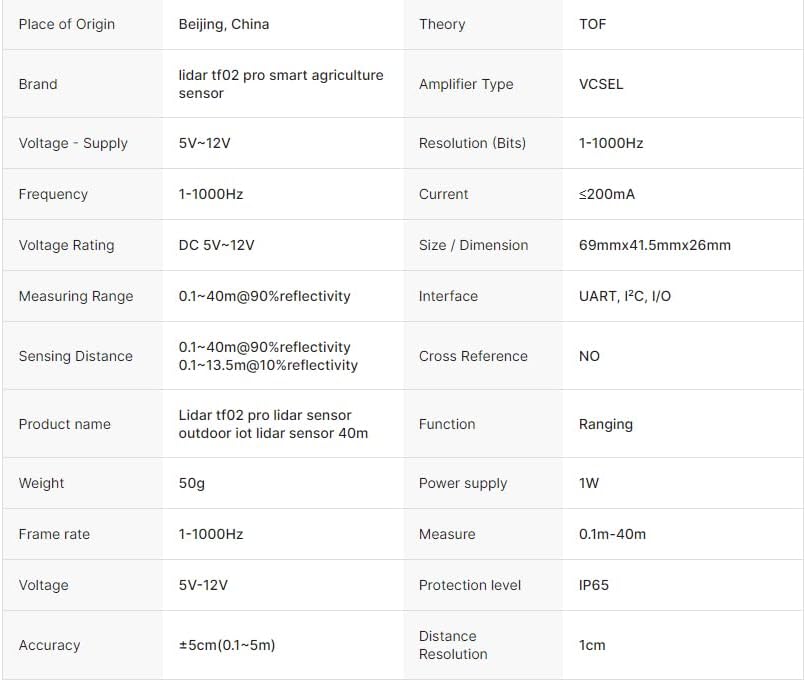

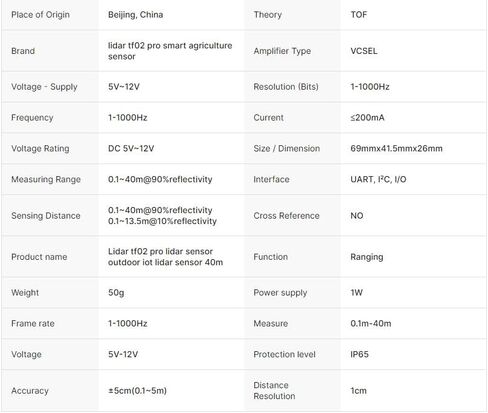

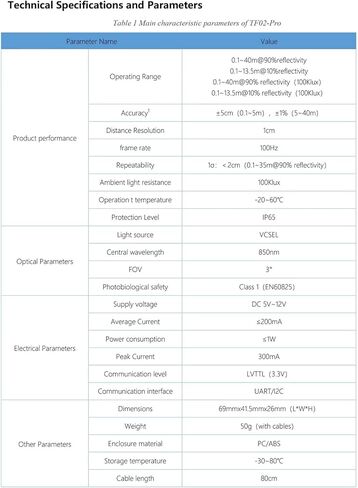

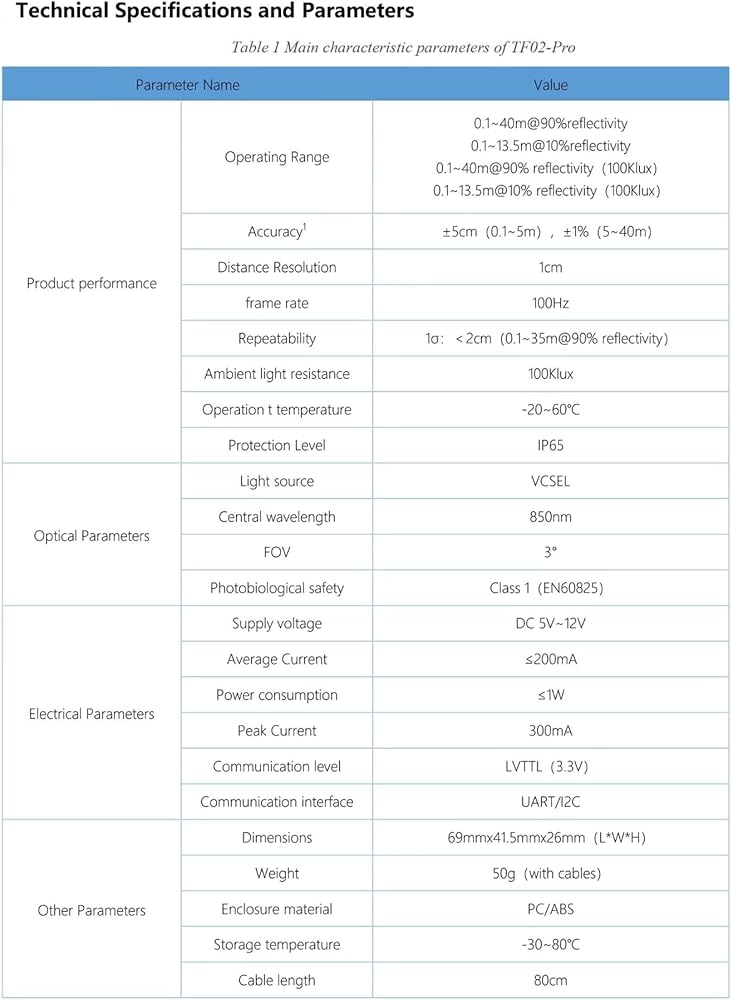

Technical Specifications​

Range:0.05–40m (90% reflectivity), 0.05–13.5m (10% reflectivity)
Accuracy​:±5cm (0.05–5m), ±1% (5–40m) ​Frame Rate​:Adjustable 1–1000Hz (default 100Hz)
FOV​:3°
Power Supply​:DC 5V–12V, ≤1W power consumption
Communication​:UART (8 data bits, 1 stop bit, no parity) / I²C (slave mode, address 0x10),I/O

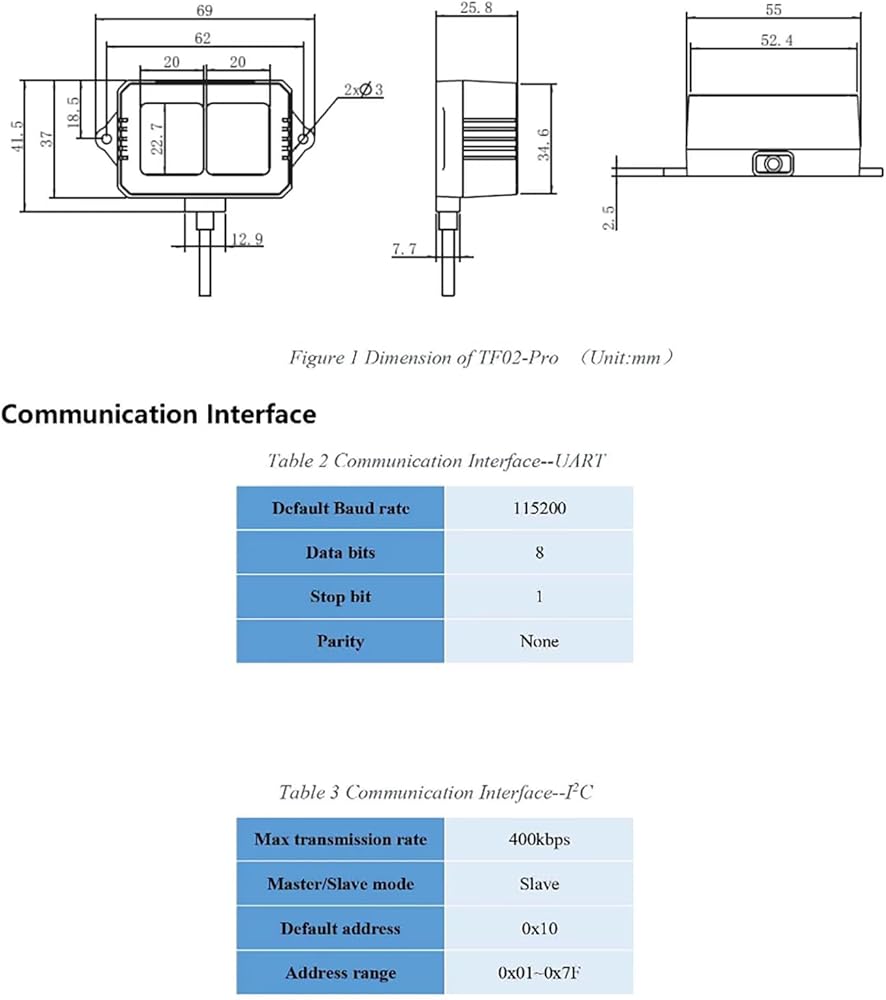

Dimensions​:69mm × 41.5mm × 26mm (L×W×H), 50g (with cable)
Certification​:EN60825 Class 1 (Eye-safe)

Easy Integration & Configuration​

​Plug-and-Play: Pre-calibrated with default settings for immediate use.
​Configurable Parameters: Adjust frame rate, baud rate, output format (HEX/string), and I/O mode via simple commands.
​Software Support: Free PC software for real-time data visualization and parameter tuning.
​Firmware Upgradable: Remote updates via Benewake's dedicated tool.

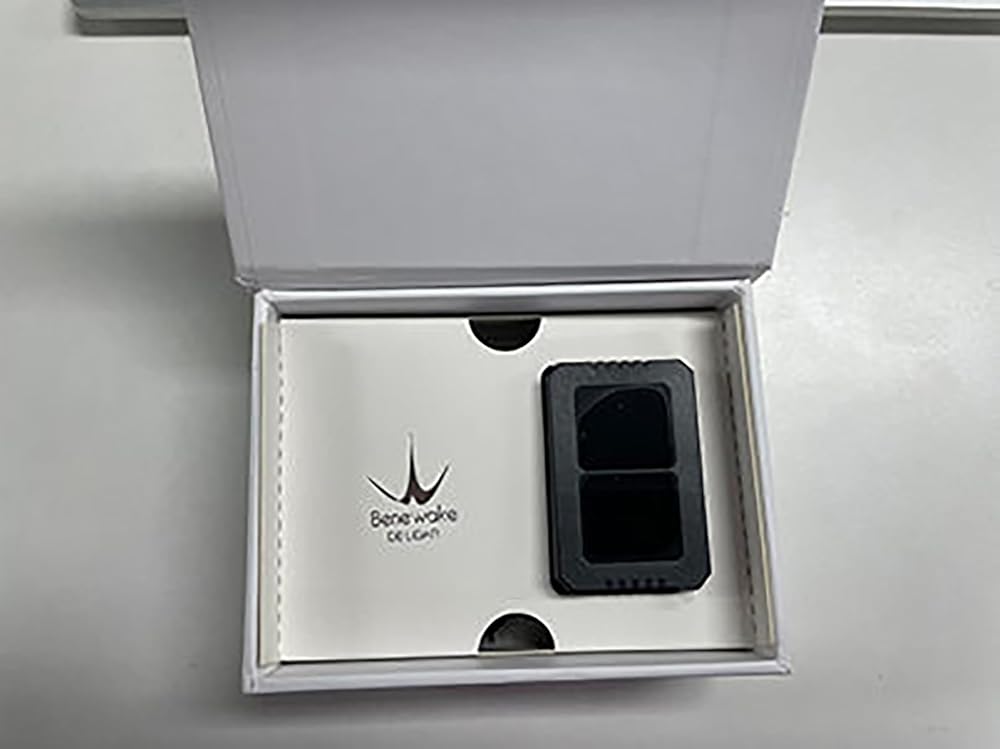

Package Includes​

1 × TF02-Pro LiDAR Sensor

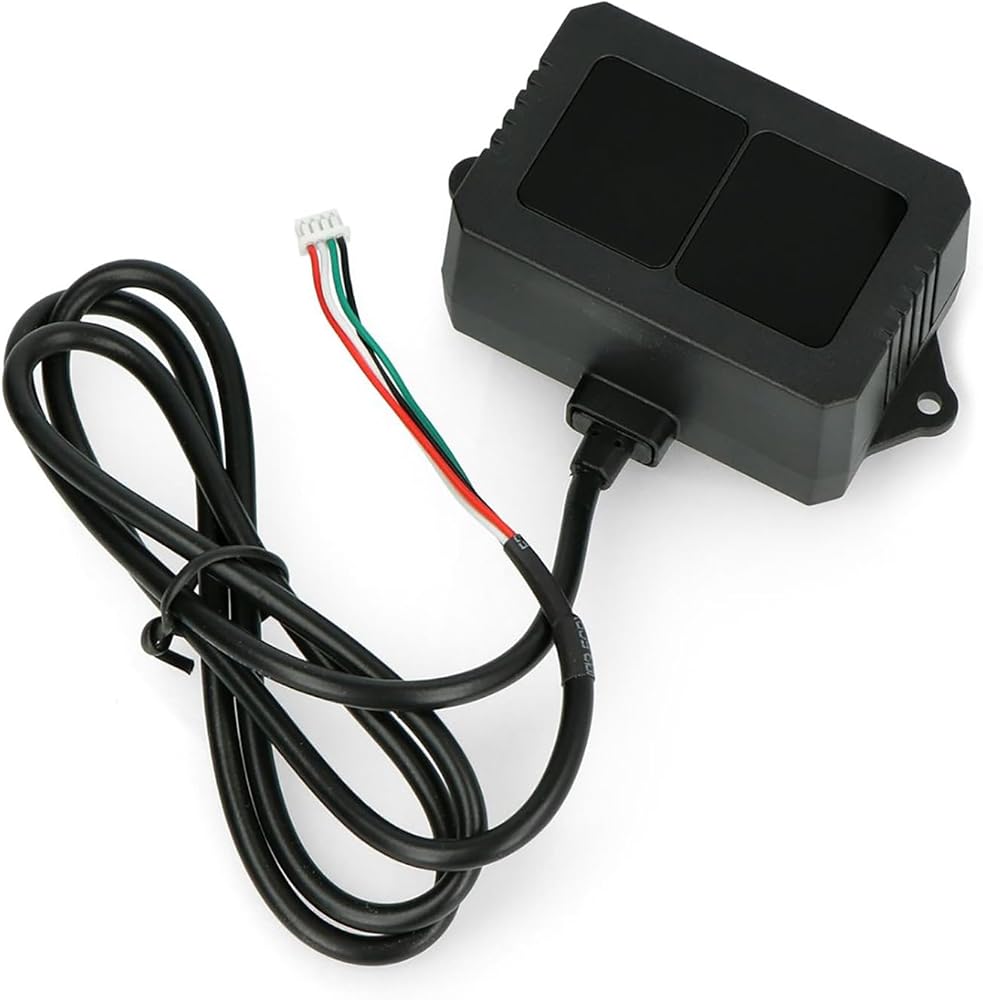

1 × 80cm Cable (Red: 5V+, White: RXD/SDA, Green: TXD/SCL, Black: GND)
Access to Software & Technical Support
