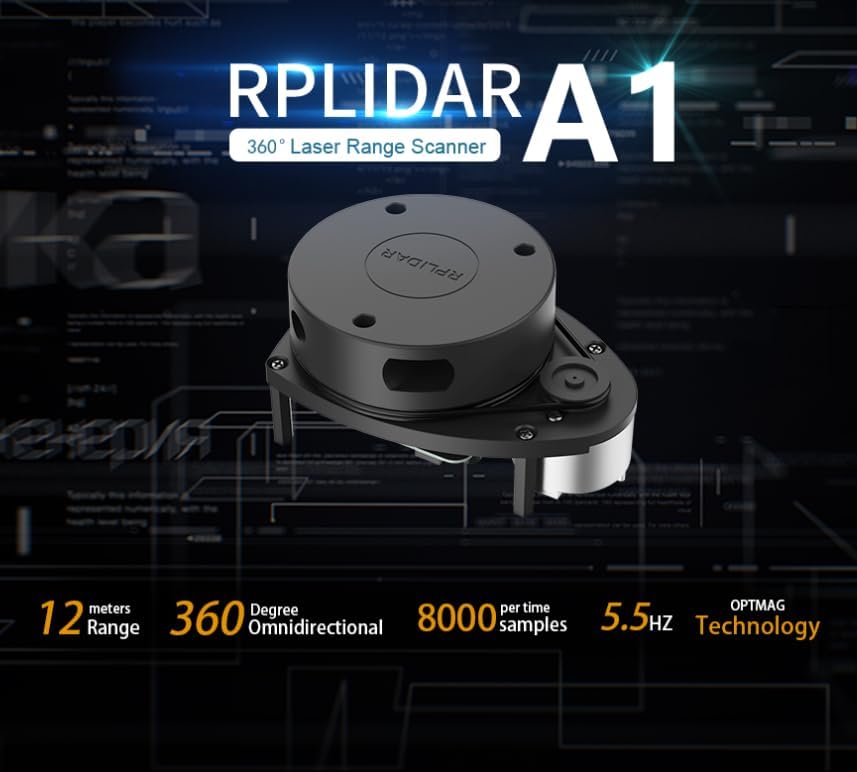

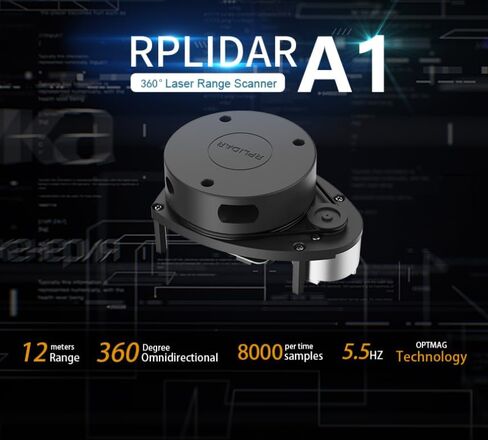

SLAMTEC RPLIDAR A1M8-360 Degree Laser Radar (LIDAR) for Robot Navigation, SLAM, and 2D Mapping - 12m Range, 5.5Hz Scan Frequency

SAR 498
Brand
Dxtvate
Weight
205 g
– 1 +

Special Features

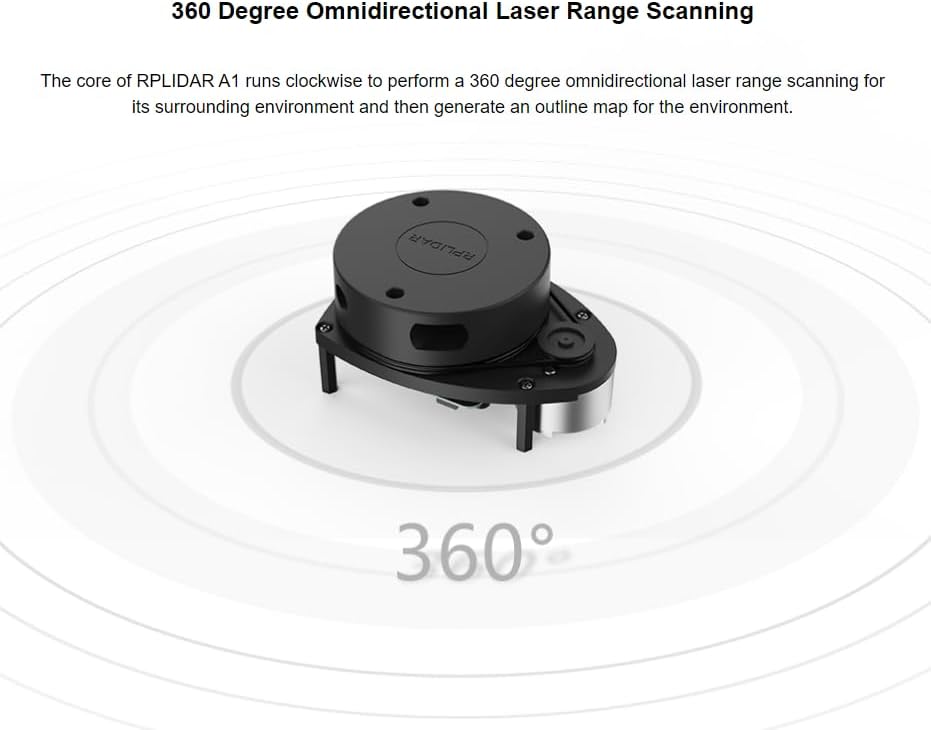

  • 360° REAL-TIME 2D MAPPING:​​ Achieve precise environmental perception with a 360-degree field of view. Perfect for robot navigation, obstacle avoidance, and simultaneous localization and mapping (SLAM) applications.
  • HIGH PERFORMANCE & ACCURACY:​​ Measures distances from 0.15m to 12m with a typical distance resolution of <0.5mm. Scans at 5.5Hz (configurable up to 10Hz) with an angular resolution of <1° for detailed point cloud data.
  • EASY INTEGRATION & DEVELOPMENT:​​ Features a standard 3.3V TTL serial (UART) communication interface. Supported by robust SDKs for Windows, Linux (x86/ARM), and development tools like RoboStudio for quick prototyping and integration.
  • Plug and Play Convenience:Effortless setup with a plug and play design, enabling quick integration with your robot kit.
  • SAFE & CERTIFIED:​​ Complies with Class I Laser Safety standards (21 CFR 1040.10/1040.11), ensuring eye safety for humans and pets with a low-power (<5mW), pulsed laser design.

Description

Product Description :​​

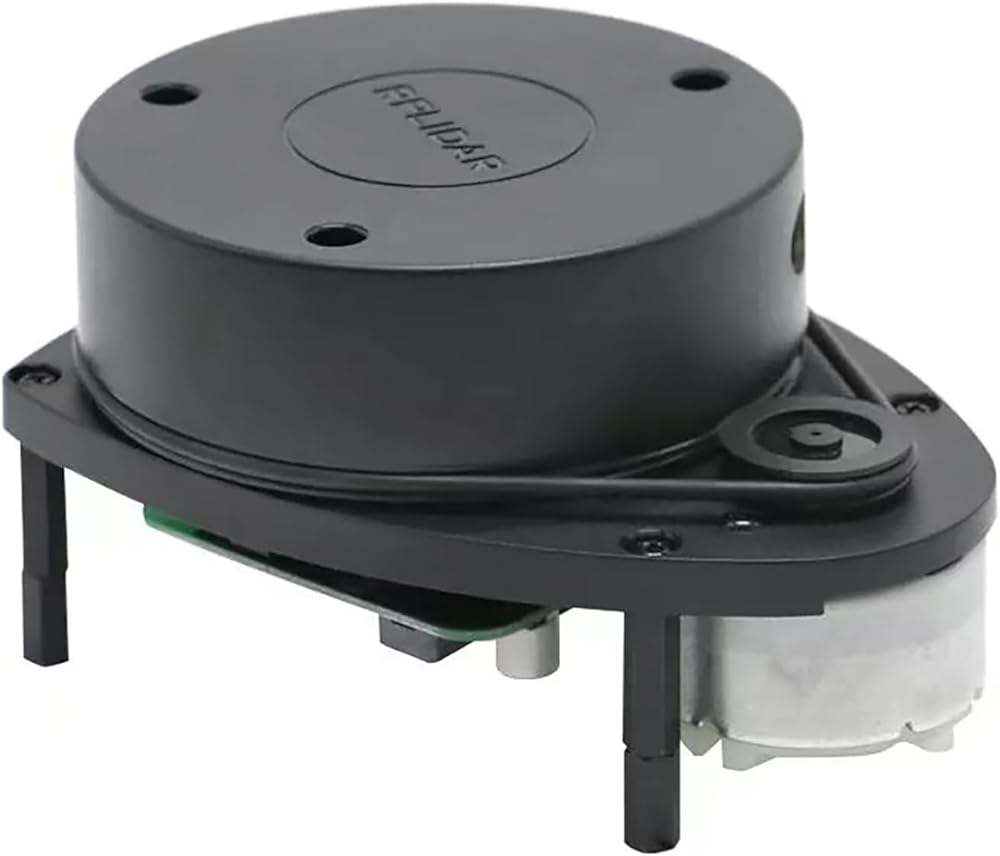

The SLAMTEC RPLIDAR A1M8 is a low-cost, high-performance 360-degree 2D laser scanner (LIDAR) designed to bring advanced perception capabilities to your projects. It is the ideal solution for robotics enthusiasts, researchers, and developers working on autonomous navigation, environment modeling, and smart device applications.

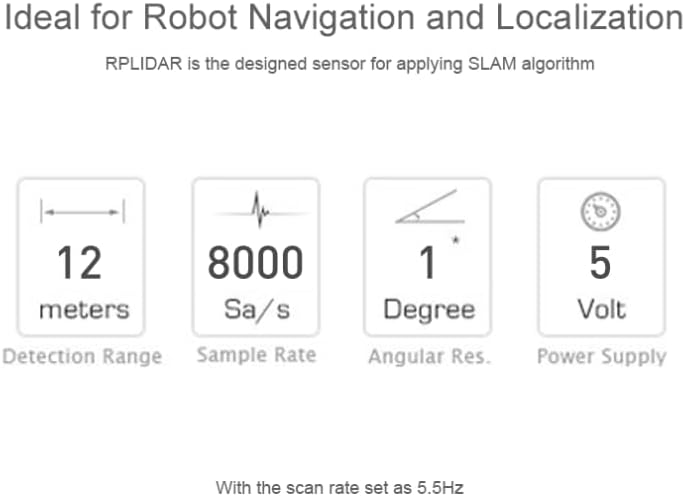

Key Technical Specifications:​​
Model:​​ A1M8
​Scanning Range:​​ 360°
​Detection Range:​​ 0.15m - 12m (for white objects)

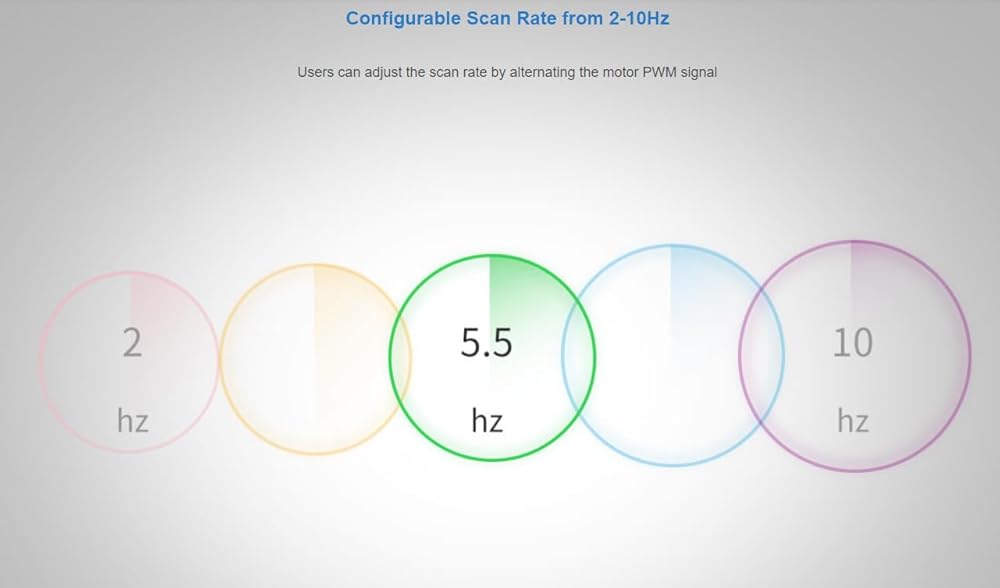

Scan Frequency:​​ 5.5Hz (Default), up to 10Hz (Configurable)

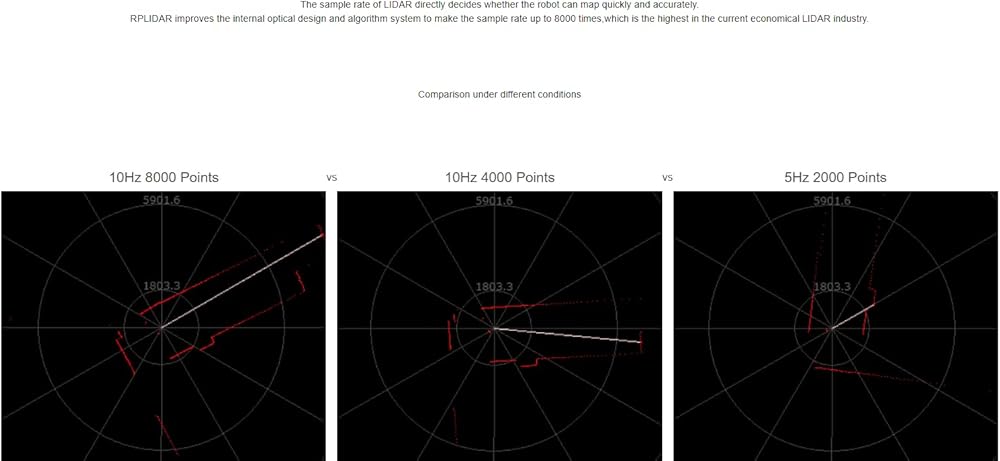

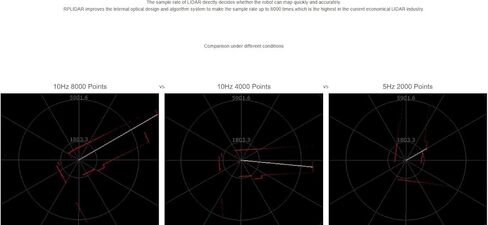

​Sample Rate:​​ Up to 8000+ times per second
Communication Interface:​​ 3.3V TTL Serial (UART)
Power Supply:​​ Scanner Core: 5V±0.1V; Motor: 5V-9V
​Laser Wavelength:​​ 785nm (Infrared, Class I Safe)
​Operating Temperature:​​ 0°C to 40°C

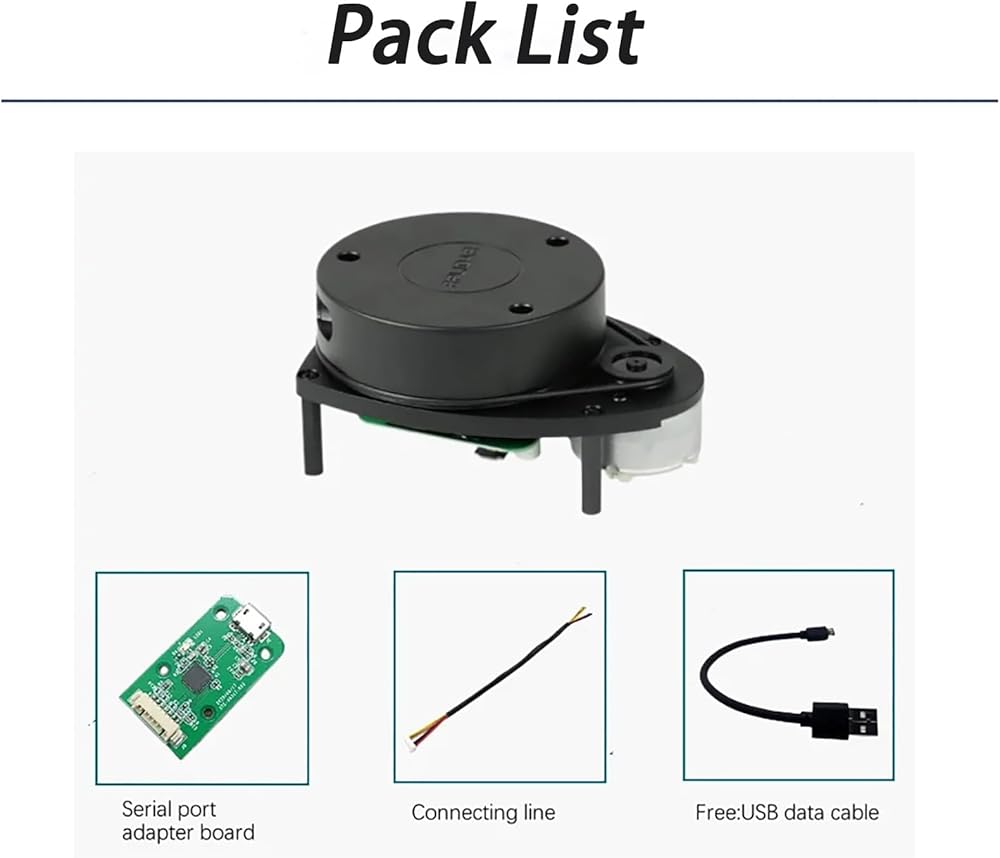

What's Included:​
1 x RPLIDAR A1（PWM motor driver embedded
1 x USB Adapter
1 x RPLIDAR A1 communication cable
1 x USB Cable

Ideal for:​​ Robot Navigation, SLAM, 2D Mapping, Obstacle Avoidance, Environment Scanning, Smart Toys, and Educational Research.
