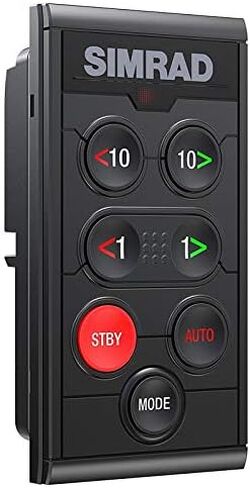

OP12 Autopilot Controller
The OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.
Features:
Intuitive operation
Easy installation

Combine with an IS42 display for full autopilot control
Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers

Use alongside NSS & NSO evo2 MFD's as an additional Autopilot Controller
Low-profile glass helm design

Low power consumption
Certified NMEA 2000® connectivity
Specifications:
Dimensions: 60 x 115 x 32mm (2.4" x 4.5" x 1.3")
Weight: 0.12kg (0.3lbs)

Power Consumption: 1.4 Watts
Network Load: 3 LEN

Color: Black
Environmental Protection, Waterproof: Waterproof rating: IPx7

Environmental Protection, Humidity: Up to 95% RH
Compass Safe Distance: 300mm (1.0")

Temperature Operating: -15 to +55°C (5°F to +131°F)
Temperature Storage: -30 to +70 °C (-22 to +158 °F)
