Descriptions:

Voltage Range: 5-6V DC.

Dimensions: 40mm x 25mm.

Weight: 6.5g.

Feature:

1.Four Model Types supported: single aileron, dual ailerons , flapperons, delta and vtail.

2.Three Flight Modes supported:

a. Rate Mode ,Rate Mode for offset correction.

b. Hold Mode ,HOLD mode for attitude hold

c. Gyro Off Mode,transsmiter control the plane directly.

3.Two kinds of Gain Control Method supported:Master Gain from the radio, Independent Axis Gain from the Variable resistor on the Controller board.

4.Using superior algorithm, Bring a more comfortable and more sensitive sense of control .

VERY IMPORTANT :

The Controller has to re-learn center position after installation,or replacing a new radio system, or making a trimming(or Sub-Trim)change within the transmitter, otherwise the servos may move to one side automatically when switching to hold mode.To do this,just quickly flip the flight mode switch twice between rate mode and hold mode within 1 second!

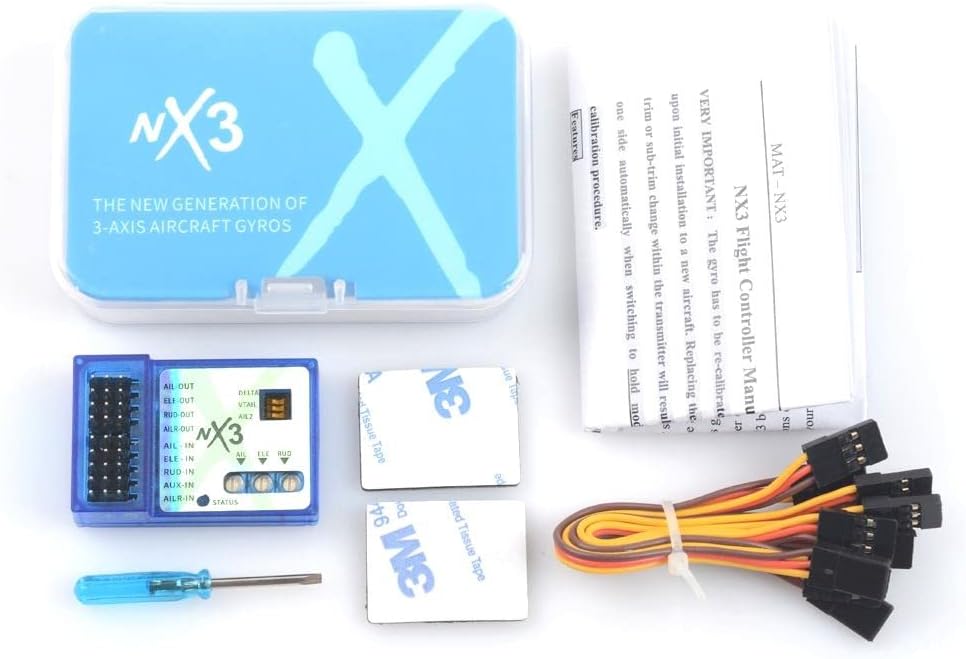

Packing Included:

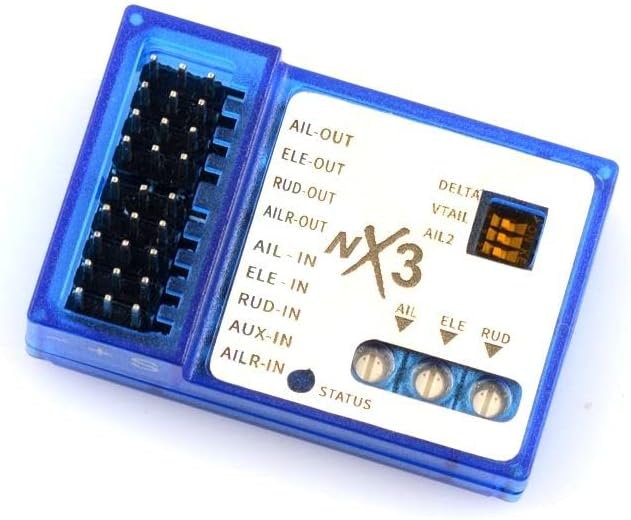

1 x NX3 Flight Controller board

1 x NX3 manual

5 x wires

1 x double-side tape
