Notice : This six jaw chuck only have one set internal jaw,No external jaw .

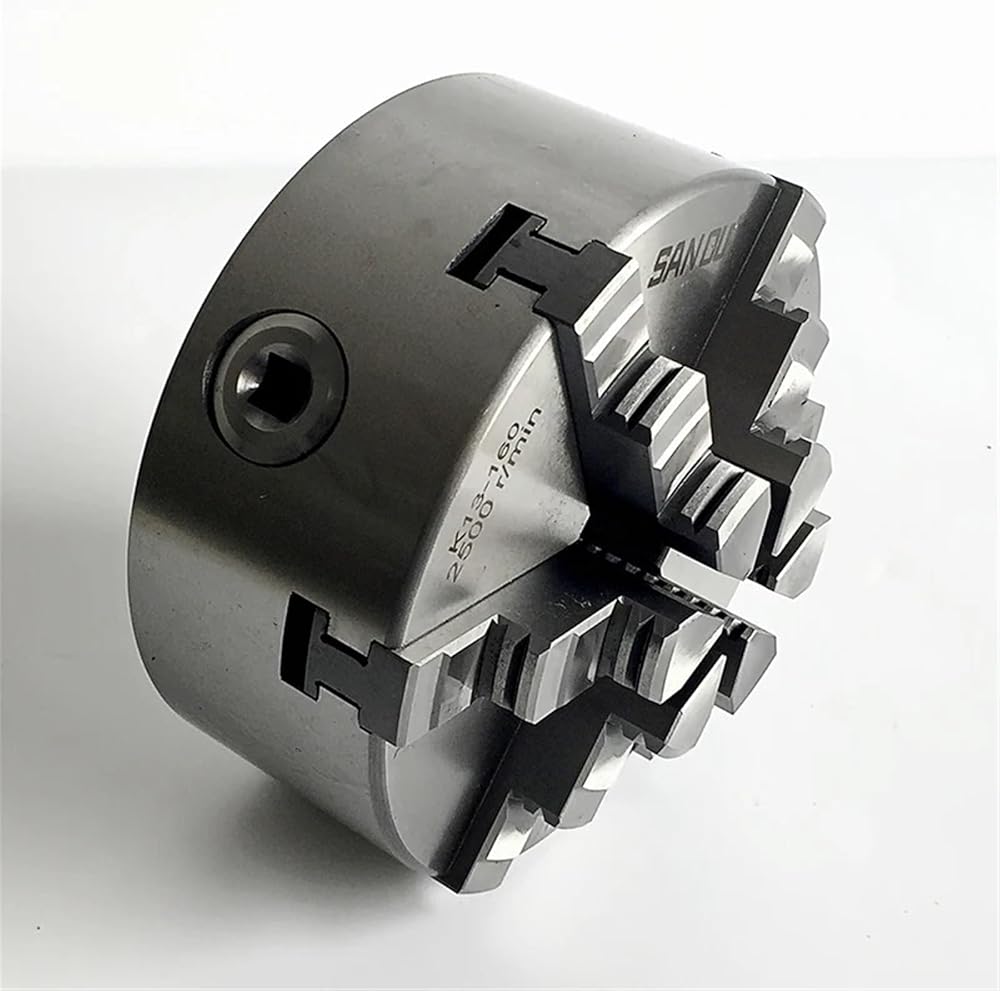

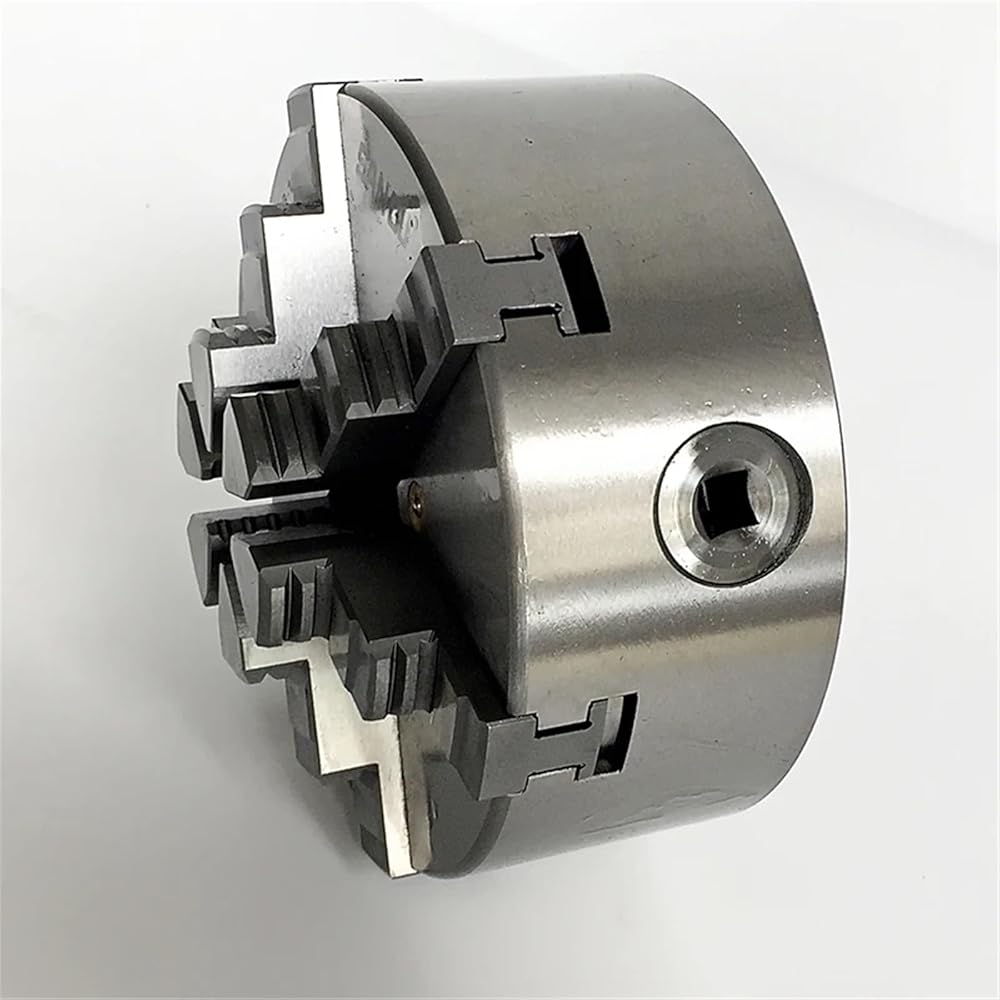

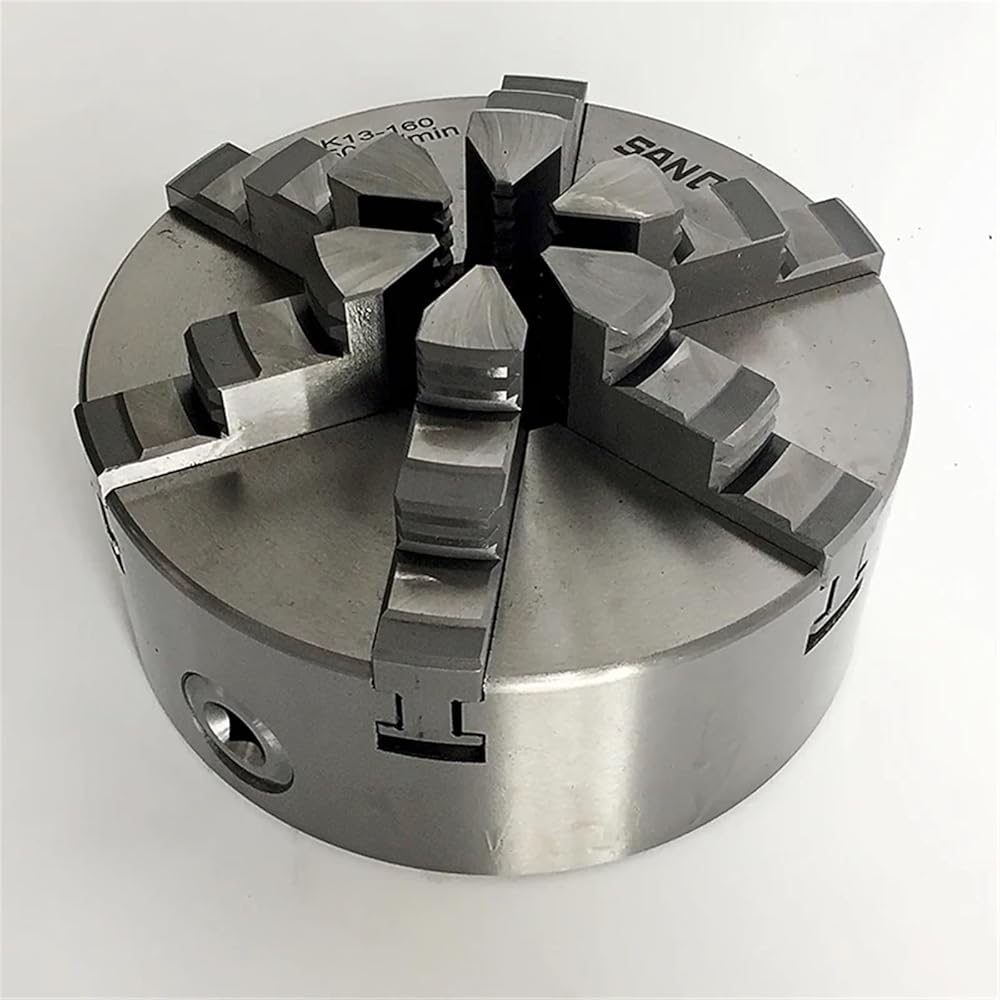

6 Jaw lathe chuck K13-160
Specifications:
Jaws material:Hardened Steel
Model: K13-160
Max RPM: 2500 r/min
Jaw: 6Jaw
Power: Manual
Features:
1.Short cylindrical center mounting.
2. K13 chucks are matched with stepped jaws.
3. Suitable for clamping and machining the thin-walled work piece .
Internal Jaw:
Clamping Range A-A1: 3- 55mm
Jamming Range B-B1: 50- 160mm

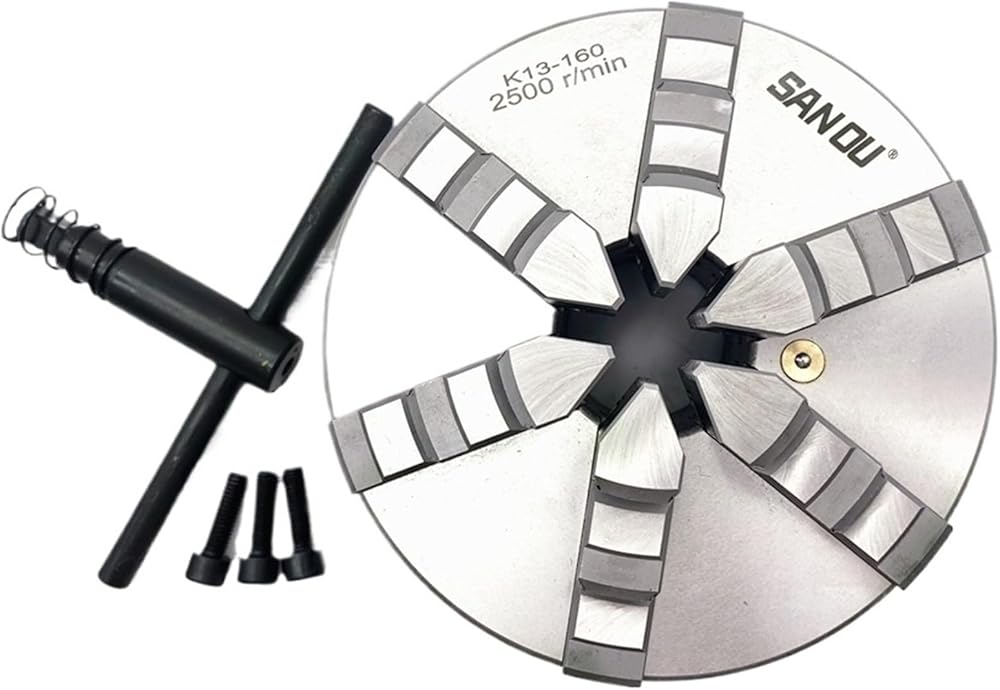

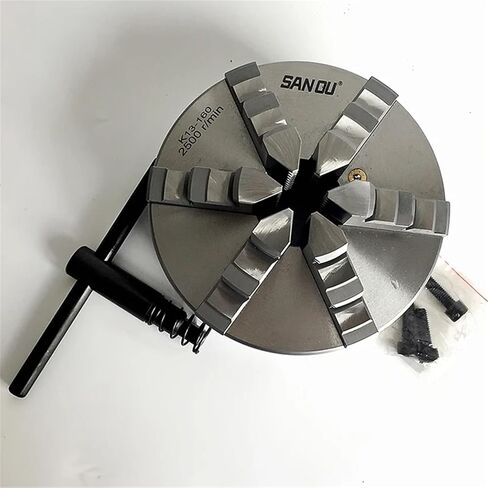

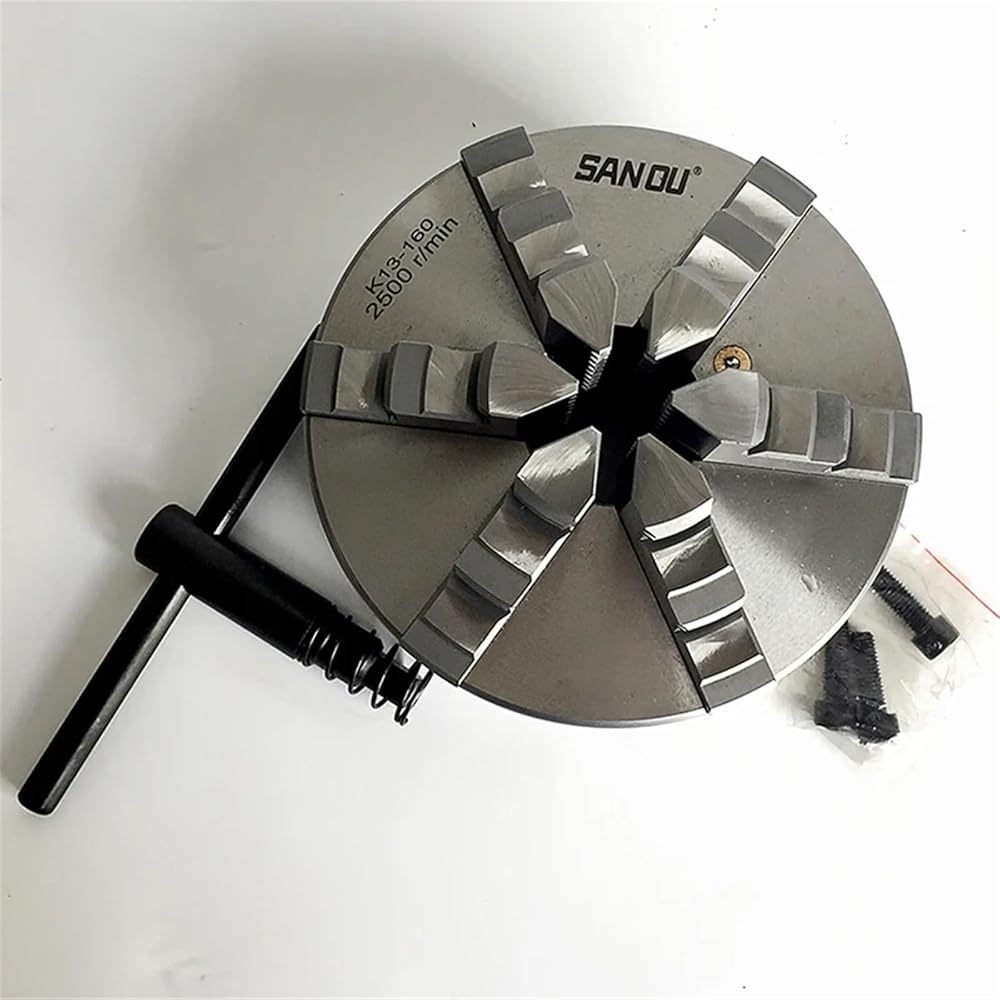

Packaged included:
Self-Centering chuck body x1
OnlyOne set Internal jaw x6(Already install on chuck body)
Safety chuck keyx 1
Mount screw x 3
==========
Model Number : K13160
Number of Jaws : 6
Power : Manual
Size : 6''
Packing : Carton
Internal jaw clamp range : 3-55mm
Jamming range : 50-160mm
name : 6 jaw chuck
keywords : lathe chuck 160mm
