Spindle Sanders
Material: Spindle cover is 304 stainless steel, water jet is high pressure cast aluminum tube, copper coil
Power Connection
GX16 waterproof aviation , (1/2/3) are connected to the inverter (U/V/W) in sequence, 4 is connected to the inverter ground wire

Maximum torque: 230mN.m
Operating speed: 24000rpm

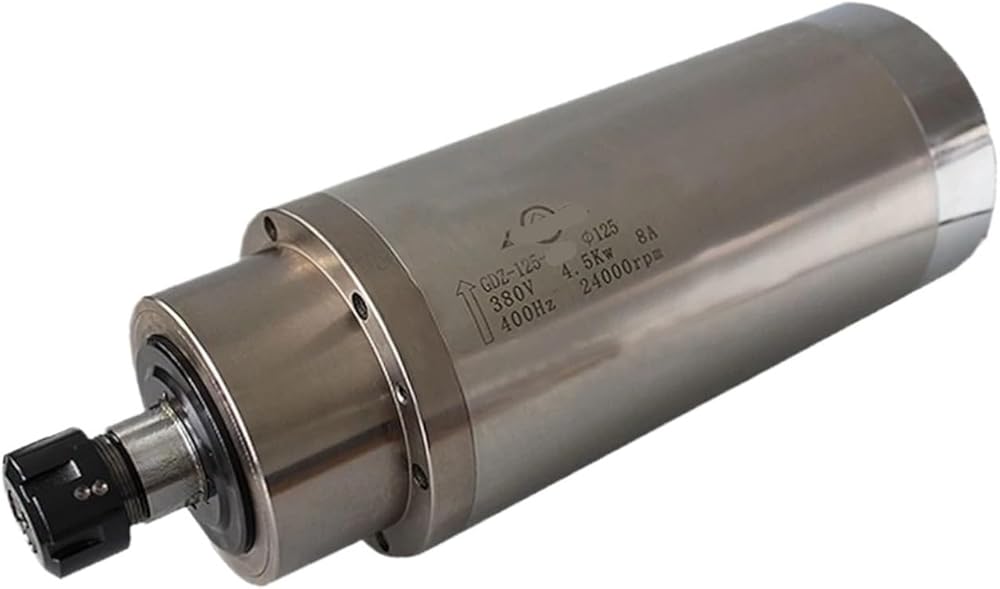

Model: GDZ-125-4.5/5.5
Power: 4.5KW/5.5KW
Voltage: 380V
Working speed: 0-24000RPM
Current: 8A
Diameter: 125 mm
Size: 125*298MM long
Bearing: 7007C P4*2 7205C P4*2
Chuck: ER25
