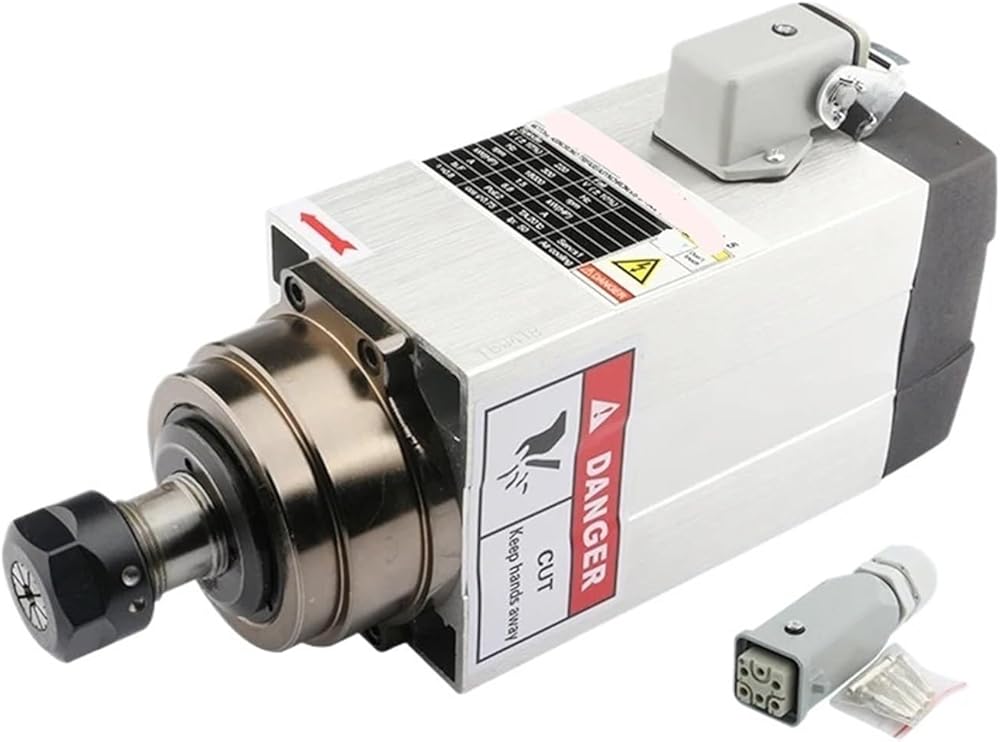

Spindle Sanders
Model: GDZ93-82-1.5
Speed regulation method: Change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
Cooling method: air cooling
Power interface: Optional 5-pin waterproof aviation . The aviation is marked with "1", "2", "3", "4", "5", and "GND". "1", "2", and "3" are connected to the inverter (U, V, W), and "GND" is connected to the inverter ground.
Power: 1.5kw (1HP=0.735w)
Current: 3.8A
Frequency: 300-400Hz
Speed: 18000-24000rpm
Jump: less than 0.01mm
Shaft end connection: ER20-3.175-6
Bearing type: 2*7005C P4, 2*7002C P4 (4 ball bearings)
Grease lubrication
