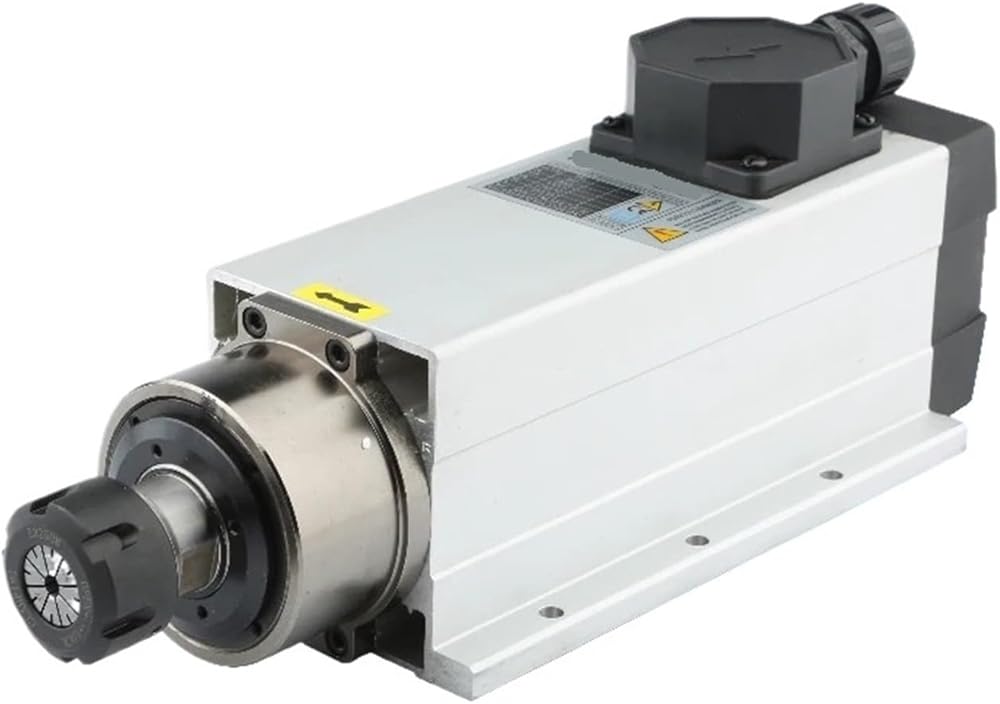

Spindle Sanders
Model: GDF46-18Z/3.5
Speed regulation method: Change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
Cooling method: air cooling; Power interface: optional 5-core waterproof aviation connector. The aviation connector is marked with "1", "2", "3", "4", "5", and "GND". "1", "2", and "3" are connected to the inverter U, V, and W respectively, and "GND" is connected to the inverter ground.
Power: 3.5kw (1HP=0.735w)
Voltage: 380V
Current: 7.8A
Frequency: 0-300Hz
Speed: 0-18000rpm
Jump: less than 0.01mm
Bearing type: 4 ball bearings
Chuck: ER25
