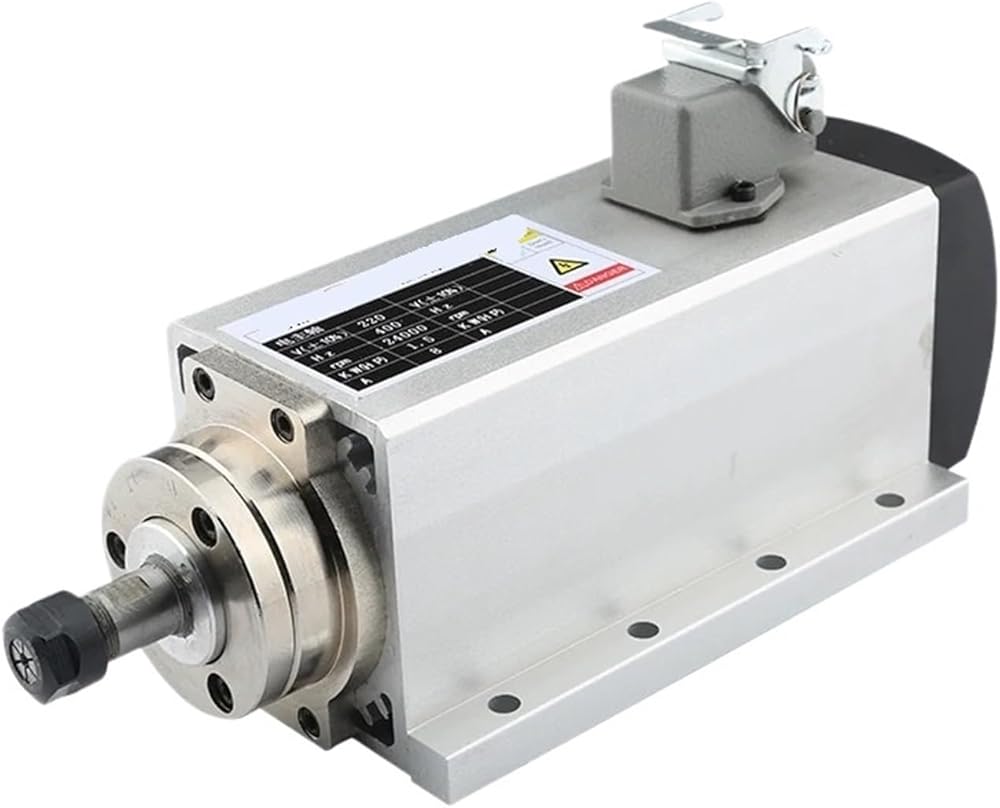

Spindle Sanders
Size: GDZ98x70-1.5
Speed regulation mode: three-phase output frequency converter, by changing the frequency of the frequency converter, the spindle speed can be changed.
Cooling method: air cooling
Power interface: 6-pin square aviation is optional. The aviation is marked with "1", "2", "3", "4", "5" and "GND". "1", "2", "3" are connected to the inverter (U, V, W), and "GND" is connected to the inverter ground.
Power: 1.5kw
Voltage: 220V 380V
Current: 8.0A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
4 fully sealed angular contact bearings
Chuck: ER11
Clamping tool diameter: 7mm, 6.5mm, 6.35mm, 6mm, 5.5mm, 5mm, 4.5mm, 4mm, 3.5mm, 3.175mm, 3.0mm, 2.5mm, 2mm, 1.5mm, 1mm (standard 4mm)
Water-cooled ER11 chuck
