Spindle Sanders

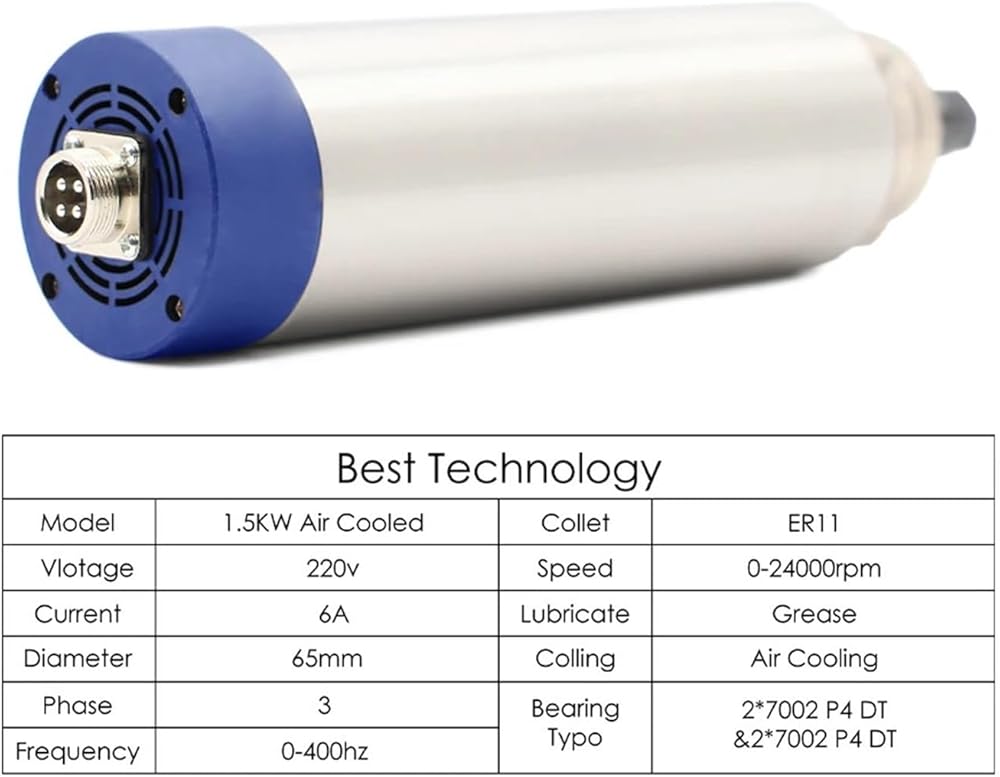

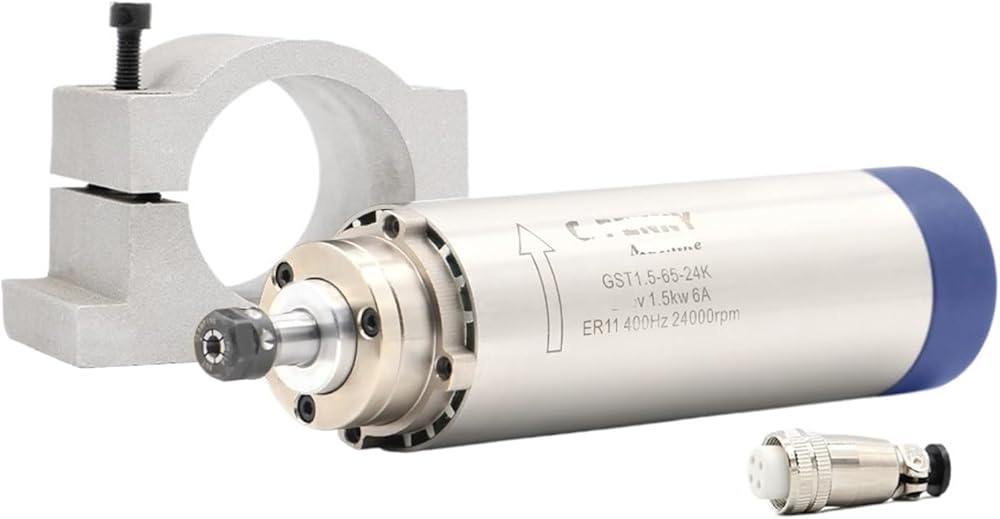

1 & 220vAC 15kw ER11 air cooled spindle motor 65mm 4 bearings
1 x 65 mm spindle bracket

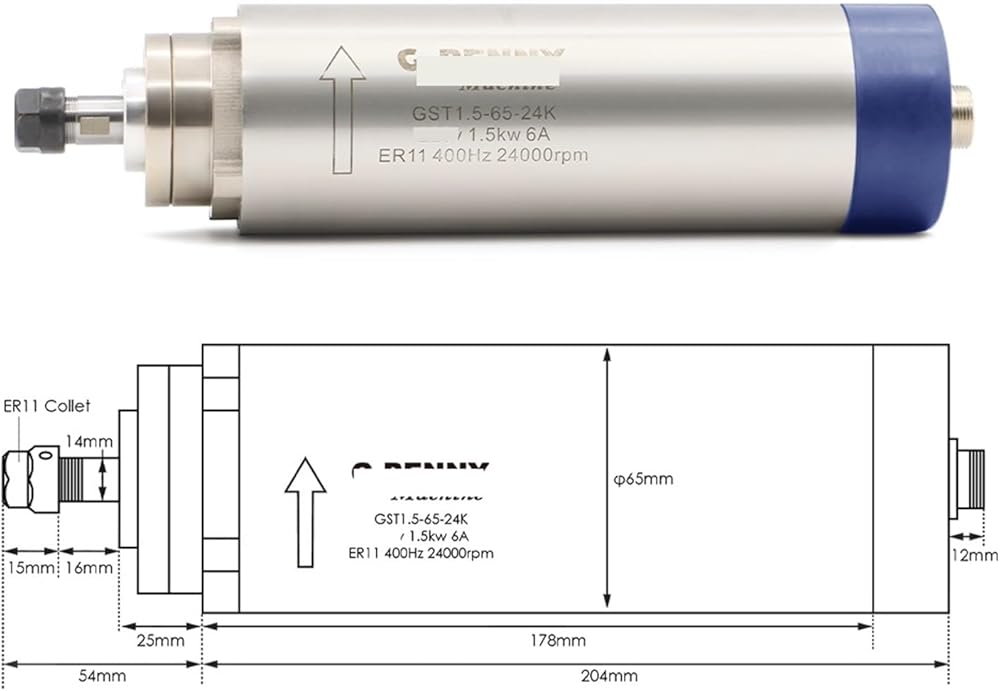

Dimensions: 65 x 204mm (body diameter 65mm; length: 204mm)
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: air cooling
Power: 1.5kw (1HP=0.735kw)
Voltage: 220vAC
Current: 6A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout deviation: 0.01mm
Bearing type: 2X7002C P4 DT and 2X7002C P4 DT
Fully sealed angular contact bearings
Chuck: ER11
Clamping knife diameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm
Air-cooled ER11 chuck block
