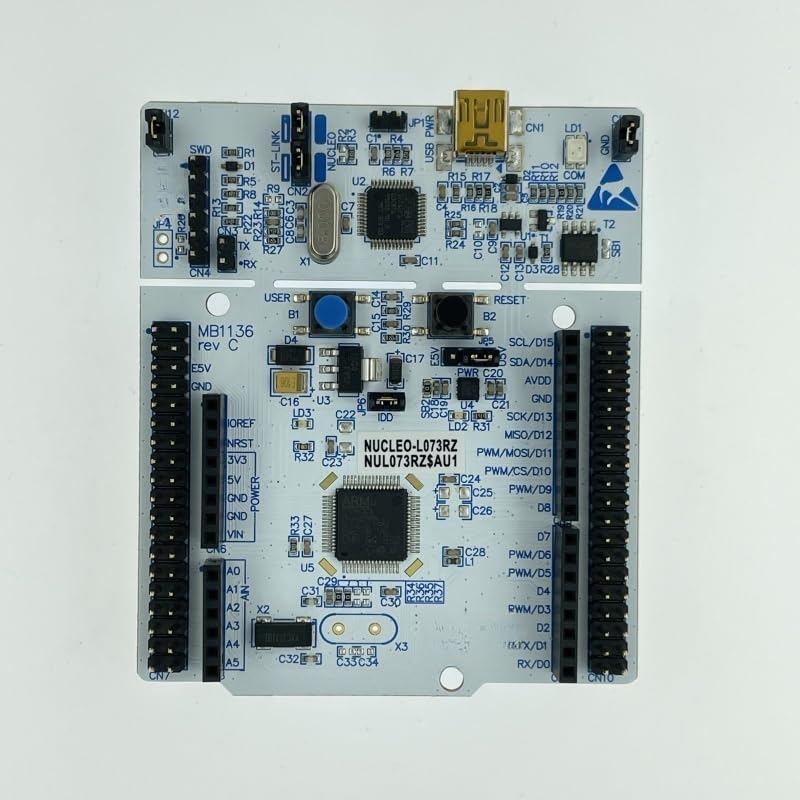

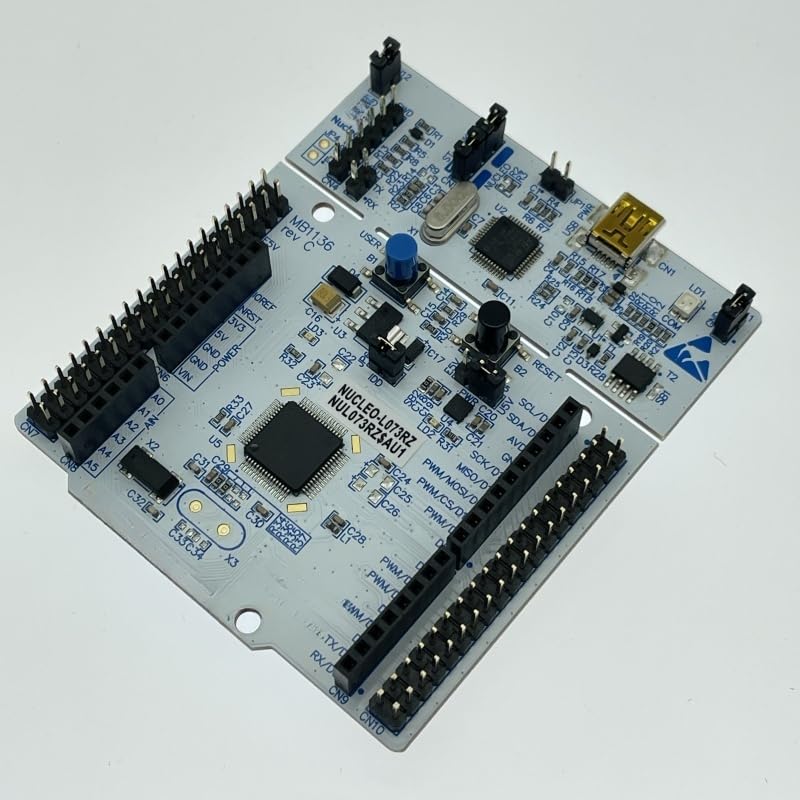

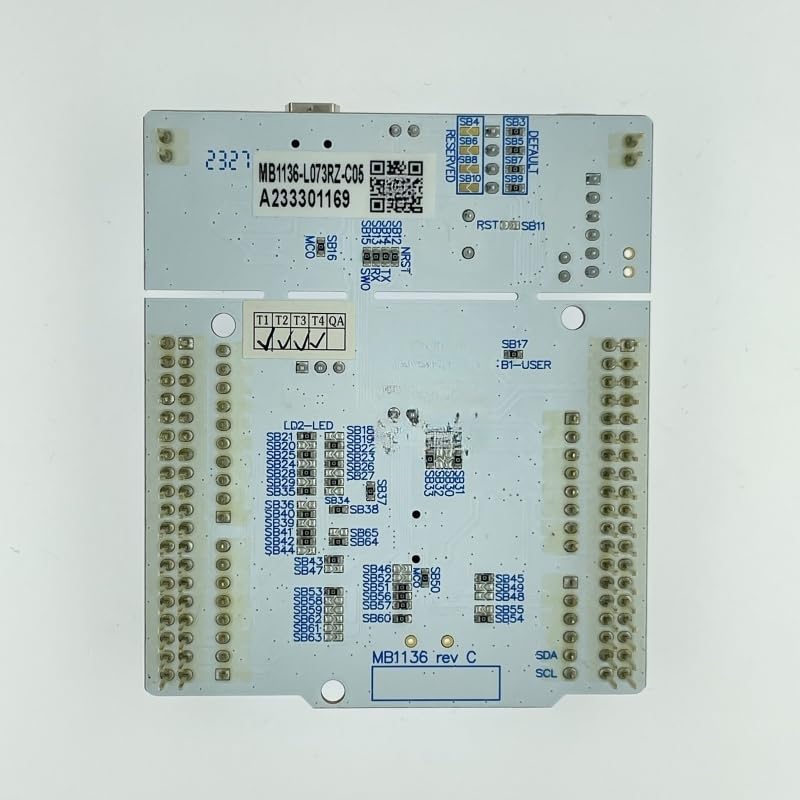

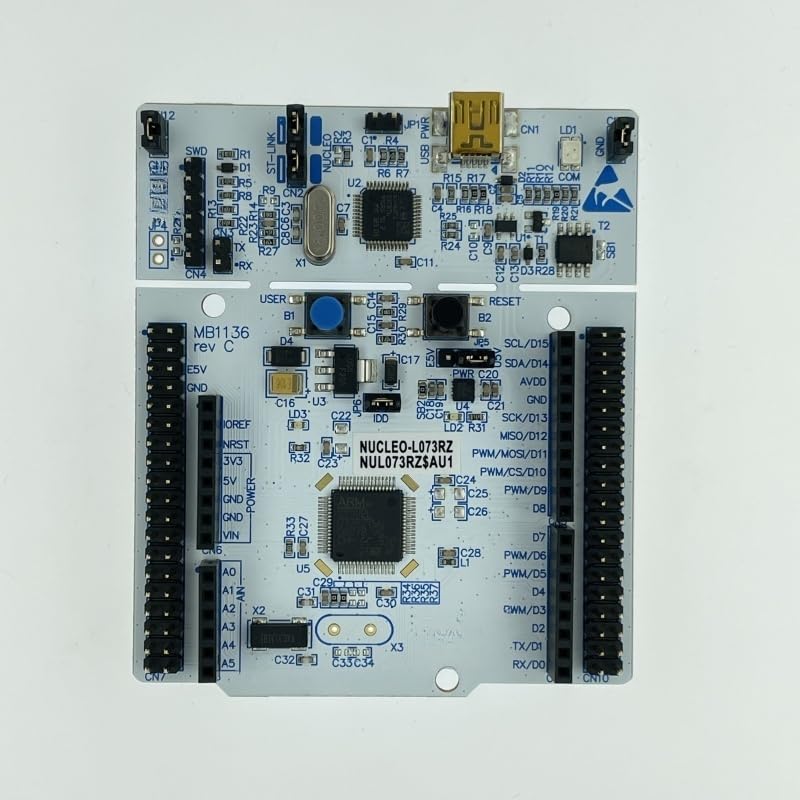

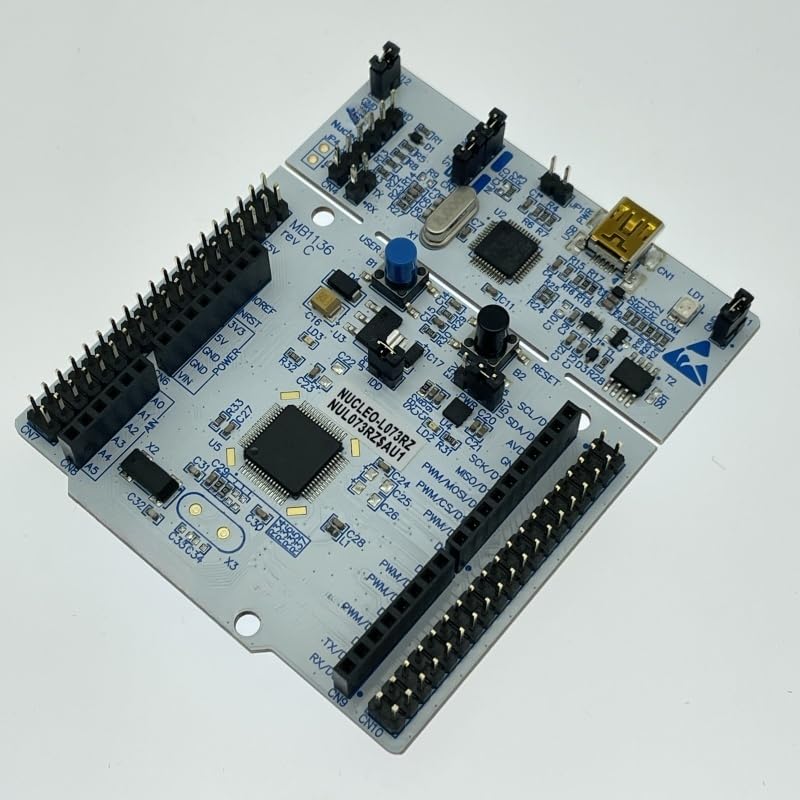

NUCLEO-L073RZ STM32 Nucleo-64 STM32L073RZT6 Processor, ARM Cortex M0+ core

SAR 133
Brand
Generic
Weight
80 g
– 1 +

Special Features

  • STM32L073RZT6 32MHz Cortex-M0+ core microcontroller with 192KB ECC flash memory, 20KB RAM, 6KB ECC EEPROM
  • Real time clock
  • Serial communication interface: USART, SPI, I²C, USB
  • The 24 x capacitive sensing channel supports touch keys, linear and rotary touch sensors
  • LCD drivers for up to 4 x 52 or 8 x 48 segments
  • CRC computing unit 96 unique ids True random number generator and firewall protection
  • Support Arduino Uno v3 connection ST Morpho extended pin holder for access to all GPIOs Onboard ST-LINK/V2-1 debugger/programmer with SWD connector
  • Flexible onboard power supply 3 x LED: USB communication, power and user Reset and user buttons

Description

The STM32 Nucleo-64 board uses an ultra-low power STM32L073RZT6 microcontroller to provide users with an economical and flexible way to build prototypes. The Arduino expansion board connector provides access to more peripherals and features a ST morpho socket to expand functionality with a selection of expansion boards. ST-LINK/V2-1 integrated debugger/programmer comes with STM32's complete software HAL library, software examples, and direct access to ARM mbed online resources. Support for a variety of integrated development environments (ides), including IAR, Keil, GCC based, and ARM mbed.
