Steering Gear

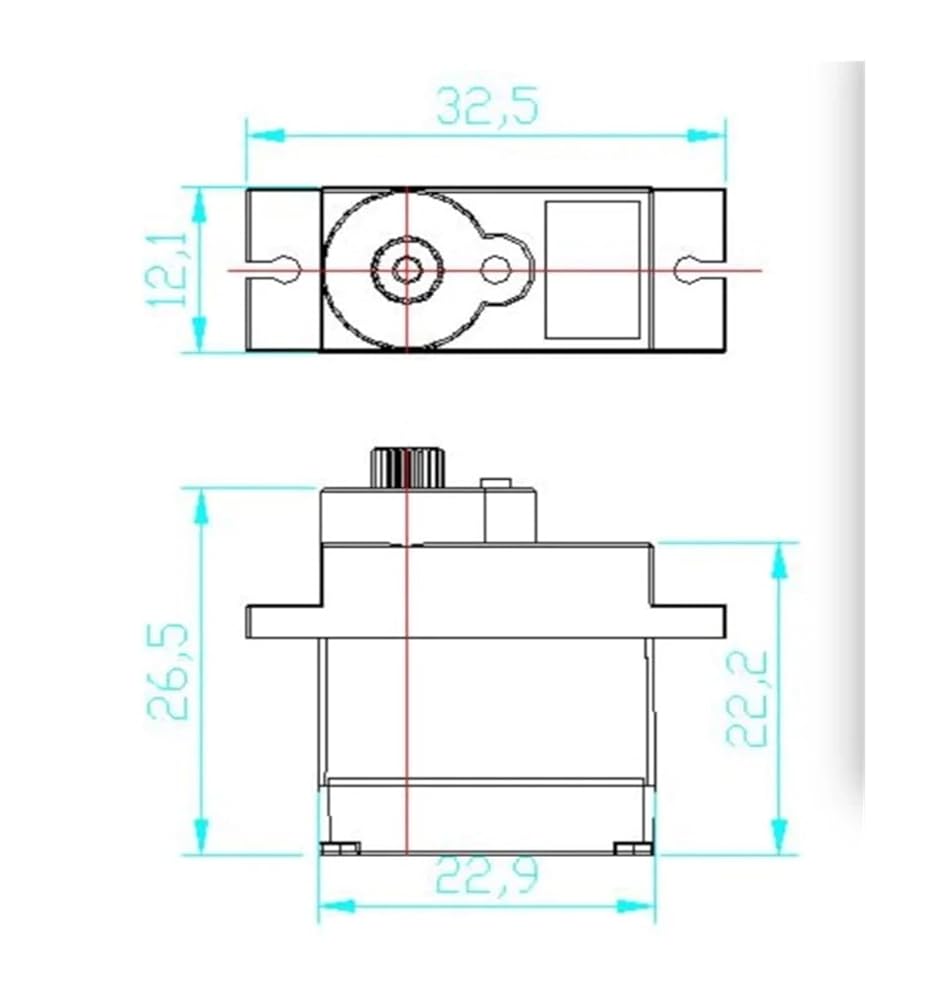

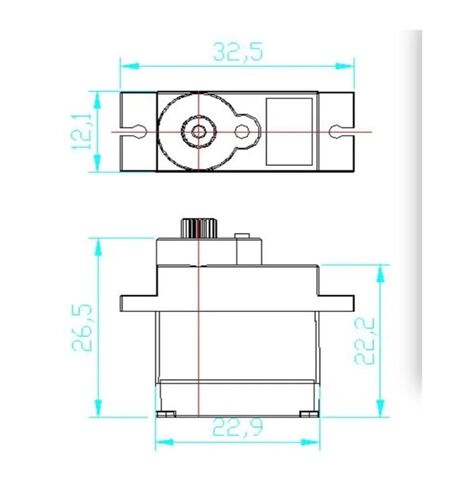

Dimensions: 22.9mm x 12.1mm x 26.5mm
Weight: 9g

Bearings: No ball bearings
Horn gear spline: 20T

Connecting wire: 250mm±5mmJR
Motor: Metal brush motor

Pulse width range: 900~2100 seconds
Neutral position: 1500 seconds
Operating angle: 360°

Clockwise (1500~1000 seconds), counterclockwise (1500~2000 seconds)
Operating voltage: 4.8V - 6V
No-load current: 130mA @ 6V
Rated continuous torque: 0.5kg/cm @ 6V
Peak torque: 1.5kg/cm @ 6V
Stall current: 900mA

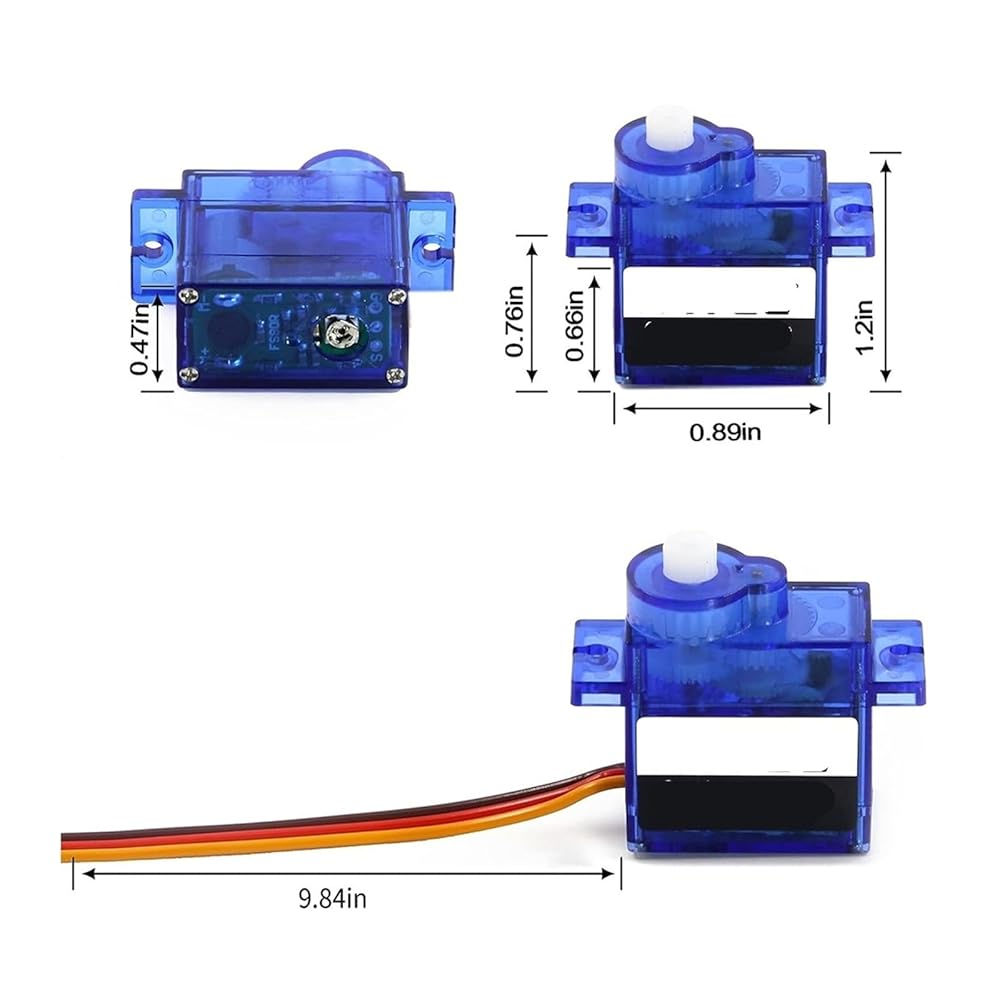

Dimensions: 0.8 x 0.4 x 0.8 inches
Four-wheel drive attributes: Motor

Model: FZ3328
