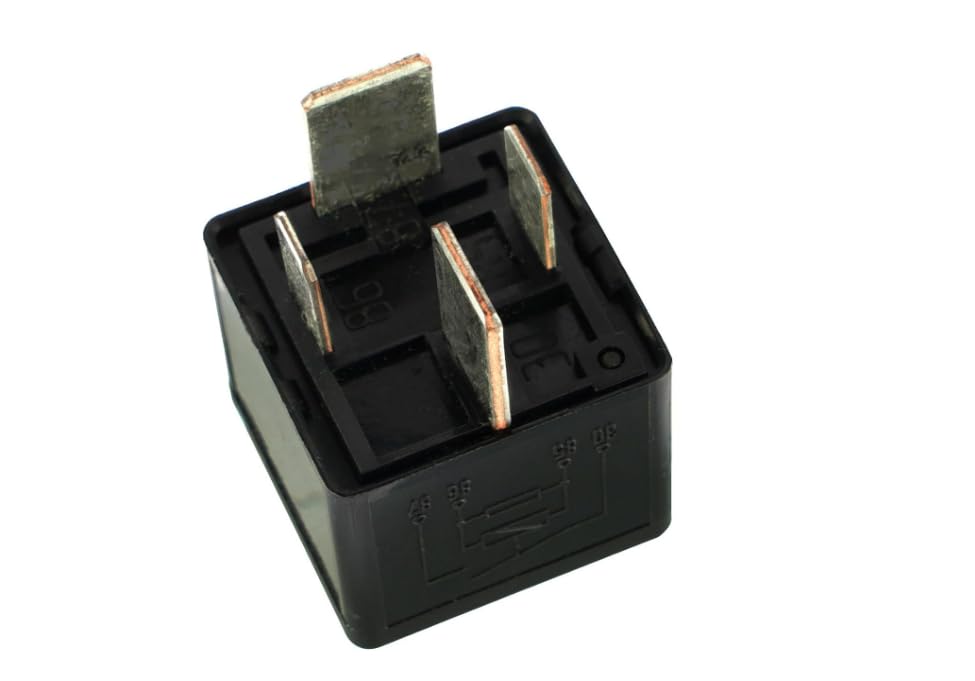

This plug-in automotive relay belongs to the V23134 “F4” family and is used across multiple Compatible with Mazda applications matching OE G110-67-730. Always verify the part number and 4-pin NO layout against your original relay.
Key SpecificationsContact: 1 Form A (SPST NO), 4 pins (30/85/86/87), Mini ISO footprint
Coil: 12 VDC
Current rating (NO): up to 60 A at 23°C (derates with temperature)
Operating temperature: −40°C to +125°C
Pin assignment: similar to ISO 7588-1 (Mini ISO)
Series: Compatible with TE Connectivity V23134 (F4) plug-in relays
Installation Position & FunctionInstalls in the engine-compartment fuse/relay box. On supported vehicles it is commonly assigned to Accessory Power, HVAC Blower Motor, Engine Cooling Fan, or Headlamp circuits. Replacing a failed relay can address symptoms such as an inoperative blower, cooling fans that do not engage, or headlamps that fail to switch.
Direct Fit (match your part number)Compatible with Mazda OE: G110-67-730
Common stampings: “V23134-J59-X431”, “G110-67-730”
NotesCompare the blade layout (30/85/86/87) and housing before installation.
Circuit assignment varies by trim/year; consult the under-hood fuse/relay map to identify the slot (blower, cooling fan, headlamp, or accessory power).
Related item in the same box (sold separately): Compatible with Mazda “Relay, Main” OE UM46-67-730.
