Description:

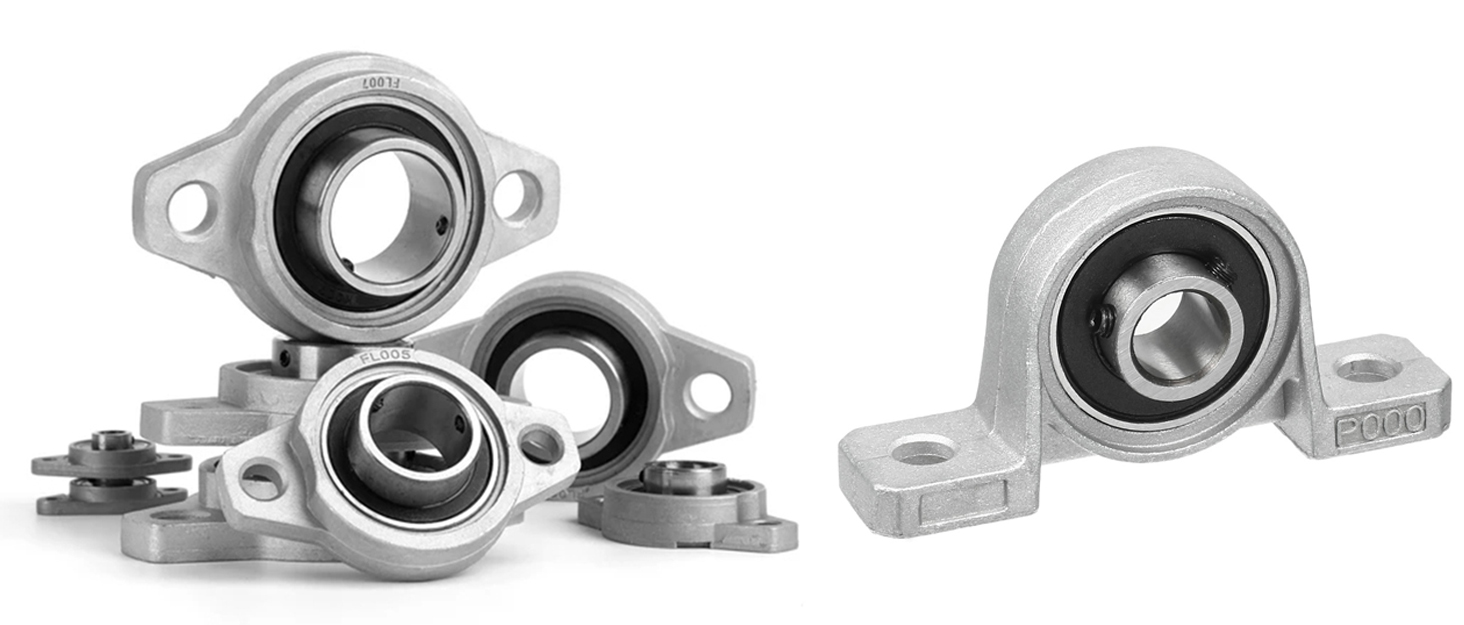

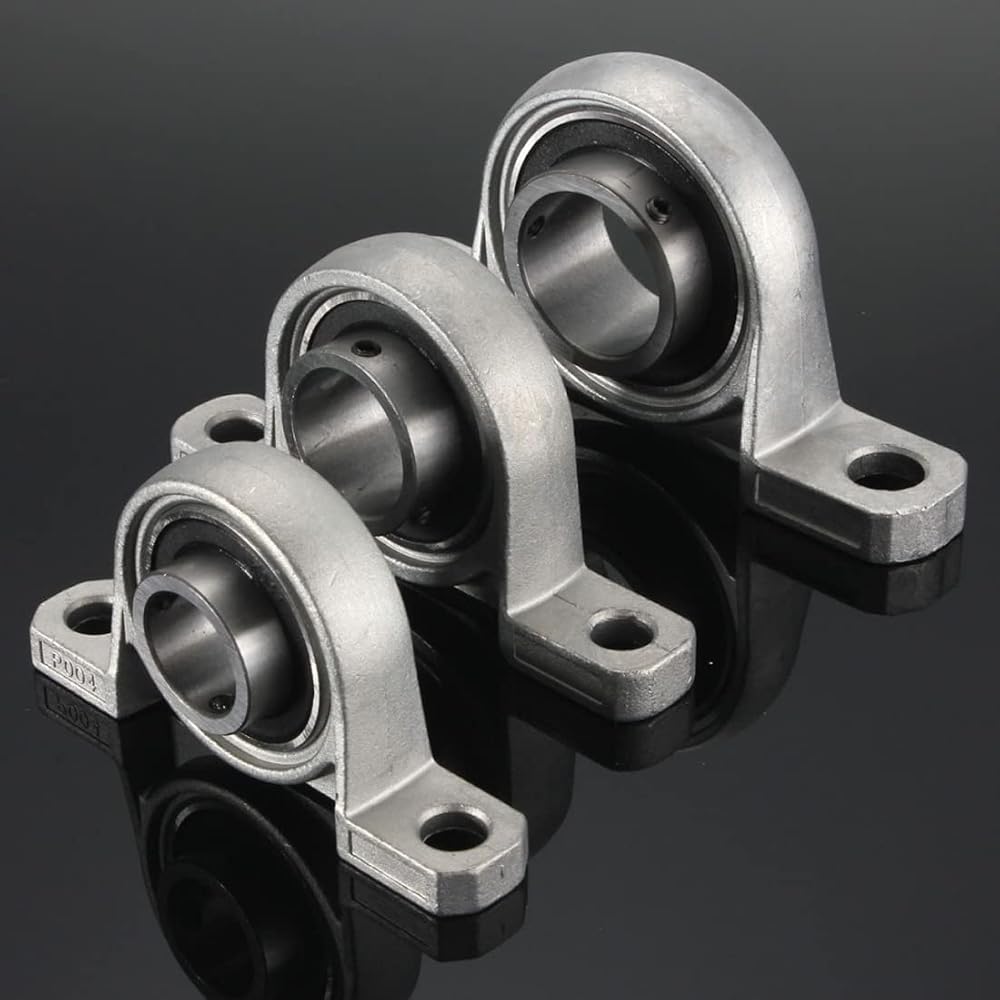

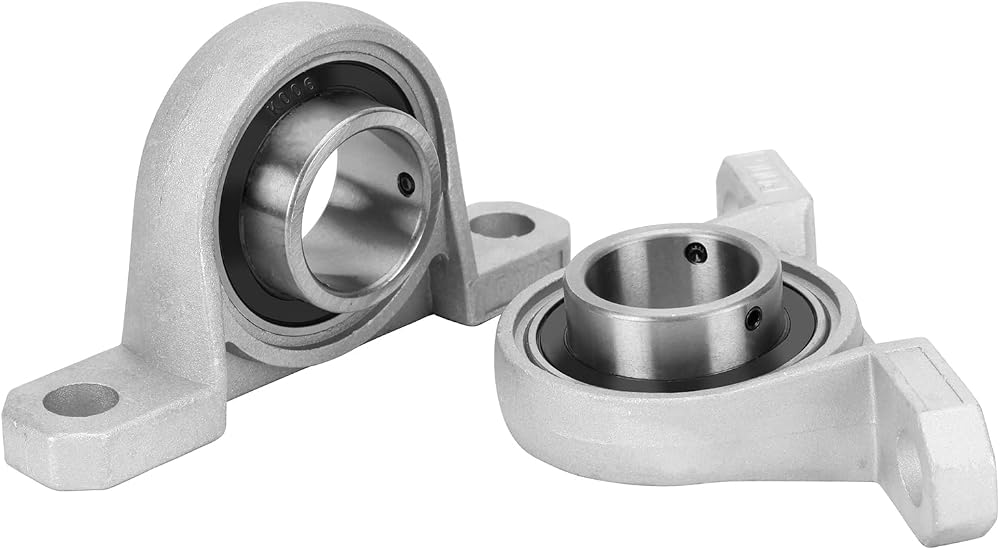

A pillow block bearing (or plummer block) is a pedestal used to provide support for a rotating shaft with the help of compatible bearings and various accessories. The assembly consists of a mounting block which houses a bearing.The block is mounted to a foundation and a shaft is inserted allowing the inner part of the bearing / shaft to rotate.The inside of the bearing is typically 0.001 inches (0.025 mm) larger than the shaft to ensure a tight fit.Set screws, locking collars, or set collars are commonly used to secure the shaft.
Feature：
Zinc Alloy Flanged Base, rust-proof, durable, have long Life.
This Bearing is a self-aligning, pillow block bearing, you can adjust or replace the bearing easily.
This one-piece pillow block housing allows for a stationary outer ring and rotating inner ring.

Widely used in various of machinery, power, mining, metallurgy, textile, agriculture and other industries, especially in food machine. The pillow block can also be used into conveyring systems, film processing machinery, spin machine and printing machine.

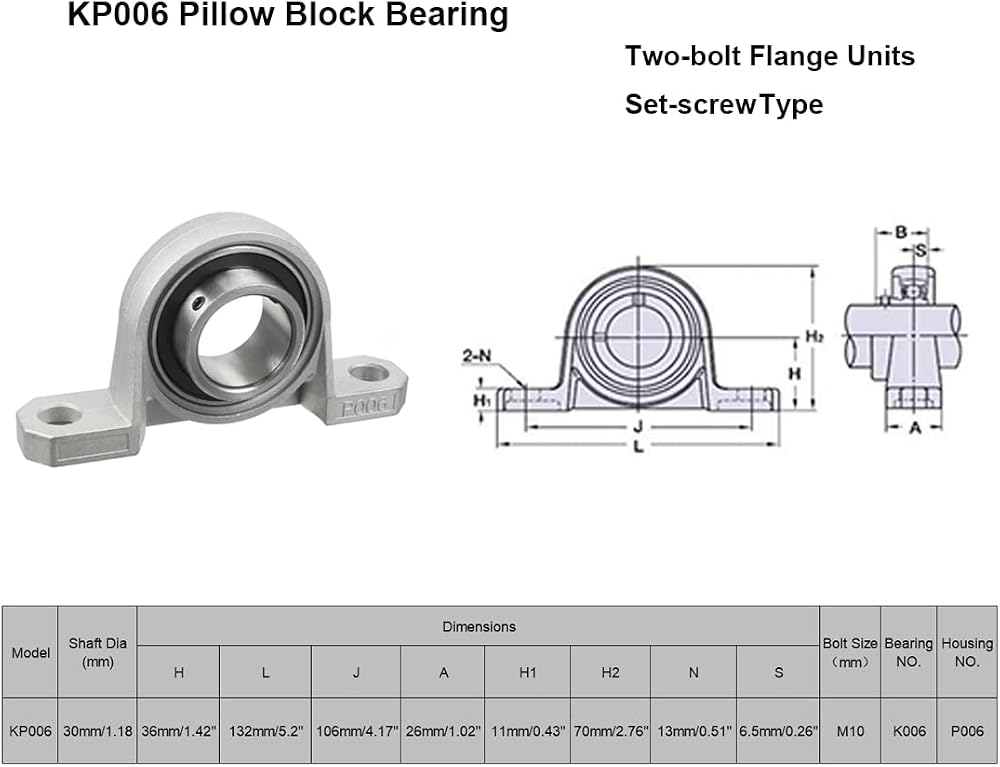

Specifications

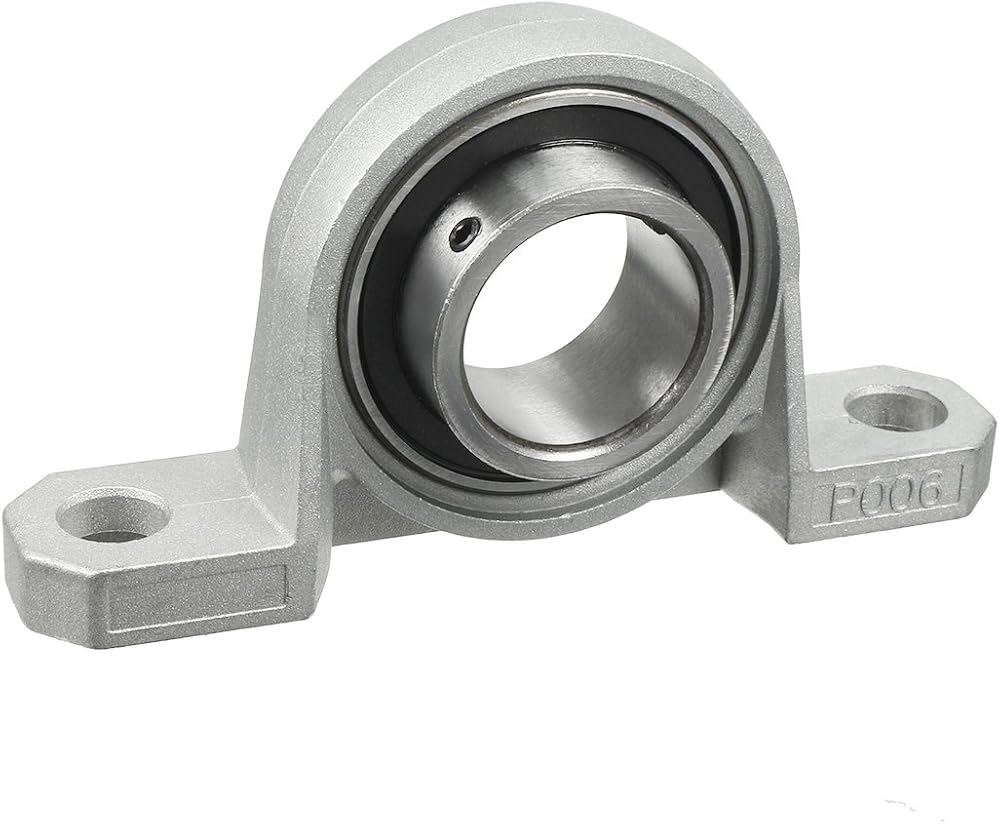

Product Name: Pillow Block Bearing
Model: KP006

Material: Zinc Alloy, Bearing Steel
Bearing Inner Dia.: 30mm/1.18-inch
Mounting Hole Diameter: 13mm/0.51-inch
Mounting Hole Distance: 106mm/4.17-inch
Overall Size: 132 x 26 x 70mm/5.2 x 1.02 x 2.76-inch(L*W*H)

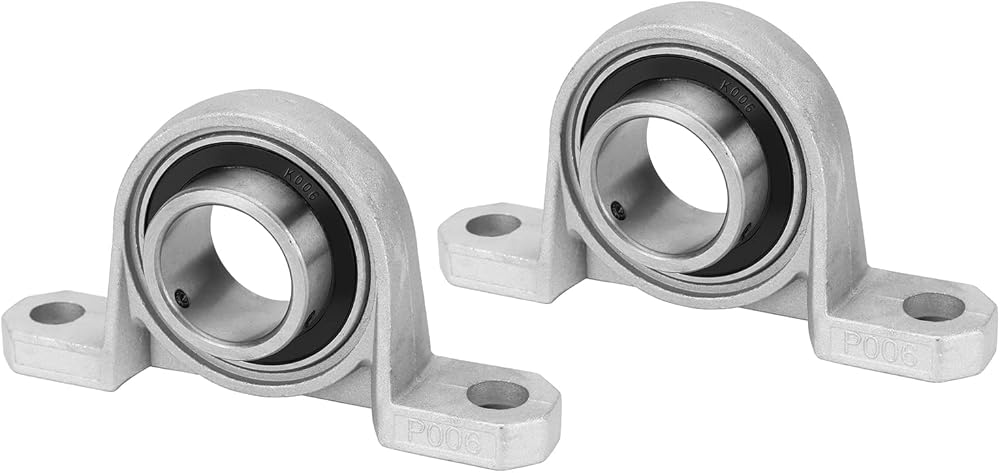

Package Content:

2pcs x Pillow Block Bearing
