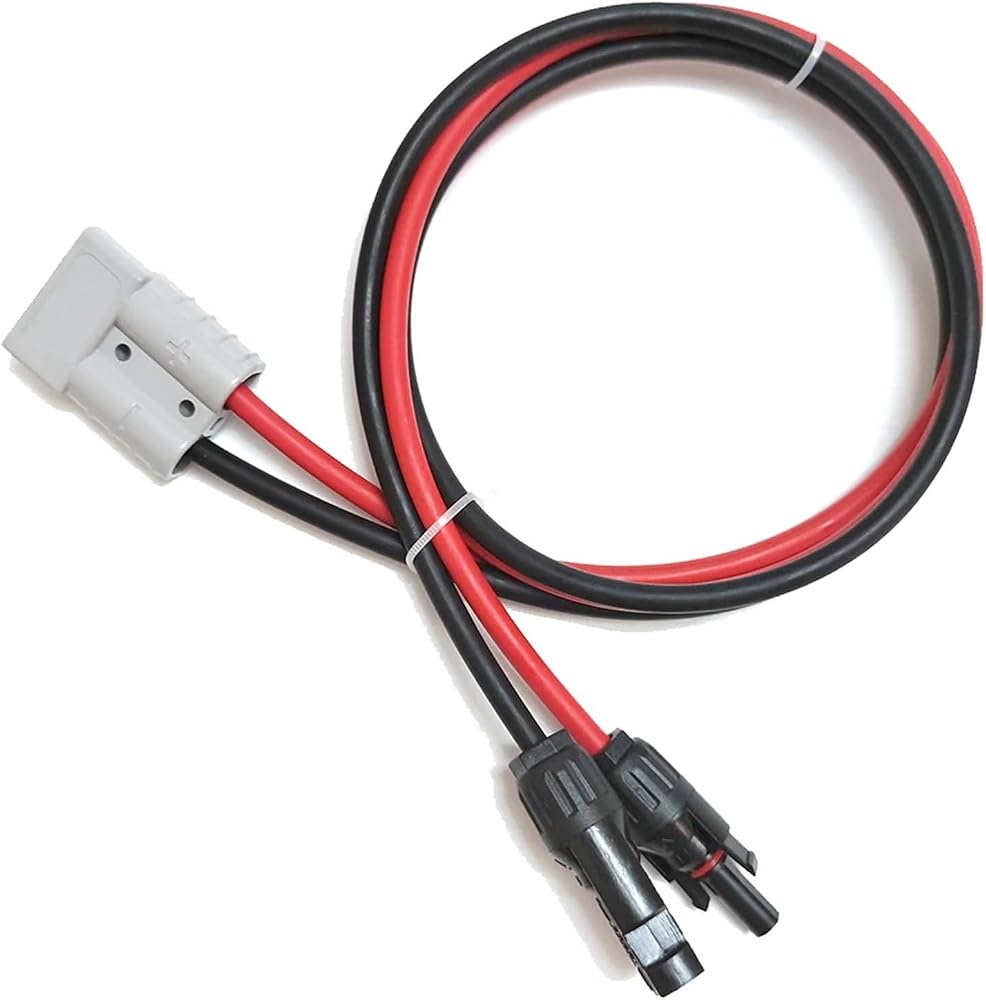

6/4/2.5mm2 10/12/14AWG Solar Panel Extension Cable with 50A Power Connector,Solar PV Cable Connectors,M8 Battery Ring Terminal
10mm2(8AWG)/6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)

INTRODUCTION
specifications:2.5/4/6mm²
Rated voltage:AC 0.6/1KV,DC1.5KV
Color:Red / Black

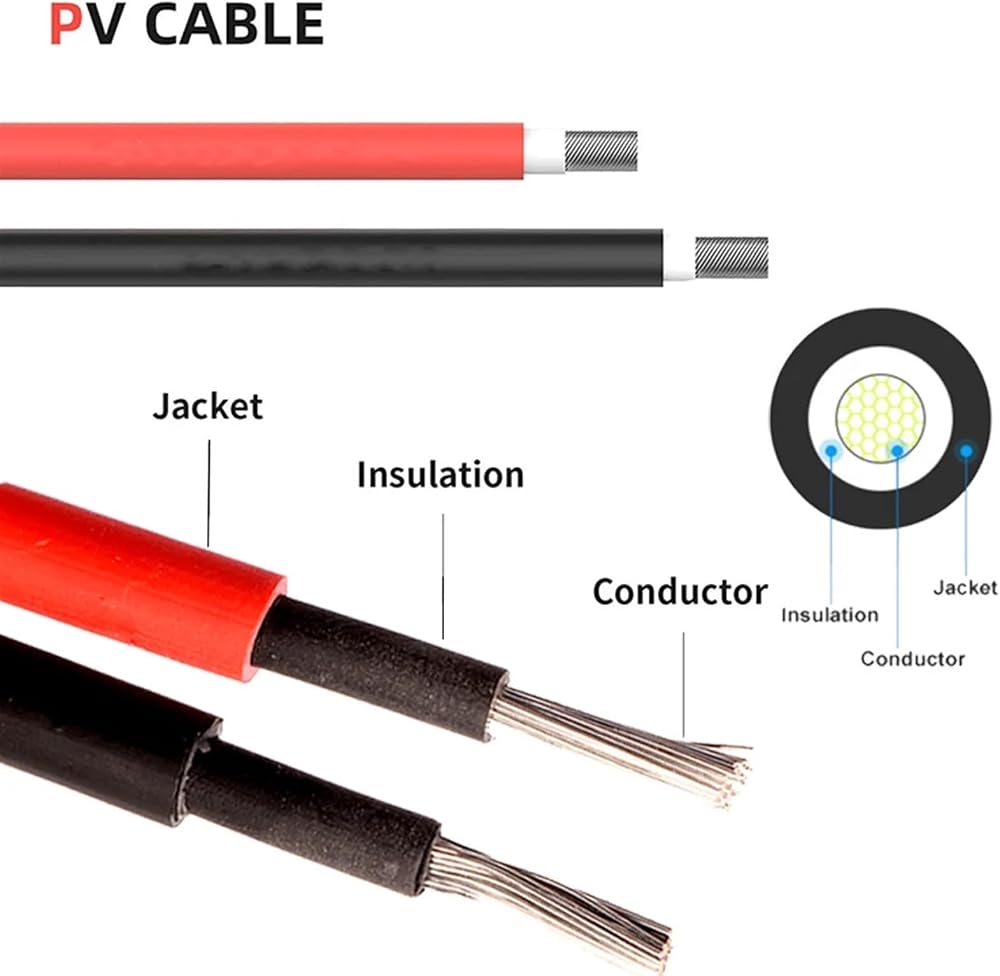

Feature:Double insulation cover,TUV approved
Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath:Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)
Service life:25 years (-40 +90 )
Application:Indoor and outdoor solar installations
Fire rating:UL94-V0
Seller declaration:This itemisdouble-sheathed cable, which is not as soft assingle-sheathed cable and silicone cable, please pay attention to the distinction
Specification
Specifications
(AWG)
Sectional area (mm²)
Outer Diameter
(mm)
Sheath thickness (mm)
Conductor diameter (mm)
packing
(M/coils)
6AWG
16
8.9
0.8
5.5
100
8AWG
10
7.4
0.8
4.1
100
10AWG
6 6.4
0.8
3.17
100
12AWG
4 5.7
0.8
2.58
100
14AWG
2.5
5 0.7
2.02
100
16AWG
1.5
4.5
0.7
1.58
100

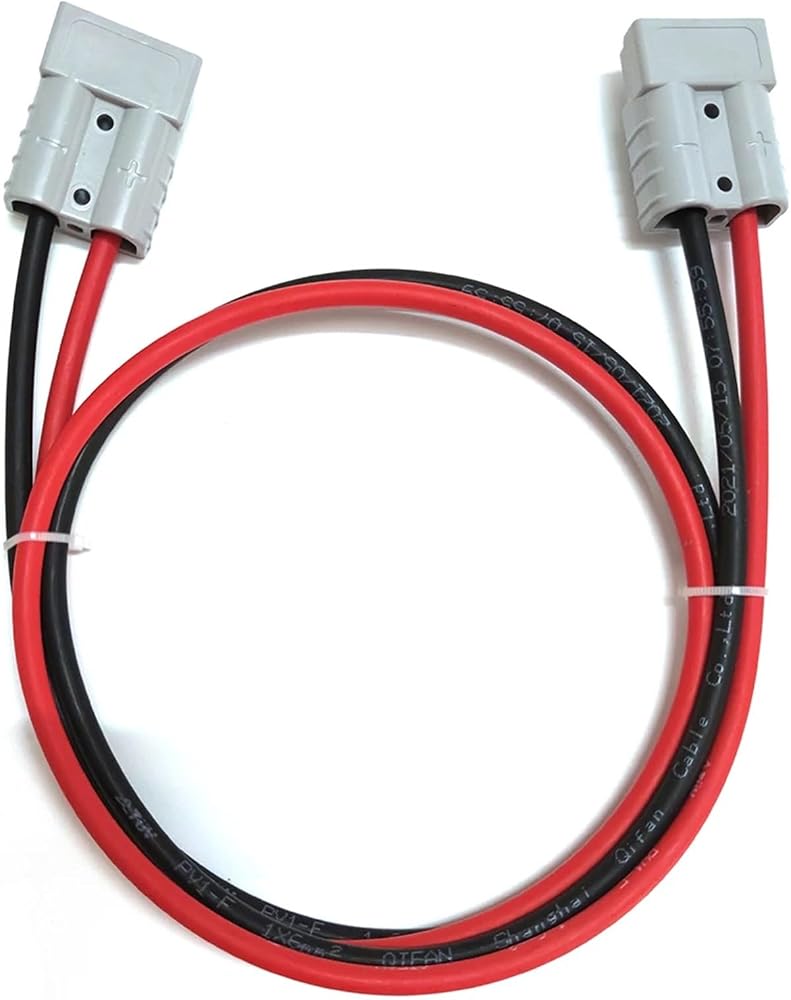

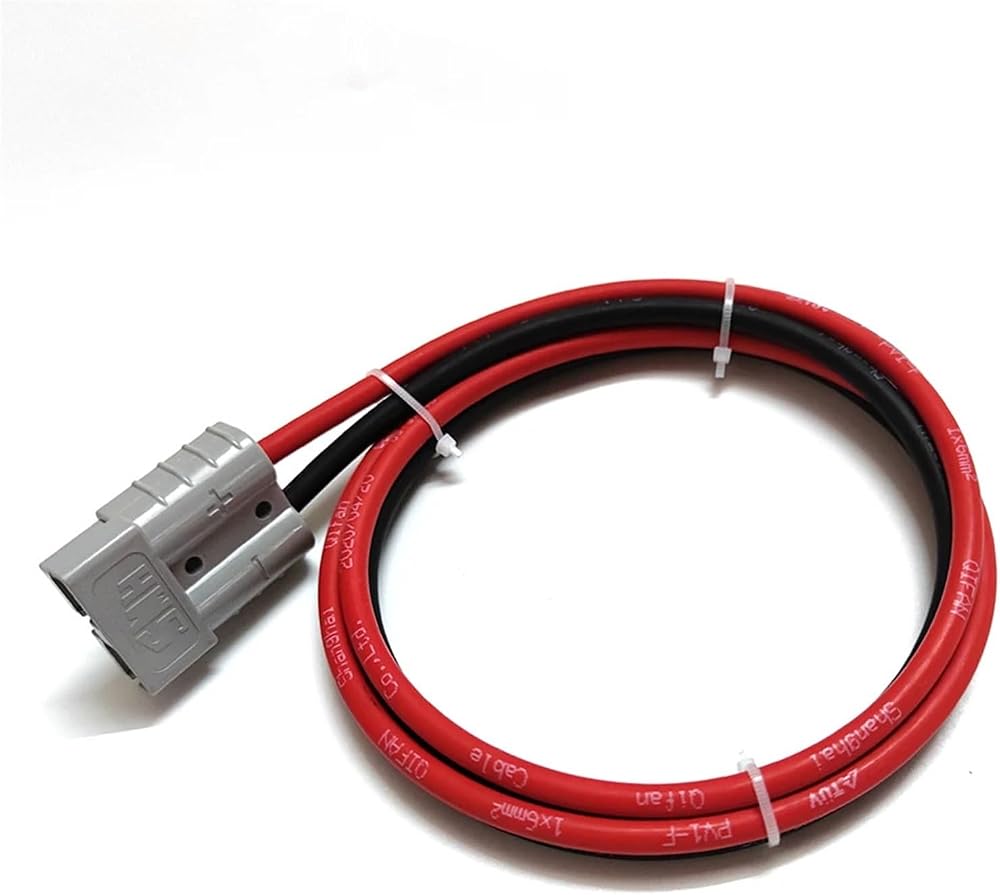

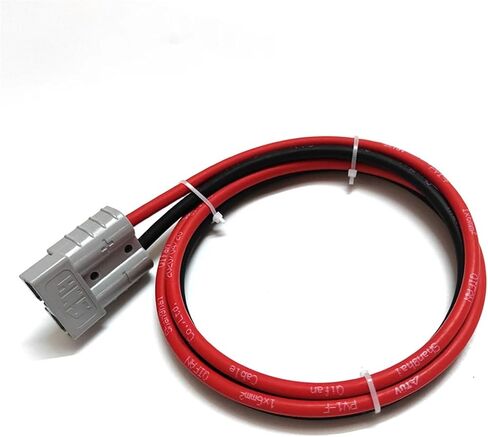

AD :Anderson Bipolar connector(50A)
SHELL :The shell is made of PCu94v0 flame retardant material and stainless steel shrapnel design
TERMINAL :The terminal is made of copper silver-plated material, which has better conductivity.
MC: Solar Connector(30A)
HOUSING :PC Flame retardant;High heat resistance, wear resistance, pollution resistance, strong toughness
CORE :Tinned copper;Opentype, material, wear-resistant, corrosion-resistant, prevent rust
High-strength waterproof ring :Product uses high-strength waterproof ring;Dust-proof, waterproof and IP67 protection grade
Stable self-locking structure :The joints are connected by pressing and restraining. The male and female heads have self-locking mechanisms to open and close freely.
Insulation and waterproof :Built-in locking head, exquisite and firm, sealed and insulated, which plays a role of guiding and preventing electric shock

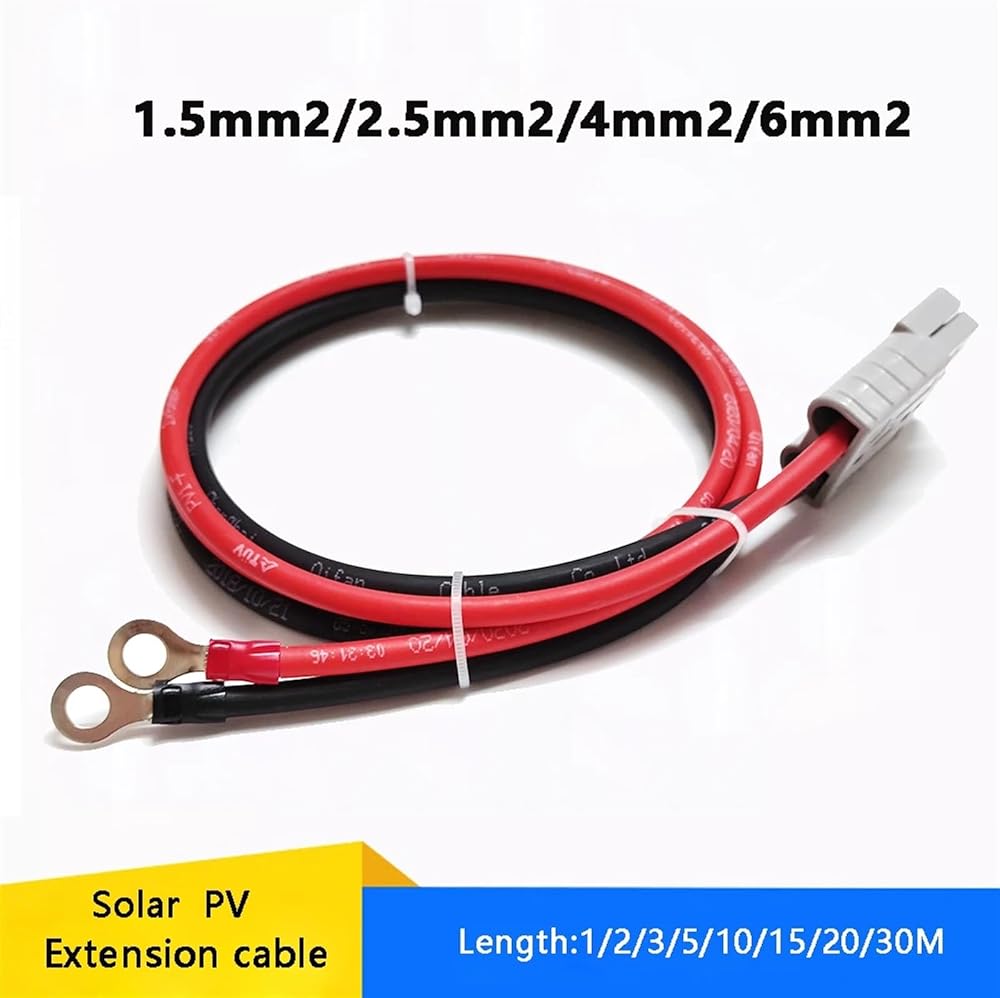

M8 Ring Terminal
TERMINAL :99. %% pure copper, also known as copper.
The purity of the product directly affects the conductive properties, contact resistance, etc.
Surface treatment :tin plating (matt, processed with imported products.) Can be crimped or welded
Features :Welding treatment in the gap. After the products without welding are crimped, the gap is easy to spread, so that the crimping tension is not enough or the copper wire emerges from the gap.
==========
Model Number : PV1-F solar cable
Wire specifications : 2.5/4/6 sqmm
Length : 0.3/1/2/3/5/10/15/20/30M
Rated voltage : 600v
Core material : Tinned Oxygen-free copper
