Technical specifications:
SDRAM DDR2: 512M bit
Symbols Transmission Rate: 1~60Msps
Tuner/Front:
Tuner Type:DVB-S/DVB-S2
Input Connector:Type F
Frequency Range:950M~2150M
Signal Level: -65~-25dBm
Impedance: 75Ω
Power and polarity LNB:
Vertical:+13V
Horizontal: +18V
Current: max 500mA
Overcharge Protection
DiSEqC Control: Version 1.0/1.1/1.2
Demodulation: QPSK, 8PSK, 16APSK, 32APSK
22K Ton: Frequency:22+ 1K
Power supply:
Input voltage adapter:arbitrary voltage (100-240V AC 50/60)
Pobór mocy: MAKS. 10 W
Charger Power Output: 14V DC 2A
Battery: 12.6V/2200mA
Battery charging time: 6H
Battery standard discharge time: 3-4H
Audio Output: Built-in Speaker

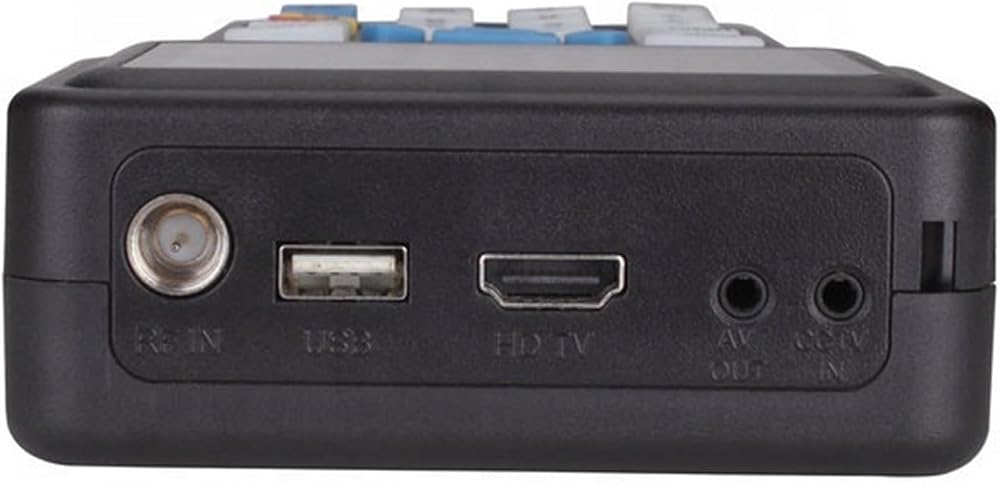

Output: HDMI AV (3.5mm)
Input: AHD TVI CVI CVBS USB
Transport Stream:MPEG-2/4.H.264
