CERRXIAN 22mm 3 Position Selector Rotary Switch Latching Self‑Reset Power Lock with Key(3-Position)

SAR 53
Brand
CERRXIAN
Weight
68 g
– 1 +

Special Features

  • The 3 Position selector switch is made of non-combustible materials and durable plastic, which is very suitable for use in high temperature environments. Used to control automatic circuit control such as electromagnetic starters, contactors, and relays.
  • Easy to install.Modular structure, easy disassembly and assembly, contacts can be replaced at any time, mechanical performance is stable, and installation is convenient. Install using standard tools.
  • Silver contact, excellent electrical conductivity, safety and durability.
  • The aluminum alloy circuit will protect the switch head for long life and oxidation resistance.
  • Suitable for electrical power, telecommunications, machine tools, ships, mining machinery and other mechanical equipment indication signal.

Description

Industrial control circuits with rated working voltage of 440 and below and DC working voltage of 220V and below are used to control automatic circuit control such as electromagnetic starters, contactors, and relays.
1.With anti-lock, anti-fall and anti-vibration properties, it can be used in harsh weather conditions.
2.Easy to install
(1) Push the yellow arrow part to remove the contact base.
(2) After installing the switch on the panel, turn the yellow arrow part back.
3.Switch Rating: 660VAC/10A
4.Type : Latching
5.Selector Position : 3

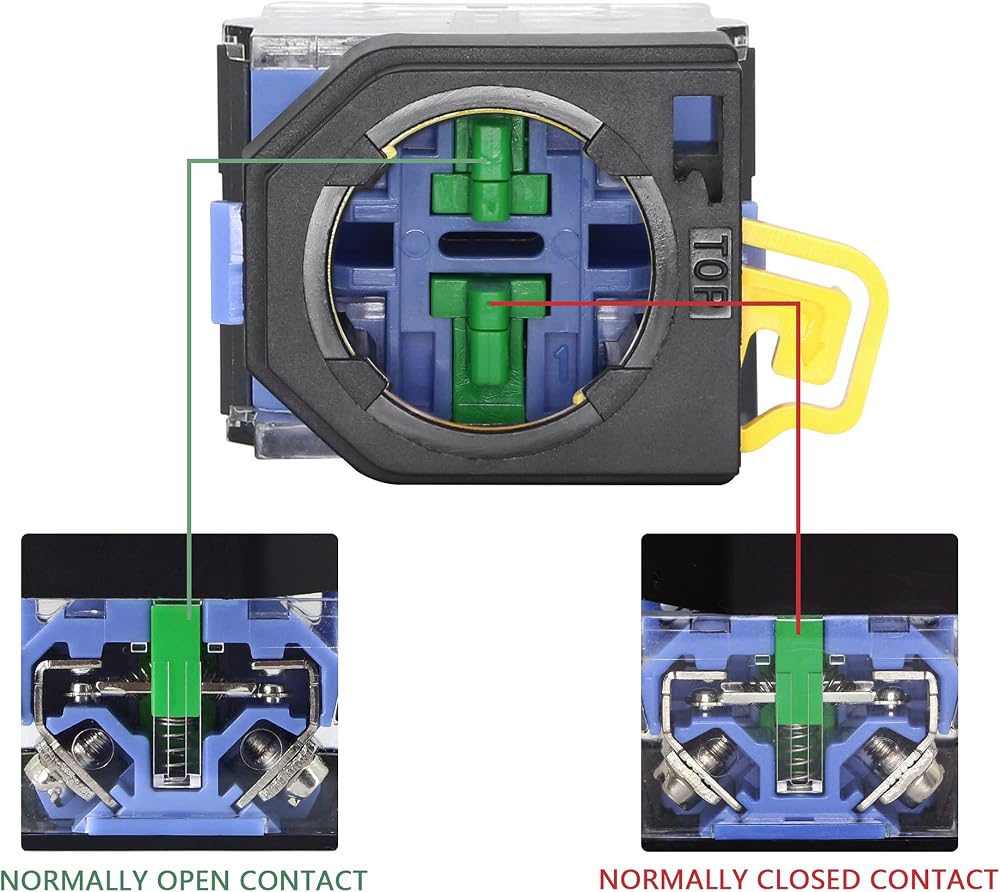

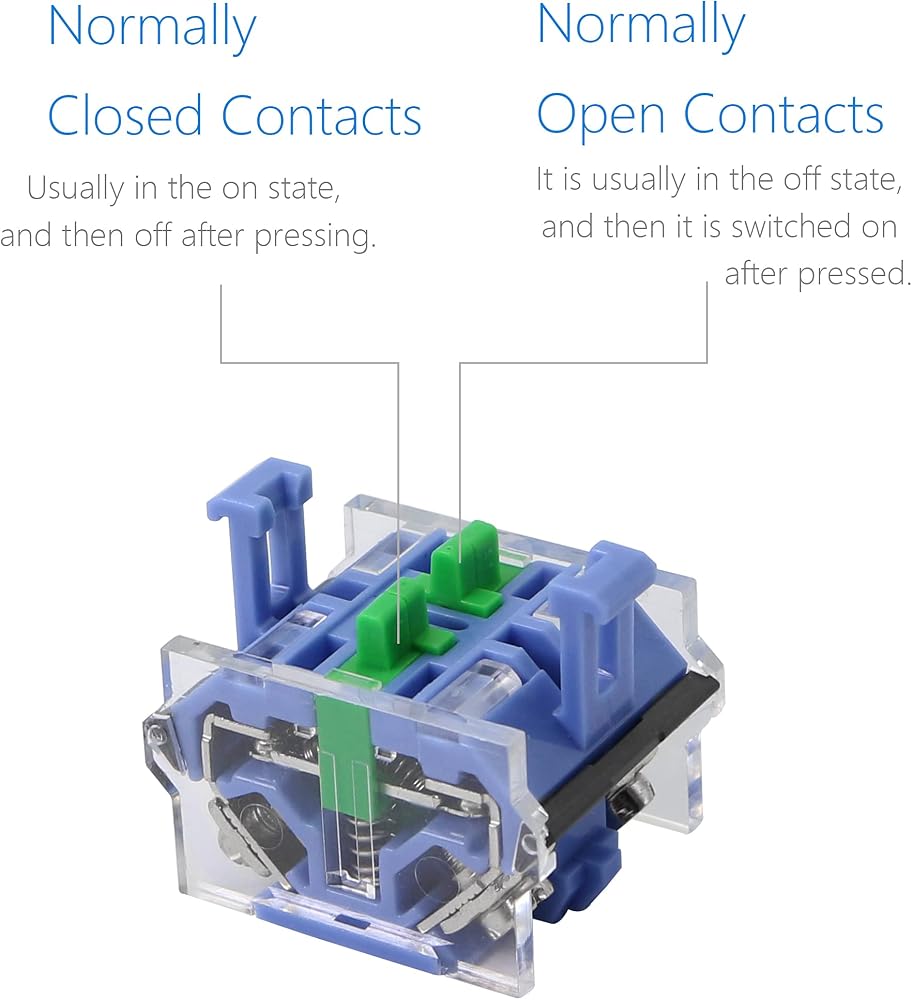

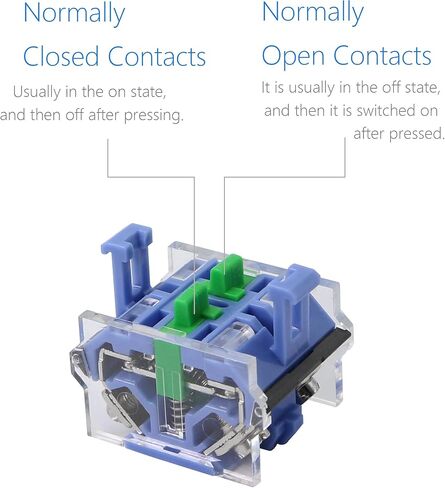

6.Contact Type : 2 NO 1 NC

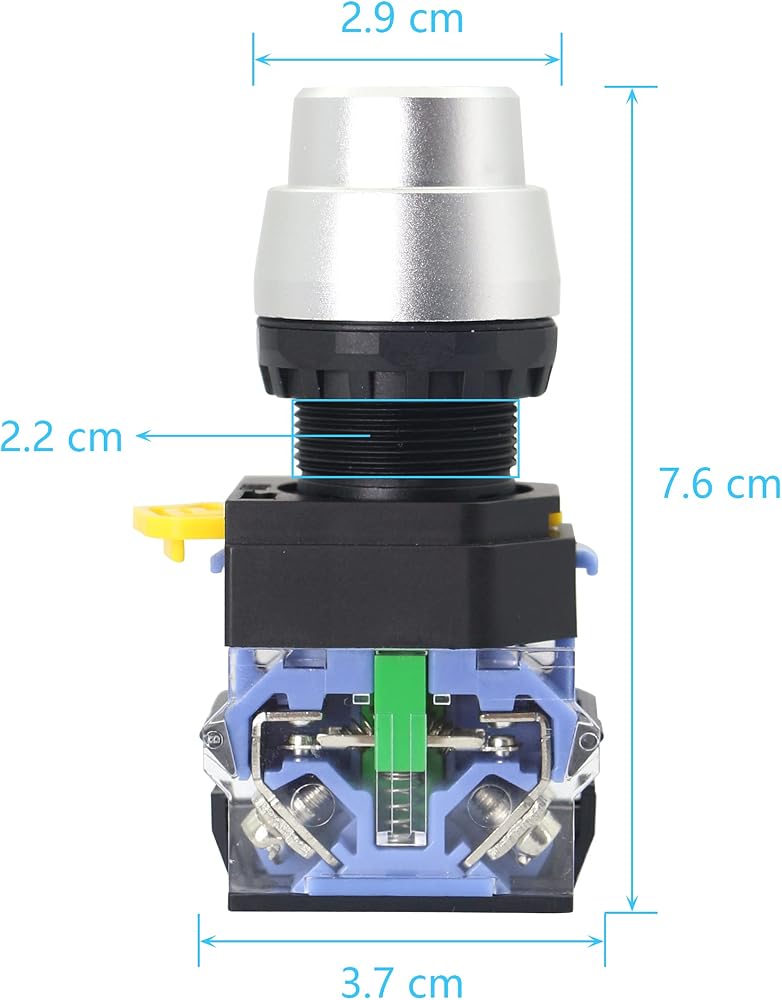

7.Mount Hole Diameter : 22mm

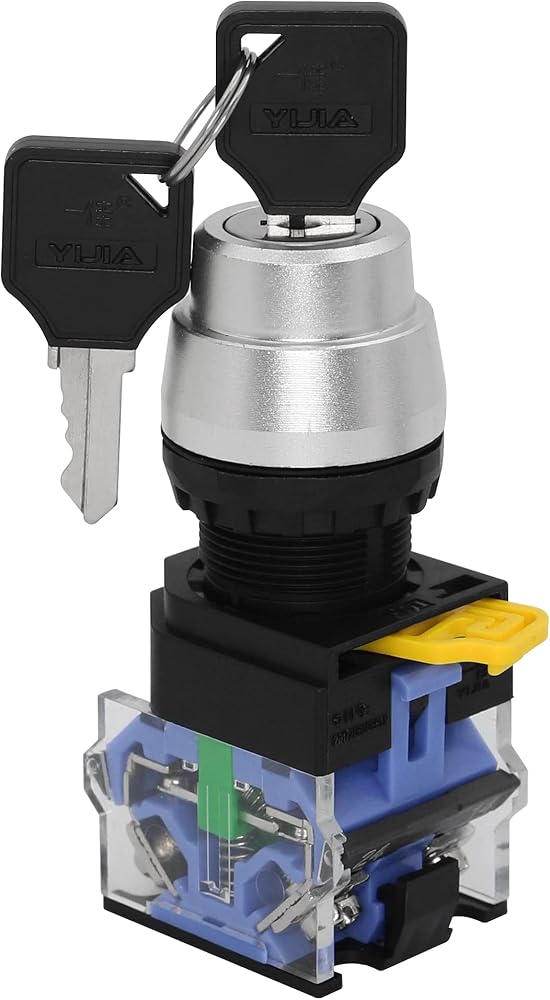

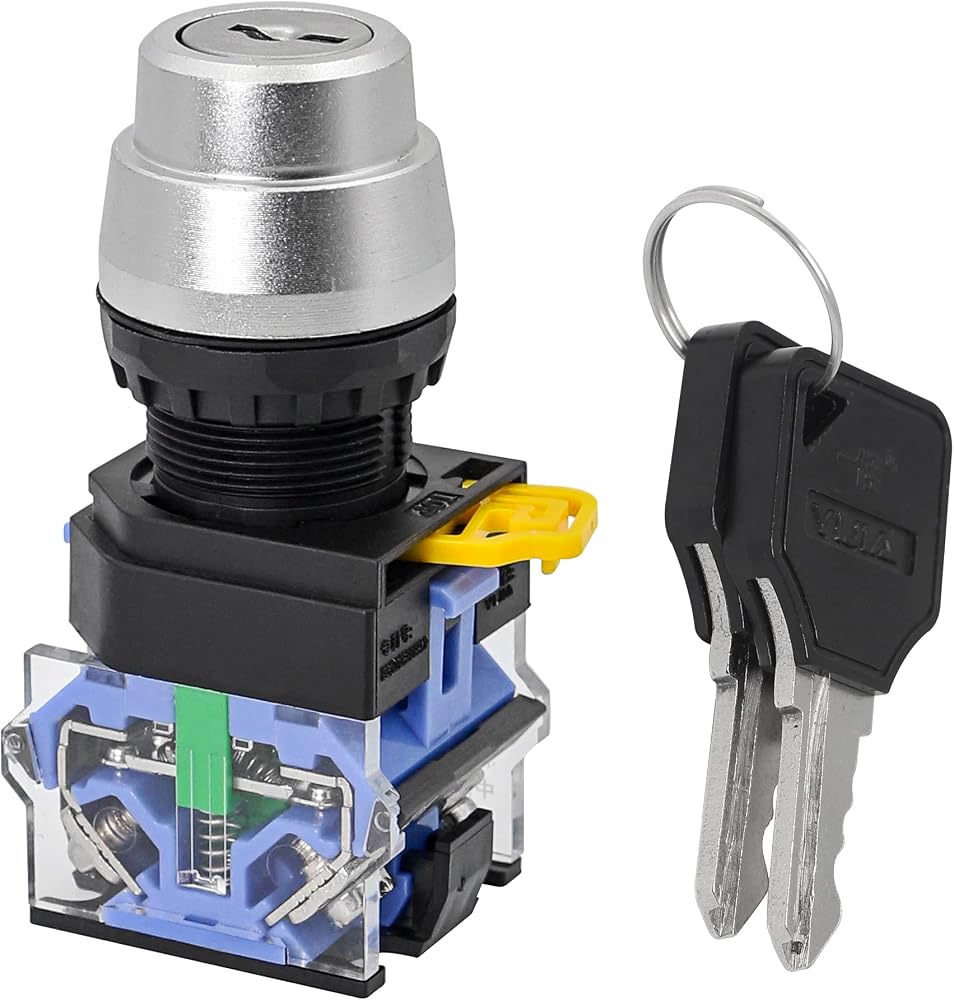

8.3 Position Key can be removable in on position.
9.Material: Nylon Body, Alum Circuit, Sliver contact, Brass conductor.
