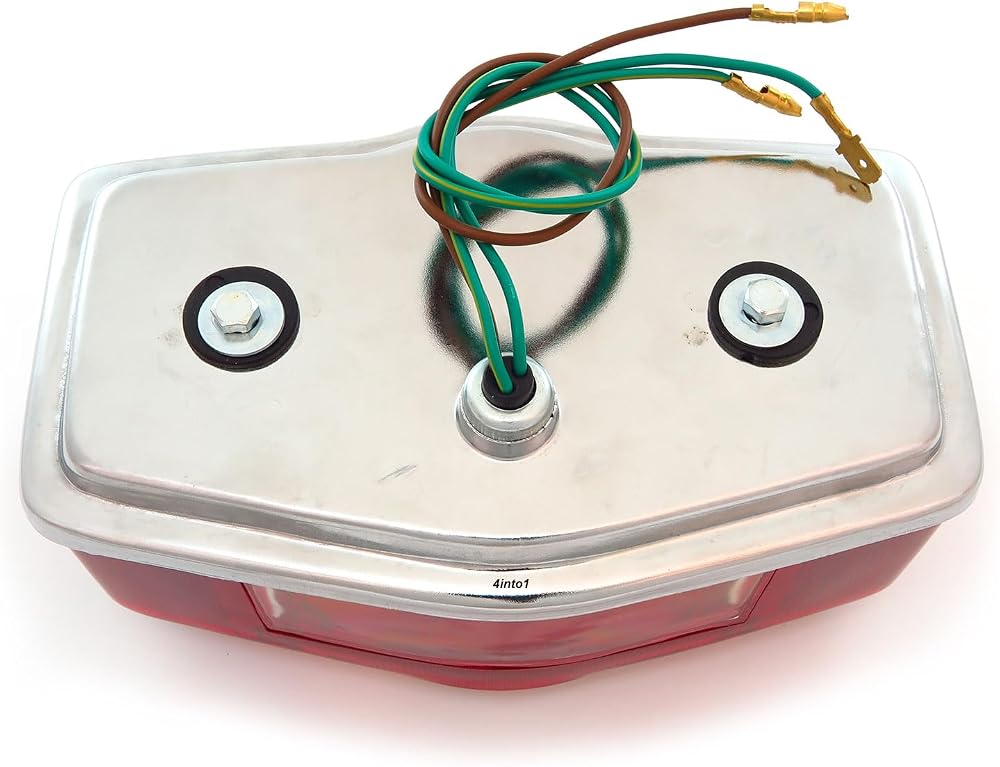

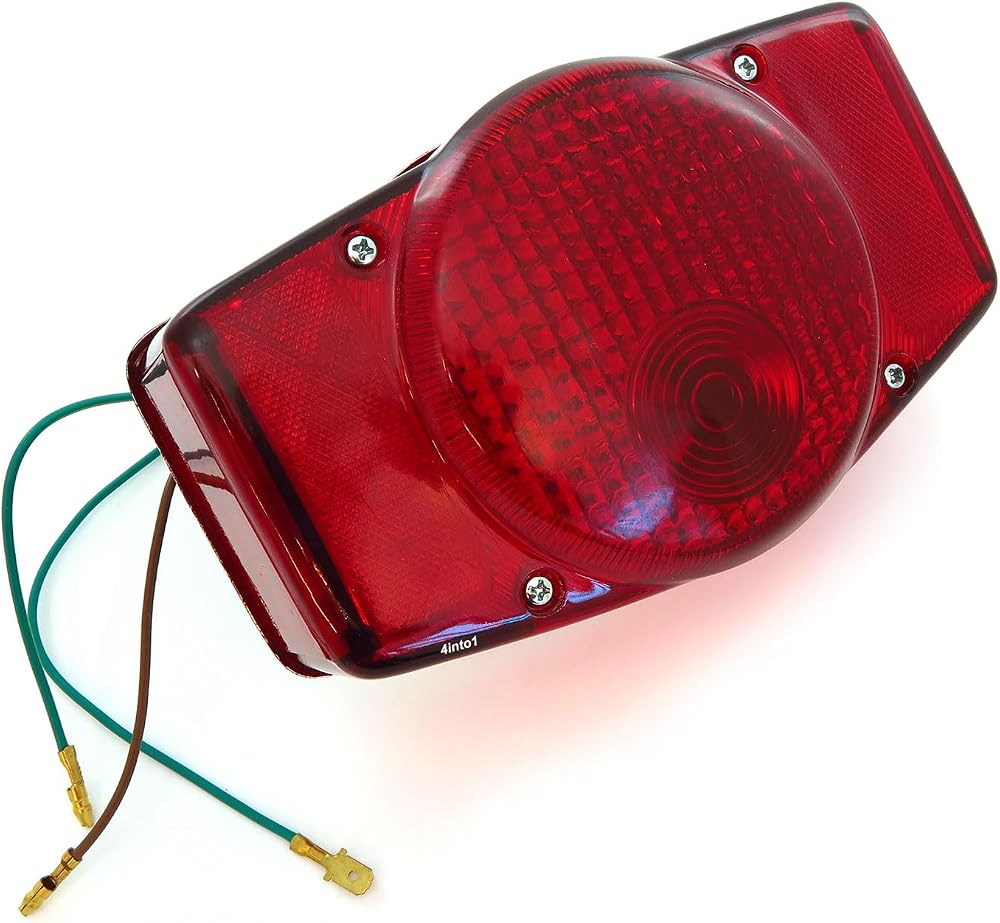

Replacement tail light assembly for Honda motorcycles. There is a clear plastic piece on the bottom to illuminate the license plate, just like the stock lens. This assembly fits most of the 70''s Honda CB''s and CL''s that have that same style tail light. Includes 1157 dual filament light bulb inside. The stock assembly had a male spade terminal attached to the housing, this set up performs the same function by connecting the green spade terminal (ground) to your stock harness.
3 wires are 10.5" Long - Plugs into the stock wiring harness for many models
Wire Colors / Terminals - 1 male bullet green/yellow line - 1 male bullet brown - 1 male spade green
Distance between mounting screws: 3.85" (98mm)
Dimensions - approximately 7" wide x 4 1/4" tall x 3" deep
Gasket between the tail light assembly and the bracket is not included.
Equivalent to Honda OEM part numbers: 33701-342-671, 33701-341-910
CB175K - 1972-1973
CL175K Scrambler - 1972-1973
CB350F Four - 1972-1974
CB350K Twin - 1973
CB350G Twin - 1973
CL350K Scrambler - 1972-1973
CB400F Super Sport - 1975-1977
CB450K - 1973-1974
CL450K Scrambler - 1973-1974
CB500T Twin - 1975-1976
CB500K Four - 1971-1973
CB550F Super Sport - 1975-1977
CB550K - 1974-1978
CB650 - 1979
CB750A Hondamatic - 1976-1978
CB750K - 1972-1978
CB750F Super Sport - 1976-1978
GL1000 Gold Wing - 1975-1978
GL1000 Gold Wing LTD - 1976
and many more...
