Relays
Product Name

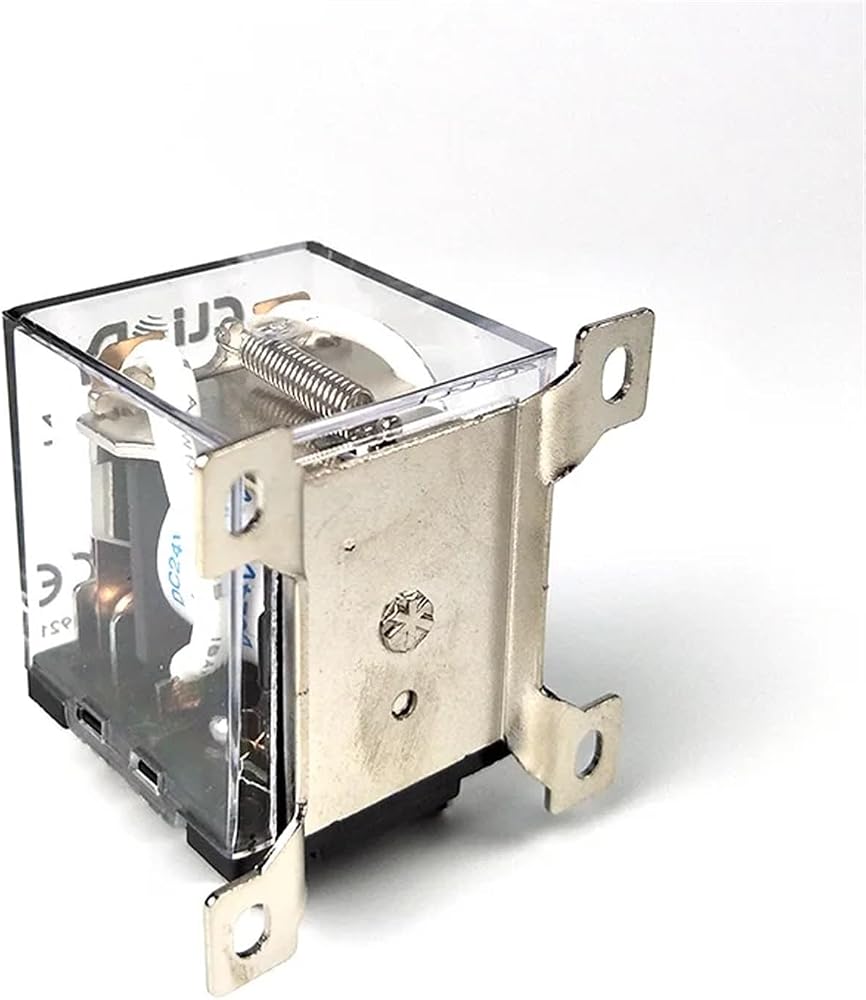

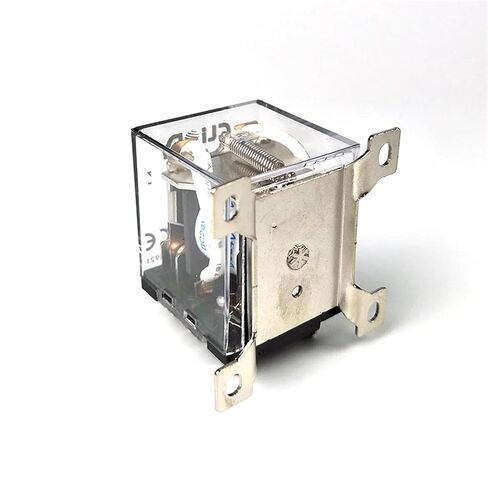

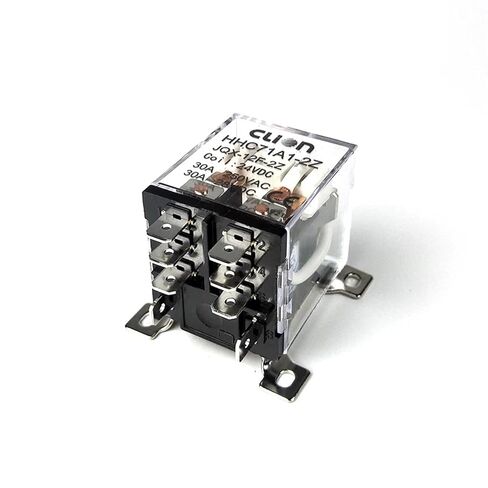

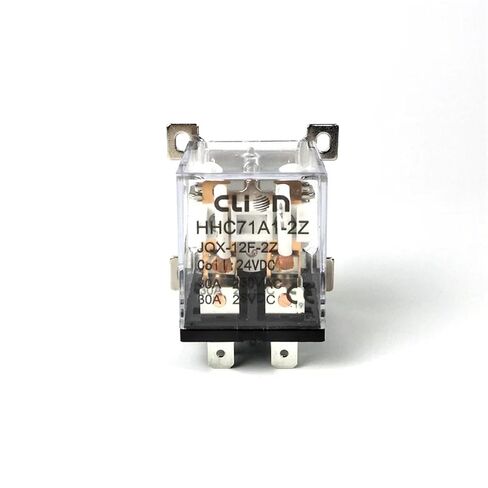

Power Relay
Model
JQX-12F 2Z
Contact
SPDT
Pin Number
8
Coil Voltage
DC12V 24V,AC220V
Contact
30A 250V AC / 28V DC
Body Size(not included pin)
3.5 x 3.3 x 4cm / 1.4" x 1.3" x 1.6" (L * W * T)
Total Height
4.8cm / 1.6"
Installing Hole Size
0.48 x 0.35cm / 0.19"x 0.14"(L*W)
Installing Hole Distance(center)
3.85 x 3.78cm / 1.52" x 1.49"(L*W)
Material
Plastic, Metal
Color
See the Picture
Weight
93g
Package Content
1 x Power Relay
Description:
Features: 8 pins DPDT, with coil voltage DC12V 24V, AC22Vcontact capacity AC 30A 250V and DC 30A 28V.
The JQX-12F 2Z General Purpose Relay can adjust automatically, protect and transform the electric circuit.
Widely used in the remote control, communication, automatic control system, electronic equipments, etc.
