Home / MakerFocus / Single Board Computers
Mesh Node T096 + 915MHz LoRa Antenna UC6580 Dual Band GNSS GPS Module nRF52840 Bluetooth 5, 28dBm High Power SX1262 LoRa Support Off-Grid Asset Tracking Communication Compatible with Meshtastic in Saudi Arabia Mesh Node T096 + 915MHz LoRa Antenna UC6580 Dual Band GNSS GPS Module nRF52840 Bluetooth 5, 28dBm High Power SX1262 LoRa Support Off-Grid Asset Tracking Communication Compatible with Meshtastic in Saudi Arabia Mesh Node T096 + 915MHz LoRa Antenna UC6580 Dual Band GNSS GPS Module nRF52840 Bluetooth 5, 28dBm High Power SX1262 LoRa Support Off-Grid Asset Tracking Communication Compatible with Meshtastic in Saudi Arabia Mesh Node T096 + 915MHz LoRa Antenna UC6580 Dual Band GNSS GPS Module nRF52840 Bluetooth 5, 28dBm High Power SX1262 LoRa Support Off-Grid Asset Tracking Communication Compatible with Meshtastic in Saudi Arabia Mesh Node T096 + 915MHz LoRa Antenna UC6580 Dual Band GNSS GPS Module nRF52840 Bluetooth 5, 28dBm High Power SX1262 LoRa Support Off-Grid Asset Tracking Communication Compatible with Meshtastic in Saudi Arabia Mesh Node T096 + 915MHz LoRa Antenna UC6580 Dual Band GNSS GPS Module nRF52840 Bluetooth 5, 28dBm High Power SX1262 LoRa Support Off-Grid Asset Tracking Communication Compatible with Meshtastic in Saudi Arabia Mesh Node T096 + 915MHz LoRa Antenna UC6580 Dual Band GNSS GPS Module nRF52840 Bluetooth 5, 28dBm High Power SX1262 LoRa Support Off-Grid Asset Tracking Communication Compatible with Meshtastic in Saudi Arabia Mesh Node T096 + 915MHz LoRa Antenna UC6580 Dual Band GNSS GPS Module nRF52840 Bluetooth 5, 28dBm High Power SX1262 LoRa Support Off-Grid Asset Tracking Communication Compatible with Meshtastic in Saudi Arabia

Mesh Node T096 + 915MHz LoRa Antenna UC6580 Dual Band GNSS GPS Module nRF52840 Bluetooth 5, 28dBm High Power SX1262 LoRa Support Off-Grid Asset Tracking Communication Compatible with Meshtastic

SAR 258
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

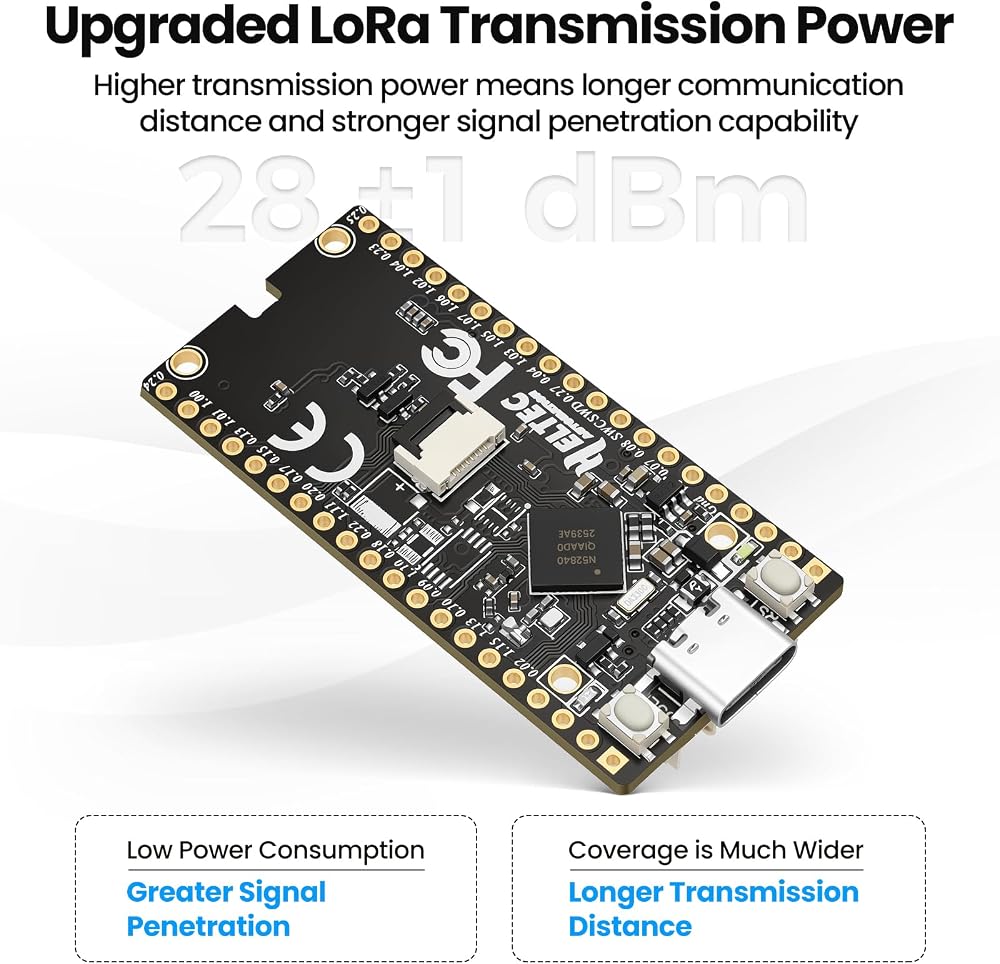

  • Powerful Communication Capability: Mesh Node T096 features nRF52840(Bluetooth 5, Bluetooth mesh) as master chip and matching SX1262 LoRa node chip, upgraded to a maximum transmission power of 28±1dBm, it significantly extends communication range and signal penetration, ensuring reliable data transmission in complex environments

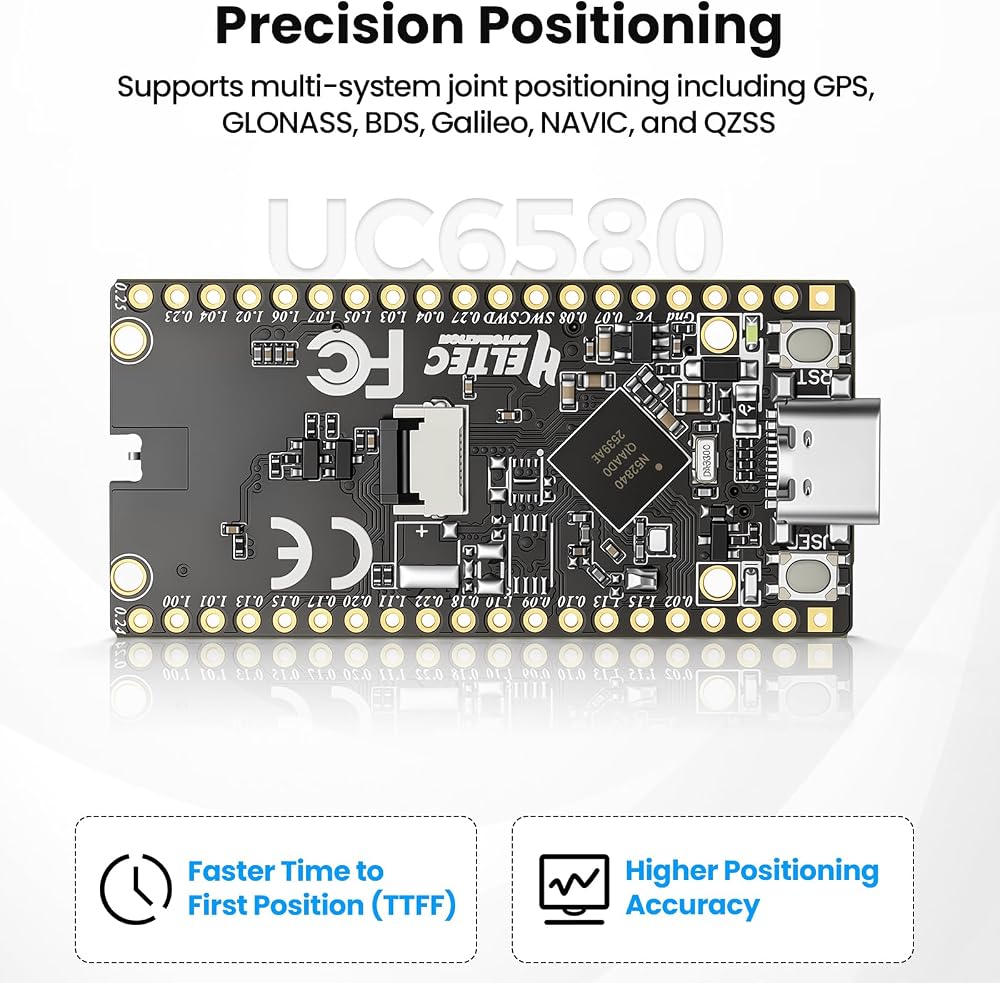

  • Precision Positioning: Integrated UC6580 chip, Mesh Node T096 supports multi-system joint positioning (GPS, GLONASS, Galileo, NAVIC, QZSS). By supporting dual-frequency signals, it provides faster time-to-first-fix (TTFF) and higher accuracy for asset tracking and outdoor navigation

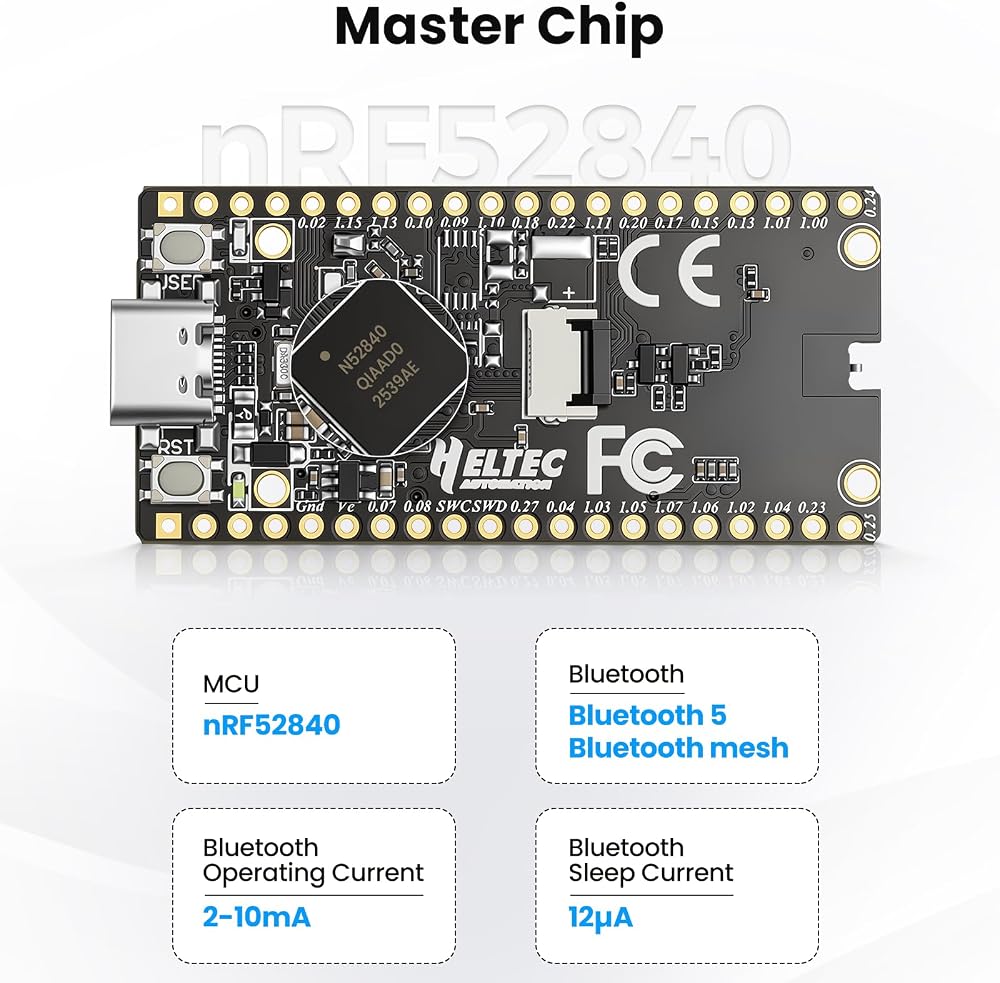

  • Ultra-low Power Consumption: Compared to ESP32, the nRF52840 has a more significant advantage in low power consumption, its Bluetooth operating current is only 2-10mA, with a sleep current of 12μA, it is perfectly suited for battery-powered deployments
  • Triple Power Supply Mode: Specifically designed for off-grid endurance, newly added SH1.25-2 dedicated solar panel input interface, retains the SH1.25-2 lithium battery interface, integrated management system is used for charging, overcharge protection, and automatic power switching between USB and battery
  • Widely Application: Perfectly compatible with Meshtastic, MeshCore and LoRaWAN, supports Arduino development framework, wireless tracker can be widely used in personnel positioning, asset tracking, bicycle sharing services, tracking pets or livestock, locating vehicles, etc
