4X 2.5GbE LAN with DDR5 4800MHz MAX 48G,N150(up to 3.6 GHz,8G RAM 128G SSD)

SAR 2,652
Brand
UDPTCP
Category
Network Routers
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Firewall Mini PC is a professional firewall router . It brings you a secure and encrypted network environment. It supports multiple functions such as Auto power on, AES-NI,RTC,ESXI, PXE boot, Watchdog, and Wake-on-LAN. It also uses a dedicated turbo silent cooling fan, which can keep the device cool and quiet, even under heavy load.
  • Powerful and versatile 19 inch Firewall Appliance: Equipped with Intel 4 Core 4 Threads N150 processor,6M Cache, Max Turbo Frequency 3.6 GHz, TDP 6W. this device can run various FreeBSD-based router systems, Linux distros, or Windows OS, offering easy configuration and management for your network security needs.
  • ◆DDR5 Memory & Large Storage Capacity: Firewall box computer with1* SO-DIMM DDR5 4800MHz MAX 48G . 1*M.2 SSD with 2280 interface, supports NVMe/NGFF；1*SATA 3.0 interface, maximum transfer rate of 6 Gb/s.1* MiniPCIe interface, supports WiFi/Bluetooth modules；1*M.2B-KEY interface, supports 4G/5G modules

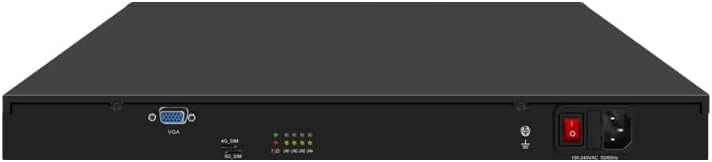

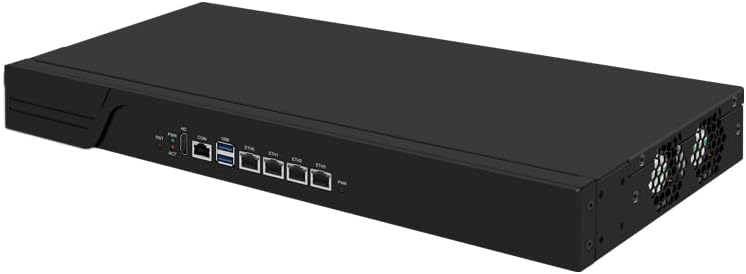

  • Rich interfaces, I/O：Power cord interface,HD,VGA,2*USB3.0,1*CONSOLE,1*RST,4*i226 2.5G network port, has a size of 440×180×45mm, compact and convenient.
  • The product has a one-year warranty. If you have any questions, please feel free to contact us and we will reply to your message within 24 hours.

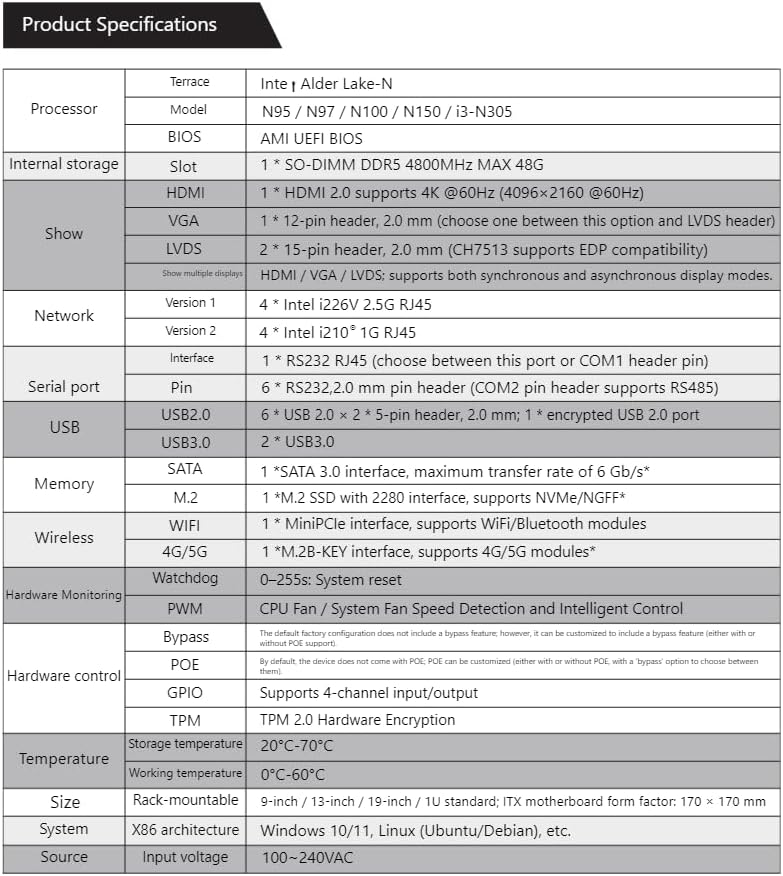

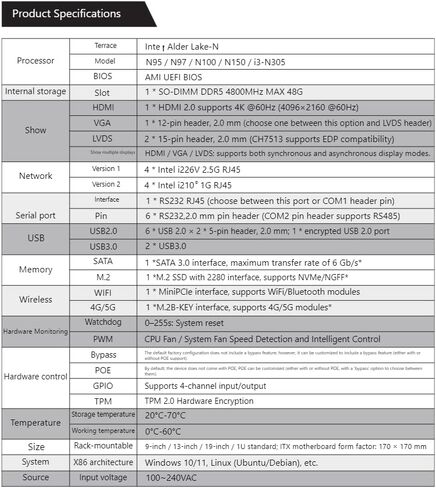

Description

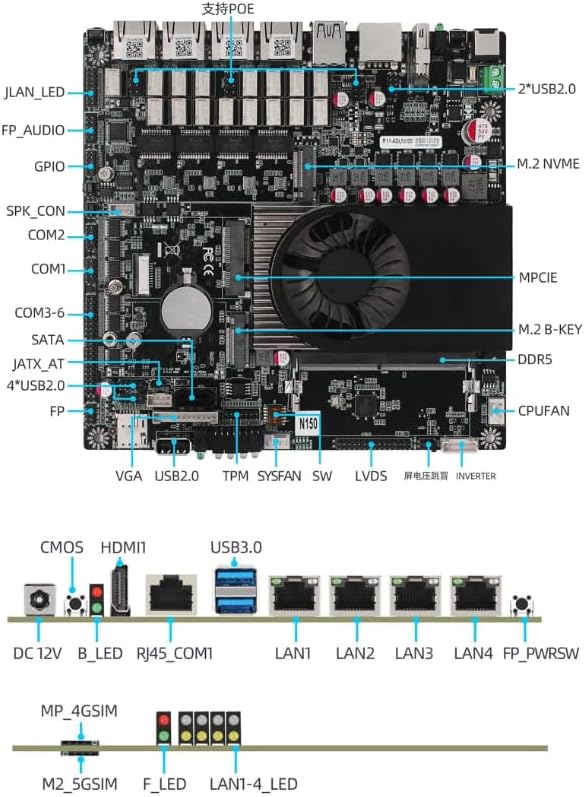

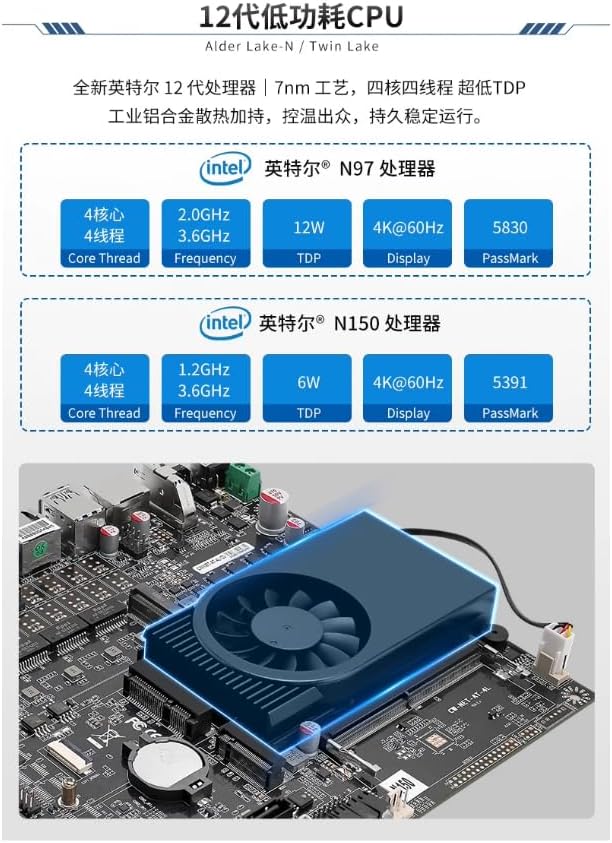

Processor：Intel Alder Lake-N N95 / N97 / N100 / N150 / i3-N305
BIOS：AMI UEFI BIOS

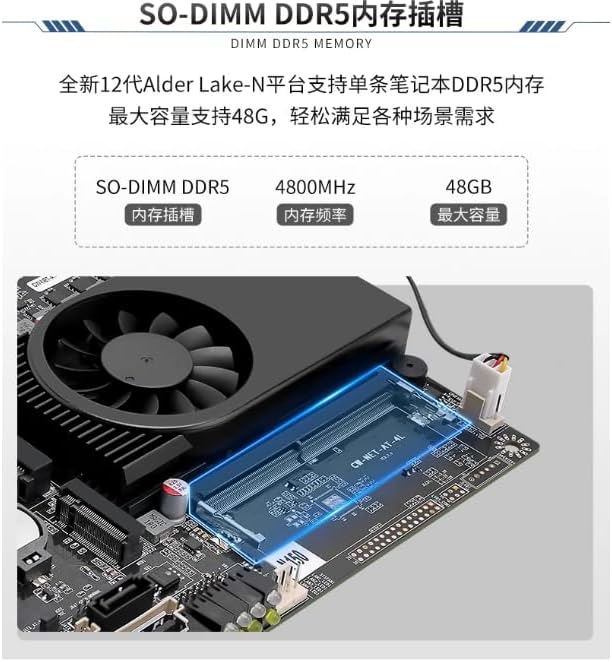

Memory：1* SO-DIMM DDR5 4800MHz MAX 48G
Displays：HDMI / VGA / LVDS supports both synchronous and asynchronous display modes.1* HDMI 2.0 supports 4K @60Hz (4096×2160 @60Hz)；1* 12-pin header, 2.0 mm (choose one between this option and LVDS header)；2* 15-pin header, 2.0 mm (CH7513 supports EDP compatibility)
Network：4* Intel i226V 2.5G RJ45/4* Intel i210 1G RJ45
Serial port：1* RS232 RJ45 (choose between this port or COM1 header pin)；6* RS232,2.0 mm pin header (COM2 pin header supports RS485)
USB：2* USB3.0；6* USB 2.0 × 2 * 5-pin header, 2.0 mm; 1 * encrypted USB 2.0 port
Storage：1*M.2 SSD with 2280 interface, supports NVMe/NGFF；1*SATA 3.0 interface, maximum transfer rate of 6 Gb/s

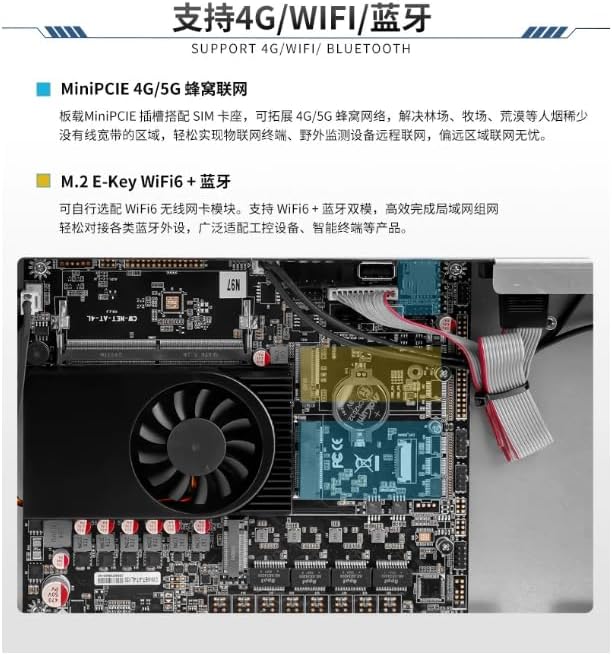

1* MiniPCIe interface, supports WiFi/Bluetooth modules；1*M.2B-KEY interface, supports 4G/5G modules
Hardware Monitoring:Watchdog,0–255s System reset;PWM,CPU Fan / System Fan Speed Detection and Intelligent Control
Hardware control:GPIO,Supports 4-channel input/output;TPM,TPM 2.0 Hardware Encryption
Storage temperature:20°C-70°C;Working temperature:0°C-60°C.
Size:13-inch / 19-inch / 1U standard; ITX motherboard form factor: 170 × 170 mm
System:support Windows 10/11, Linux (Ubuntu/Debian), etc.
Source:100~240V AC
