Fitment:

For 1937 1938 Chevy Truck V8 Conversion 3.5L L6

OE/OEM Part Number: CC3738CH

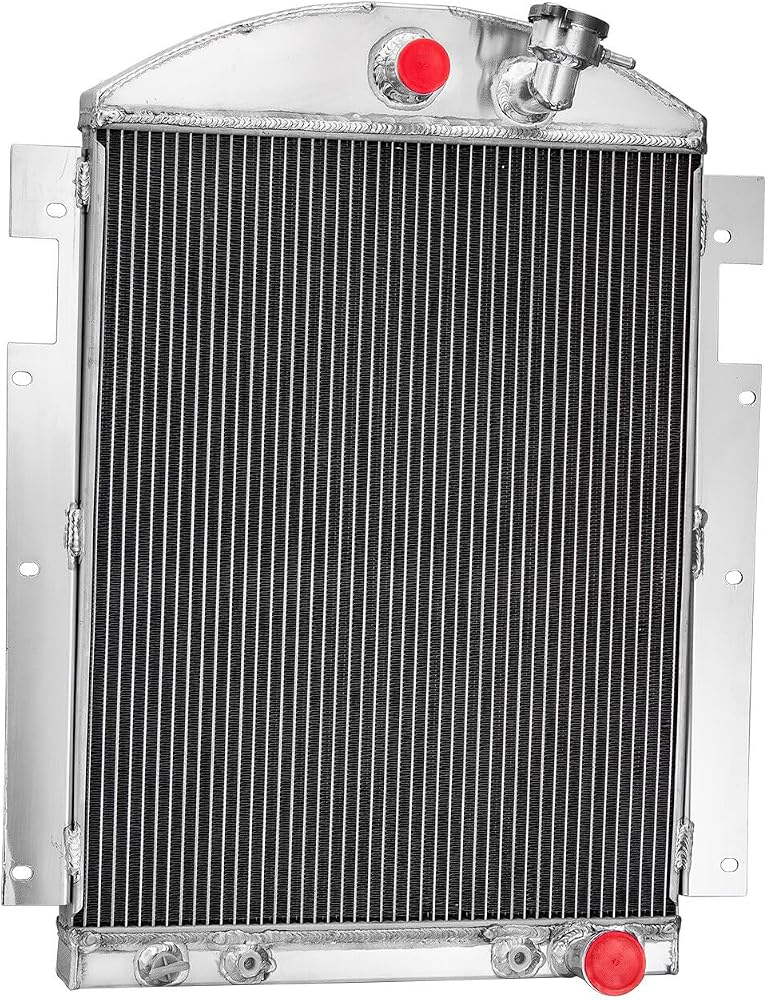

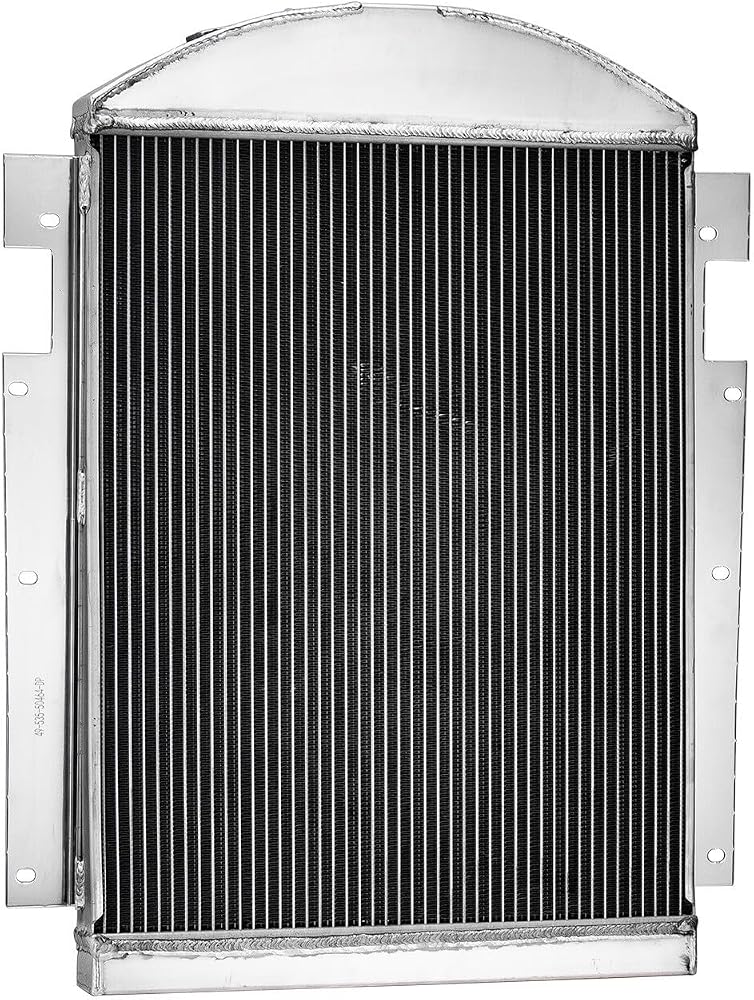

Radiator Specifics:

High Performance Racing Spec.

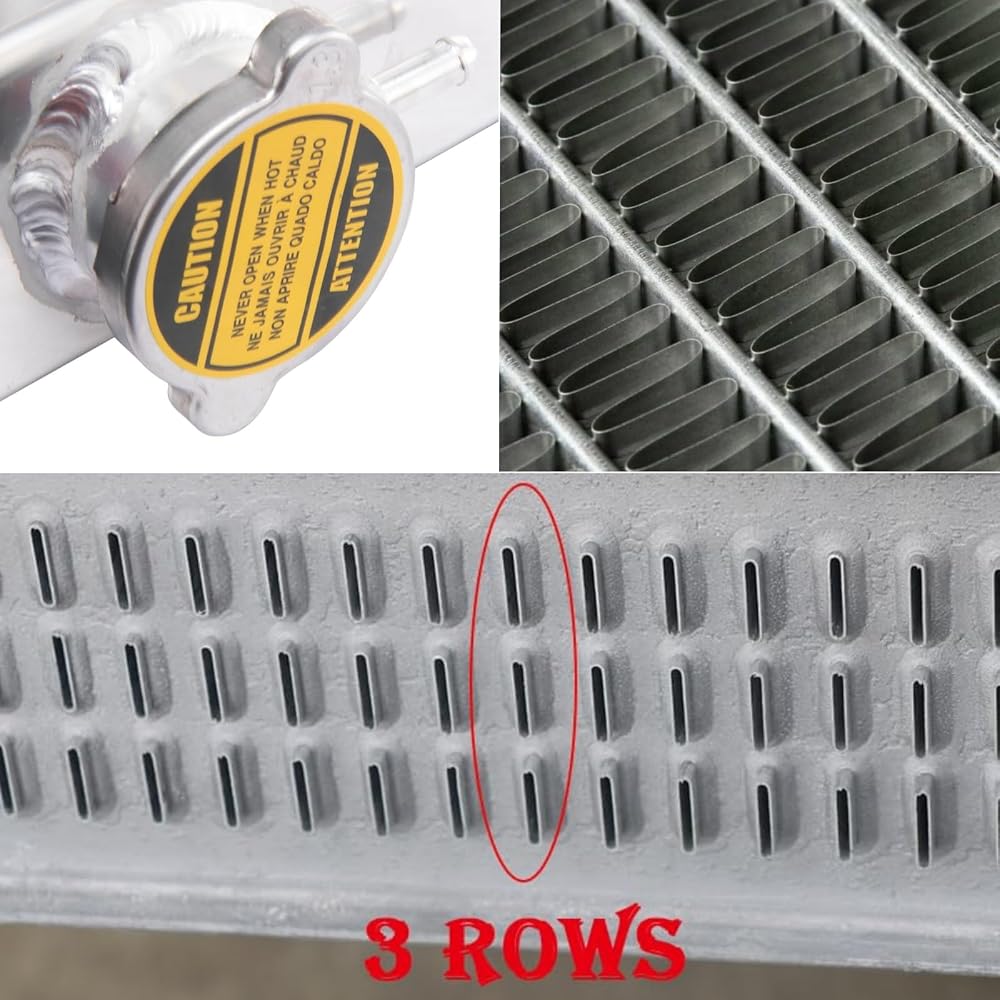

3-Row of tubes Core Racing Design

Material: Aluminum

Overall Dimensions : 28 1/8" × 22 1/2"

Core Dimensions : 22 1/2" × 18"

Inlet Diameter: 1 1/2"

Outlet Diameter: 1 3/4"

Internal Transmission Oil Cooler: Yes

Fan Specifics:

Diameter: 16'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 120W

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

Amp Draw: 10amp

Fan Thickness: 2.95"

Package Include:

1 X 3-Row Aluminum Radiator

1 X Aluminum Shroud

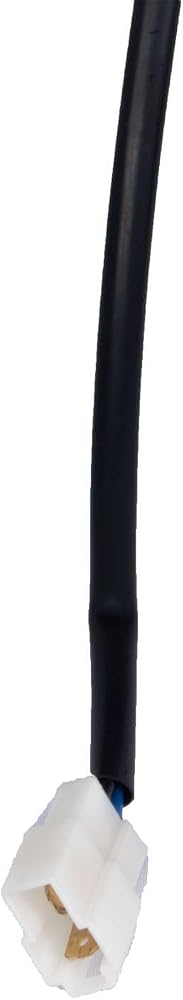

1 X Fan (Includes mounting kits)

Description:

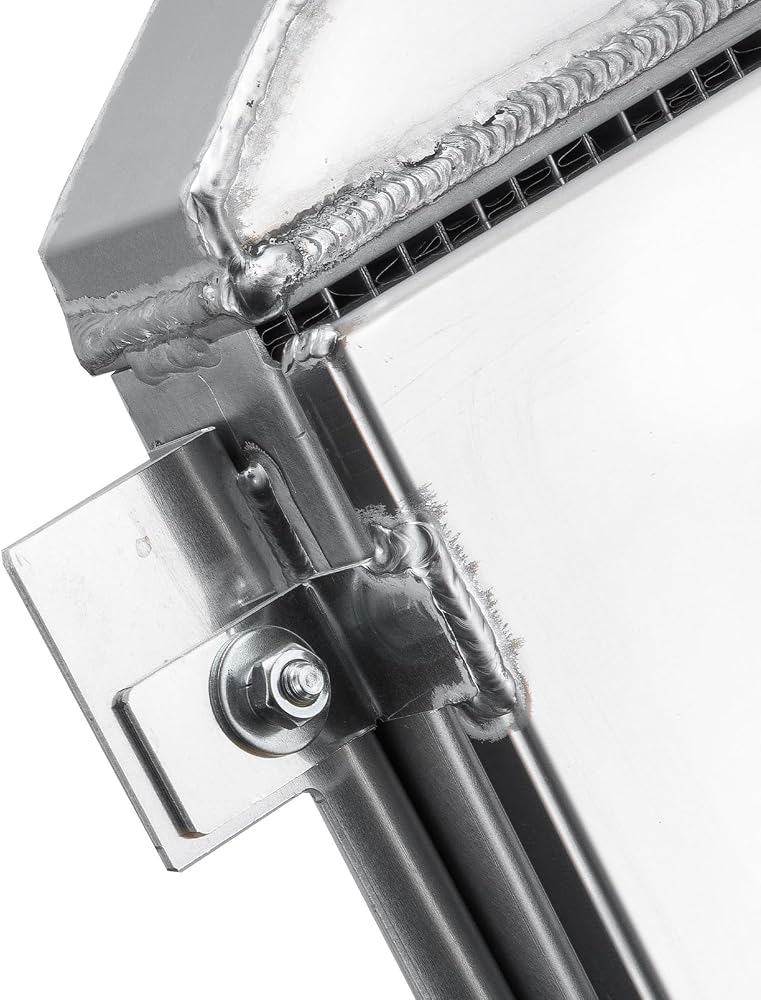

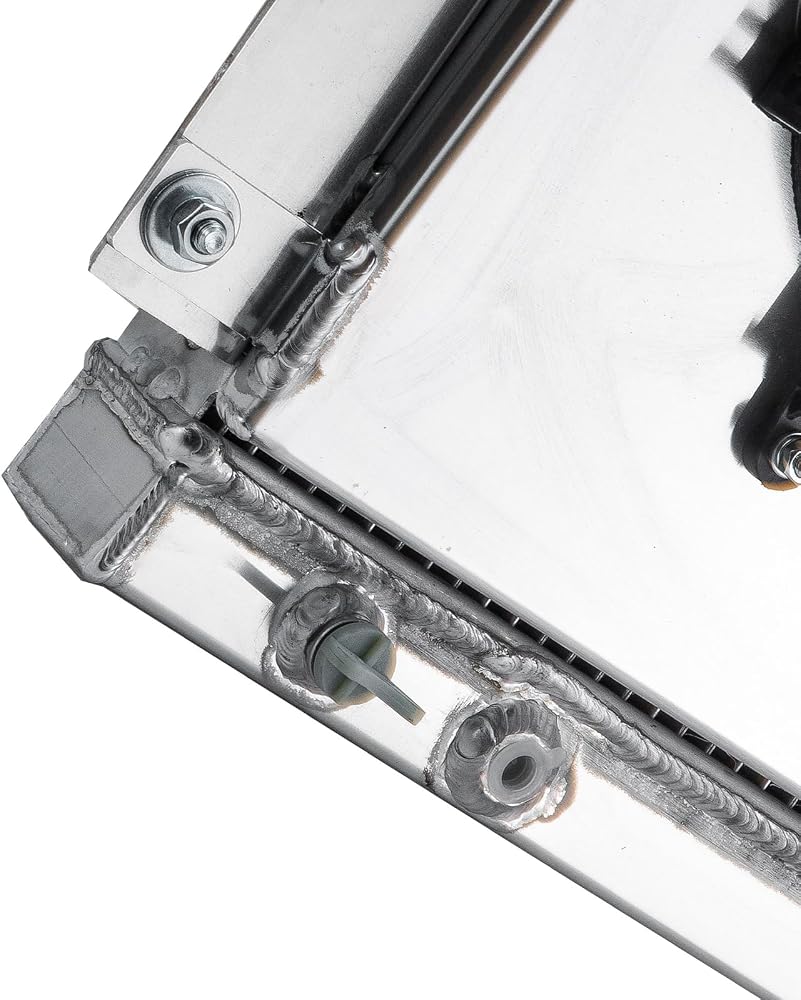

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

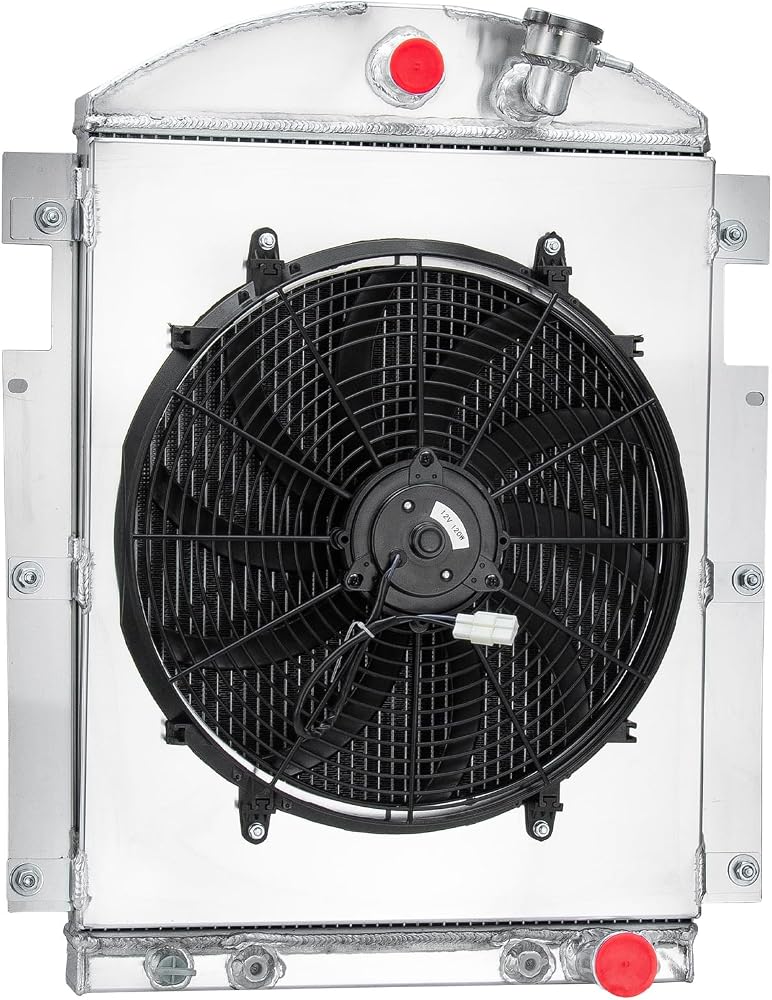

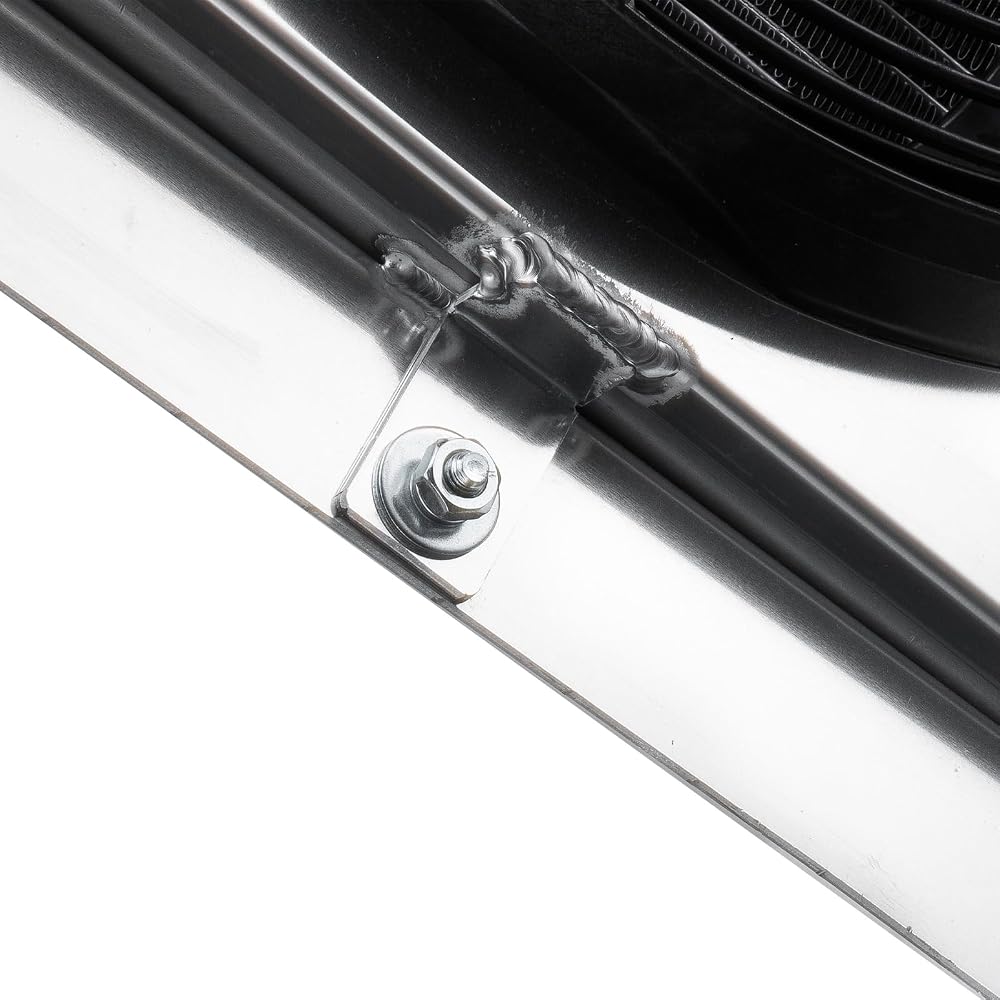

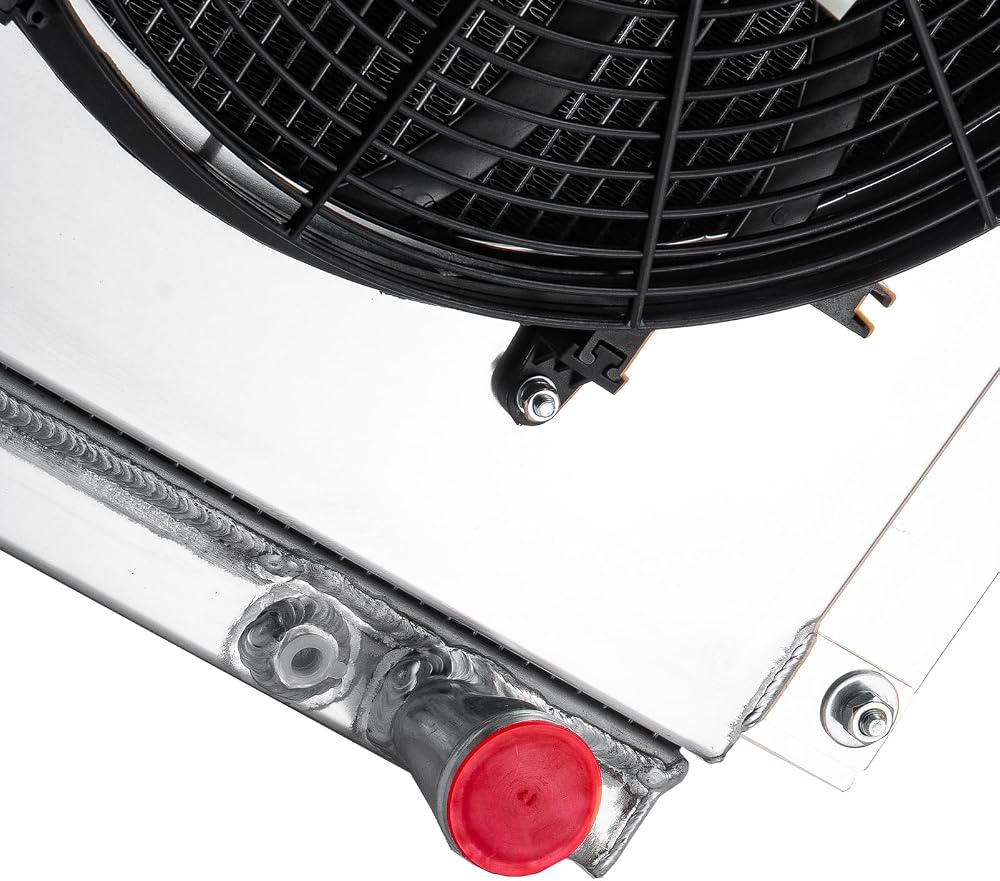

Aluminum Shroud+Fan:

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine.
