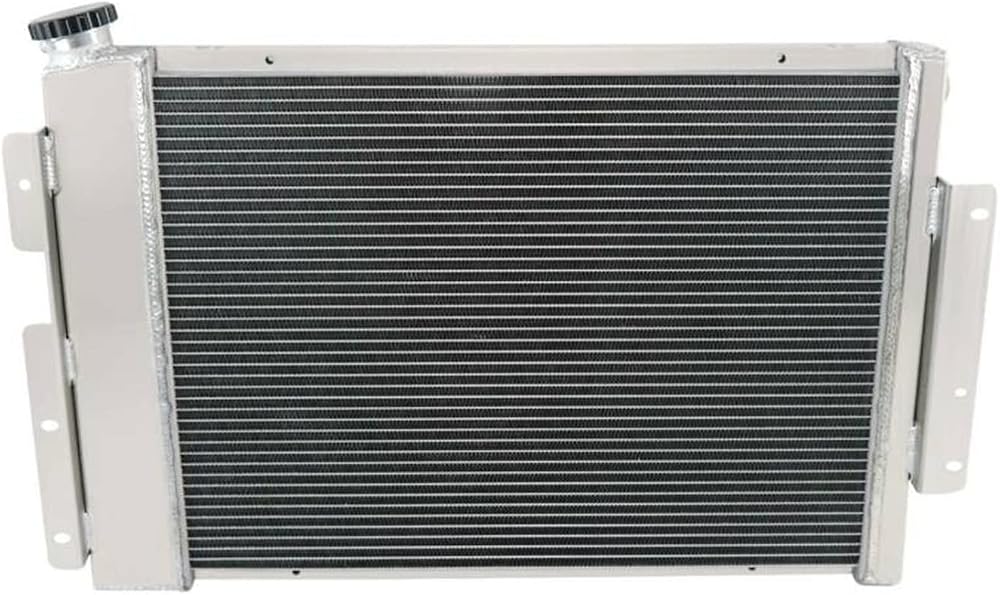

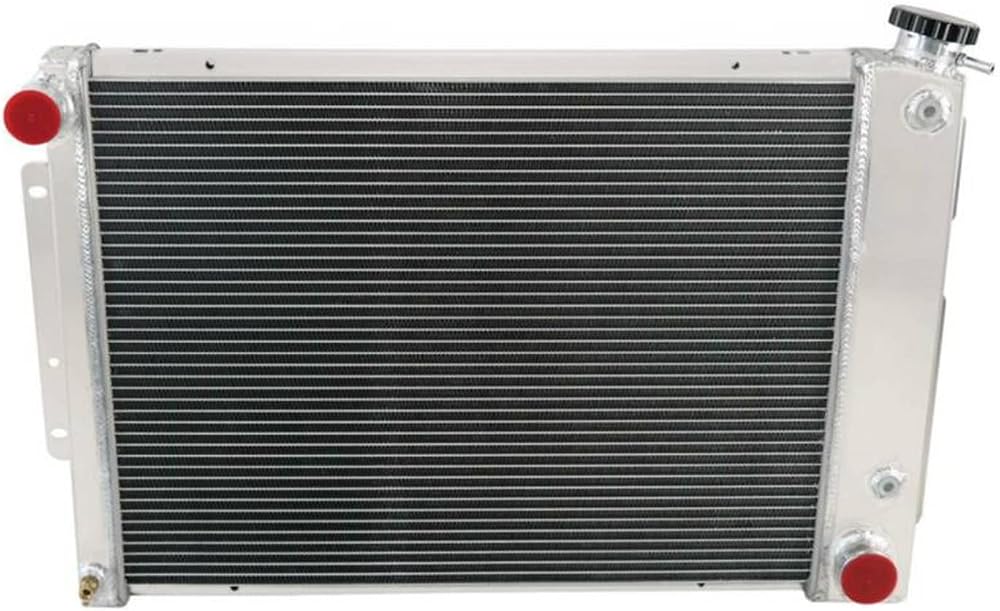

Radiator:
High Performance Racing Spec.

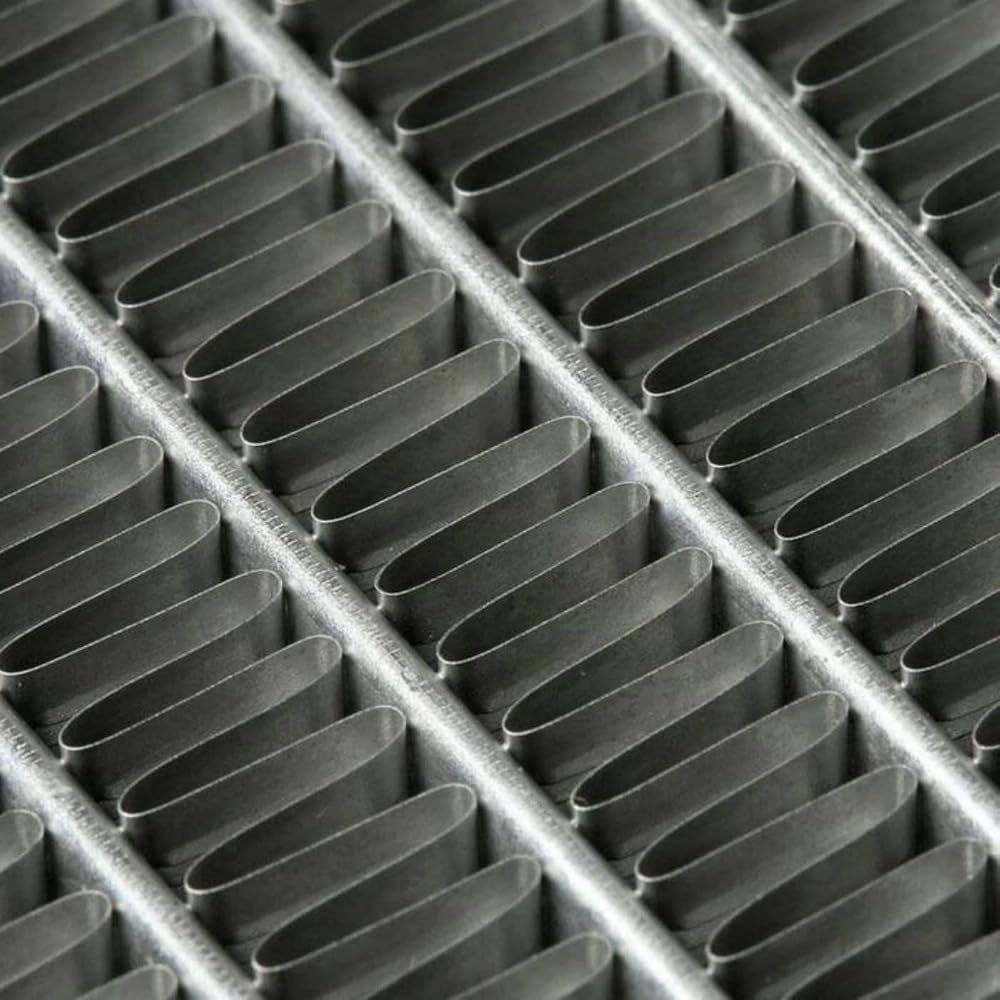

4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
Core Diameter : 17" High x 23" Wide x 2-5/8" Thick.
Overall Diameter: 19-1/4" High (top of cap) x 30-1/4" Wide (Incl. Brackets)
Upper Inlet: 1-1/2" located on the Driver side.
Lower Outled: 1-3/4" located on the Passenger side.
Mounting System : Bracket
Transmission Cooler : Included

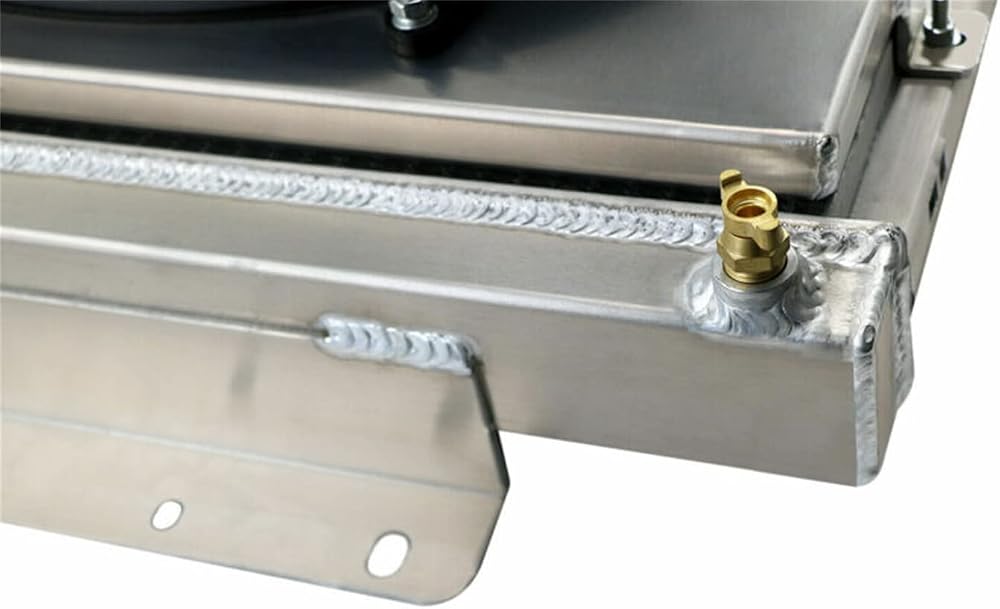

Transmission Cooler : 1/2 20 Straight Thread G1/4

Fans:
Volt: 12v
Power: 120w
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 16.050"
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps

Vehicle Fitment:
For 1967 1968 1969 Pontiac Firebird
For 1967 1968 1969 Camaro Big Block
For 1967 1968 1969 Firebird Big Block
For 1967 1968 1969 Chevy Camaro 23"-Core
For Pontiac Firebird / Trans Am 1967 1968 1969

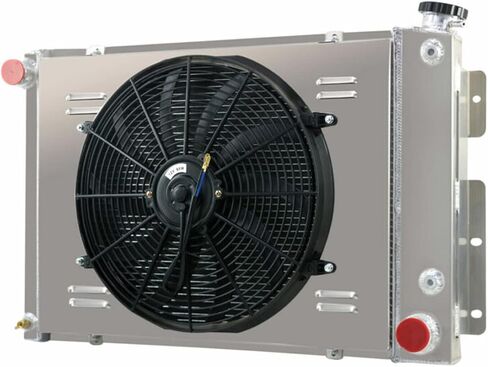

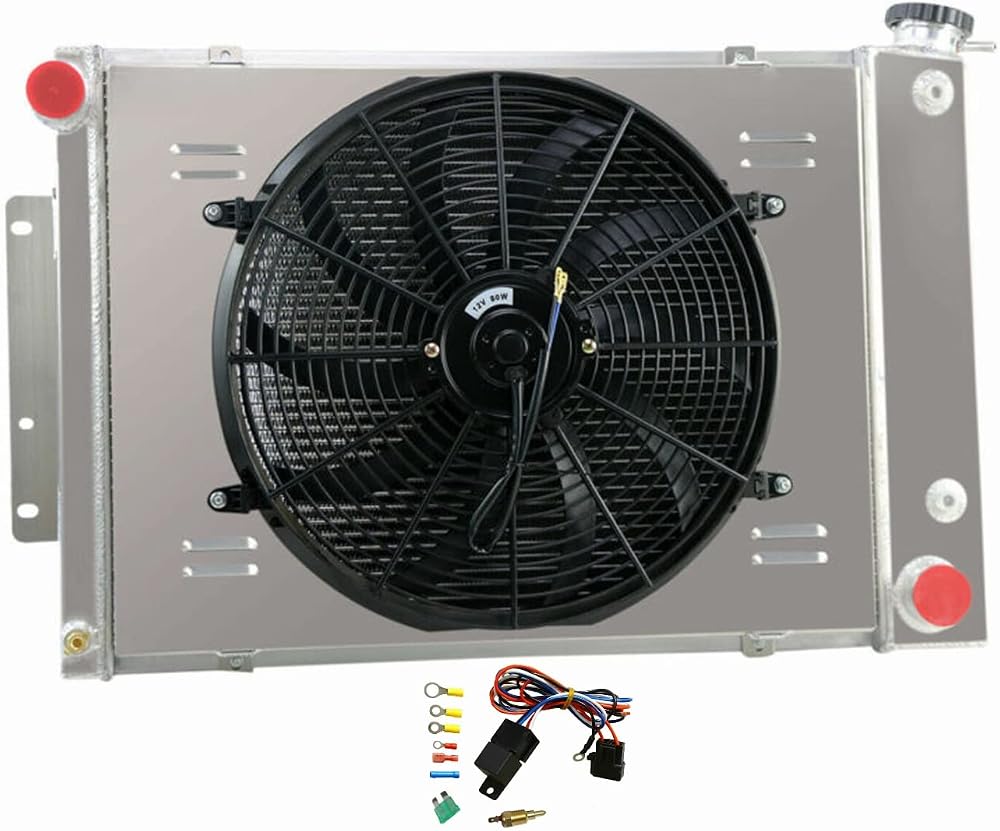

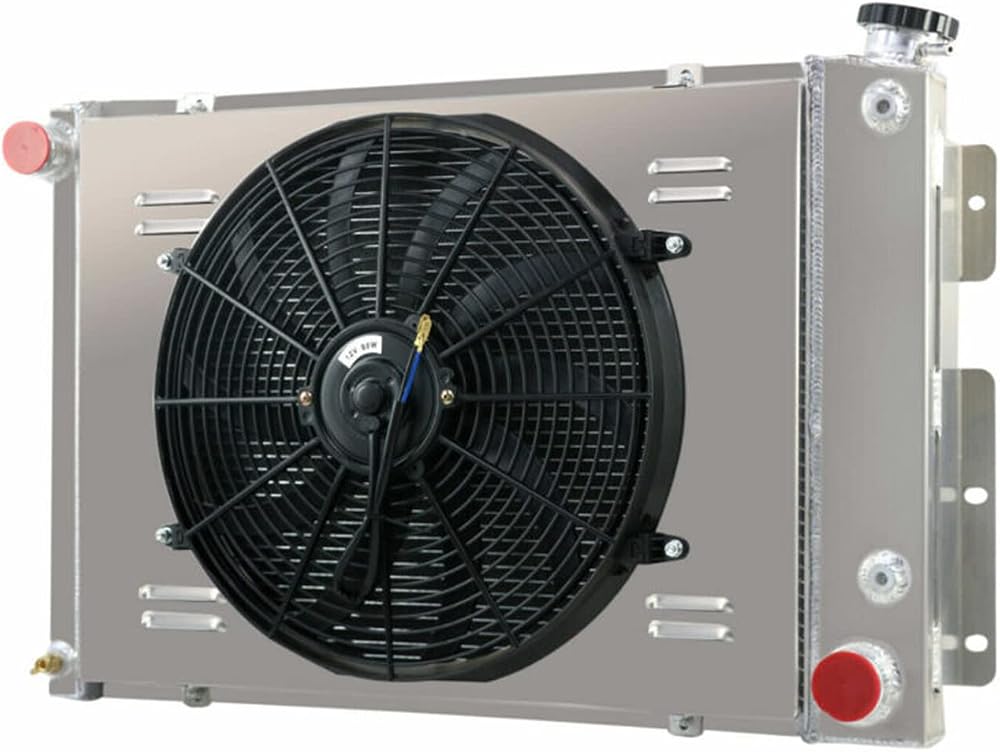

Package Include:
1 X 4-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
1 X 16" Fan (Includes mounting kits)

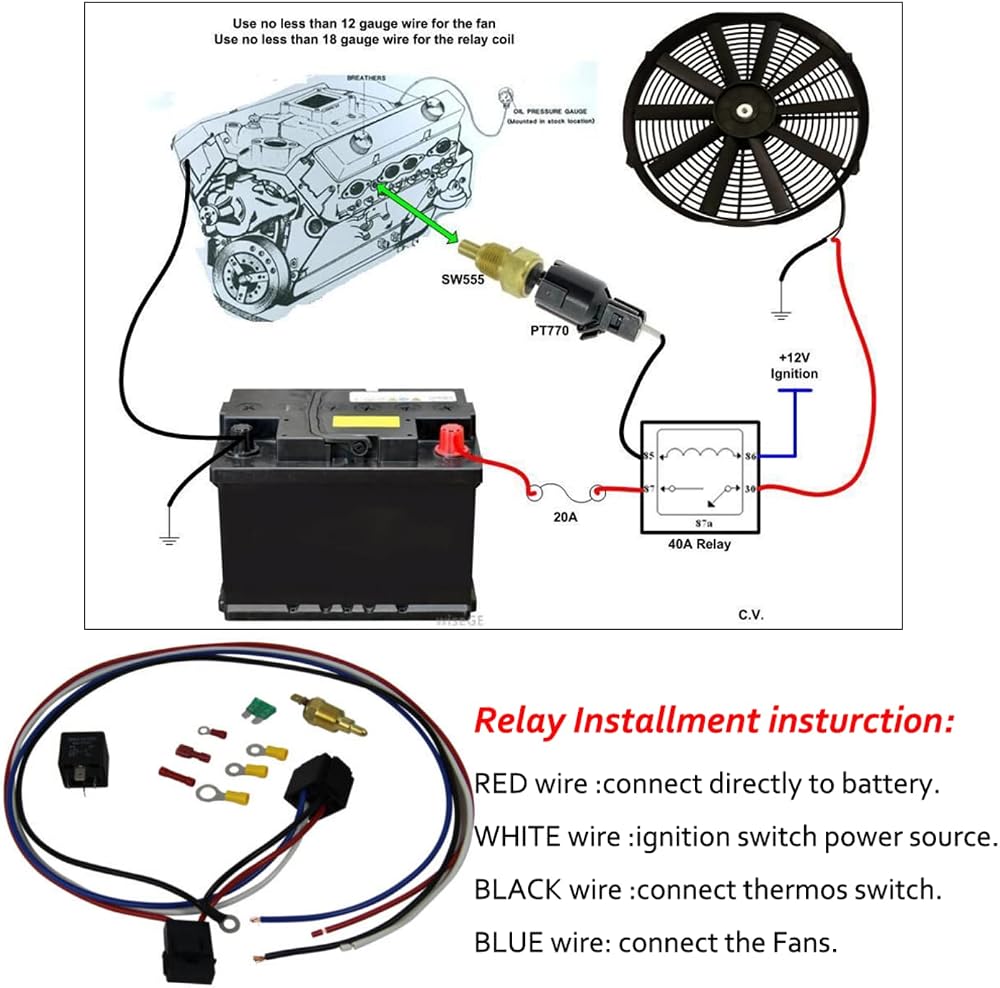

1 X Thermostat Relay Kit
