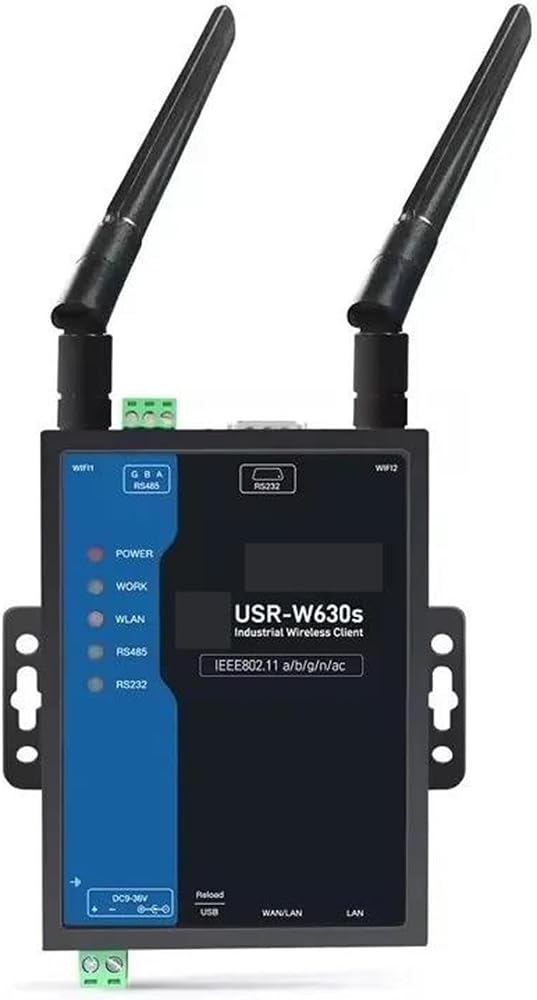

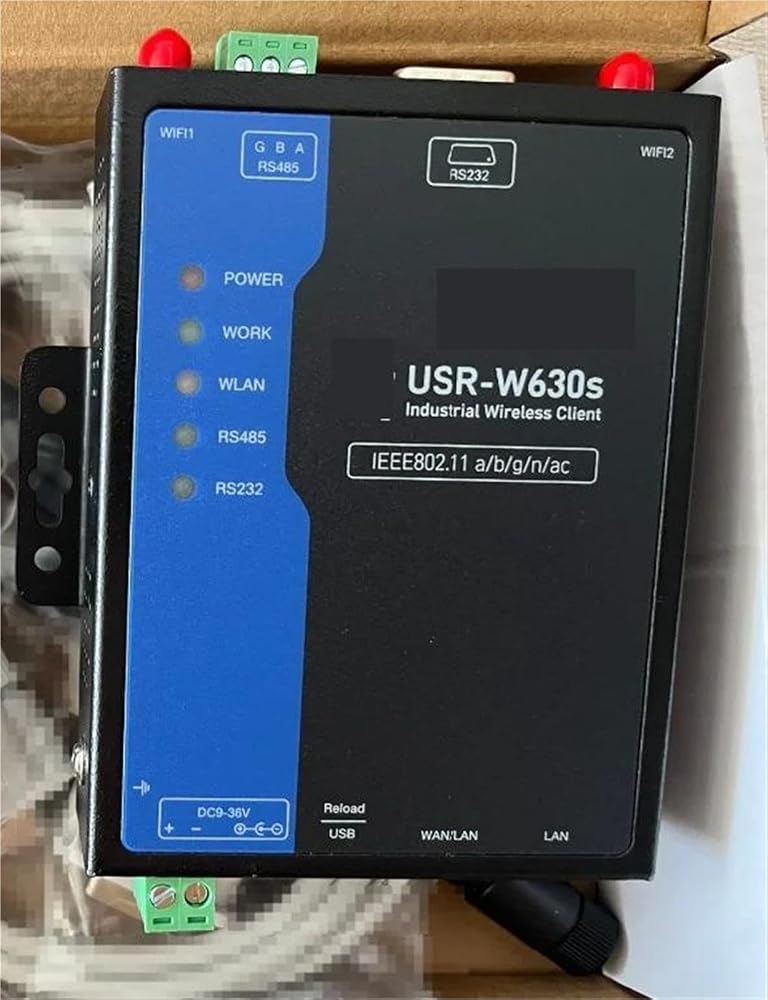

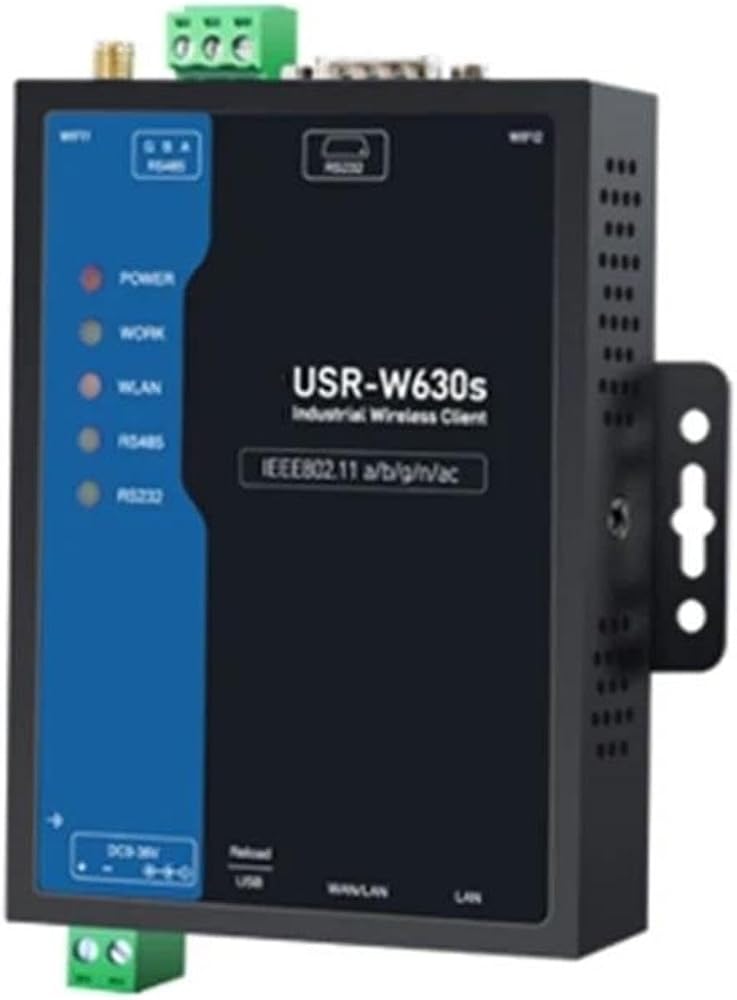

USR-W630s | Dual Band WiFi 5 Wireless Client
Qualcomm Chip, WPA2/WPA3 Encryption, Modbus Gateway, Rich Protocol
The USR-W630s is the latest dual-band WiFi 5 wireless client device released by . This device adopts Qualcomm's processor, with a high main frequency of up to 650MHz and integrated 1G DDR storage, capable of quickly and efficiently processing various functions of the product. The product integrates 2.4G & 58G WiFi with a transmission rate of up to 1267Mbps, and also integrates 2*RJ45 ports(1WAN/LAN+1LAN) and 2 serial ports (1 RS232+1 485), enabling data transmission between serial ports, Ethernet ports, and WiFi. It can be well applied in scenarios such as industrial automation, smart parks, warehousing and logistics, energy detection, and smart mining.
Serial/Ethernet to wi-fi Converter
With the help of USR-W630s, you can achieve data transmission between serial port devices, network port devices, and WiFi devices, as well as remotely monitor the operational status of field devices.
Ordering Guide
USR-W630s and USR-W660 are two industrial wireless WiFi clients recently. For the convenience of customers' choice, the picture on the left lists the main differences between the two products for reference.

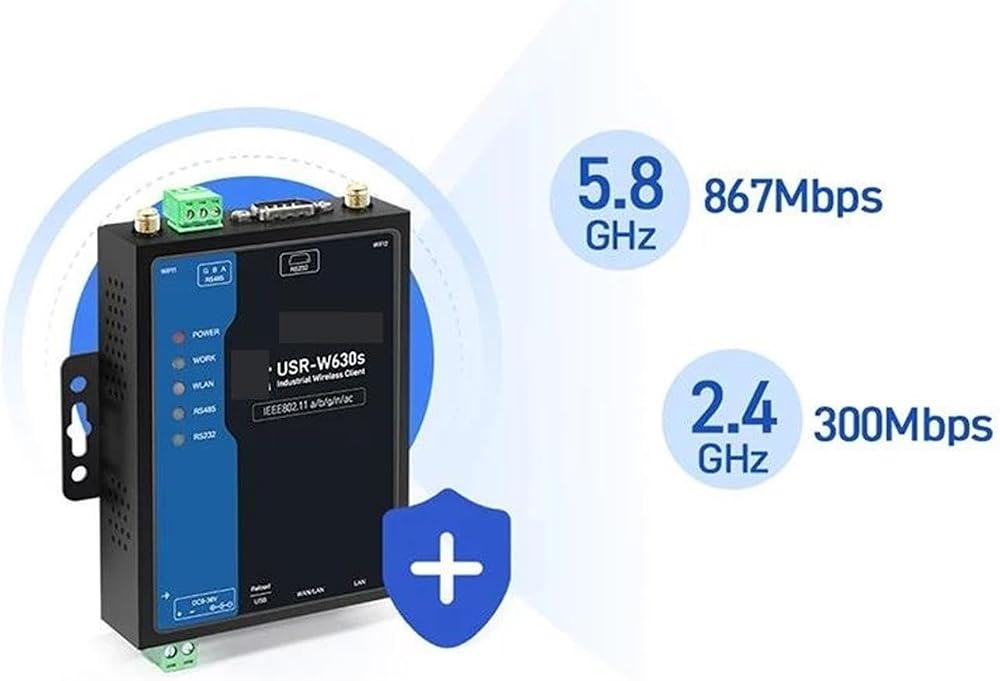

Qualcomm Chip, Dual Band WiFi
Powerful and reliable processor to ensure the stable.
5.8G & 24G WiFi offering the advantages of strong antiinterference capability, high speed, and wide coverage. In an open environment, the coverage range can up to 400 meters.
Multiple Working Modes, Meeting Diverse Scenarioes
USR-W630s provides a wealth of networking methods: AP, , AP+, AP+LAN, AP+WAN, +LAN, +WAN. And this device supports repeater and bridge mode. Through different networking methods, the data communication between the serial port device/LAN device and the remote server/LAN server can be realized, which can meet the complex network application requirements of customers.
Data Transmission Encryption, More Security
Supports SSL/TLS encryption in client, HTTP client and MQTT operation modes.
Supports two-way certificates authentication.
Rich Product Features
Modbus Gateway:Modbus RTU/TCP protocol conversation, Modbus multi-host polling.
Support Transparant MQTT/TCP/UDP/HTTP data communication.
Heartbeat Packet Function:Remote server can detect abnormal disconnection from the client using this feature.
Registration Packet Funciton:The server can identify different clients by usingregistration packets.
Industrial-Grade Design, High Reliability
EFT Protection:Level 3. Protect device against damage caused by instantaneous current interference in circuit, such as stroke, power switch, etc.
ESD Protection:Level 3. Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.
Surge Protection:Level 3. Protect devices from voltage spikessuch as stroke, power switch, etc.
Watchdog:Hardware & software dual watchdog to ensure stable operation without downtime
Wide Operation Temperature-25~ +75.
Wide Power Input:9~36V, reverse polarity protection.
Metal housing:IP30 protection.
Remote Management, Anytime, Anywhere
SNMP Protocol: Users can remotely view device information, modify device parameters, and monitor device information through the SNMP protocol.It does not need to go to the site to monitor and configure devices one by one. The version of SNMP supported by this device is V2C and V3. Platform: USR-W660 cooperates with platform, users can realize remote login configuration webpage, data debugging and remote firmware upgrade functions. Users can also monitor the online/offline record of the device. With all the above functions, users can monitor and manage the device conveniently.
Dimension & Interface
Dimension: 105*26*110.5mm(including mounting bracket)
ETH ports: 1*WAN/LAN, 1*LAN
Power supply: DC 9-36V, 1*terminal block connector, 1*DC jacket
Installation: Wall mounting, desktop placement

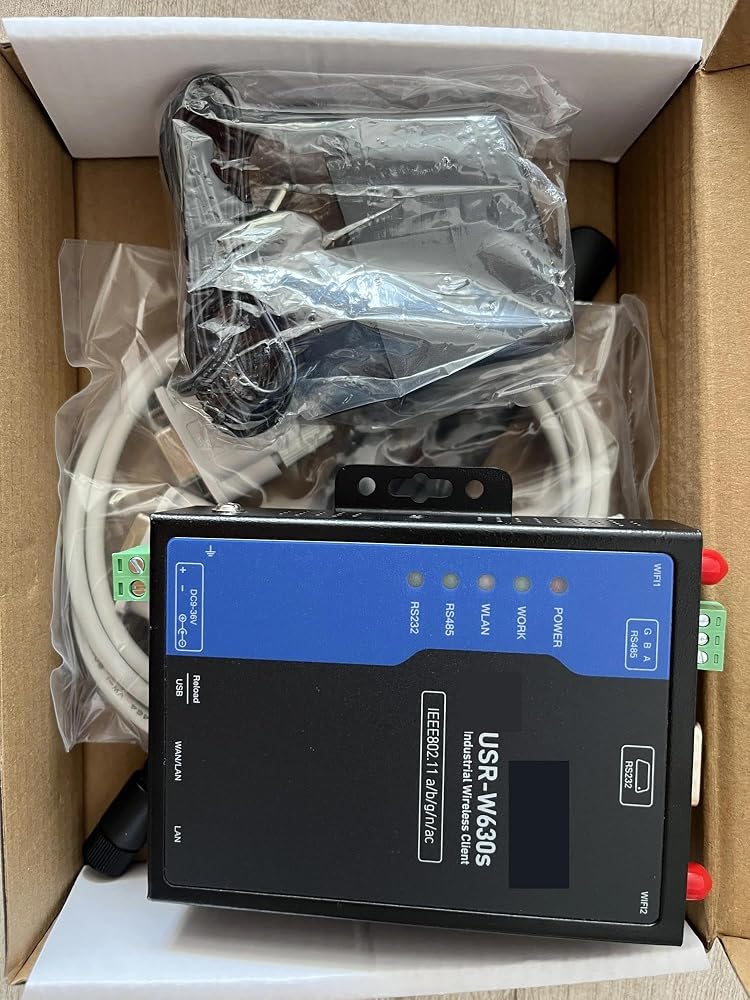

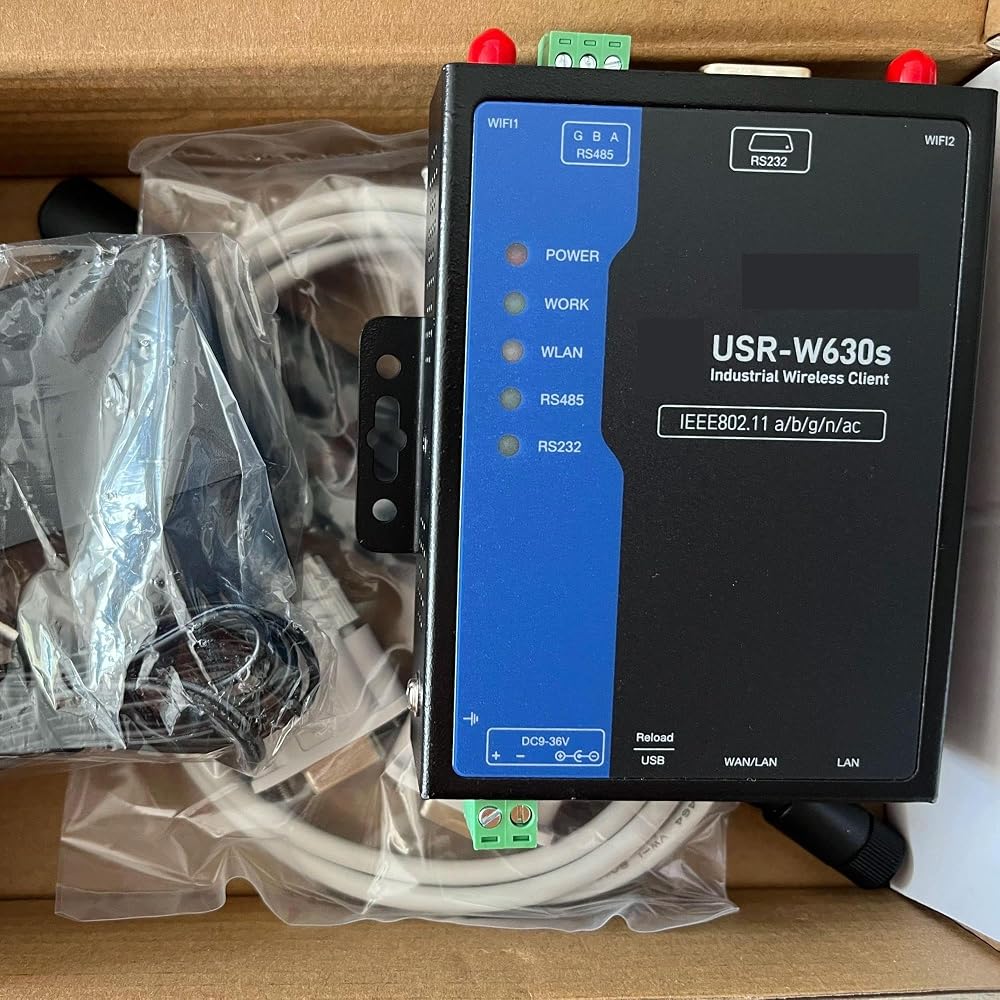

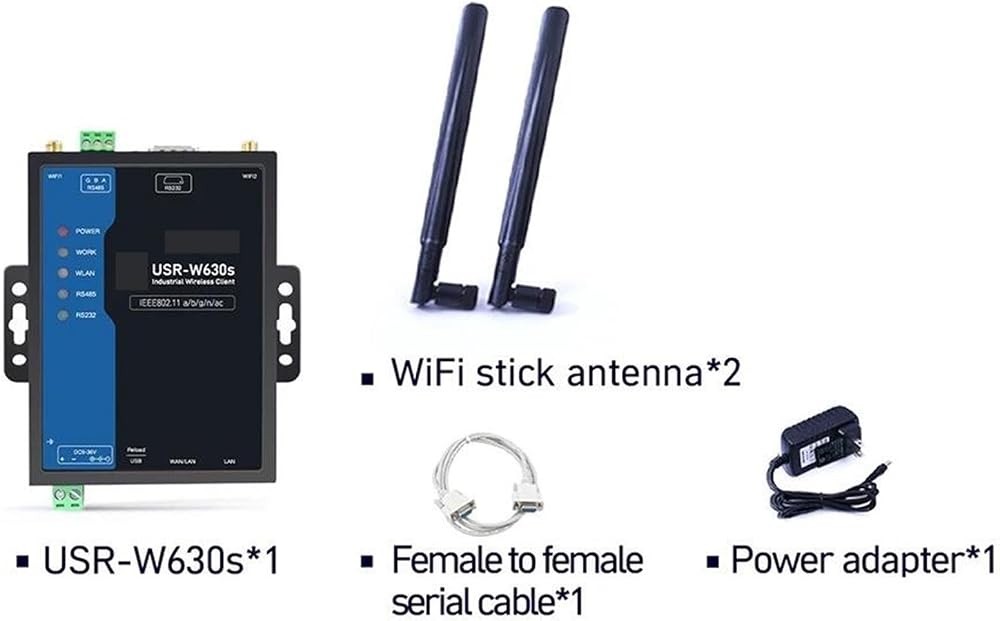

What's in the box?
USR-W630s*1
WiFi stick antenna*2
Power adapter*1
Female to female serial cable*1
Smart Application
Connect with the serial port/network port equipment in the , and upload the equipment operation data to the local monitoring platform or remote platform in real time; the staff can dynamically understand the operation status of the monitored equipment through the monitoring platform.
More Application Scenarios
USR-W630s adopts industrial design, which can be applied to various industrial scenarios, such as industrial automation, warehousing and logistics, energy monitoring and smart mining scenarios, and perfectly meet the needs of remote data transmission and monitoring of various interface equipment.
Items
Description
Power Supply
DC: 9~36V,
2-pin terminal block connector, 5.08mm-2P, reverse polarity protection, surge protection
5.5*2.1 DC jack connector
Working Current
Average: 300mA@12V, max: 700mA @12V
Serial port
No.
1 x RS485, 3-pin terminal block connector, 3.81mm-3P
1 x RS232,DB9 male
Baud rates
RS232: 1200/2400/4800/9600/19200/38400/57600/115200/230400
RS485: 1200/2400/4800/9600/19200/38400/57600/115200/230400
Data bits
7, 8
Stop bits
1, 2
Parity
NONE, ODD, EVEN
Flow Control
RS232: Hardware flow control
RS485: 485 conflict prevention
Packaging Interval
Range: 0 ~ 1000ms, default: 0ms
Packaging Length
Range: 5 ~ 1460 bytes, default: 1000 bytes
Ethernet Ports
No.
2 x Ethernet ports: 1 x WAN/LAN(configurable), 1 x LAN
Interface
RJ45, 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX, 1.5KV network isolation protection
Wi-Fi
Standards & Frequency
IEEE 80211bgnac, 2.4GHz & 58G
Working Mode
APSTAAPSTA/Bridge
Data speed
867Mbps(5.8GHz) & 300Mbps24GHz
MUMIMO
2 x 2
Modulation system
DSSSDBPSK.DOPSK,CCK)
OFDM(BPSK,QPSK,16-QAM,64-QAM,125-QAM,256-QAM)
Covering distance
2.4G: Coverage radius up to 400 meters
5.8G: Coverage radius up to 200 meters
Wi-Fi Users
16
Antenna
2 x 5 dBi rod antenna
Antenna Connector
2 x SMA-female
Physical Property
Casing material
Metal shell, IP30 protection
Dimensions
110.5*105*26mm(L*W*H,antenna pedestal,terminal block are not included)
Installation
Wall munting, desktop placement
EMC
Surge protection: level 3, IEC61000
ESD protection: level 3, IEC61000
EFT protection: level 3, IEC61000
Operating temperature
-25-+75
Storage temperature
-40-+125
Operating humidity
5% ~ 95% RH, non-condensing
Storage humidity
1% ~ 95% RH, non-condensing
Software Function
Network protocols
, UDP, HTTP, TLS, MQTT, ARP, DHCP, ICMP, PPPoE, IPv4, DNS, SNMP, NTP,
Modbus Gateway
Modbus RTU/TCP protocol conversion,
Modbus multi-host polling
IP
DHCP/StaticIP
MQTT
Standard MQTT protocol, 16 subscription topics and 16 publish topics
Registration packet

Heartbeat packet

IOT PLATFORMS
AWS IOT, Alibaba cloud, cloud
User Configuring
Web console(HTTP), AT command
Others
Reload
Pinhole reset button, press and hold for 3~15 to reset to settings
Indicators
1 x RS485, 1 x RS232, 1x WLAN, 1 x RUN, 1 x PWR
Ground protection
Screw
APPROVALS
Regulatory
CE/RED*, *, WEEE*, FCC*
==========
High-concerned chemical : None
Type : US,EU,UK,AU
Size : 1
Model Number : W630S
Certification :
Item Type : Communication Converter
