N Type Connector for Compatible For Omnidirectional Antenna At 12dBi Gain Perfectly Suited To Enhance Communications Outdoors(Single antenna) in Saudi Arabia

N Type Connector for Compatible For Omnidirectional Antenna At 12dBi Gain Perfectly Suited To Enhance Communications Outdoors(Single antenna) Single antenna

SAR 131

Brand
LivGrain
Weight
207 g
SizeSingle antenna
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【12dBi Optimized Tuned Fiberglass Aerial Antenna】
  • 【Flexible dBi Selection】
  • 【Rated and Maximum Gain】
  • 【Specifications】
  • 【Package】

Description

Features:
* Made of materials, sturdy and

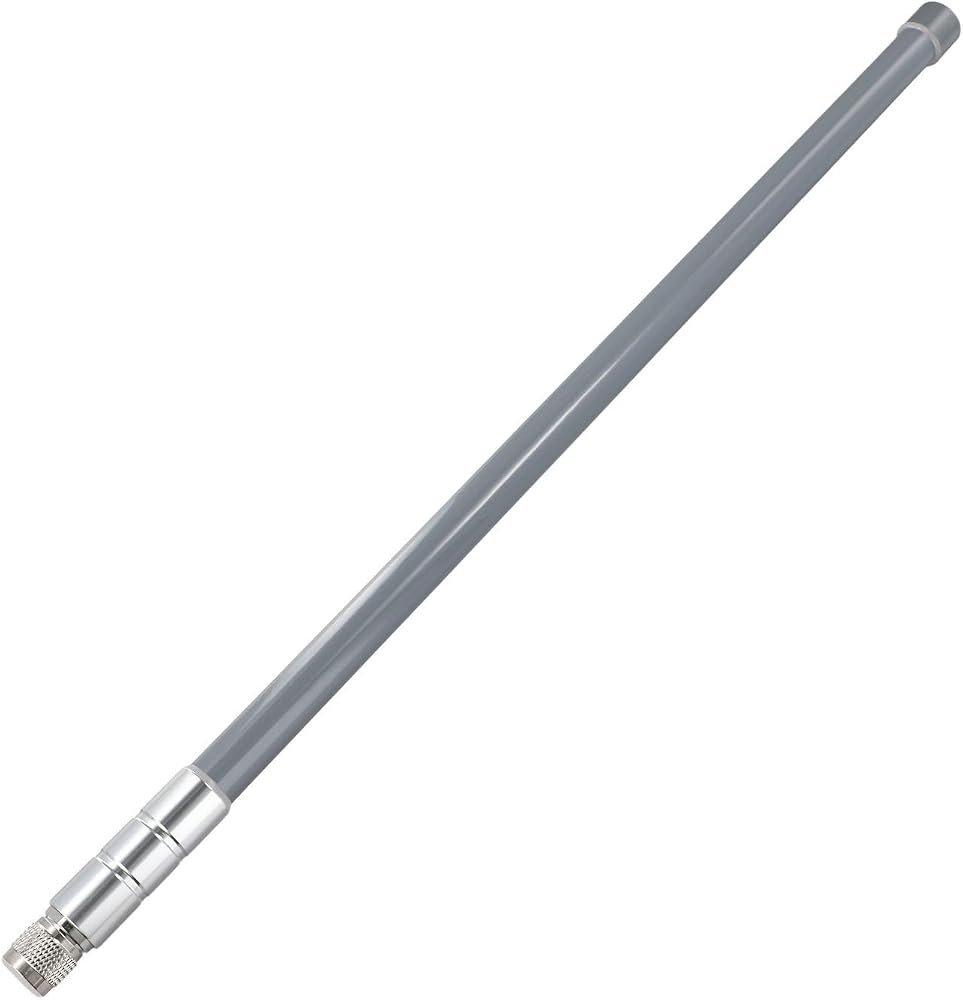

* Outdoor antenna 55cm for LoRa antenna outdoor omnidirectional fiberglass antenna LTE outdoor long-distance receiving antenna
* antenna has an N for SMA connector cable so it can be easily connected to the for and all other for helium miners.
* This antenna can be used in any environment requiring long-distance for LoRa connection for agriculture, monitoring and urban surveillance
* Low standing wave ratio:
* The VSWR of this antenna is 1.9, which is lower than other antennas (the the VWSR is 1, the smaller the reflection and the better the matching of the antenna)
* How to choose dBi?
* Lower dBI: Excellent performance on uneven terrain or areas with high hotspot density.
* Higher dBI: Excellent performance on flat terrain and low hotspot density.
* Medium dBI: for environments in between the other environments listed above.
* What are rated gain and maximum gain?
* The rated gain refers to the stable value that the antenna can achieve under normal circumstances, and the maximum gain refers to the maximum value that can be achieved under the lowest loss and optimal environment. However, this value is not a fixed value, and the gain often fluctuates.

Specification:
Connector: Type N male
Polarization: vertical polarization
for frequency: 860-930MHz (EU 868MHz, US 915MHz)
Maximum gain: 12dbi (not fixed value)
Rated gain: 5.8dbi
Standing wave ratio: 1.9 (dB)
Wire: RG58
Wire parameters: single core wire
Cable outer diameter: 4.95+-5mm
Cable material: PVC cover
Wire Type: High for Braided Shield
Impedance: 50 ohms
Material: fiberglass
Connector material: copper
Working for temperature: -40~+85 degrees for Celsius
Length: 550mm
Relative humidity: up to 95%

Package Included:
1 * Antenna Kit/Antenna (optional)
