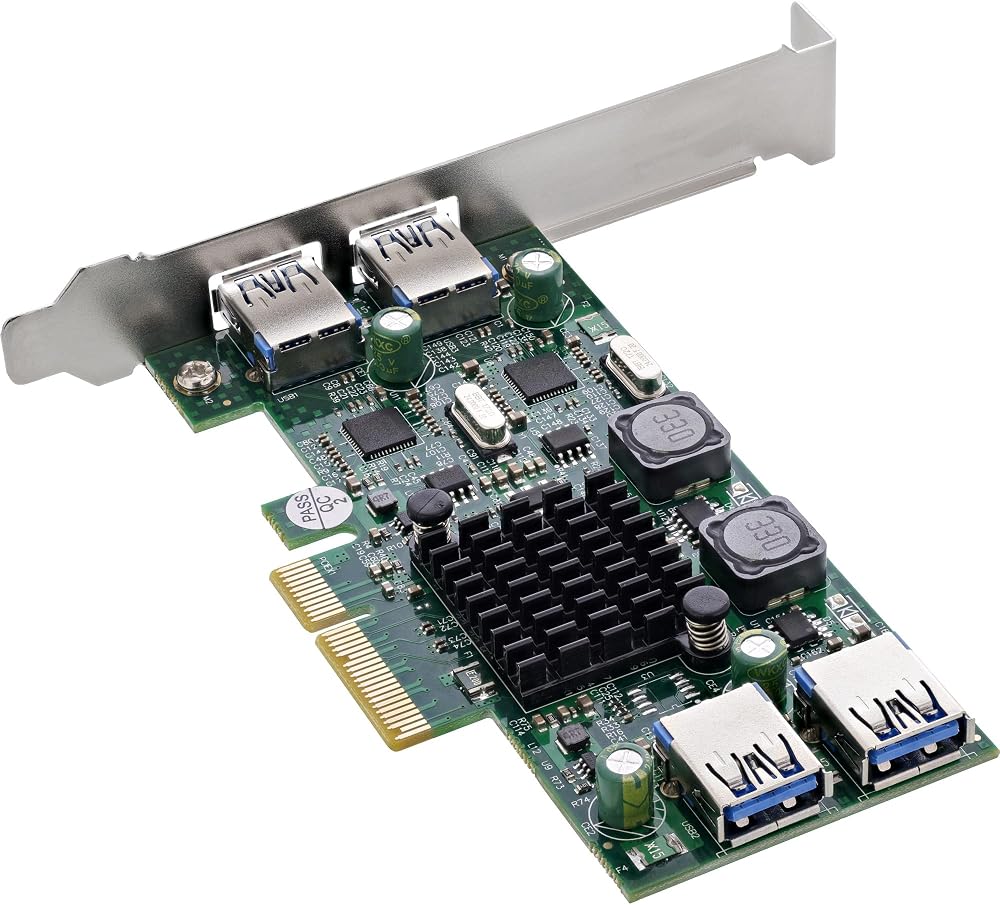

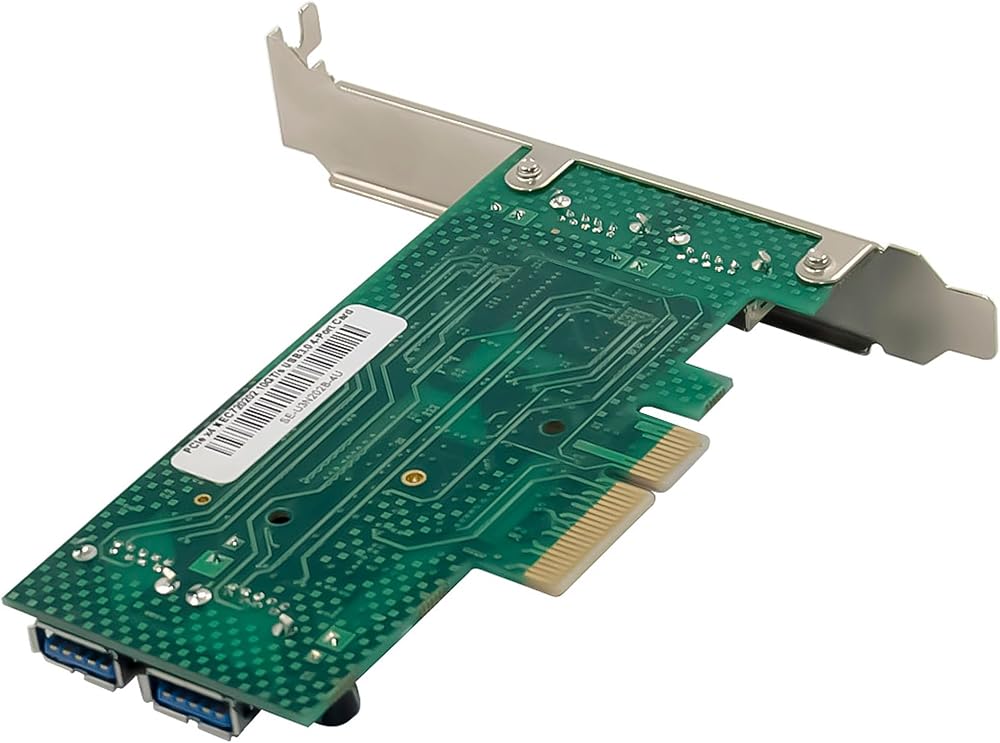

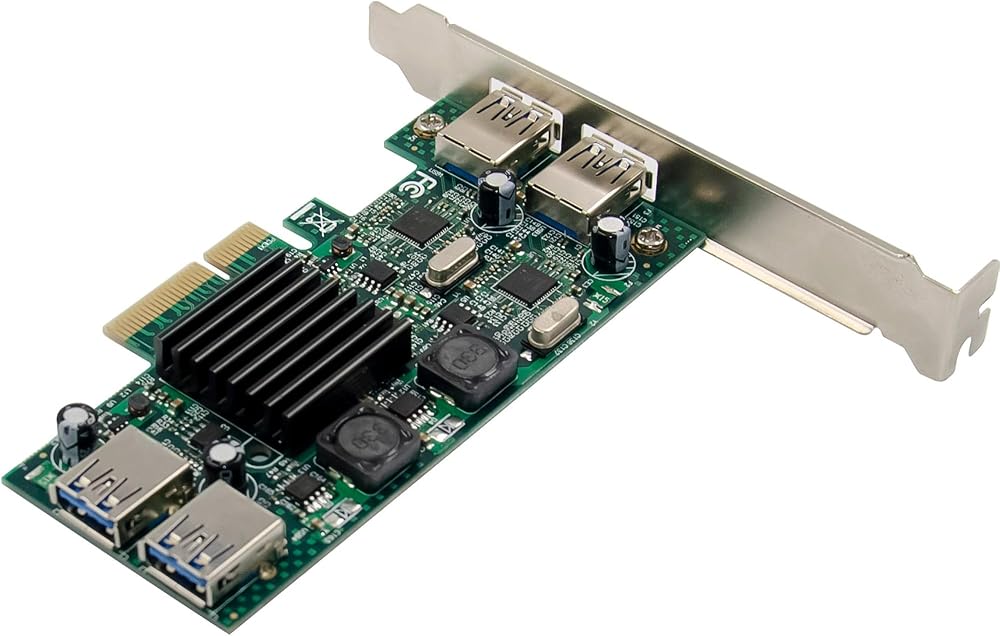

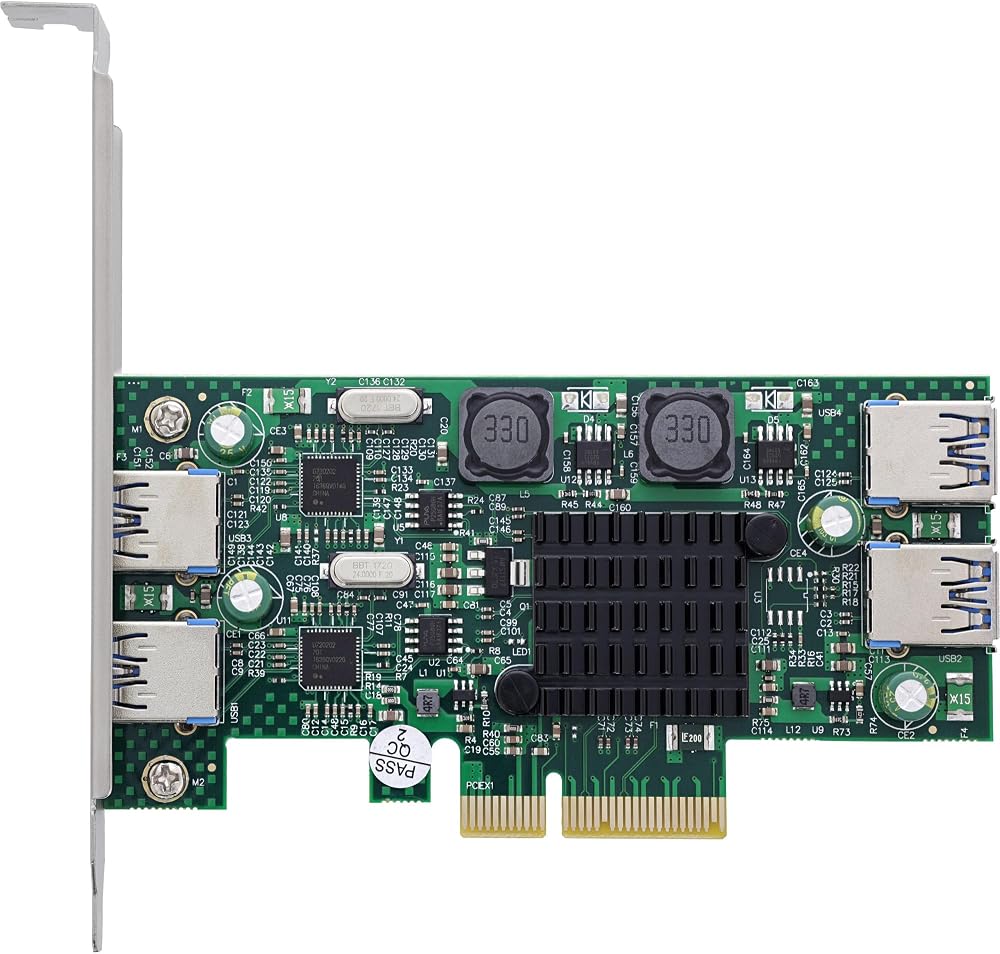

The InLine USB PCIe card expands compatible computer systems by four USB 3.2 Gen.1 ports. The combination of two internal and two external USB ports allows you to implement different device arrangements inside and outside the case. The four ports are suitable for external SSDs, hard drives, cameras, audio interfaces or other USB peripherals with high data volume. Each USB 3.2 Gen.1 port works with its own bandwidth of up to 5 Gb/s. This allows multiple devices to be used in parallel for data-intensive applications.

The NEC/Renesas uPD720202 host controller supports USB 3.2 Gen.1 as well as USB 3.0, USB 2.0 and USB 1.1 devices. Hot-swapping allows compatible USB devices to be connected or disconnected on the go. The additional 4-pin power connector supports the power supply of connected USB devices via the PC system. The included low-profile bracket extends the installation options in appropriately designed compact housings.

Technical details:
Host controller interface: Intel xHCI Specification 1.0
Power supply per USB port: max. 5 V / 900 mA.
Additional power connection: integrated 4-pin power connector for additional power supply via the PC system.
Power Management: PCI Bus Power Management Interface Specification Revision 1.2

Supported operating systems
Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, 32/64 bit.
Linux

Box contents:
1 x InLine interface card, USB 3.2 Gen.1, 4 port.

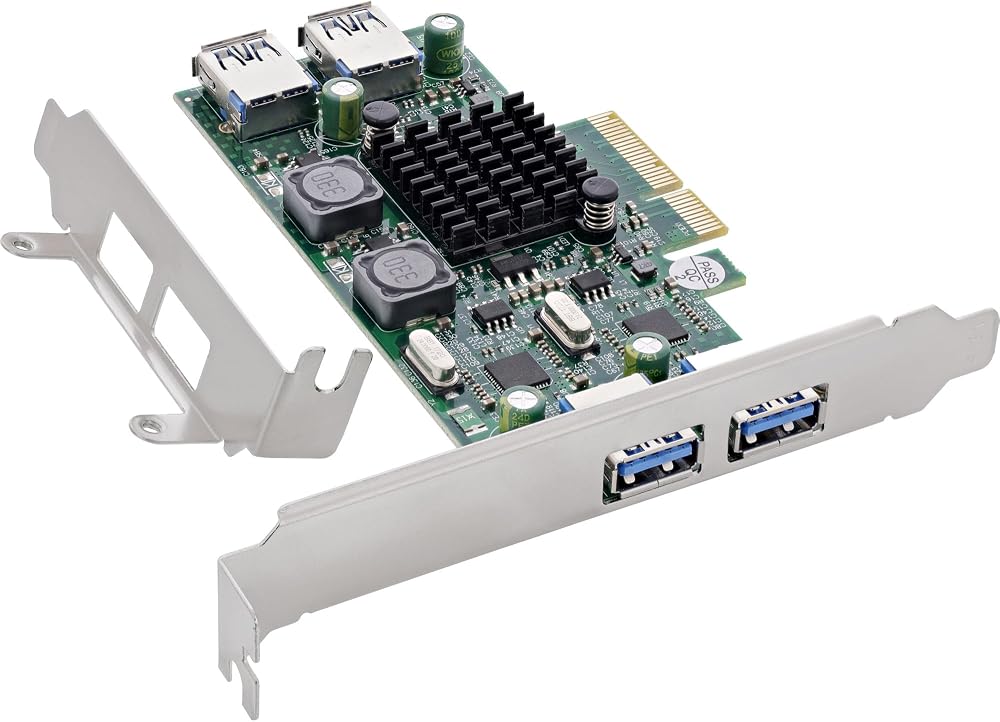

1 x low-profile slot bracket.
1 x driver CD.
1 x user manual in German/English.
