Drone Parts for BETAFPV SuperP 14CH Diversity Receiver Adapted RC Model Type Multirotors Fixed-Wing Aircraft Helicopters RC Cars RC Boats New(ELRS 915MHz) in Saudi Arabia

Drone Parts for BETAFPV SuperP 14CH Diversity Receiver Adapted RC Model Type Multirotors Fixed-Wing Aircraft Helicopters RC Cars RC Boats New(ELRS 915MHz) Elrs 2.4ghz

SAR 313
Brand
JYJMDMG
Category
Quadcopters
Weight
50 g
ColorElrs 2.4ghz
– 1 +

Special Features

  • Featuring 14 PWM channels, this receiver is suitable for different applications. It can drive up to 14 servos, allowing for more complex and precise control. In addition, an external such as a barometer, current , etc, is also supported.
  • A true diversity receiver with two complete RF receiver chains (referring to dual SX1280/SX1281 or dual SX1276), based on the latest official ExprssLRS. It comes with ExpressLRS V3.3 firmware.
  • Built in a TCXO (temperature-compensated crystal oscillator), it is shared by two RF chips for a super accurate clock source. It can withstand extreme temperatures with no fear of and cold, continuously outputting accurate frequency for long-range flight.
  • Two antennas will create an omnidirectional signal for good signal transmission. Placing the separately and vertically to get a better signal is recommended.
  • With the support of the failsafe function, it is capable of protecting RC models from being out of control.

Description

Being the first to market! SuperP 14CH Diversity Receiver has been designed not only for long-range flying, aerial photography but also suitable for the application of fixed-wing, helicopters, RC cars, boats and etc. It has TCXO oscillator, two antennas, dual receiver chains, and Plug-N-Play ports, and adds more features, which support 14 channels for the external barometer, RGB strip, and other external sensors that are currently under development. It offers 2.4GHz, 915MHz and 868MHz versions, and greatly fulfills the requirements of reliability for long-range flying, aerial photography, or FPV freestyle tricks. With this receiver, users are able to get a more stable and reliable experience on RC models.
A ton of ExpressLRS items are available now!
Bullet Points

With the support of the failsafe function, it is capable of protecting RC models from being out of control.
Reserving a Type-C USB port, it is convenient for pilots to flash the firmware. The plug-and-play design makes it very easy and friendly to use.
The 900MHz system exhibits greater diffraction ability due to its lower frequency, while the 2.4GHz systems tend to be directional and susceptible to attenuation caused by buildings, foliage, or moisture.
Specification

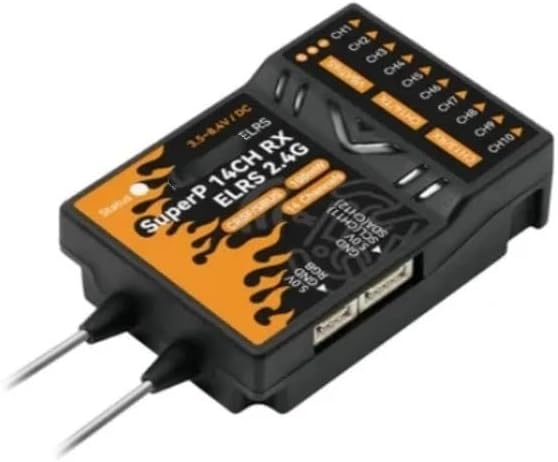

Item: SuperP 14CH Diversity Receiver | ELRS 2.4GHz/915MHz/868MHz
MCU: ESP32 Pico D4 + 2*SX1280/SX1281 + 2*AT2401C (2.4GHz)
MCU: ESP32 Pico D4 + 2*SX1276(915MHz/868MHz)
Telemetry Power: 20dBm/100mW (2.4GHz), 17dBm/50mW (915MHz/868MHz)
Frequency Bands: 2.4GHz ISM, 915MHz FCC/868M EU
Rated Current: 180mA@5V (2.4GHz), 140mA@5V (915MHz/868MHz)
Weight: 15.5g (2.4GHz), 15.8g (915MHz/868MHz)
Default Firmware Version: ExpressLRS V3.3.0
Serial Output Protocol: PWM, CRSF or SBUS
: 2* IPEX MHF 1
Size: 46.9mm*32.7mm*14.6mm
Voltage Detector Range: 1~6S
Input Voltage: 3.5V~8.4V DC
PWM Channel: 14 Channels
Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopte
