Product Description

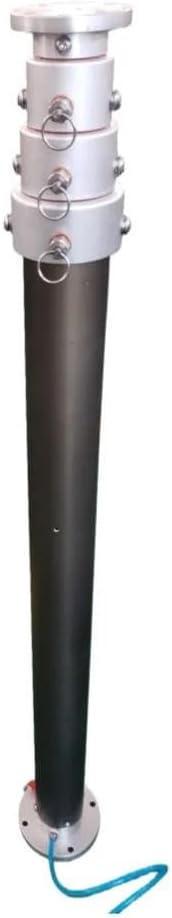

2m 4m 6m 8m 10m Pneumatic Telescopic Mast for With Cable for Mounting Camera Antenna
The mast can be used for pitch lighting,antenna mounting,emergency rescue,and outdoor surveillance.It can be fixed on the ground with tripod,and fixed on the car with clamps
The advantages:
1.Light weight
2.Lower retracted height
3.Higher extended height
4.Easy to operate
5.Portable feature
Pneumatic Telescopic Mast Specifications
Extended Height
2m 4m 6m 8m or customization
Max.head payload
25kg(can be customized)
Max.tube OD
118mm
Min.tube OD
36mm
Working Temperature
-30---+ 60
Wind Resistance
110km/h
Accessories&Components Of The Mast
Lifting methods
With Lock Or Not
Accessories
1for fixing the mast on the ground
1adjustable telescoping tripod 2)tripod for flat ground installation 3)four-directional support frame
pulling ropes
pulling wire boxes
ground nails ground anchors
(2).for fixing the mast on the vehicle
Car clamp
L-base
(3).For fixing the mast on the trailer
Application
For mounting antenna
For mounting monitor camera
For mounting light
For mounting lightning rod
Our customers often use the mast for mounting all kinds of antennas,monitor cameras,lights and lightning rod.Of course,other equipment,such as meteorological monitor instruments can also be installed on the of the mast.Just tell us your requests,we will design and produce a suitable telescopic
= = = = = = = = = =
Model Number:TAL-P8.0-2.0-25
Type:camera mast antenna mast light tower
Height:2m 4m 6m 8m 10m
Lifting method:pneumatic pump
Material:aluminum alloy,Aluminum alloy 6063B/T5
Color:Bronze or Sliver
Extended height:2m 4m 6m 8m or customization
Max.payload:25kgs
Section Number:6 sections
Tube OD:36mm
Bottom Tube OD:118mm
Wind resistance:110km/h
Max pressure of air compressor:0.2-0.25Mpa
component
For more models, please contact me
