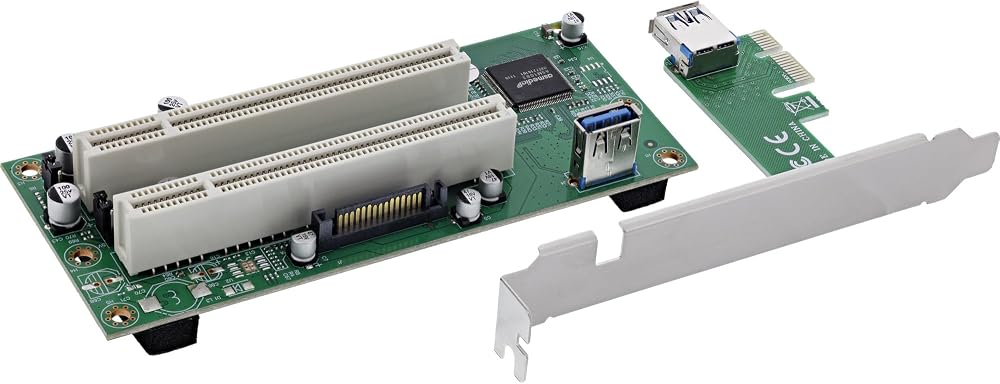

With the InLine PCIe x1 to 2x PCI 32-bit interface card, you can expand modern computers with two classic PCI slots. The system consists of a PCIe main card with ASMedia ASM1083 bridge chip and an additional card that is connected via a 60 cm cable. This makes it ideal for reusing legacy but functionally relevant PCI expansion cards – for example in industrial PCs, test systems or special applications where PCIe is not a replacement.

The card is driverless and is compatible with a wide range of operating systems, including all Windows versions from XP and Linux kernel from version 2.4. The power is supplied via a standardized SATA 15-pin connector, which allows easy integration into existing setups. The PCI signals are reliably transmitted through the connection cable to the additional card, on which two 32-bit slots are available.

Whether in professional environments or ambitious self-building: This solution offers a high-quality and durable way to continue using proven PCI hardware – without compromising on system update.

Additional Technical Specifications:

PCIe standard: PCIe v1.1 x1-Lane (connection of the main card)
Interfaces: 2 x PCI 32-bit, 33/66 MHz (provided on the additional card).

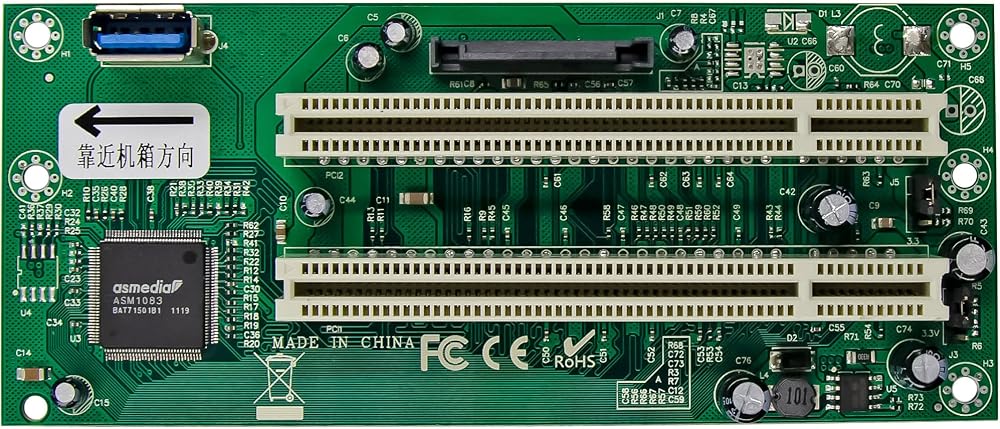

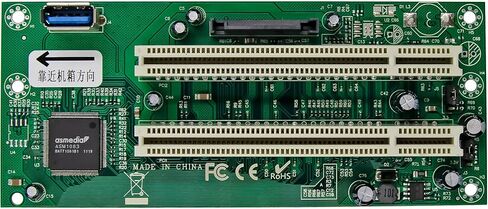

Chipset: ASMedia ASM1083 (PCIe to PCI bridge)
Power supply: SATA 15 pin power connector on the main card
Driver: No driver installation required
Supported Operating Systems:
Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 (32/64-bit).
Windows Server 2003 / 2008 / 2012 / 2016
Linux Kernel 2.4 or later

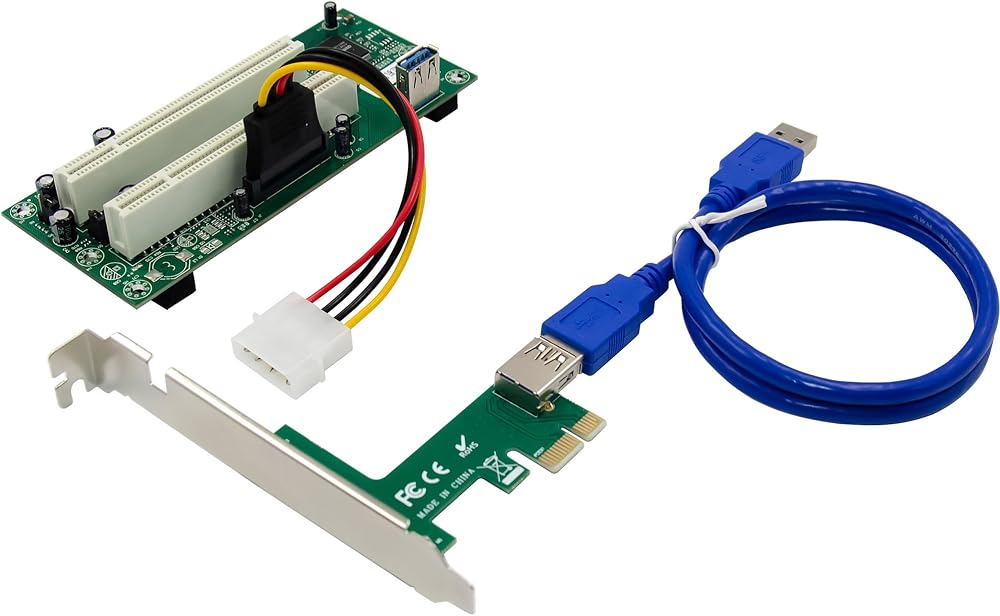

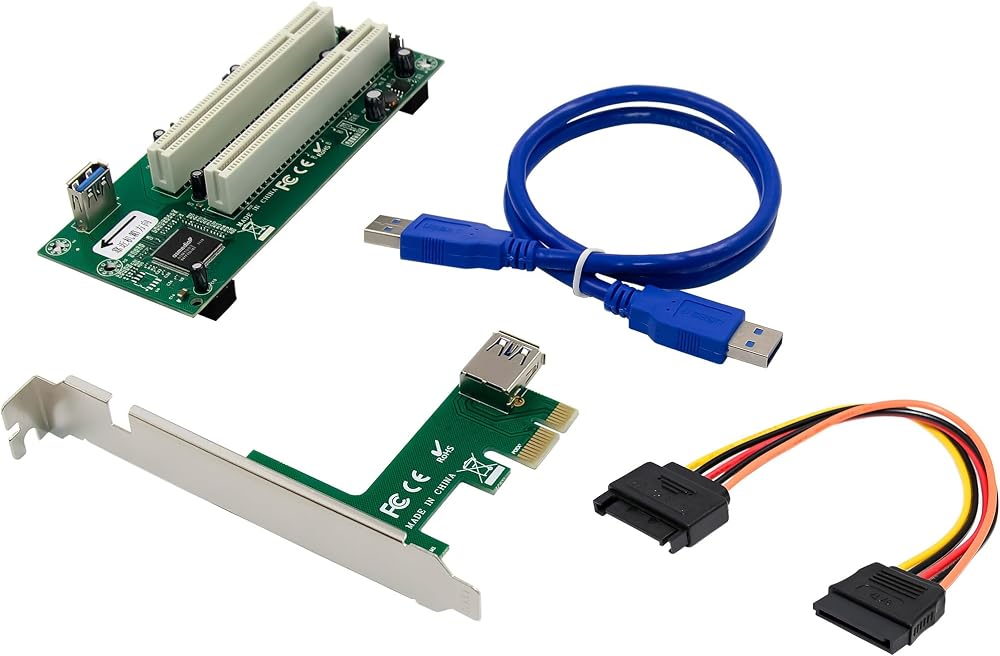

Package includes:
1 x InLine PCIe x1 to 2 x PCI interface card (main card, with PCIe plug-in card).

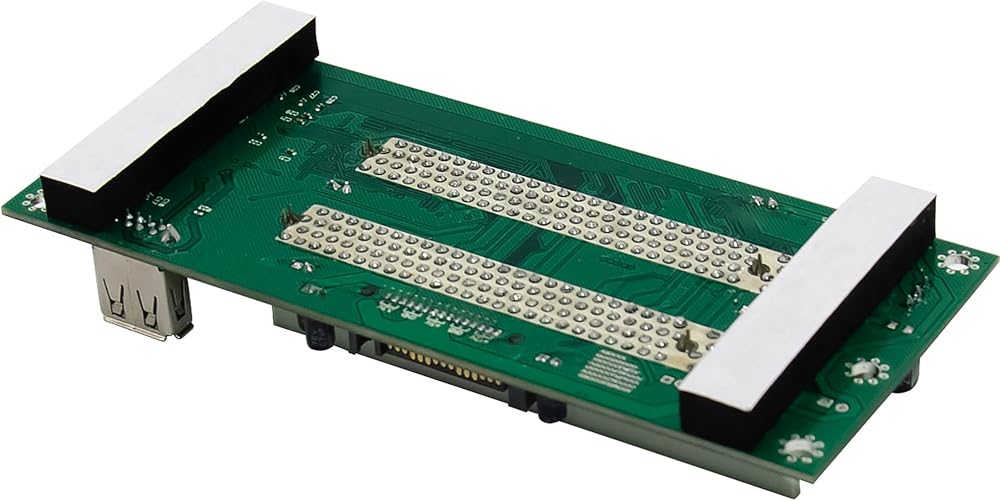

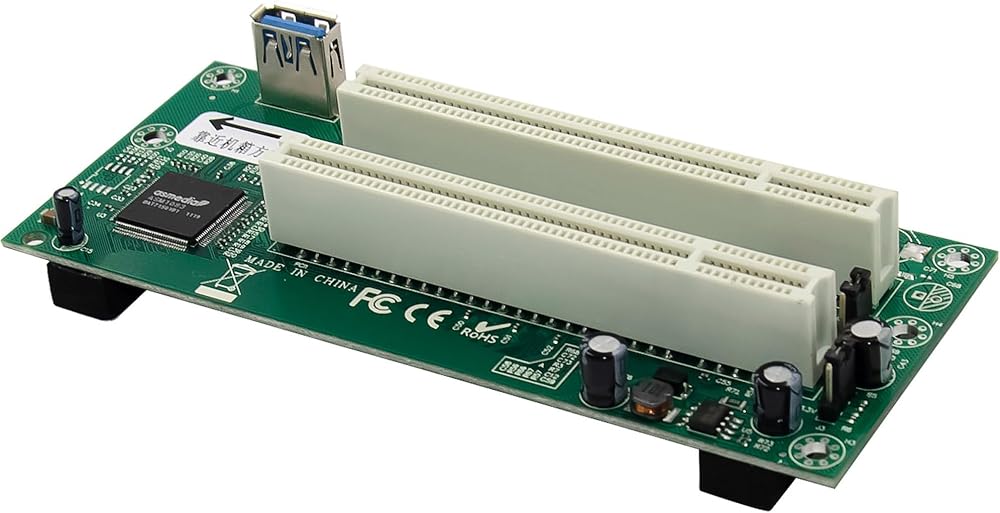

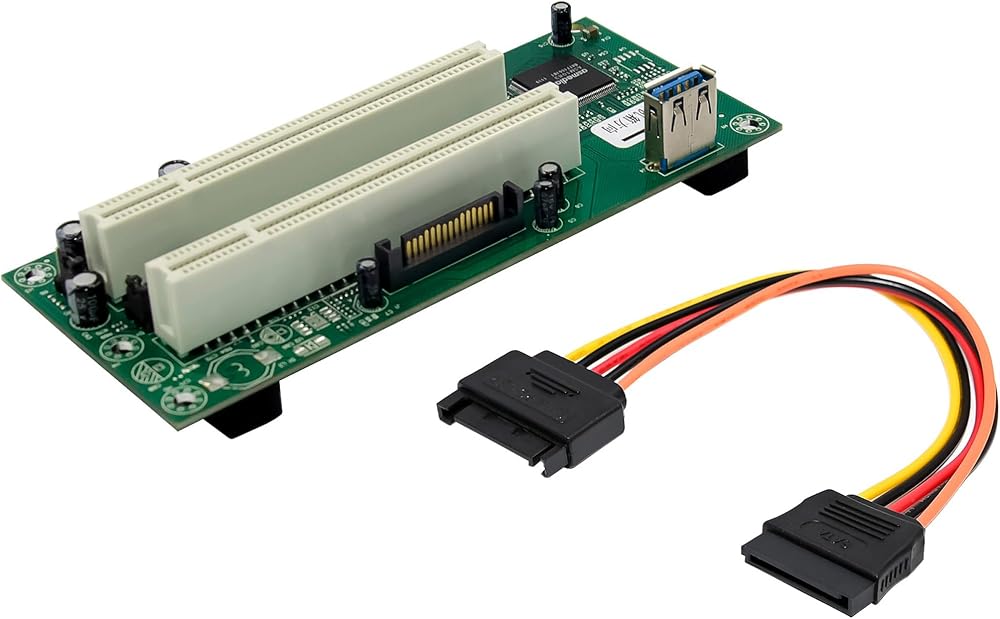

1 x additional card with 2 x PCI slots.
1 x 60 cm connection cable between main card and additional card.
1 x SATA 15-pin power cable (approx. 5 cm)
1 x user manual in German/English.
