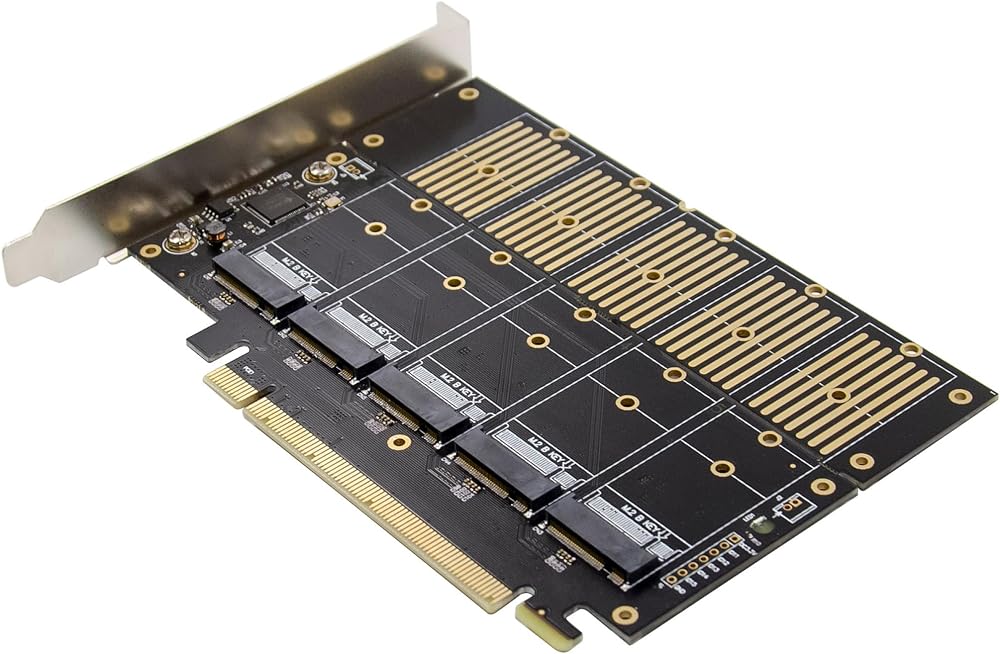

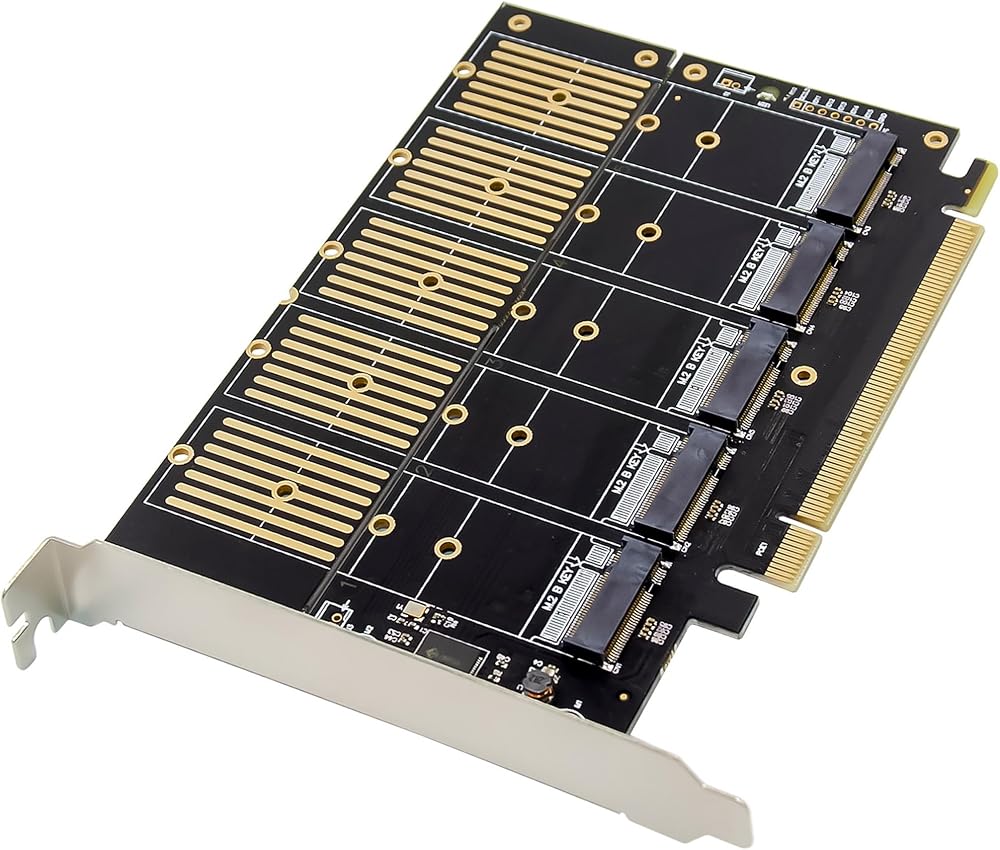

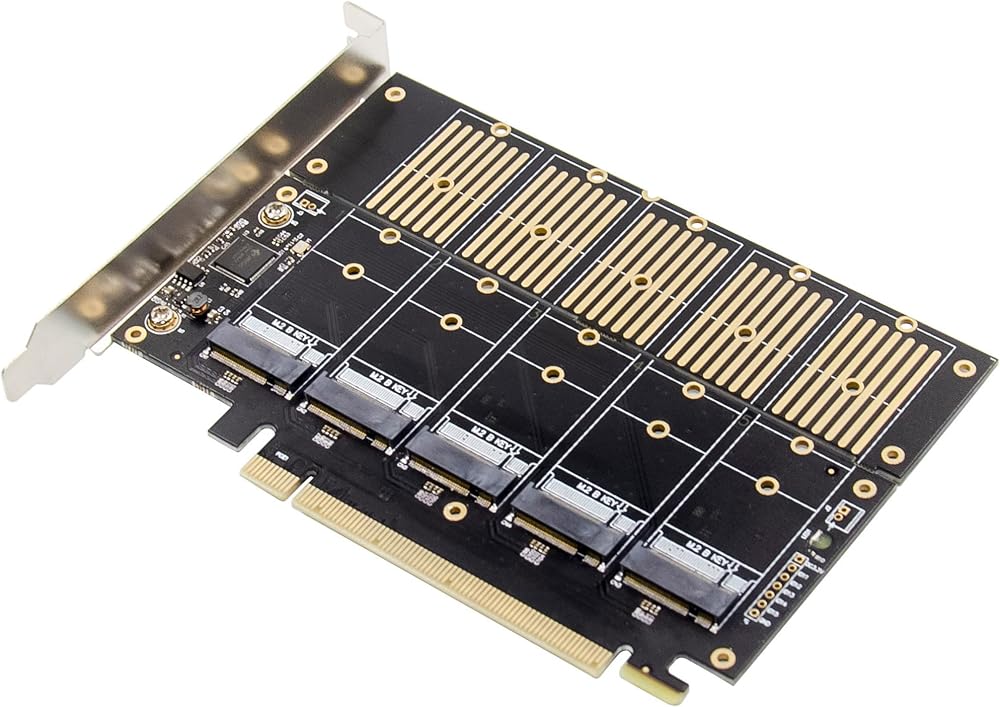

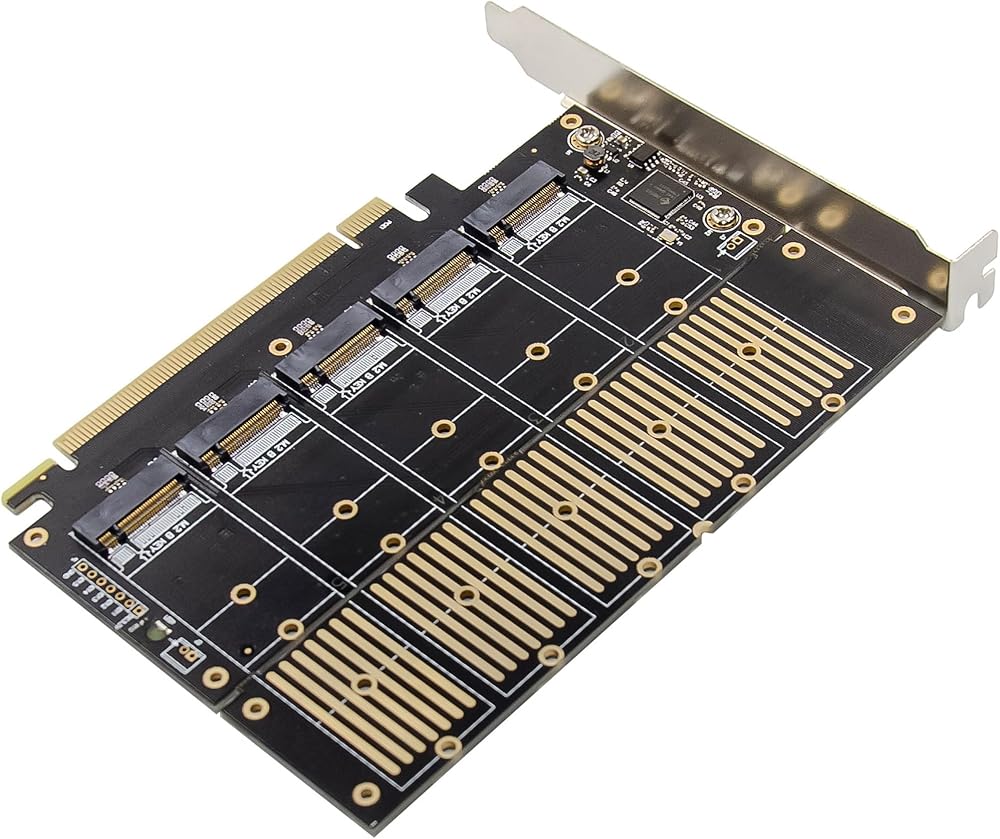

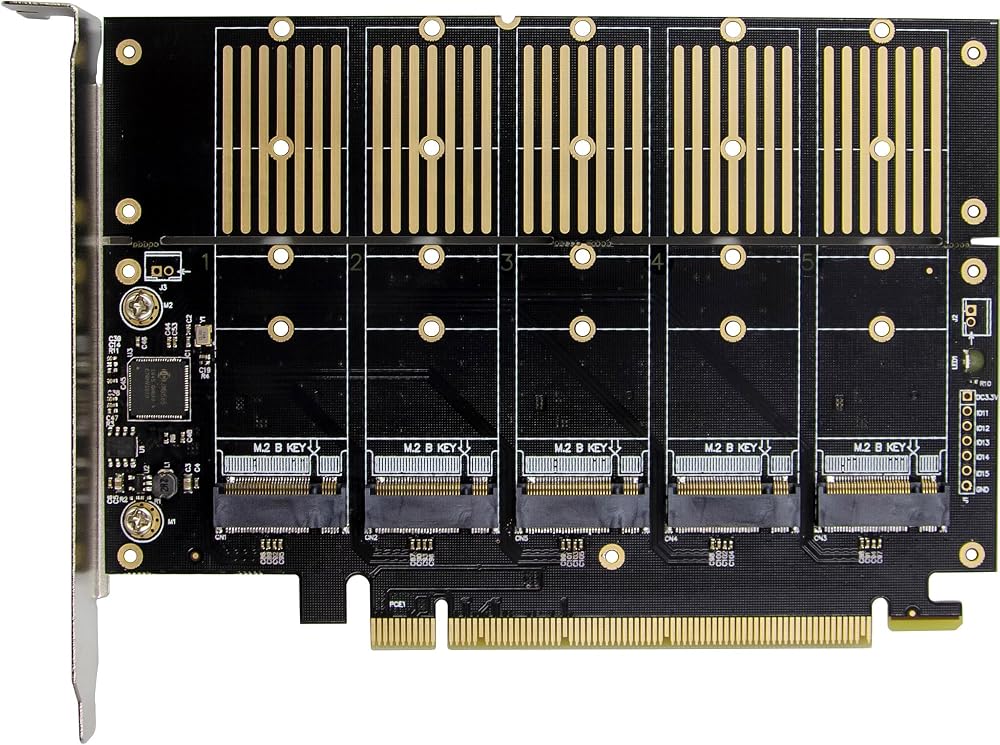

The InLine PCIe interface card with JMB585 controller is the ideal solution for expanding your system with up to five additional SATA ports. The card uses a PCIe x16 interface, with two PCIe lanes available according to standard 3.1a for maximum bandwidth. With the included adapter cards, M.2 SATA SSDs with Key B or B+M can be safely and efficiently integrated into existing storage systems.

It supports all popular form factors such as 2230, 2242, 2260 and 2280 – perfect for compact and high-performance storage solutions. Each of the five interfaces delivers up to 6 Gb/s to SATA 3.2. In addition, important functions such as AHCI, Native Command Queue (NCQ), port multiplication and power saving modes (Slumber/Partial) are supported.

The card is ideal for servers, workstations or high-performance desktop systems that require additional storage or special RAID setups. With staggered boot up and supported command structure, the system remains stable even on multiple drives. Installation is done by simply plugging in the PCIe card and connecting the adapters to M.2 SSDs. The package includes all necessary cables, heat sinks, a low-profile sheet and a screwdriver - for immediate and flexible use.

Additional Technical Specifications:

PCIe standard: PCIe v3.1a, up to 2 PCIe lanes usable
Interface: PCIe x16-Lane
SATA Standard: SATA 6Gb/s, SATA Revision 3.2
Connections: 5x M.2 key B ports (via expansion cards).
Compatible SSD types: M.2 B key and B+M key (2230 / 2242 / 2260 / 2280)
Transfer rate: up to 6 Gb/s per port.
Chipset: JMB585.
Port Multiplication: Supported (Command and FIS based)
AHCI Mode: Support (standard protocol for SATA SSDs/HDDs)
Native Command Queue (NCQ): Supported
SATA power saving functions: Support (Partial / Slumber)
Staggered boot up: Support
Operating temperature: 0°C to 55°C.
Storage temperature: -40°C to 70°C.
Maximum humidity: 90%, non-condensing
Supported Operating Systems:
Windows 7 / 8 / 8.1 / 10 / 11.
Linux

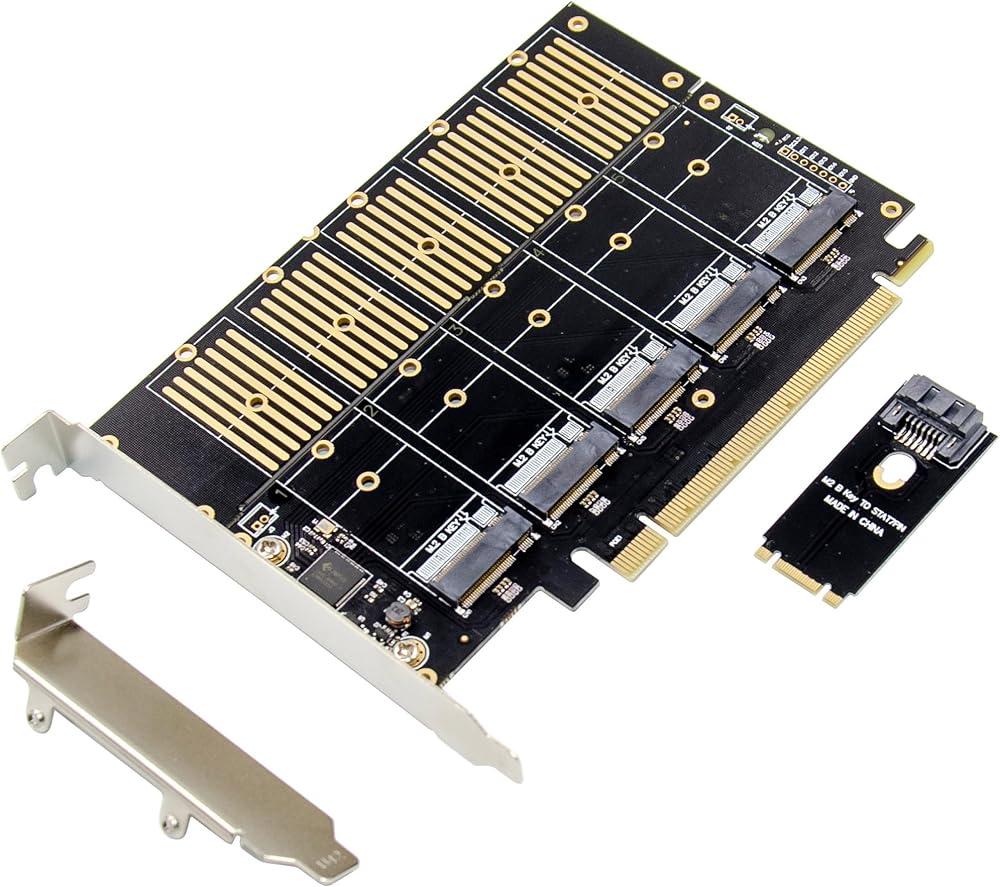

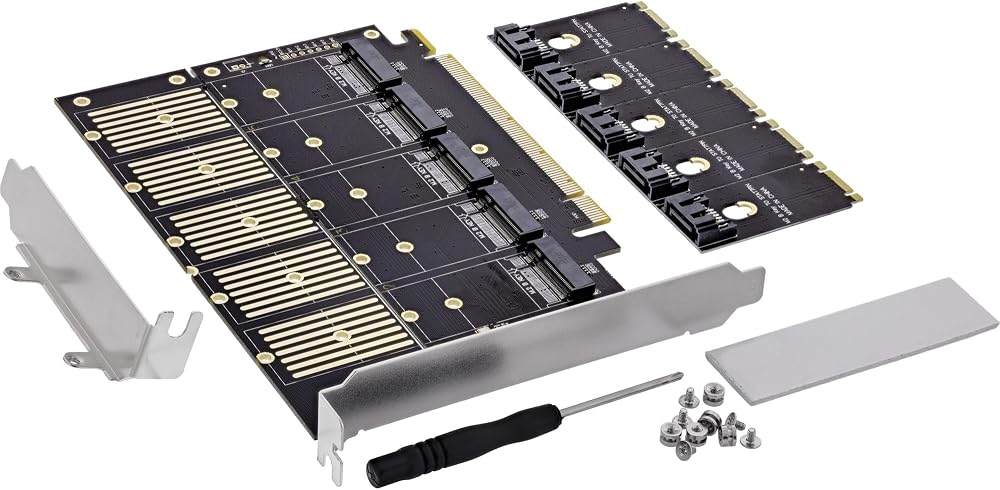

Package includes:
1 x InLine PCIe x16 interface card.
5 x M.2 key B SATA.
1 x low-profile slot bracket.
5 x M.2 key B to SATA expansion card.
5 x SATA cable.
5 x heat sinks.
5 x screws.
1 x screwdriver.
1 x user manual in German/English.
