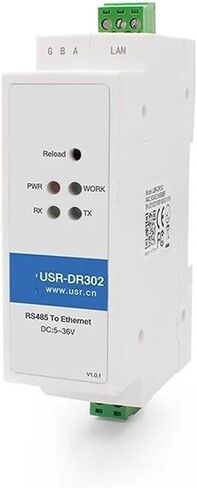

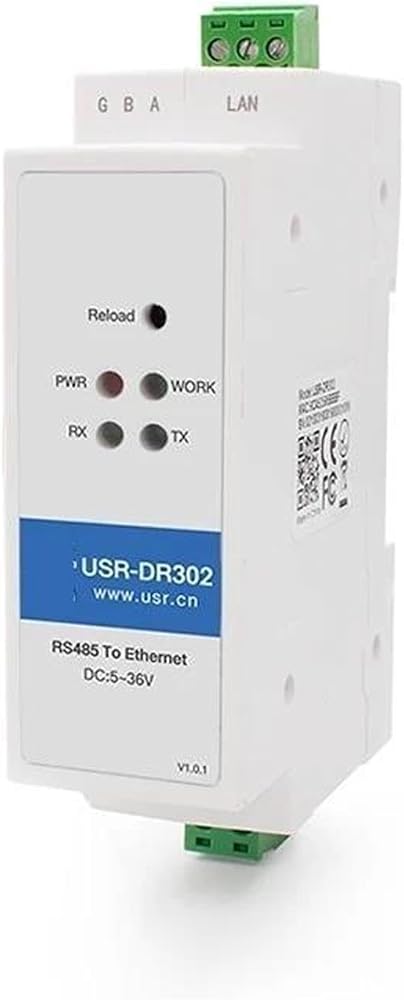

USR-DR302 Modbus RS485 to Ethernet converter can realize bidirectional transparent transmission between RS485 and Ethernet. Via web-page or software, rs485 to Ethernet Converter can realize serial data and TCP/IP data package transparent transmission.
RS485 Port, Industrial Grade
Standard DIN-rail mounting
Modbus RTU to Modbus
Description
Parameter
Value
Hardware
Work Voltage
DC 5.0-36.0 V
Work Current
130mA@5V
Ethernet Port
RJ45,10/100Mbps
Serial Port Baud rate
600-460.8K(bps)
Serial Port
RS485*1
Software
Network Protocol
TCP/IP, UDP, ARP,ICMP,IPV4
IP Type
Static IP,DHCP
DNS
Support
Configuration
Software, Web-page, AT command
Work Mode
Server/TCP Client/
UDP Server/UDP Client
Modbus RTU to
Similar RFC2217
Support
Httpd Client
Support
Server Connection
Support to connect max 8 client
Network Caching
Send: 6Kbyte, Receive:4Kbyte
Serial Port Caching
Receive:1Kbyte
Average Transmission Delay
Software
VCOM, USRIOT_Cloud, Setup software, test proforma
Packaging Mechanism
4 bytes package time
1024 bytes package length
Others
Certificate
, ,FCC
Grade
IP30, 1.5KV
Size
71.0x60.0x25.0mm
Work Temp
-40-85c
Storage Temp
-40-105c
Work Humidity
5%-95% RH
Storage Temp
5%-95% RH
==========
High-concerned chemical : None
Type : US,EU,UK,AU,None
Size : #
Model Number : USR-DR302
Certification : ,FCC,
Item Type : Communication Converter
