12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories in Saudi Arabia 12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories in Saudi Arabia 12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories in Saudi Arabia 12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories in Saudi Arabia 12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories in Saudi Arabia 12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories in Saudi Arabia 12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories in Saudi Arabia 12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories in Saudi Arabia 12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories in Saudi Arabia

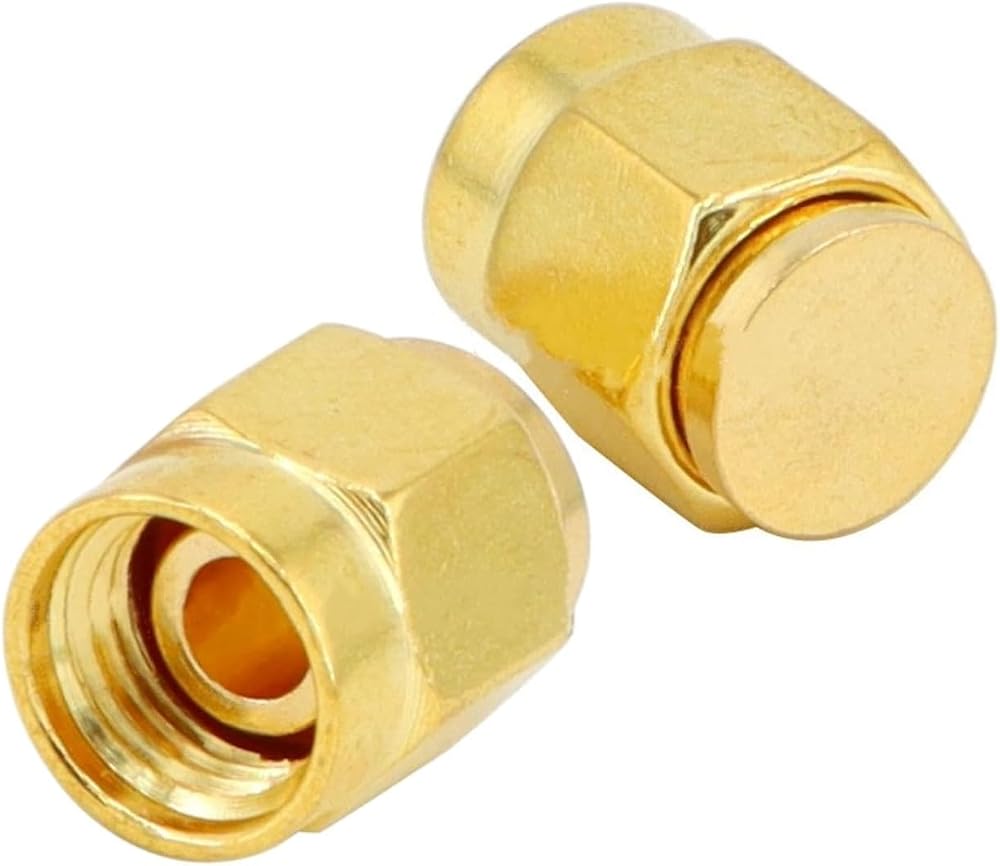

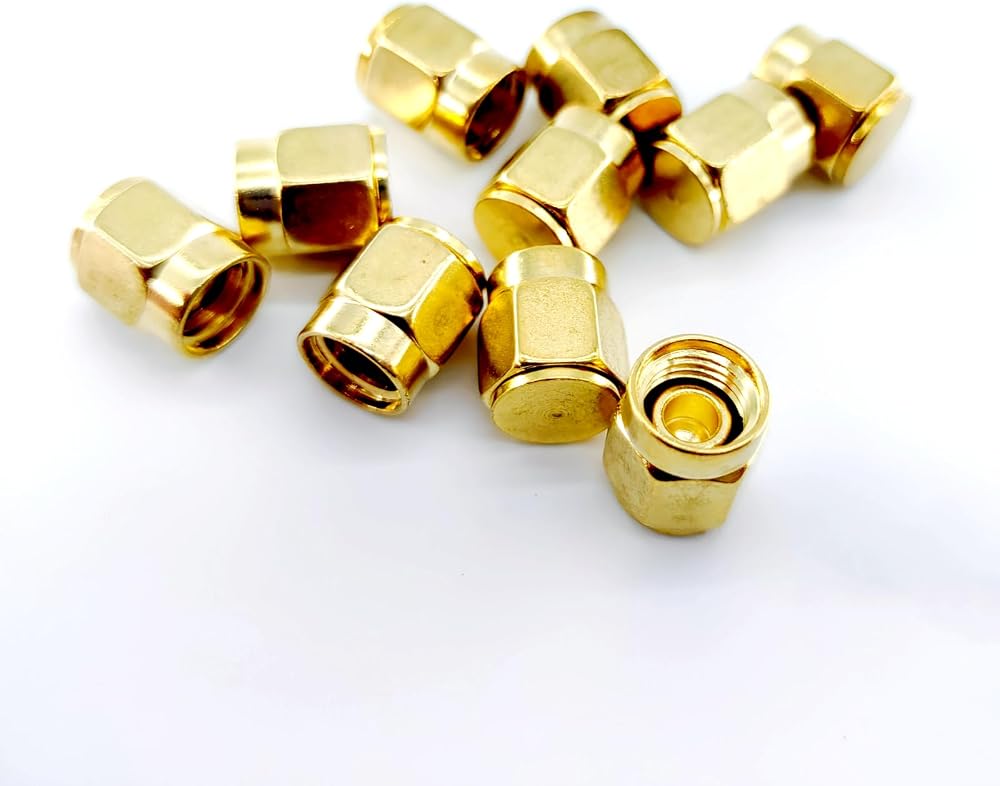

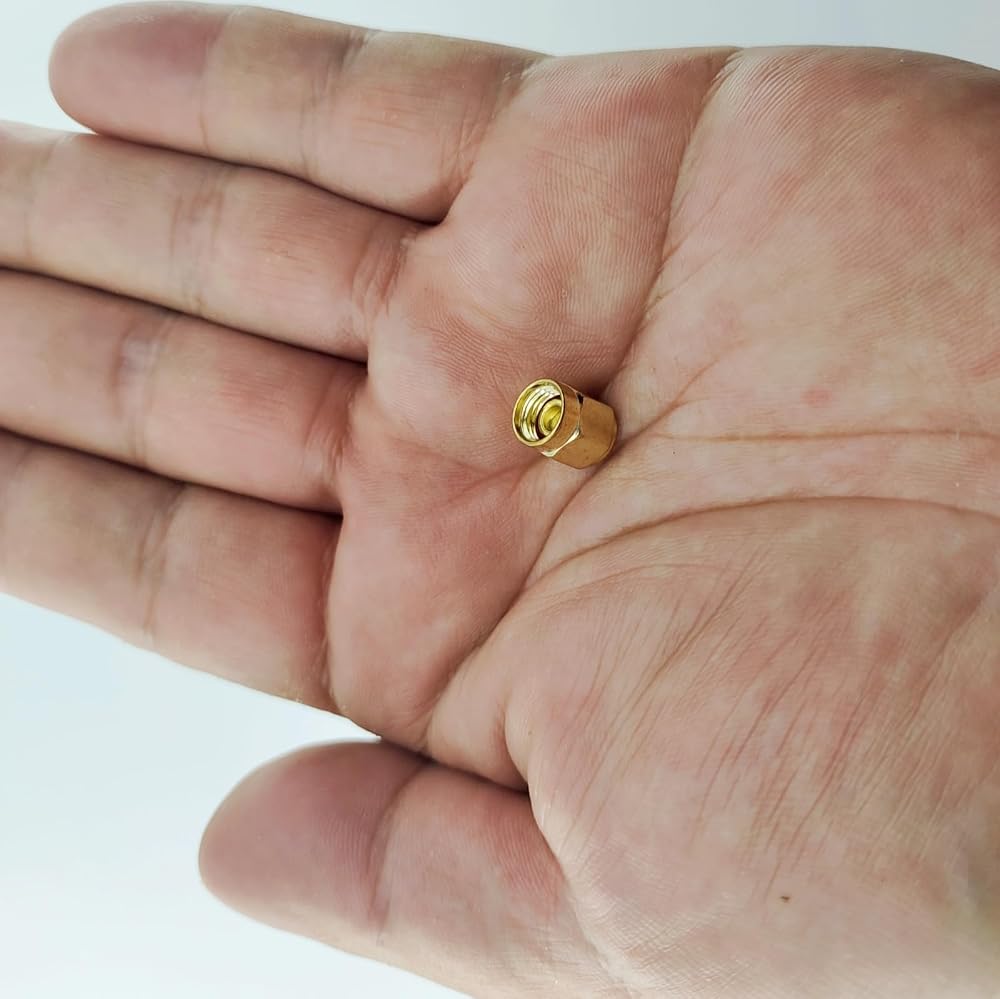

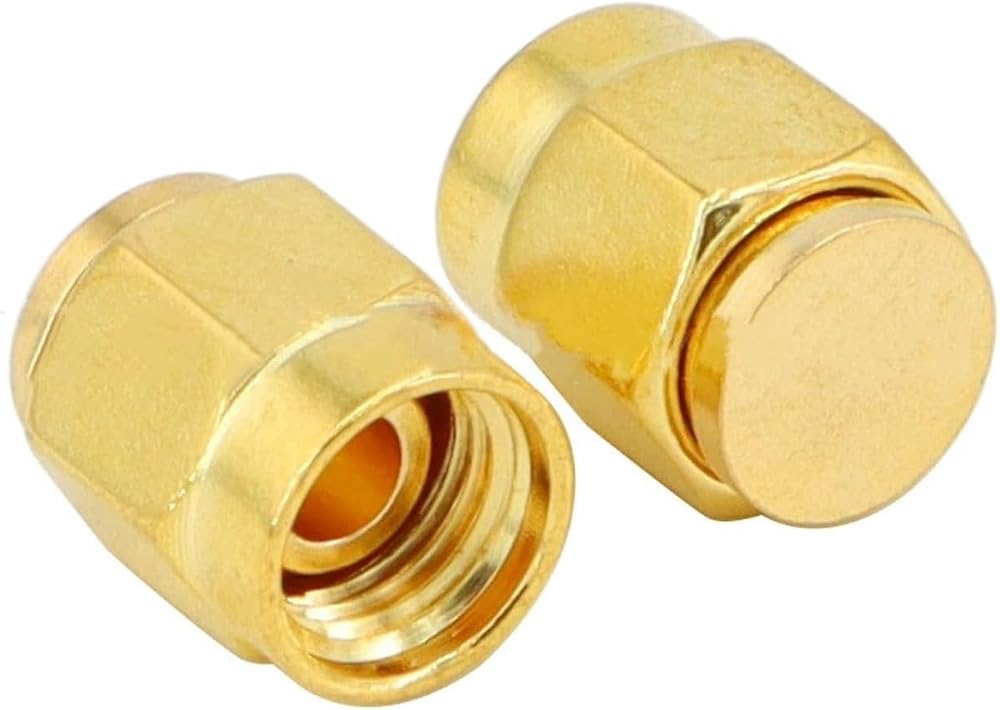

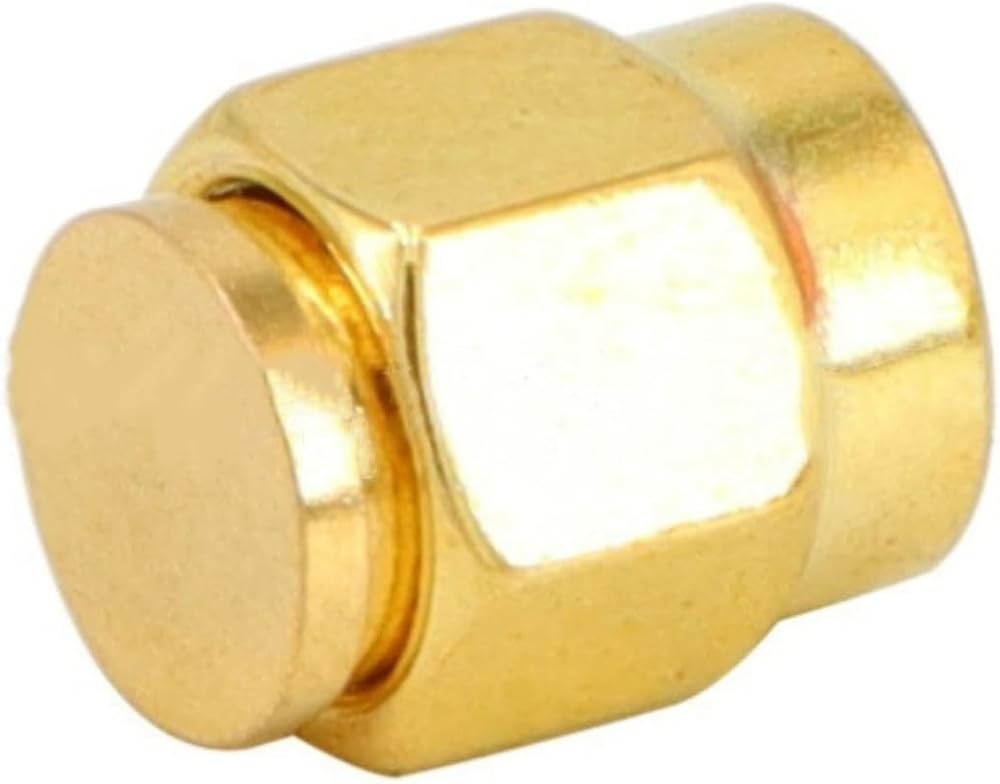

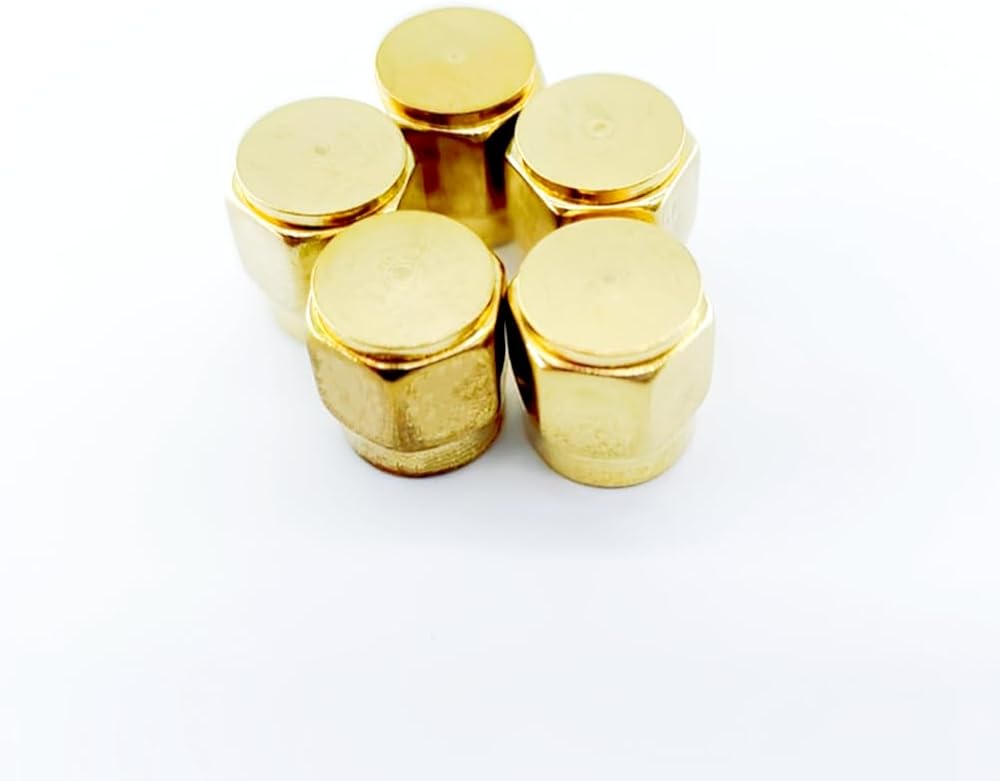

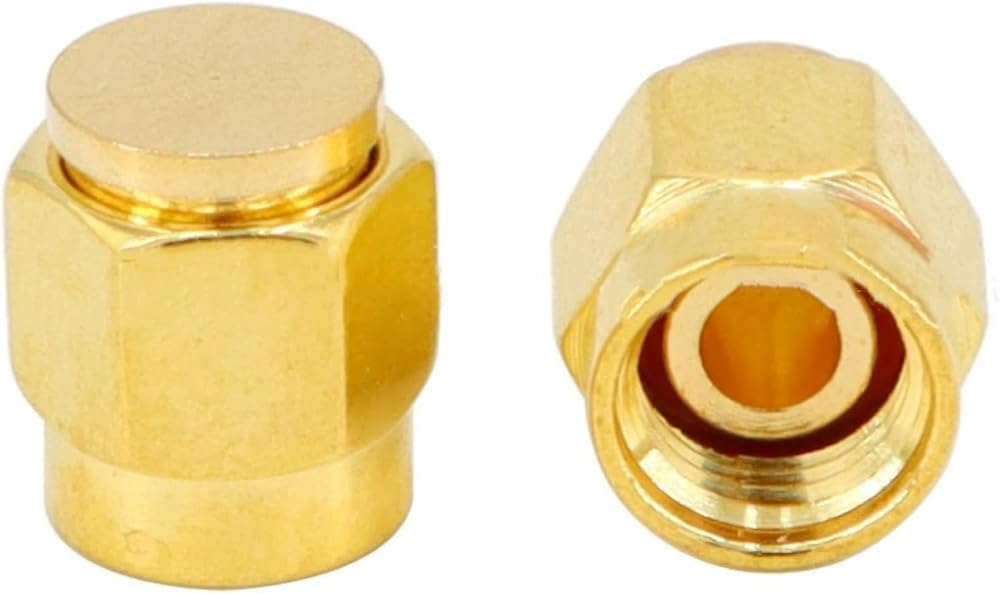

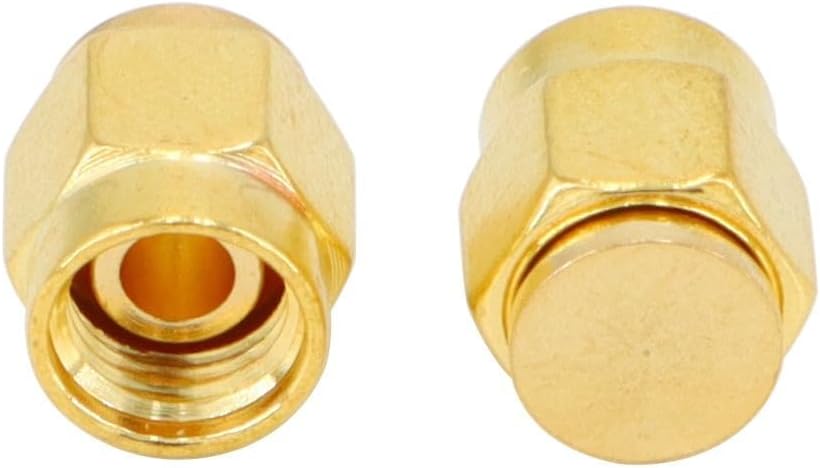

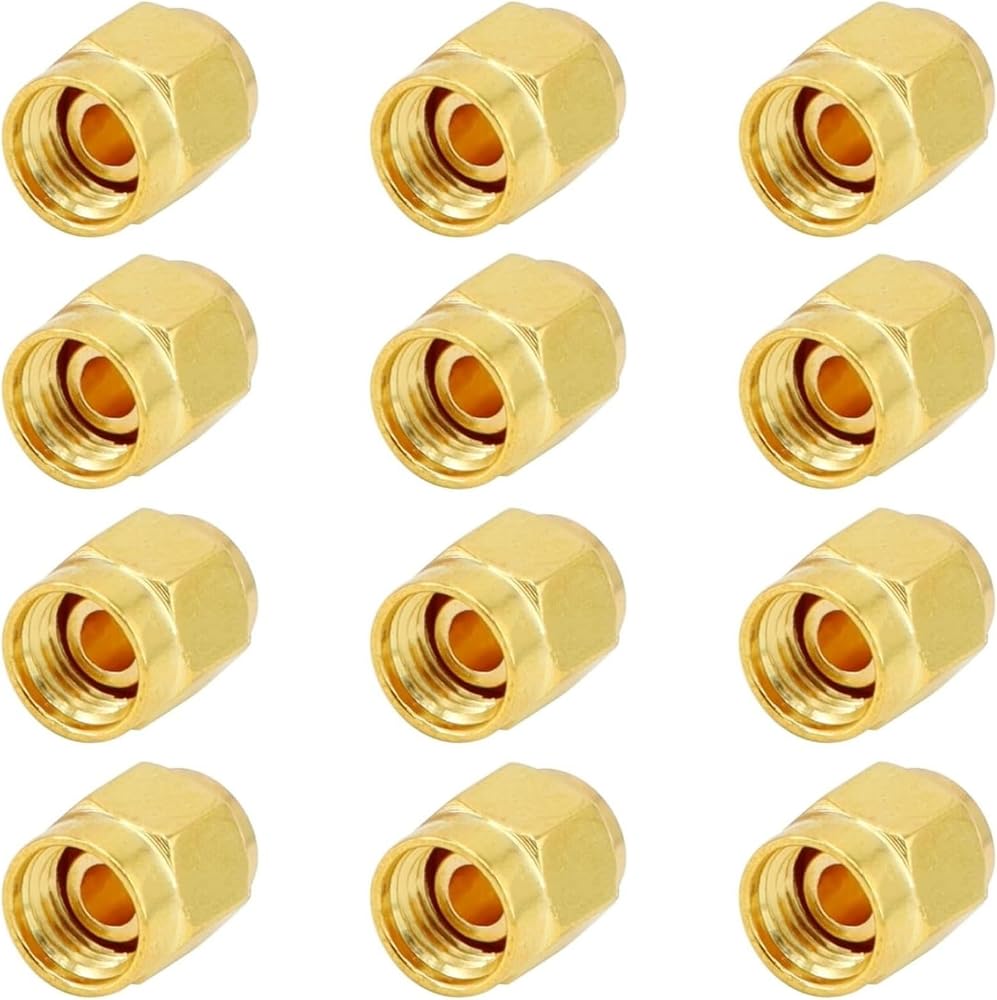

12PCS SMA Plug Dust Cap, SMA Female Jack Dust Cap Gold-Plated RF Coaxial Connector Protective Cap SMA Adapter Connector Accessories 6

SAR 94
Brand
MeitrciL
Weight
46 g
Number of Items6
– 1 +

Special Features

  • SMA Plug Dust Cap: Excellent electrical performance, up to 18GHz, low reflection, high safety, effectively protects and maintains RF coaxial connectors in network communication systems
  • Metal Material: SMA connector accessories are made of copper material, with gold plating on the surface, rust and corrosion resistance, and can be used for a long time
  • SMA Coax Protective Cover: a threaded coupling mechanism with a compact design, low loss, and easy to use, used for SMA female connector adapters
  • Widely Used: SMA female jack dust cap is a threaded connection, widely used in modems, network switches, routers, satellite antennas, servers, wireless access points
  • Package Includes: Each package includes 12 SMA female RF coaxial connector protective caps, sufficient for daily use

Description

Electrical Characteristics:
Impedance：50 ohm
Frequency Range: 0~12.4 GHz
VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
750 V rms min. for RG316, RG402
500v rms min. for RG178
Working Voltage: 500 V rms max. for RG142, RG405
375 V rms max. for RG316, RG402
170 V rms max. for RG178
Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

Mechanical Characteristics:
Coupling: 1/4-36 thread
Contact Retention: 15 in-lbs min.
Coupling nut torque: 30 in-lbs. min.
Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics:
Environmental Characteristics: -40°C ~ +165°C
Vibration: MIL-STD-202 Method204
Corrosion resistance: MIL-STD-202 Method 101

Specifications:
Product Name: SMA female jack dust cap
Material: Brass+Gold Plated
Type: RF coaxial connector accessories
Application field: Network communication
Product series: SMA series

The packaging includes:
6/12 Pcs SMA Female Jack Dust Cap
