Sundown Audio SA-10 V.2 D2 10" 1250-Watt RMS / 2500-Watt Peak Car Subwoofers 2-Ohm DVC Subs SW-SAV210D2, 2.75" Voice Coil, 19mm Xmax, Cast Aluminum Frame, Car Audio, 2-Piece

SAR 3,024
Brand
Audiosavings
Category
Car Electronics
Weight
32.8 kg
– 1 +

Special Features

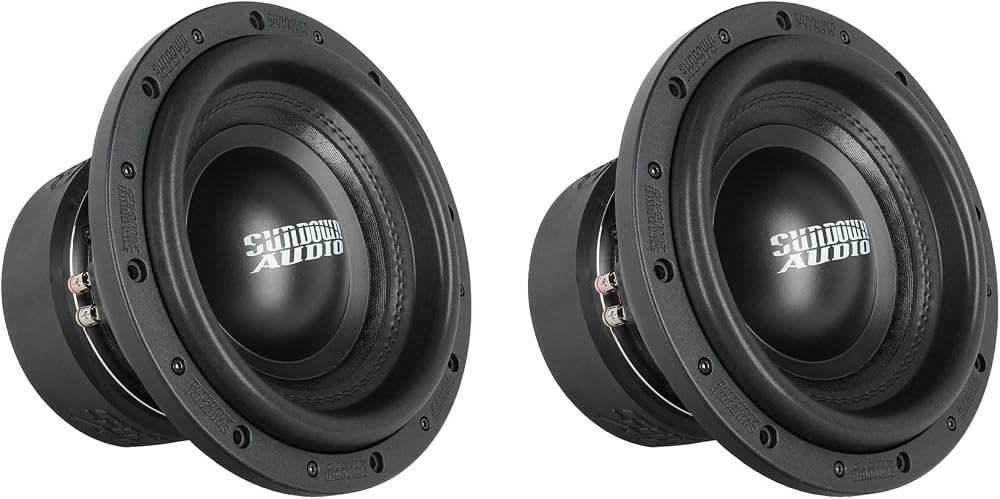

  • Package Includes: 2 Sundown Audio SA-10 V.2 D2 10 in car subwoofers model SW-SAV210D2. Each subwoofer features a dual 2-Ohm DVC configuration rated at 1250-Watt RMS and 2500-Watt Peak power handling. Designed for flexible series or parallel wiring in mono amplifier systems requiring stable impedance loads and consistent low-frequency output.
  • Motor & Coil Design: Built with a 2.75 in aluminum voice coil former and high-temperature copper windings for thermal stability at rated power. The motor incorporates a magnet ID Faraday ring, vented magnetic gap, and vented pole piece to assist with heat dissipation and reduced inductance variation during operation at high excursion levels.
  • Performance Parameters: Electro-mechanical specifications include RE 3.90 Ohms, FS 37.08 Hz, VAS 10.37 L, Qes 0.3598, Qms 3.7041, Qts 0.328, BL 31.527 NA, Mms 318.82 g, Le 3.5178 mH, and sensitivity 83.42 dB at 1w/1m. Linear excursion is rated at 19mm Xmax with a 37mm one-way mechanical limit before coil bottom.
  • Build & Dimensions: Construction includes a cast aluminum frame, paper cone, foam surround, and multi-layer spider assembly with stitched double XL tinsel leads. Subwoofer mounting depth measures 7.00 in with a 9.25 in cutout requirement and 9.37 in motor diameter. Displacement is rated at 0.08 cubic ft per subwoofer.
  • Enclosure Specifications: Recommended sealed enclosure size is 0.5 cubic ft per subwoofer. Ported enclosure specification is 1.0 cubic ft tuned to 35Hz using 15 sq in port area. For 4th order applications, sealed side 0.4 cubic ft and ported side 1.2 cubic ft with 24 sq in port area and 6 in port length.

Description

The Sundown Audio SA-10 V.2 D2 SW-SAV210D2 is a 10 in dual 2-Ohm DVC car subwoofer rated at 1250-Watt RMS and 2500-Watt Peak power handling per unit. This 2-piece configuration supports flexible wiring options for mono amplifier setups.

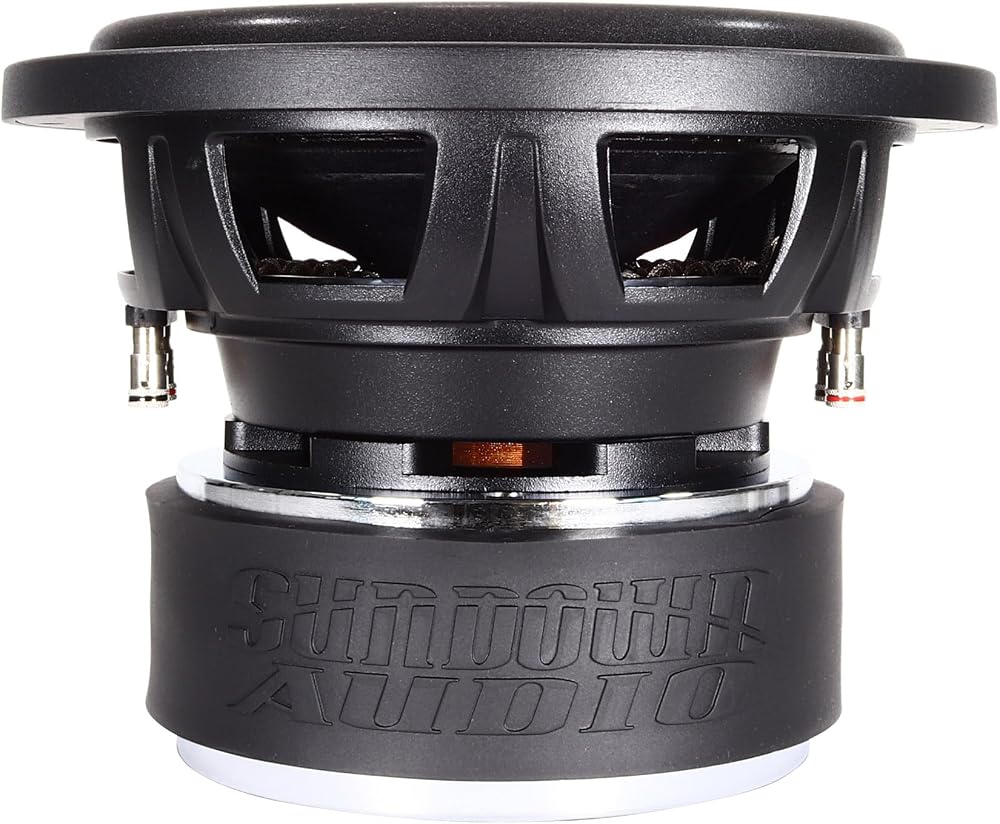

The motor structure incorporates a magnet ID Faraday ring, vented magnetic gap, and vented pole piece to support thermal management and reduced distortion. A 2.75 in aluminum voice coil former with high-temperature copper windings is used for consistent output under rated power.

Key electro-mechanical parameters include RE 3.90 Ohms, FS 37.08 Hz, VAS 10.37 L, Qts 0.328, BL 31.527 NA, Mms 318.82 g, Le 3.5178 mH, and Sensitivity 83.42 dB @ 1w/1m. Linear excursion is rated at 19mm Xmax with a 37mm one-way mechanical limit.

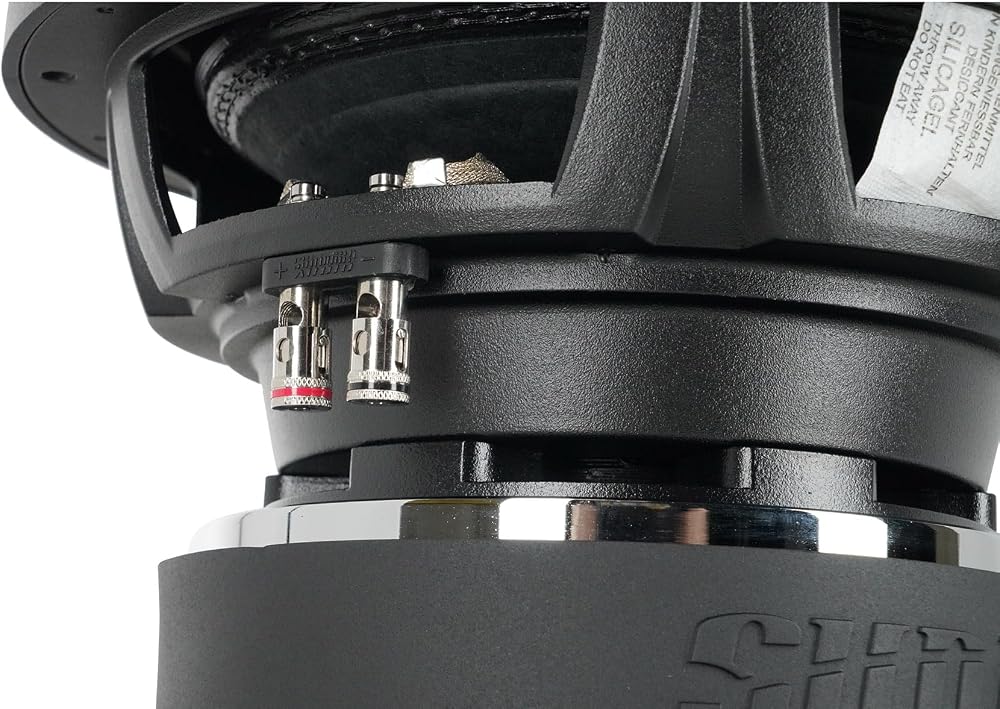

The subwoofer features a cast aluminum frame, paper cone, foam surround, multi-layer spider, and stitched double XL tinsel leads. Mounting depth is 7.00 in with a 9.25 in cutout diameter and 9.37 in motor diameter. Displacement is 0.08 cu ft.

Recommended enclosures include 0.5 cu ft sealed or 1.0 cu ft ported tuned to 35Hz with 15 sq in port area. For 4th order designs: 0.4 cu ft sealed side, 1.2 cu ft ported side, 24 sq in port area, and 6 in port length.
