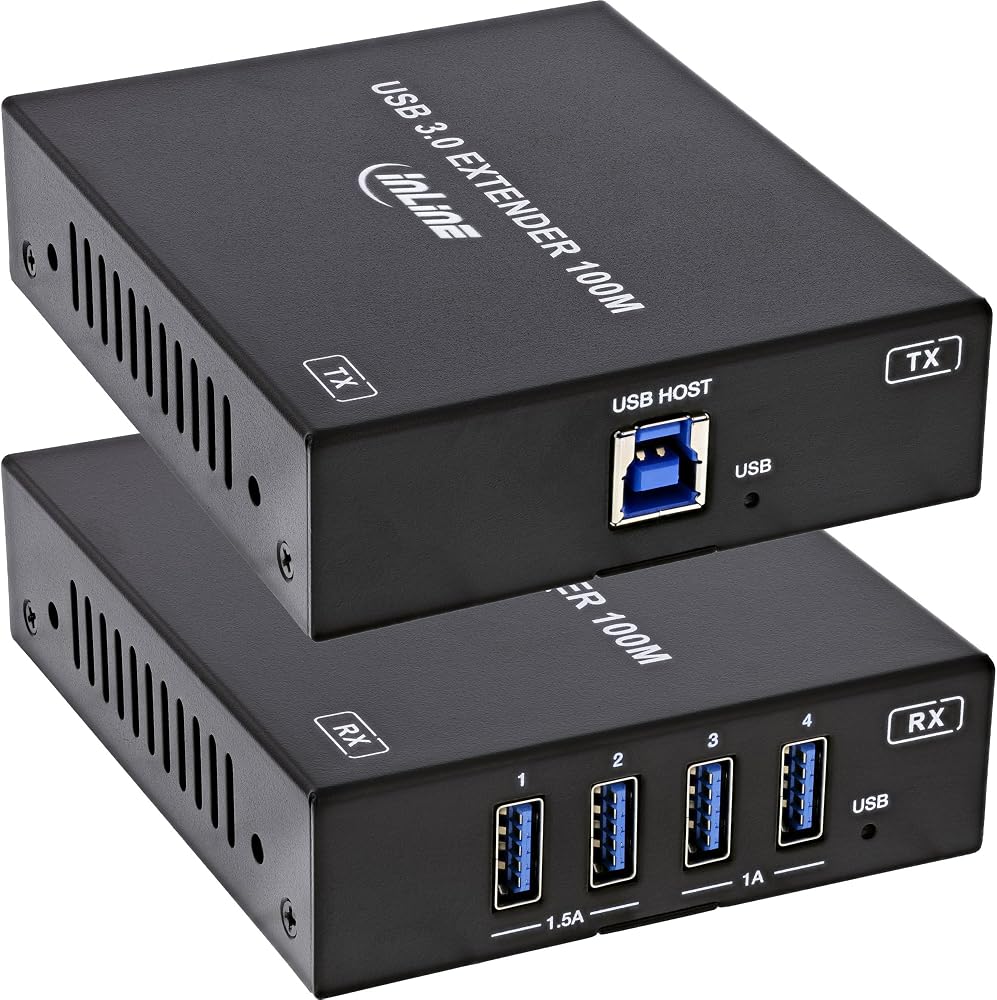

The InLine USB 3.2 Gen.1 extender allows you to extend USB signals via a single RJ45 copper cable with a range of up to 100 m. The system consists of a main unit as a transmitter and a receiver and operates as a fixed point-to-point connection without integration into active network components. With a maximum data rate of up to 5 Gb/s, the extender supports Isochronous, Bulk and Interrupt USB transfer modes and is suitable for high-performance applications. In addition, RS-232 control signals and FSYNC signals with 5 V are transmitted transparently. The signals are not evaluated or influenced.

The power supply can be either via the supplied external power supply or via Power over Cable. The PoC function works bi-directional with 24 V and a maximum power of 40 W. This means that the supply of one device unit is sufficient. Four USB ports are available on the receiver. USB port 1 and 2 deliver up to 5V / 1.5A. USB port 3 and 4 deliver up to 5V / 1.0A.

Technical features:
USB Standard: USB 3.2 Gen.1
Maximum data rate: up to 5 Gb/s
USB transfer types supported: Isochronous,Bulk,Interrupt
Transmission medium: RJ45 copper cable
Recommended cable type: CAT6a
Maximum transmission distance: up to 100 m.
Case material: metal.
Operating temperature: 0°C to +40°C.
Storage temperature: -20°C to +60°C.
Operating Humidity: 20-80% Non-condensing
Permissible humidity (storage): 10-90%, non-condensing

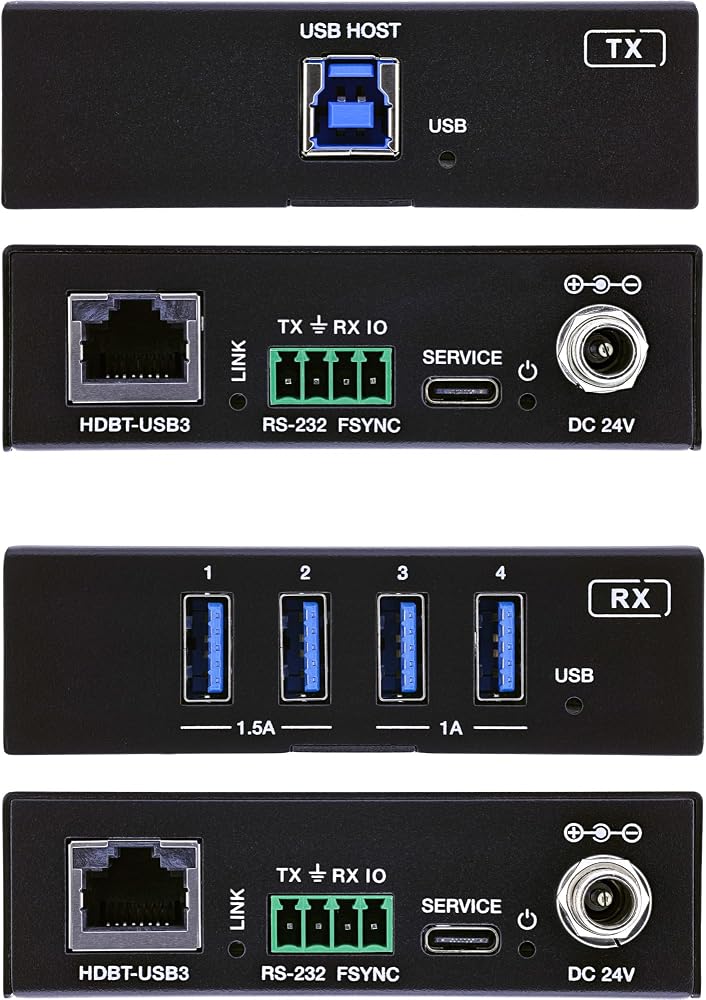

USB power supply on receiver
USB port 1 and 2: up to 5 V / 1.5 A.
USB port 3 and 4: up to 5 V / 1.0 A.

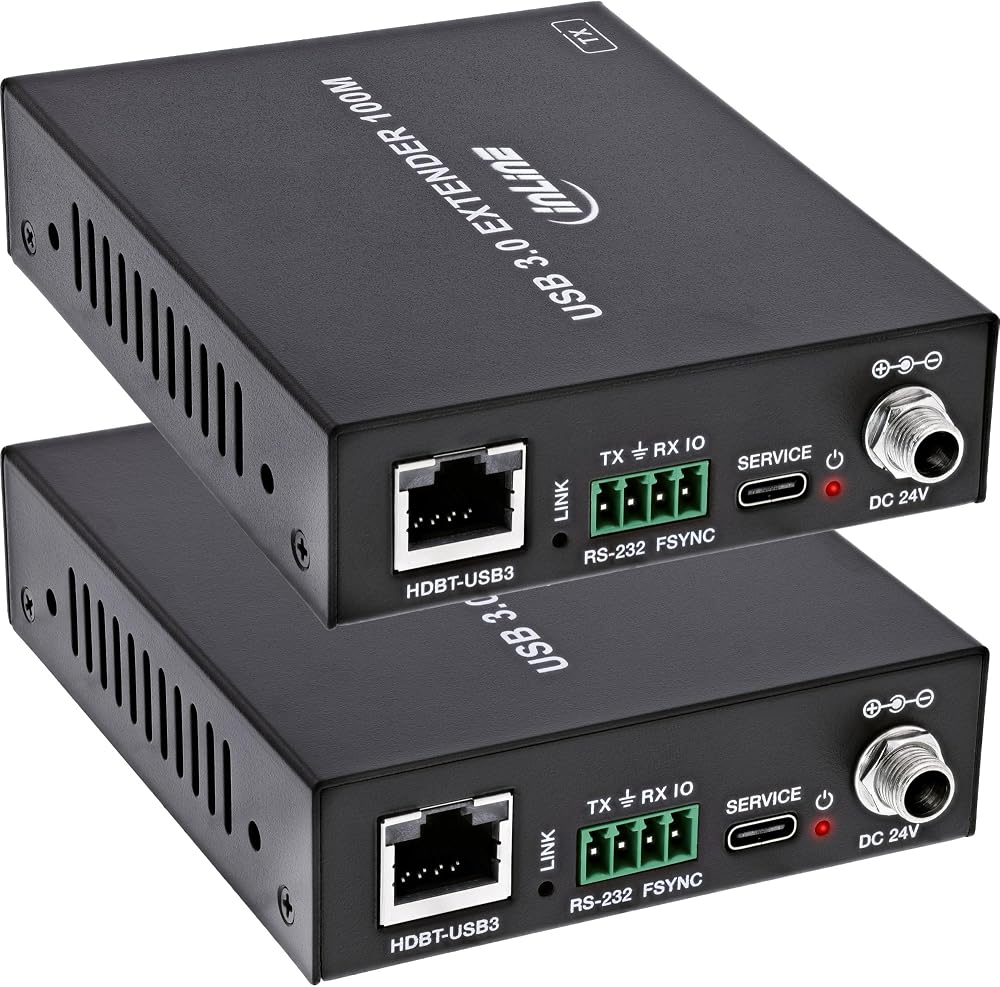

RS-232 Pass-through
Serial control signals are transmitted transparently between transmitter and receiver.
FSYNC Pass-through
Transmission of synchronization signals; signal level 5V
Power over Cable (PoC)
Bi-directional power supply possible via the connection cable.
PoC Voltage: 24V
Maximum PoC Power: 40W
Low-power mode.
Automatically reduces energy consumption when connected inactive.
Power supply.
Input: AC 100-240V / 50-60Hz
Output: DC 24.0 V / 2.0 A.
Output power: max. 48.0 W.
Average operating efficiency (230 V / 50 Hz): 88.72%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Low load efficiency (10%) (230V / 50Hz): 83.19%

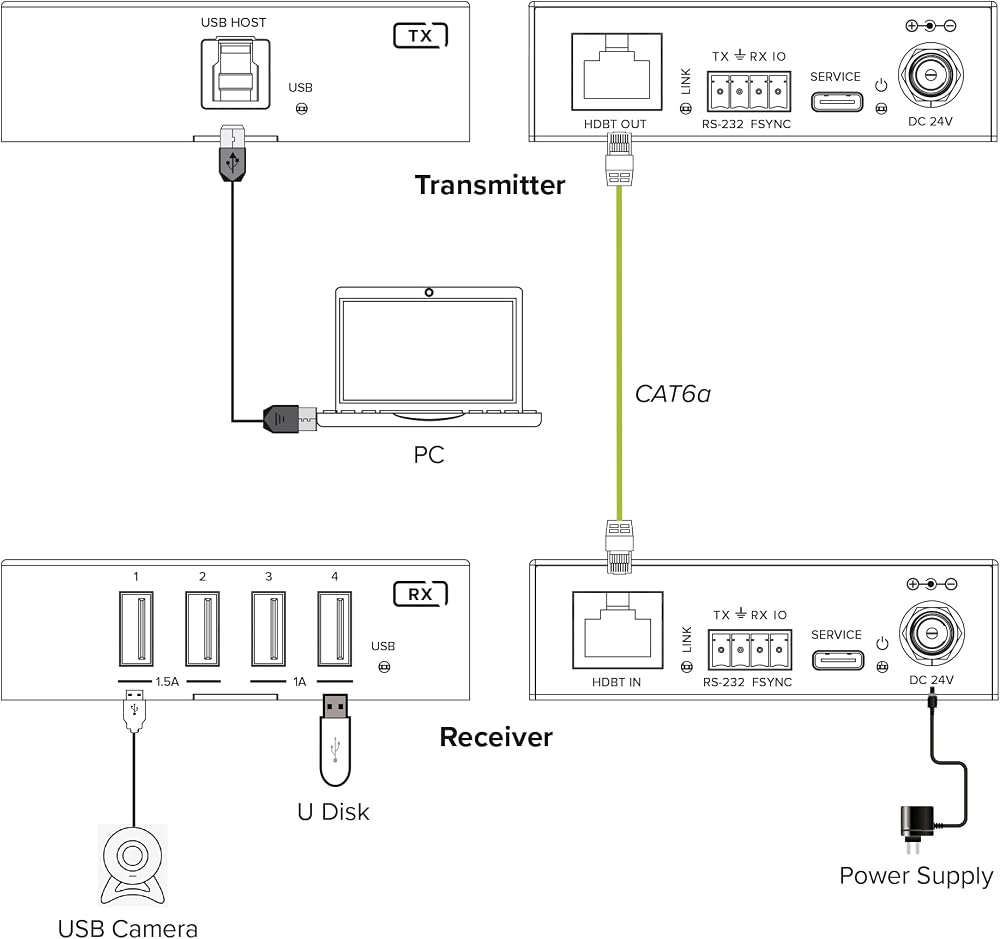

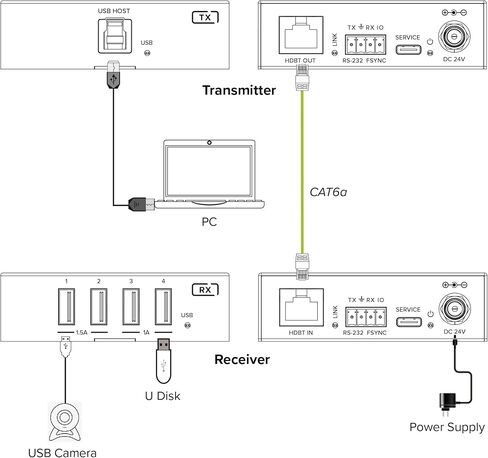

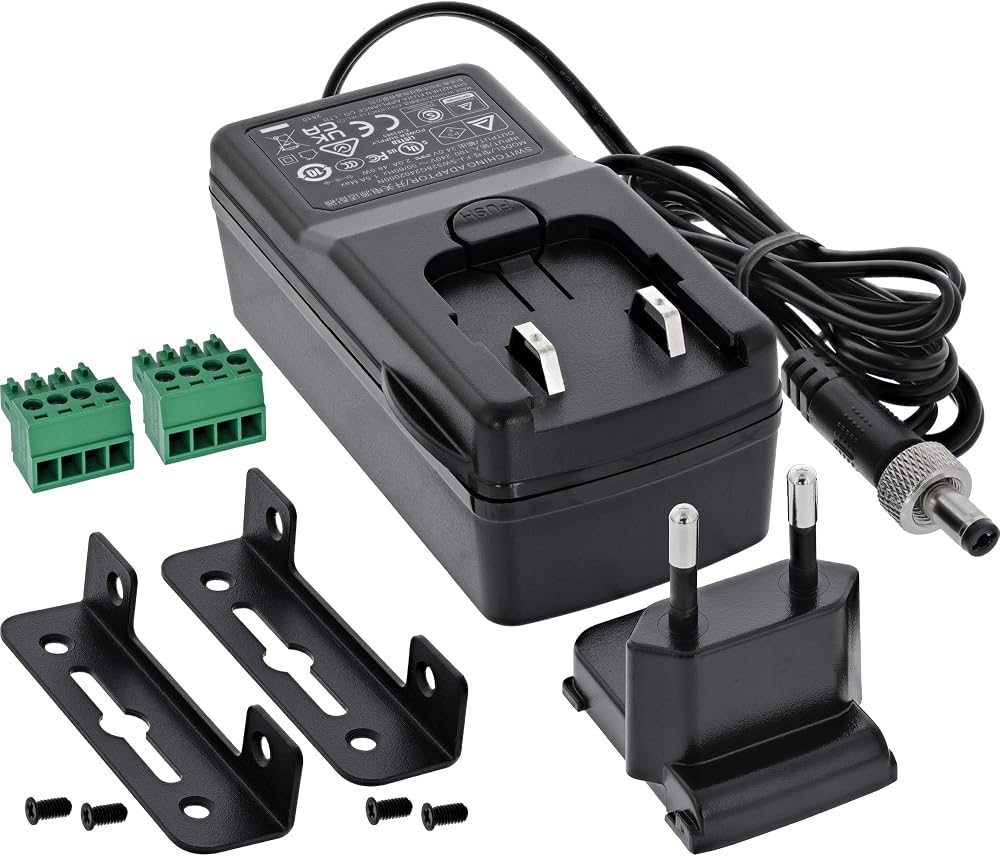

Box contents:
1 x USB Extender - Main Unit (Transmitter)
1 x USB Extender – Receiver
1 x power supply (DC 24 V/2 A, lockable).
2 x 4 pin screw terminal connectors.
4 x mounting brackets.
8 x machine screws (M3 x 4).
1 x user manual (German/English).
