Special Features

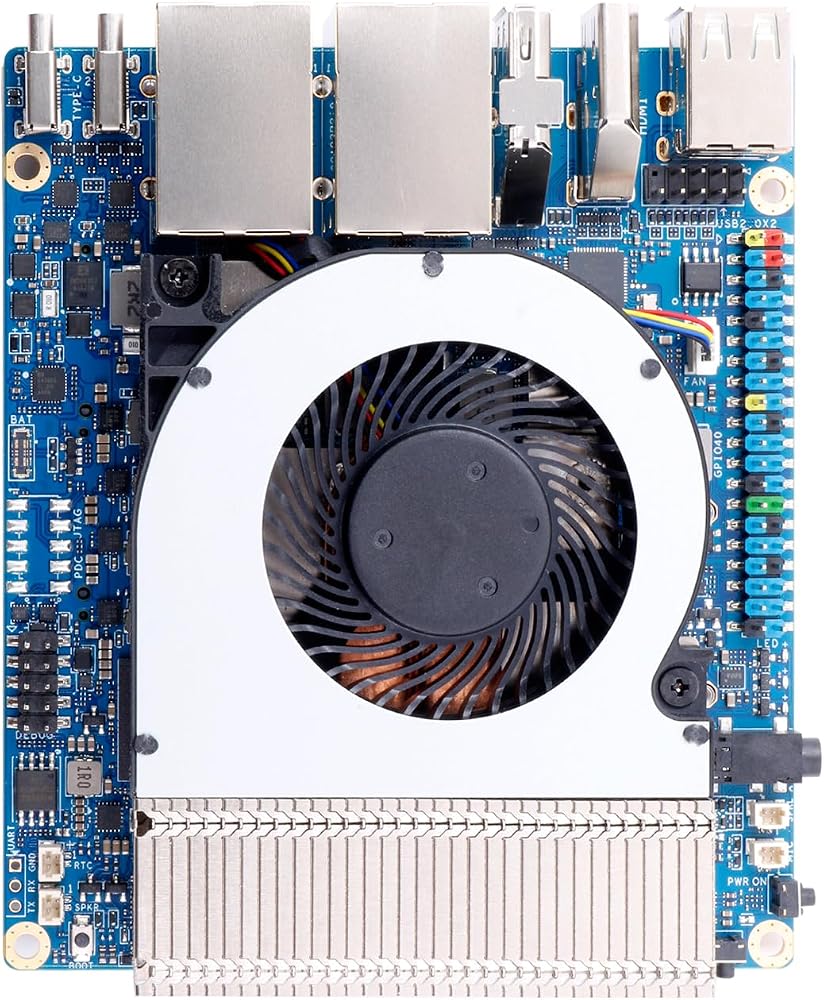

High Performance CIX SoC - OrangePi 6 Plus 32G adopts CIX CD8180/CD8160 SoC, built-in 12-core 64-bit processor + NPU processor, integrated graphics processor, equipped with 16GB/32GB /64GB LPDDR5, and provides two M.2 KEY-M interfaces 2280 for NVMe SSD,as well as SPI FLASH and TF slots to meet the needs of fast read/write and high-capacity storage; It is equipped with 45 Tops computing power to support a variety of end-side large-model applications and a rich end-side AI scene.
45TOPS AI Computing Power - AI acceleration performance reaches 45TOPS, significantly enhancing AI development and deployment efficiency. It supports multiple mainstream AI models and meets the application needs of generative AI in diverse edge scenarios, such as chatbots and AI-assisted programming. At the same time, relying on its graphics acceleration algorithm and graphics engine, it can support desktop 3D graphics applications such as games and industrial design software.
Rich Ports - OrangePi 6 Plus 32GB has a rich set of interfaces, including USB3.0, USB2.0, HDMI, 5G Ethernet, MIPI camera interface, TF slot, Type-C port power supply, 40Pin expansion connector, and fan connector, etc., which greatly meets the user's needs for connecting to a variety of peripherals.
Wide Range of Application Scenarios - With powerful computing performance, Orange Pi 6 Plus 32gb can be widely used in smart office, edge computing scenarios, smart security, industrial automation control, smart retail, home servers, AI development workstations, high-performance personal computing and other
Excellent Software Compatibility - Supports multiple operating systems including Debian, Ubuntu, Android, Windows, ROS2, providing comprehensive technical documentation and resources to help developers get started and explore the system in depth. It meets the needs of different users and developers, expanding application scenarios.
Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.

Description

Hardware Parameters
CPU:
12-core 64-bit processor + NPU processor
45TOPS computing power

GPU: Integrated graphics processor
RAM: LPDDR5: 128-bit x 32;16GB/32GB /64GB

Storage Expansion:
SPI FLASH: 64Mbit
NVME SSD (PCIe 4 lane，M.2 KEY-M interface 2280) *2
TF slot

Wi-Fi Module:
M.2 KEY-E socket
PCIE Ethernet 5G Ethernet*2

USB:
USB 3.0 HOST *2
USB2.0*2
Reserved USB 2.0 9-pin socket
USB full-function Type-C 3.0 HOST*2

Camera Interface: 2*4-lane MIPI CSI camera interface

Display Interface:
1*DP1.4 4K@120HZ
2*TYPE-C DP
1*HDMI1.4 4K@60HZ
1*eDP 4K@60HZ
Audio: 3.5mm headphone jack audio input/output, speakers*2, analog MIC*1
TYPE-C Port Power Supply: Type-C PD 20V IN*2, standard 100W
Expansion Interface:40-pin function expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM
Indicator Light: Power-on indicator, system indicator, battery charging indicator
Button: 1* Power button, 1* BOOT button, 1* RESET button
Fan Interface: 1* Fan connector with PWM control
Reserved Interface: Board-to-board battery connector; 2-pin RTC connector
Power Adapter: Type-C PD 20V input, standard 100W
Operating System: Debian, Ubuntu, Android, Windows, ROS2
Appearance Dimensions: 115*100mm
Weight: 132g
