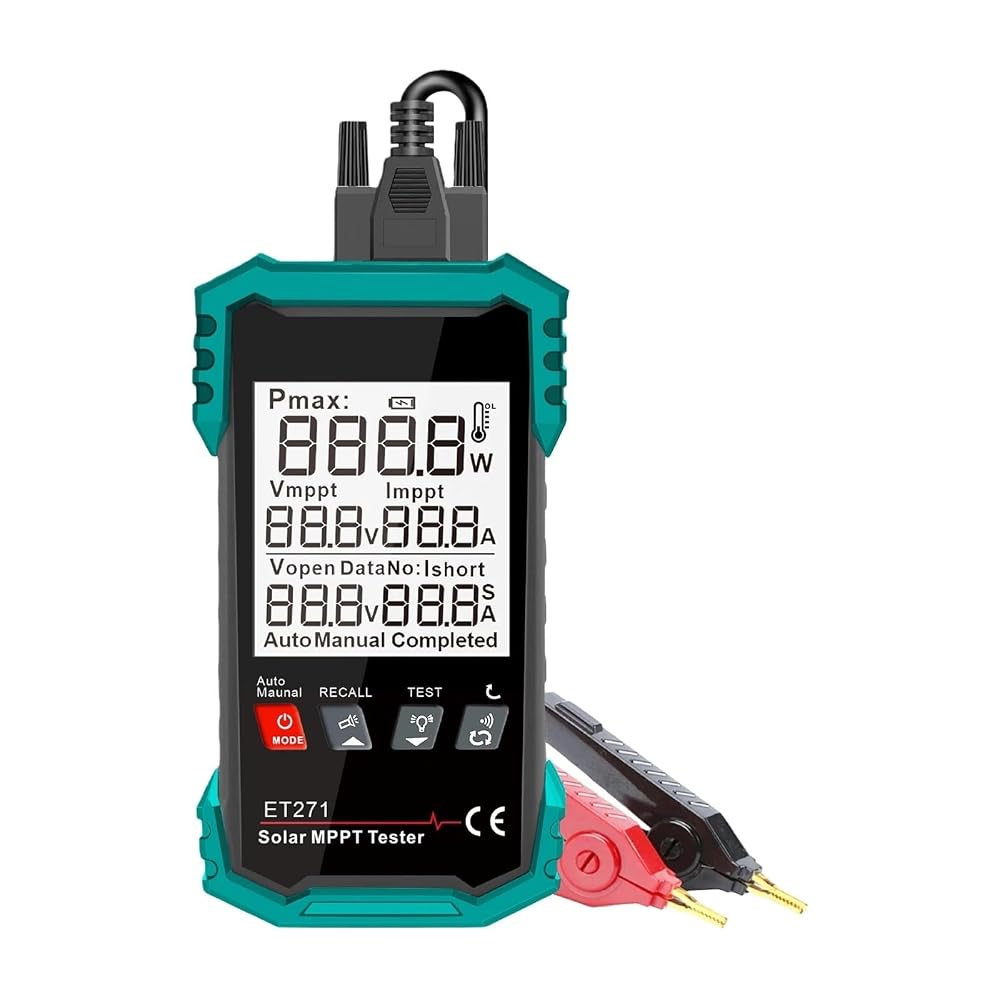

1600W Solar Panel Tester with LCD Display for Photovoltaic Modules

SAR 540
– 1 +

Special Features

  • 1.Dual automatic and manual operating modes allow flexible solar panel testing with a clear digital display showing real-time measurement data.
  • 2.Built-in safety protections include overvoltage, overcurrent, overtemperature, and reverse polarity to help protect both the tester and PV modules.

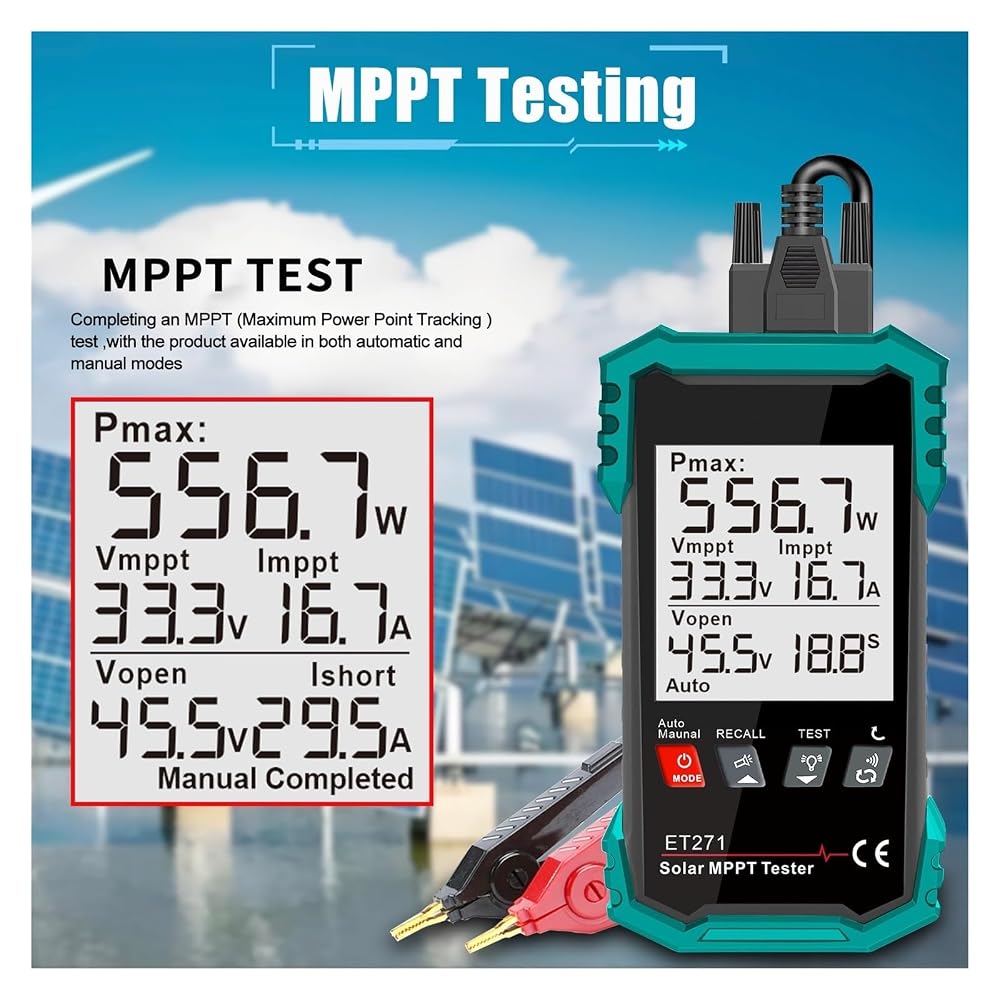

  • 3.Advanced MPPT algorithm supports accurate maximum power point tracking with up to 200 sampling points and storage for 30 test records.

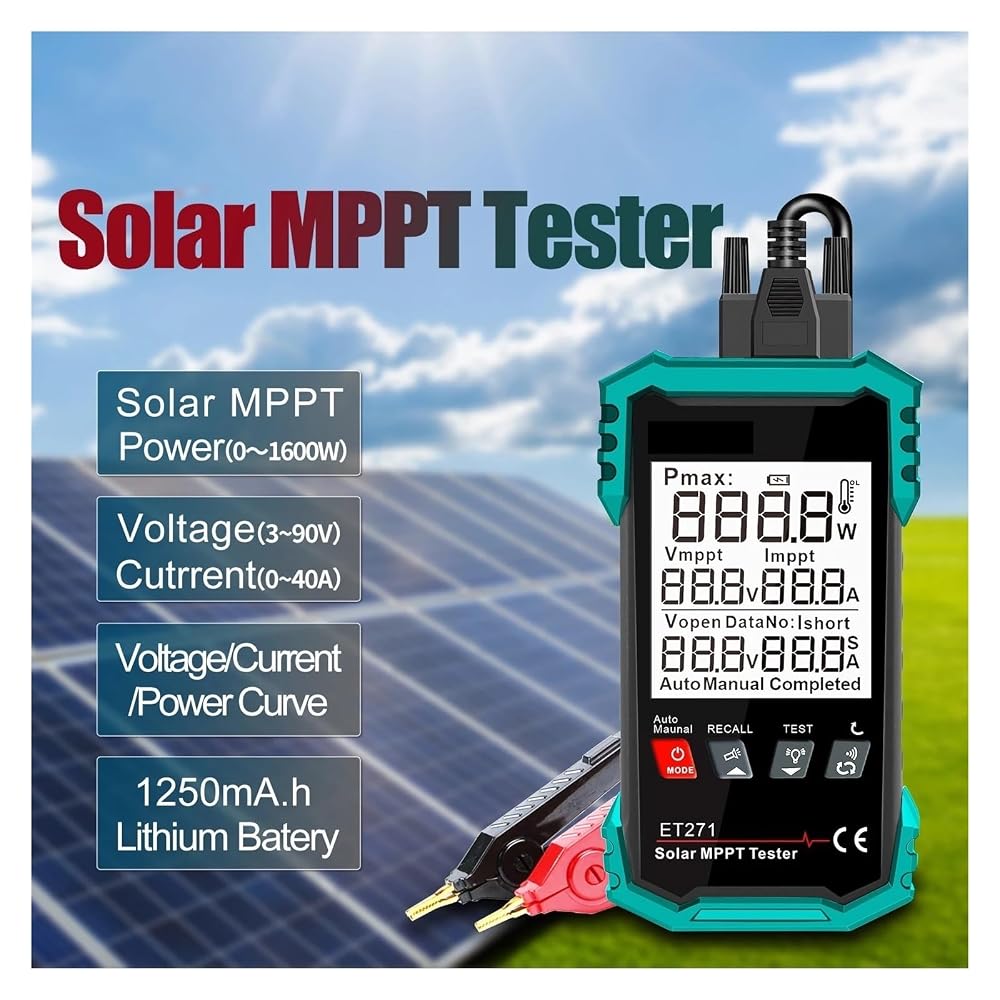

  • 4.Measures key photovoltaic parameters including open-circuit voltage, Pmax, Vmp, and Imp, supporting up to 1600W power, 3–90V voltage, and 0–40A current.
  • 5.Compact and lightweight design with a rechargeable battery enables convenient field testing, featuring data hold, low battery alert, and auto shutoff.
  • Welcome and I wish you a happy life, my friend.

Description

Specification
Housing Material ABS

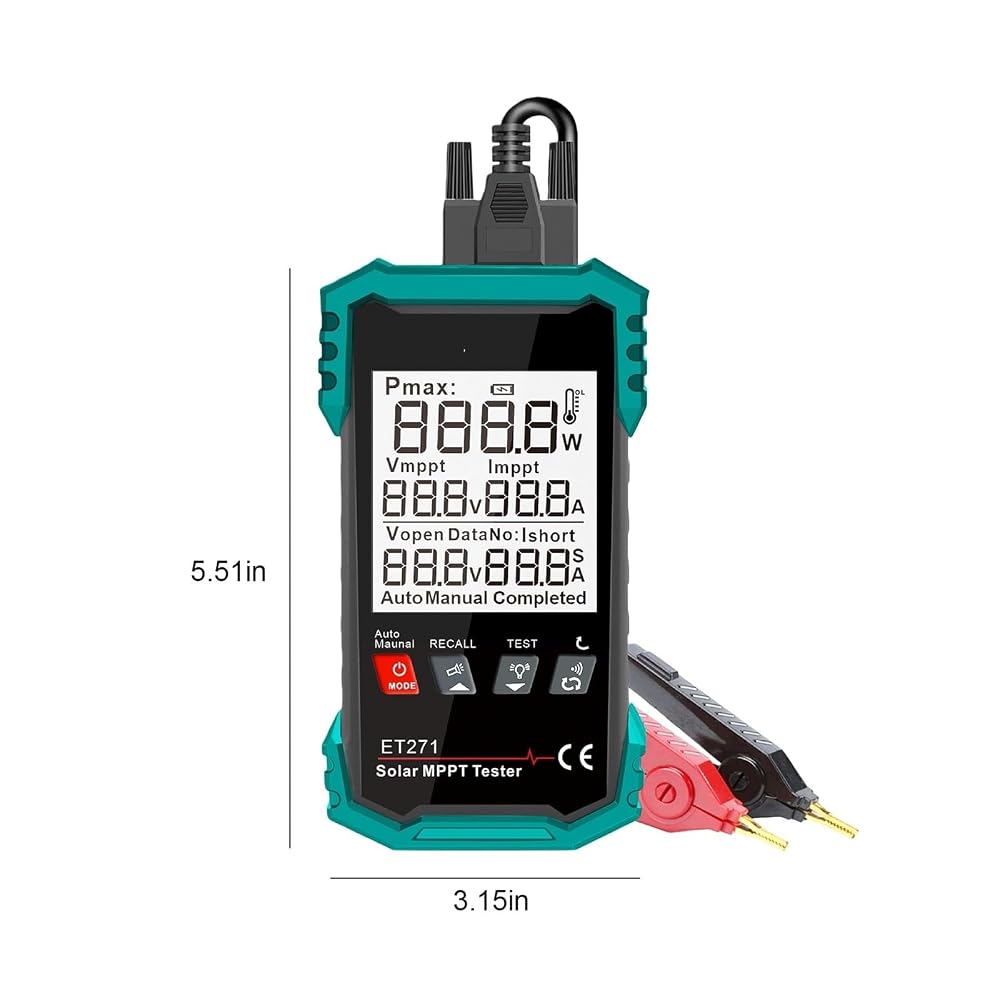

Product size: about 140x80x30mm
Product size: 5.51x3.15x1.18 inch
Battery: 1250mAh rechargeable lithium battery

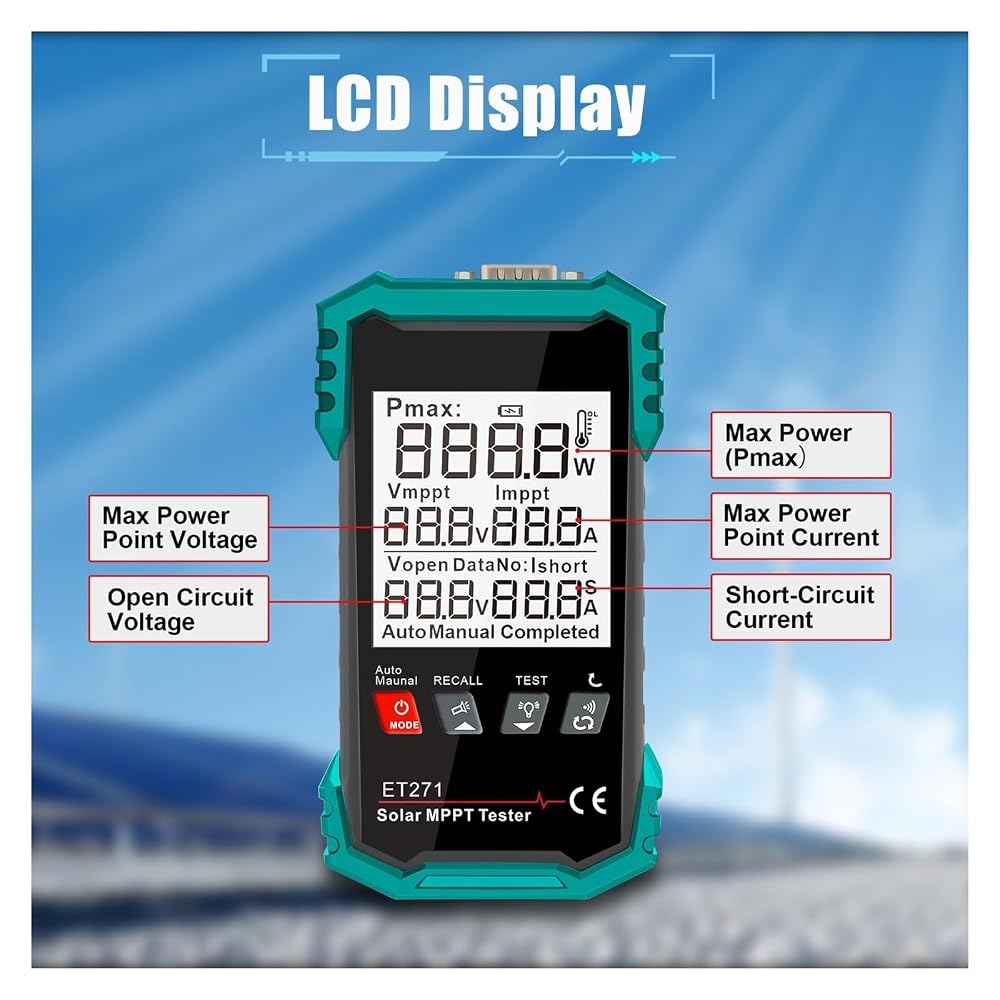

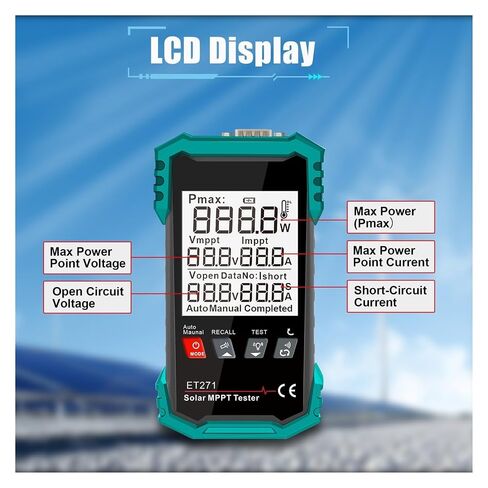

Display: LCD TN55x57mm
Solar Voltage: 3~90.00V/±1.5%+5
Solar Current: 0~40.00A/±1.5%+5
Solar MPPT Power: 0~1600W/±1%+5
Sampling Points: 200-bit group
Data Logging: 30 entries
Interface: DB9
Protection: Overvoltage/Overcurrent/Reverse Polarity/Overtemperature
Low Battery Detection: Yes
Auto Shutdown: Yes
Operating Environment:
Temperature: 0~40
Humidity: 75% at 0~30, 50% at 30~40
Storage Environment:
Note:
Please allow a 1-2 cm difference in measurements due to manual measuring.

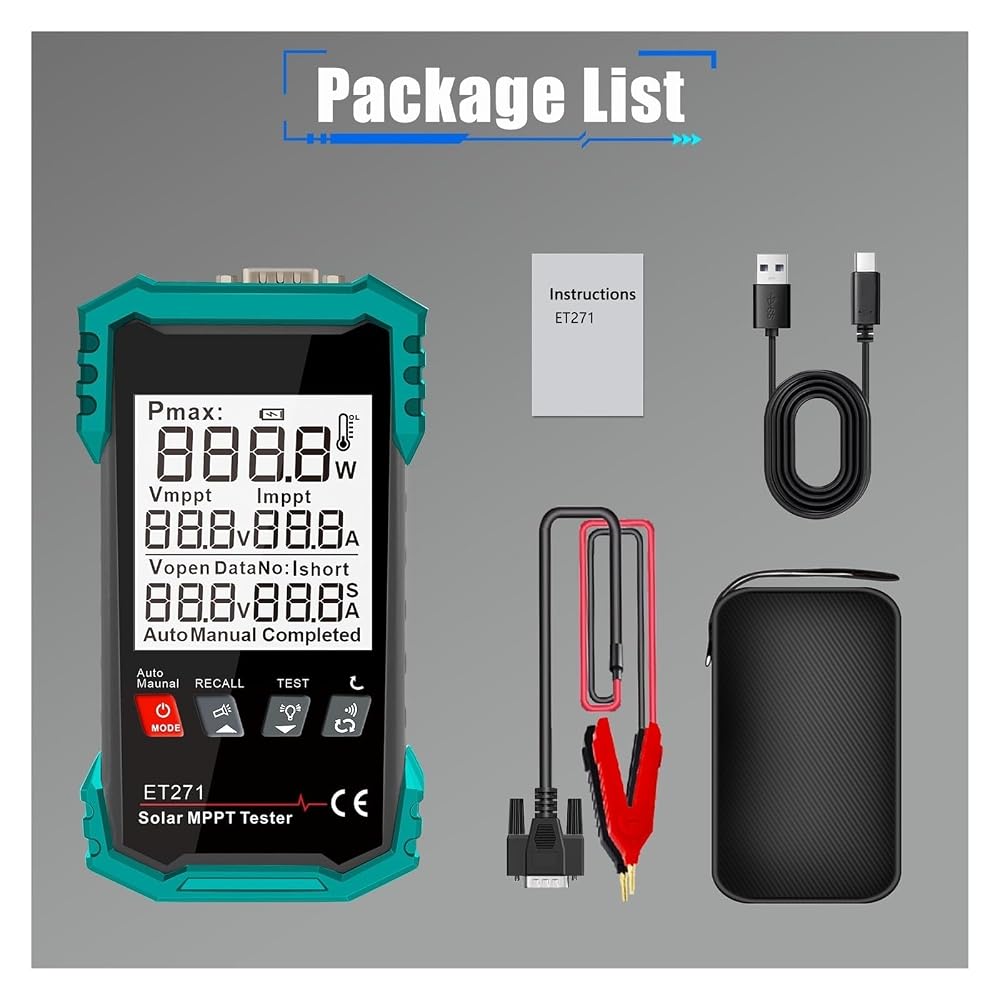

1 x Photovoltaic Tester

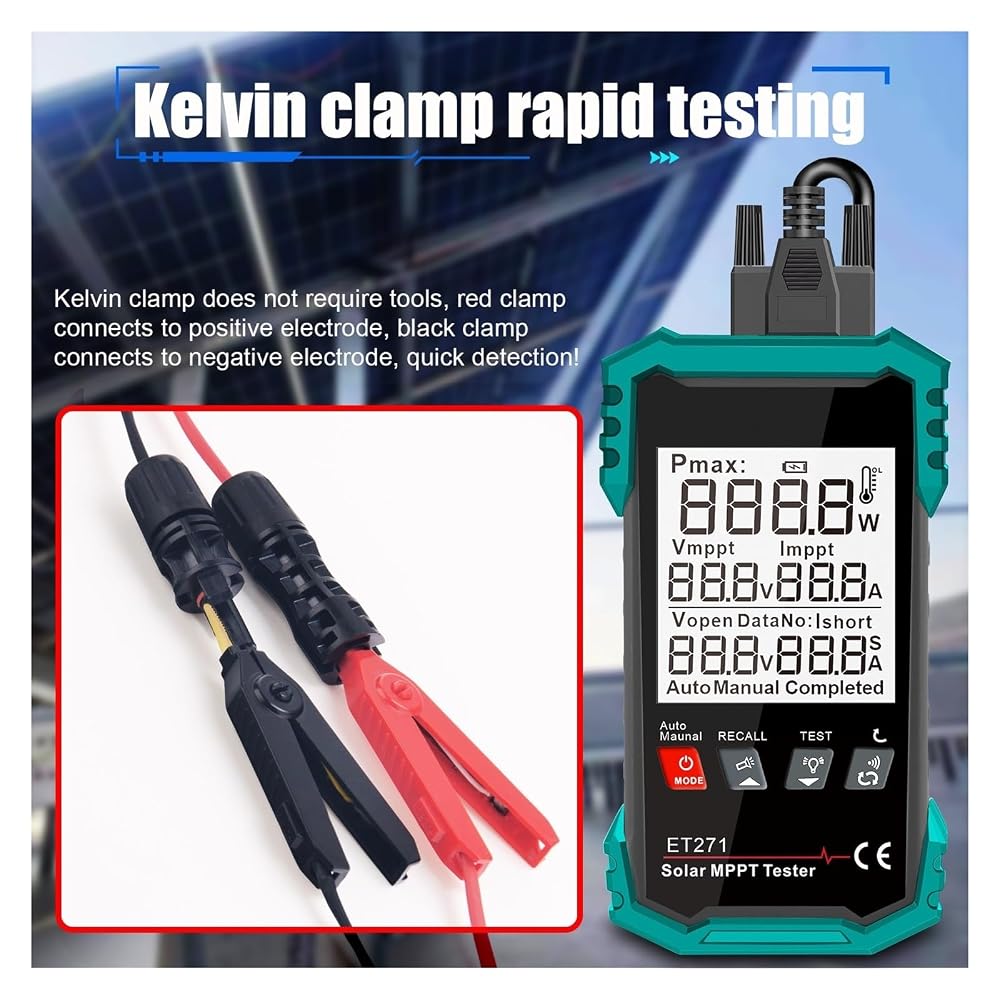

1 x Solar Test Clamp
1 x Type-C Charging Cable
1 x Carrying Case
1 x User Manual
==========
Battery Included : Yes
High-concerned chemical : None
Solar MPPT Power Meter : Solar Panel Tester
Photovoltaic Multimeter : Solar Panel MPPT Tester
