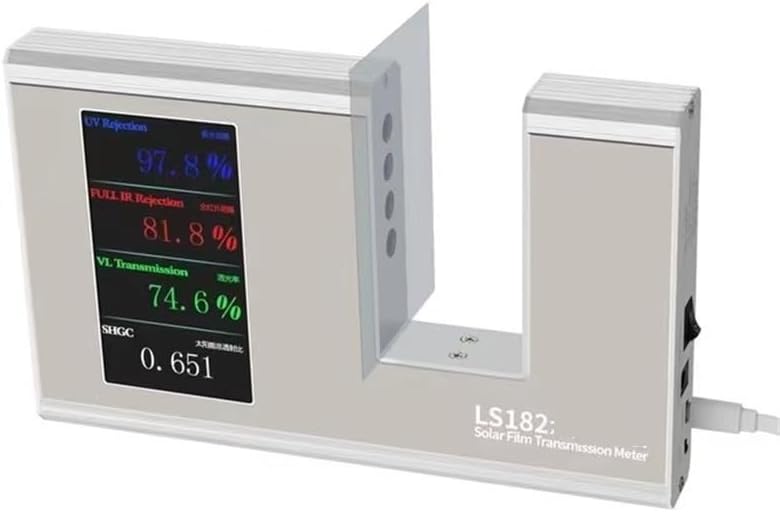

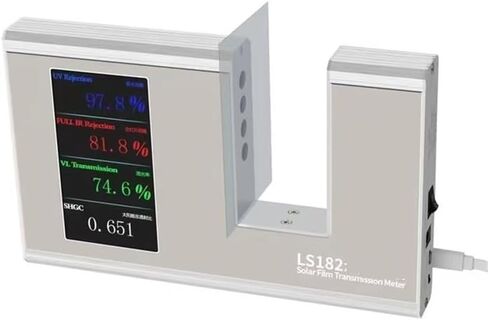

The LS182 solar film transmission meter has a wide range of applications. Due to its parallel light path and wide test slot, it can be used in the solar film industry to test solar films, laminated glass, etc., as well as various large thickness
materials.The SHGC transmission meter can test materials such as the glass and insulating glass and laminated glass in the building door and window industry. The instrument is suitable for using on solar film performance exhibition, production, quality inspection, inspection and other occasions.
1. The solar film transmission meter is suitable for testing the light transmittance, infrared and ultraviolet rejection rate of
automobile film, explosion-proof film, architectural film, heat insulation film and stick-film glass.
2. Six parameters can be measured: 365nm UV rejection rate, 940nm, 1400nm and full infrared rejection rates, visible light
transmittance and SHGC total solar transmittance.

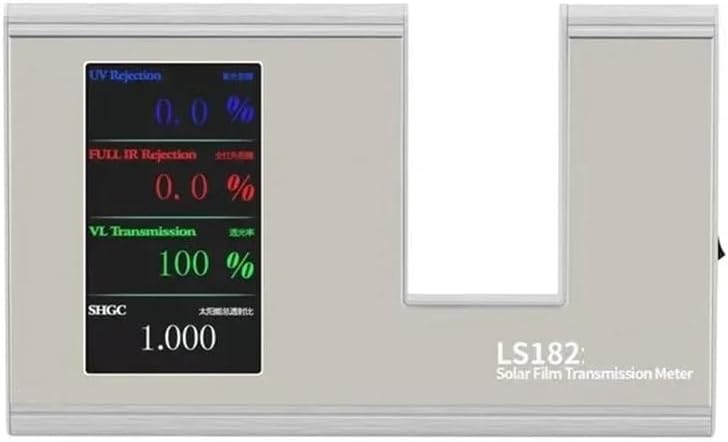

3. The solar film tester has large color LCD display interface which directly display the IR and UV rejection rate.

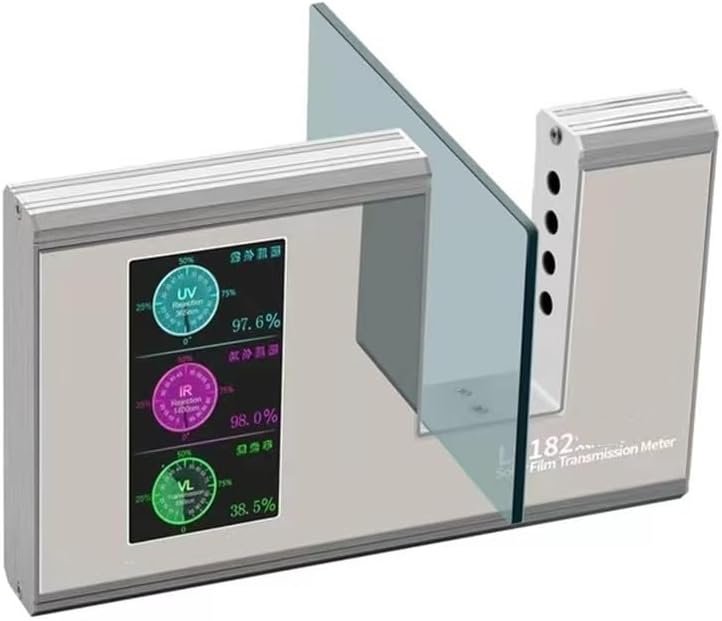

4. Theparallel light path design is used to test large thickness glass with accurate data.
5. The solar film transmission meter has a real-time dynamic self-calibration function, which is automatically calibrated after power-on.

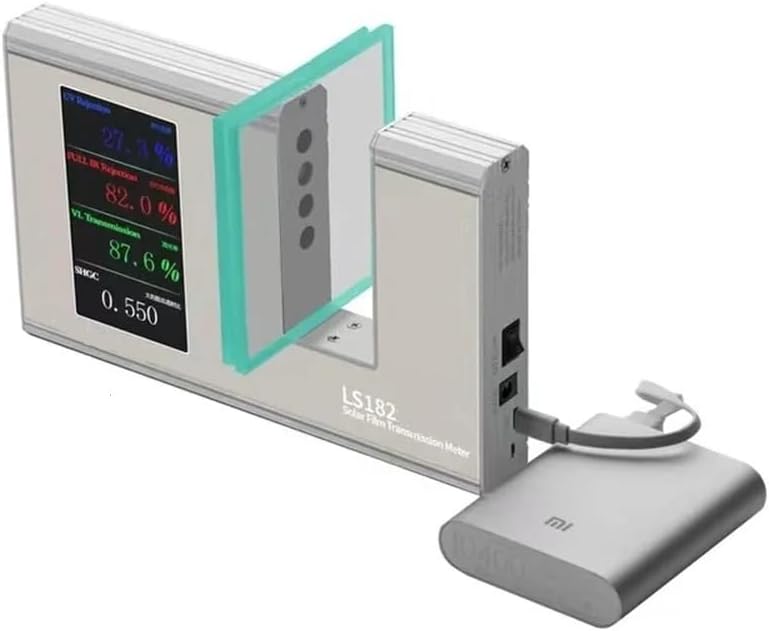

6. The SHGC transmission meter is powered by 5V power supply and has USB interface which can be directly connected to mobile power.
7. The SC shading coefficient can be converted by the SHGC value, SC = SHGC ÷ 0.87 (or 0.889).

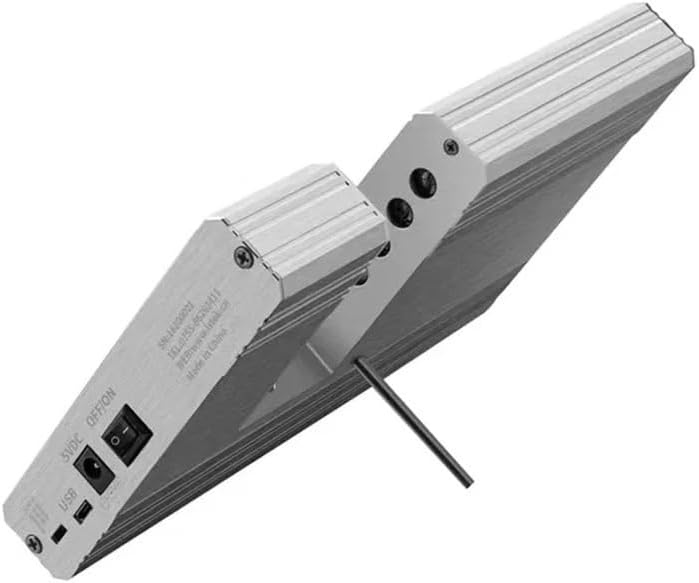

8. A support rod is provided to tilt the instrument for easy reading.
==========
High-concerned chemical : None
Measurement Range : 0-100%
Wavelength Range : 365nm
Weight : Net weight 590g
Size : 216mm *134mm *29mm (L*H*W)
Model Number : LS182
Type : Split Beam Spectrometers
Name : LS182 automatic solar film transmission meter
IR Peak wavelength : 940nm, 1400nm, Full IR and SHGC
Visible light peak wavelength : 380-760nm
Accuracy : Better than ±2% (Colorless and transparent material)
Resolution : 0.1%
Test card slot : 47mm*91mm (W*H)
Feature 1 : 47mm wide slot + Parallel light path
Feature 2 : Large color LCD, Multiple interfaces
Feature 3 : Dynamic calibration, Fast measurement
Power supply : 5V AC/DC Adapter or mobile power (optional)
