KA-300 Linear Displacement Sensor Grinder Digital Grating Ruler KA300 470 520 570 620 670 720 770mm 5um TTL(KA300-5um-520mm)

SAR 1,259
Brand
RQGYUPJBD
Category
Sensors
Weight
349 g
– 1 +

Special Features

  • sensor
  • Widely used and it has stable performance
  • Vertical five bearings sliding system smooth and accurate movement
  • High integration makes the performance be stable
  • The product has a large detection range
  • Industrial Standard Output Signal Interface

Description

sensor
Parameter
Available Measrus Length: 570 620 670 720 770mm
Cross Section: 25mm X 34mm
Accuracy: +/- 3 5 10 (20 degree 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 1um/ 5um(0.001mm/0.005mm)
Output signal: TTL / EIA-422-A
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5% 80mA
Operating temperature:0-45

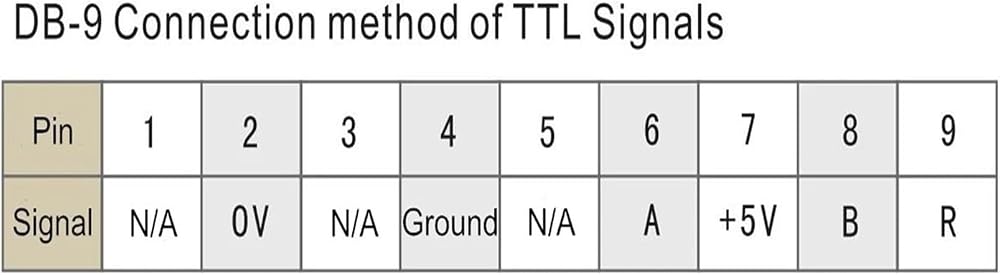

Connetor: 9 Pins
==========
Model : KA-300
Certification : CE
Procut name : KA300 linear

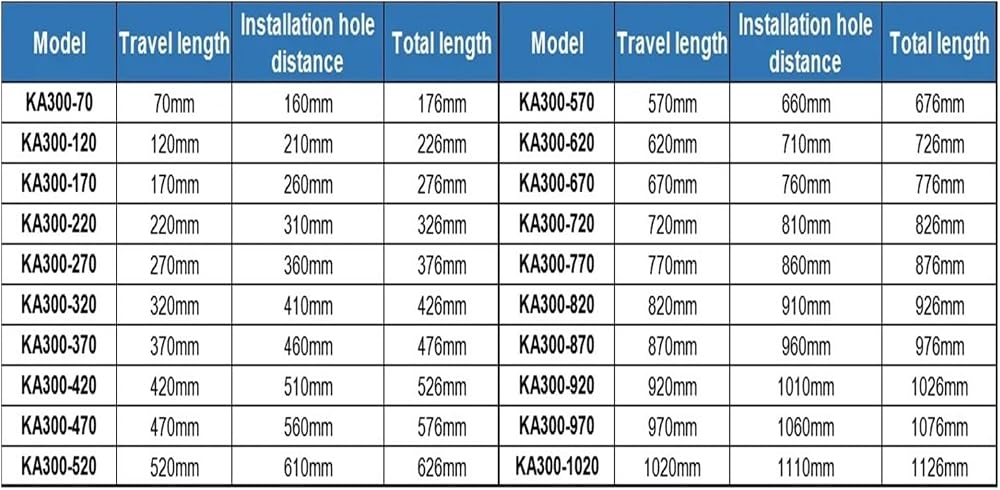

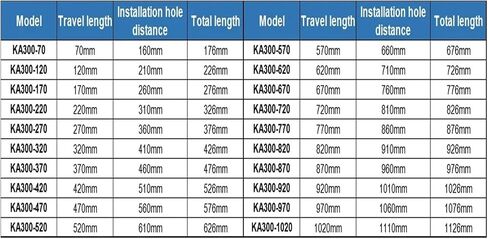

Travel length : 570mm 620mm 670mm 720mm 770mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cable length : 3 meters

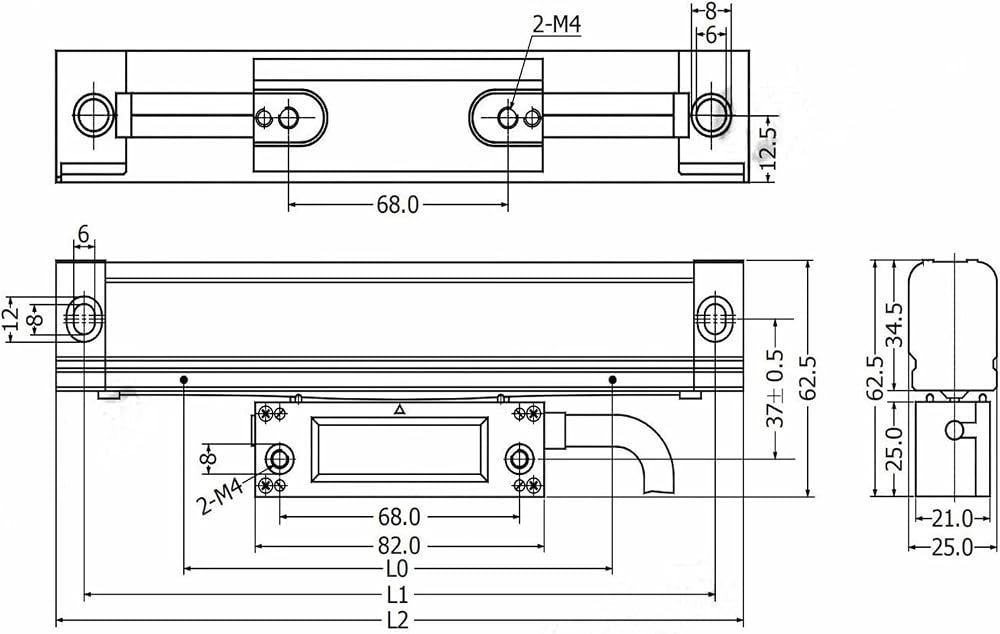

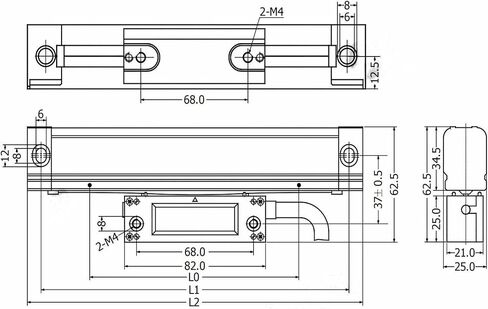

overall length : Travel+106mm
Installation holes distance : Travel+90mm
