KA35 Linear Scale Features
Model: KA35
Travel length(Available measurement): 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm (If you need other length, please contact me)
Total length: available measurement +143mm
Size cross section size: 22mm x 34mm
Input voltage: 5VDC
Output signal: TTL
Resolution: 5um(0.005mm)
Cable length: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins

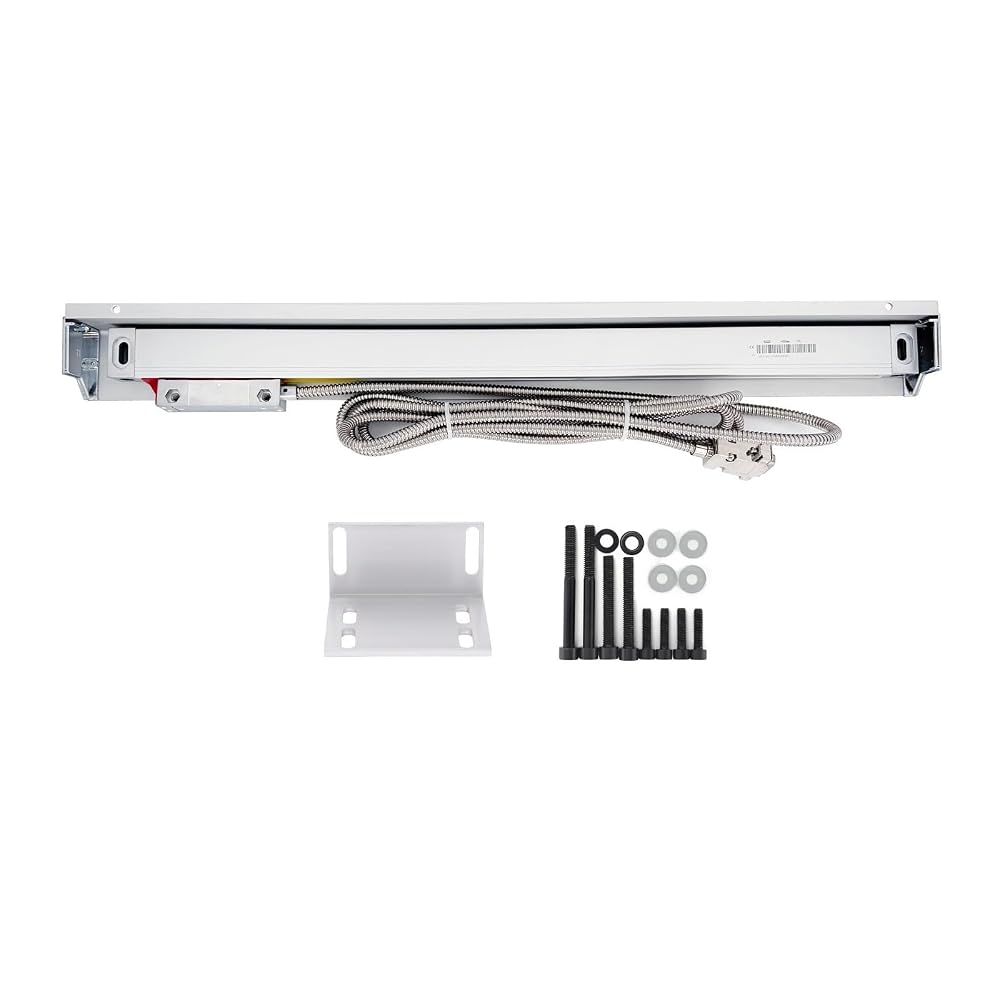

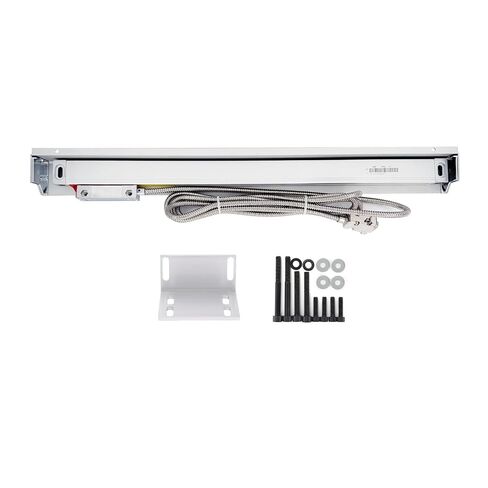

KA35 Package Includes:
1 piece Sino KA35 scale
1 piece mounting bracket
1 piece scale cover
1 bag screws
Model Number : KA35
Certification : CE,RoHS
Available measurement : 100mm~400mm
Total length : measurement+106mm
Size cross section size : 21.6mm*33.5mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 5m/0.005mm
Cable length : 3meters
