Amplifiers

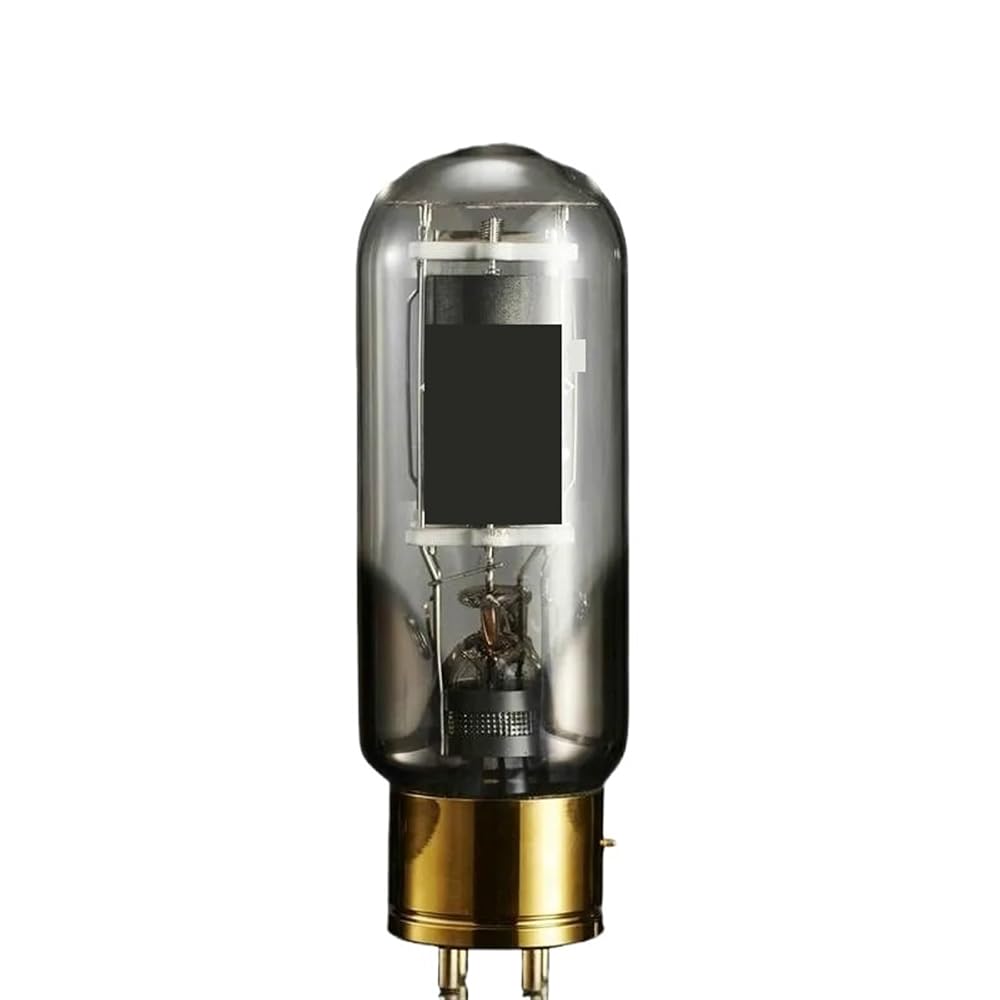

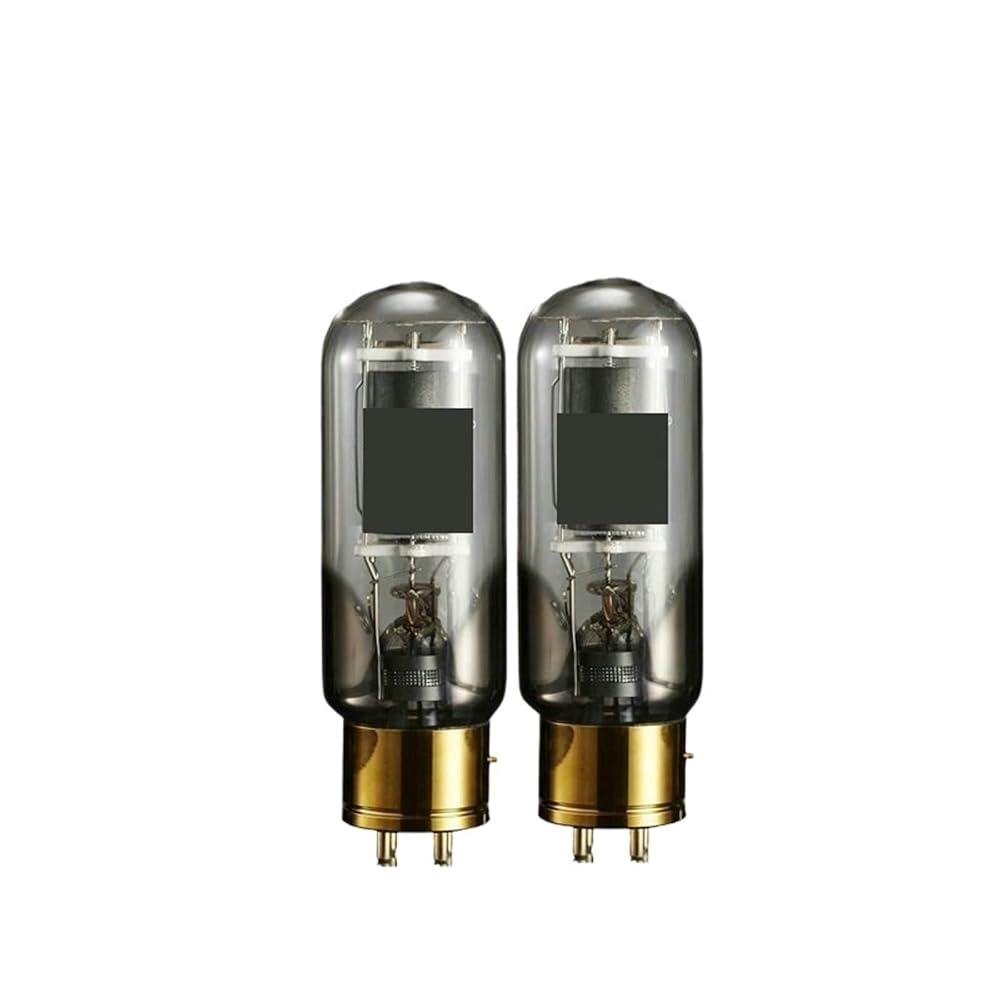

1PCS 805 A805 Vacuum Tube Upgrade 805A 805AT 805M Audio Valve Electronic Tube Amplifier Diy Matched Quad
Ua---------------------------------1500 V
Pa-----------------------------125 W
Recommended Operating Conditions (reference value)
class B(A-F) for two tubes
typical working condition limited parameter
Ua------------------ 1250 1500 1250 V
Ia (mAx.sig per tube)------------------- 210 mA
Pa (in) (mAx.sig per tube)--------------- 315 W
Pa (per t ---------------------------- 125 W
Ug---------------------------------- -16 V
Ug(pk)---------------- 235 280 V
Ia (0)----------------- 148 84 mA
Ia(mAx.sig)---------- 500 600 mA
Pd(mAx.sig)------------ 6 7 W
RL(a-a)--------------- 6.7 8.2 K
Pout(mAx.sig)----------- 300 370 W

High-concerned chemical : None
Model Number : PSVAEN 805A
Maximum Power Per Channel : NO POWER
