Model Number : KA35-100 150 200 250 300 350 400
Certification : CE
Model Number : KA35-100 150 200 250 300 350 400
Operating temperature : 0-50°c
Output mode : TTL
Protection grade : IP54
Interface Typ : DB9
Resolution : 5um/0.005mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage : 5VDC
Cross Section Dimension : 20mm* 18mm
Matchable DRO : the most of China DRO
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cable length : 3 meters

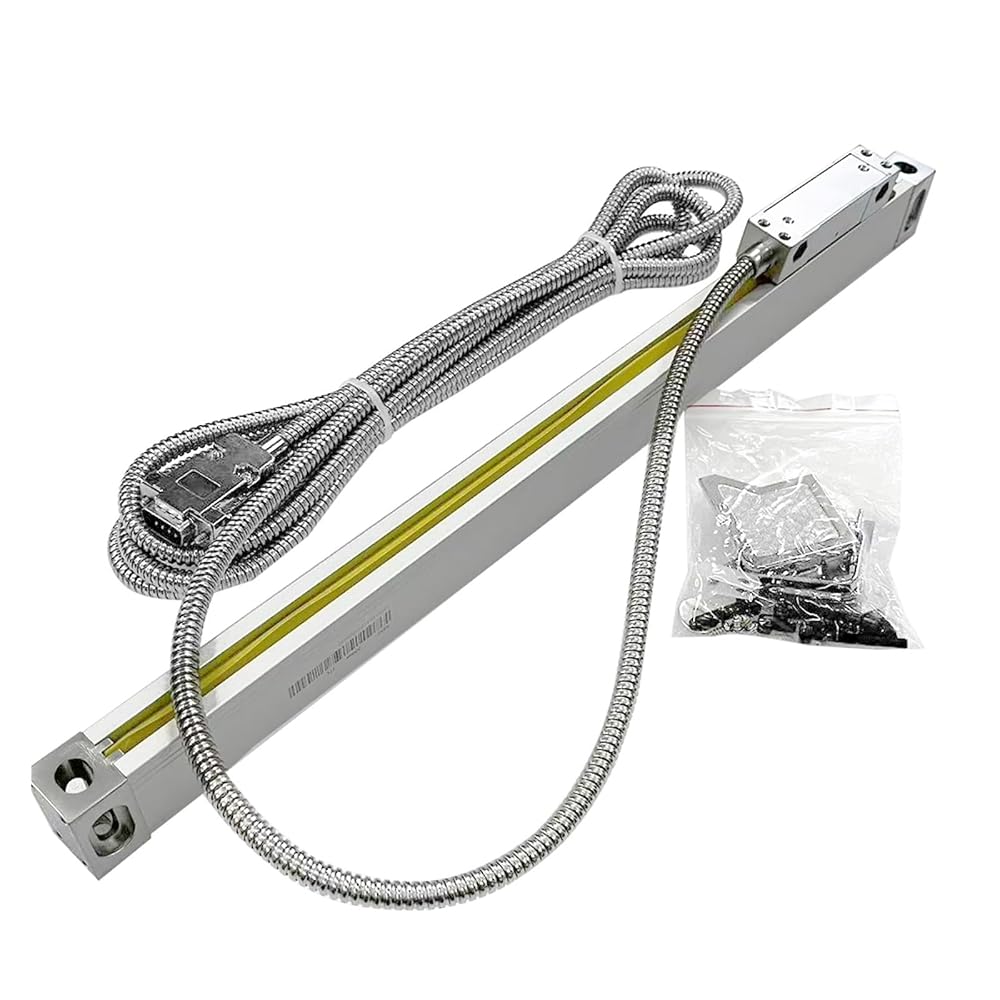

Procut name : DRO linear scale
KA-35 available travel length : 100mm-1000mm
